GE IC695ACC400-AA Migration-Ready CPU Energy Pack for Legacy Control Systems

Overview

GE IC695ACC400-AA Migration-Ready CPU Energy Pack for Legacy Control Systems

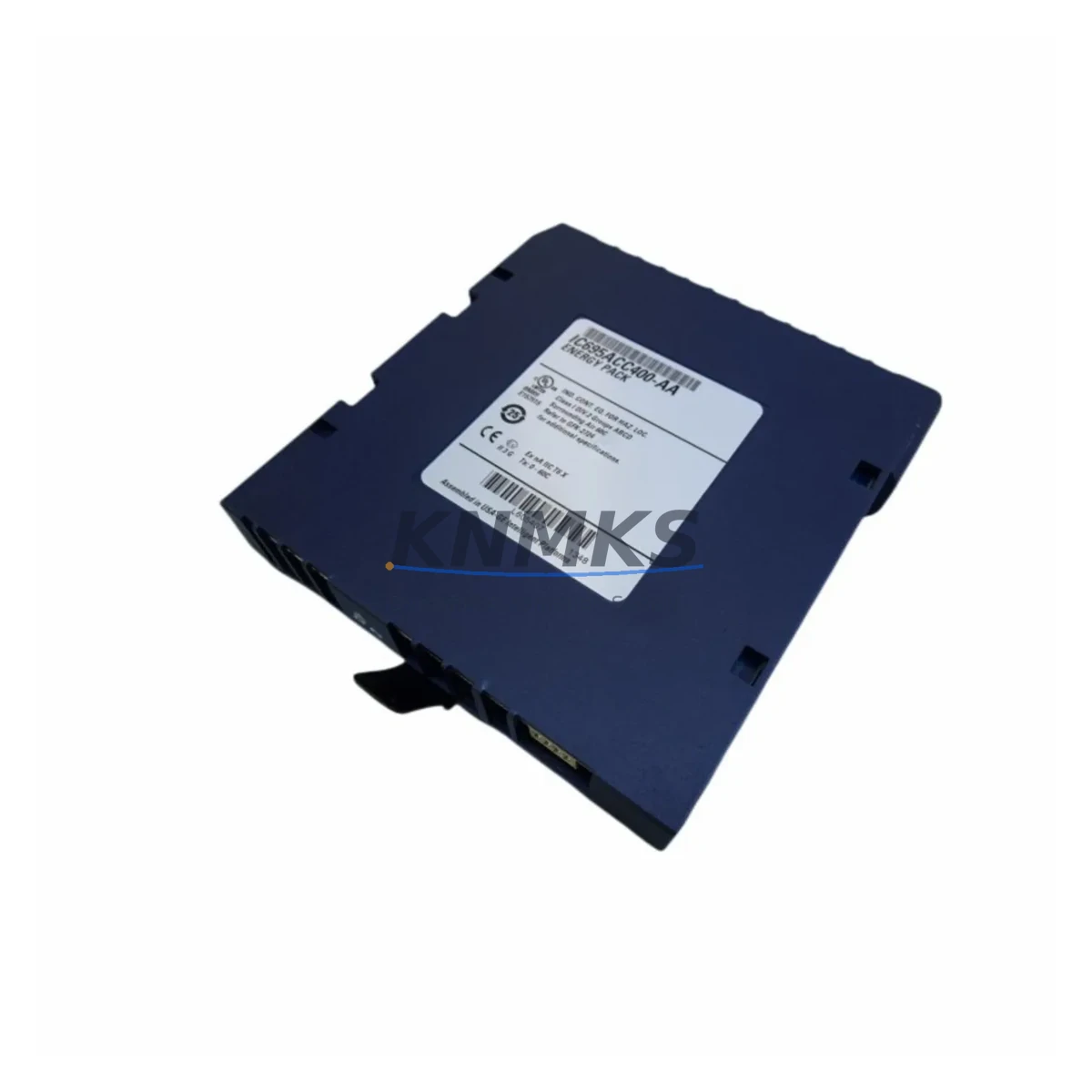

The GE IC695ACC400-AA is a CPU Energy Pack designed for the PACSystems RX3i platform, engineered to sustain CPU memory and real-time clock functions during power interruptions. For facilities running legacy GE Fanuc Series 90-30 or early-generation RX3i controllers, this module represents a critical retrofit component — enabling continuity of control logic without requiring a full CPU board replacement or PLC platform migration.

When replacing a failed or end-of-life energy pack in an existing control cabinet, engineers must verify the target CPU model compatibility. The IC695ACC400-AA is compatible with IC695CPE302, IC695CPE305, and IC695CPE310 CPU modules mounted in the IC695CHS016 or IC695CHS012 universal backplane. Before installation, confirm that the backplane slot assignment and module addressing in the hardware configuration tool (Proficy Machine Edition) match the replacement unit’s expected slot position. Mismatched slot addressing is a common source of post-replacement faults in multi-rack RX3i systems.

Power budget verification is essential during retrofit planning. The IC695ACC400-AA draws its charge from the CPU backplane’s internal bus. When the control cabinet also houses IC695PSD040 or IC695PSA040 power supply modules serving mixed I/O racks — including IC694MDL340 discrete input modules or IC695ALG600 analog I/O modules — the total backplane load must be recalculated to confirm headroom for the energy pack’s trickle charge cycle. Overlooking this step can cause intermittent power faults during high-load production cycles.

For systems migrating from GE Fanuc Series 90-30 CPUs (such as IC693CPU374 or IC693CPU364) to the RX3i platform, the IC695ACC400-AA is part of the standard CPU assembly in the destination rack. The migration path typically involves exporting the legacy ladder logic from Logicmaster 90 or Proficy ME, converting I/O variable references, and re-mapping HMI screen tags that reference CPU internal registers. During this transition, the energy pack ensures that the new CPU retains its program and configuration data through any power cycling that occurs during commissioning.

Communication link continuity is another key consideration. RX3i systems frequently use IC695ETM001 Ethernet modules or IC695PBM300 PROFIBUS master modules for field device integration. When the CPU is replaced or upgraded, the communication module configuration stored in the CPU’s non-volatile memory must be re-validated. The IC695ACC400-AA protects this stored configuration during the brief power interruptions that are common during panel rewiring and terminal block reconnection.

Installation space confirmation is straightforward: the IC695ACC400-AA mounts directly onto the CPU module faceplate using the integrated connector, requiring no additional backplane slot. This is a significant advantage in densely populated control cabinets where rack space is constrained. Firmware version compatibility should be confirmed against the installed CPU firmware — GE Emerson’s release notes specify minimum firmware levels for energy pack recognition on CPE302 and CPE310 variants.

All IC695ACC400-AA units supplied by KNMKS are subject to pre-shipment functional testing, including charge retention verification and connector integrity inspection. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. In-stock inventory supports urgent retrofit and emergency replacement requirements with same-day or next-business-day dispatch available for verified orders.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC695ACC400-AA retrofit begins with a full audit of the existing control cabinet. Engineers should document the current CPU model, backplane type, and all installed modules — including IC695ETM001 Ethernet communication modules, IC695ALG600 analog I/O modules, IC694MDL340 discrete input modules, and any IC695PBM300 PROFIBUS master modules. This inventory forms the basis for the hardware configuration file in Proficy Machine Edition, which must be updated to reflect the replacement CPU assembly before the new energy pack is commissioned.

Terminal block wiring does not require modification for an energy pack replacement, as the IC695ACC400-AA connects exclusively through the CPU faceplate interface. However, if the retrofit is part of a broader CPU board upgrade — for example, moving from IC695CPE302 to IC695CPE310 — terminal wiring to I/O modules in the same rack should be inspected for insulation condition and torque compliance before the system is re-energized. Signal isolators may be required if legacy field wiring uses unshielded cable runs in high-noise environments.

For multi-rack systems using IC695CHS016 backplanes with expansion racks connected via IC695LRE001 LAN interface modules, the energy pack replacement should be coordinated with a full program backup. Export the current CPU program and hardware configuration from Proficy ME before beginning any physical work. This backup protects against data loss if the existing energy pack has already degraded and can no longer sustain memory during the swap procedure.

Downtime Control During System Migration

Minimizing production downtime during an IC695ACC400-AA replacement requires a structured pre-outage checklist. Before the planned maintenance window, perform a full program backup from the online CPU using Proficy Machine Edition’s upload function. Verify that the backup file includes the hardware configuration, variable table, and all program blocks. Store the backup on a local engineering workstation and a secondary network location.

During the physical swap, power down the control cabinet in the correct sequence: disable field outputs first, then remove power from the I/O racks, and finally de-energize the CPU rack. This sequence protects field devices and prevents spurious output signals during the transition. The IC695ACC400-AA can be removed and replaced without tools — the module detaches from the CPU faceplate connector with a firm pull and reseats with positive click confirmation.

After reinstallation, restore power in reverse sequence and allow the CPU to complete its self-diagnostic cycle before downloading the program. Verify communication link status on the IC695ETM001 or IC695PBM300 modules before returning the system to automatic mode. HMI screens connected to the CPU via Ethernet should be checked for tag update continuity — any tags referencing CPU internal memory addresses should be validated against the restored program’s variable table. A controlled test cycle under manual supervision is recommended before resuming full automatic production.

Retrofit Support FAQ

Q: Is the IC695ACC400-AA a direct drop-in replacement for the energy pack on my existing IC695CPE302?
A: Yes. The IC695ACC400-AA is the standard CPU Energy Pack for IC695CPE302, CPE305, and CPE310 modules. It mounts directly on the CPU faceplate connector with no wiring or configuration changes required, provided the CPU firmware meets the minimum version specified in GE Emerson’s release documentation.

Q: Do I need to re-download my PLC program after replacing the energy pack?
A: If the existing energy pack has failed completely and the CPU has lost its stored program, a full program download from your Proficy ME backup will be required. If the swap is performed while the CPU retains power (hot-swap is not supported), a program download is necessary after the replacement. Always perform a full backup before beginning the procedure.

Q: What pre-shipment testing is performed on IC695ACC400-AA units?
A: Each unit undergoes charge retention verification and connector integrity inspection before dispatch. Units that do not meet functional thresholds are quarantined and not shipped. A support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the shipment date.

Q: What is the typical lead time and inventory availability?
A: KNMKS maintains in-stock inventory of IC695ACC400-AA to support urgent retrofit and emergency replacement requirements. Same-day or next-business-day dispatch is available for verified orders. Contact [email protected] or +86 18359268345 to confirm current stock levels and shipping options for your region.
