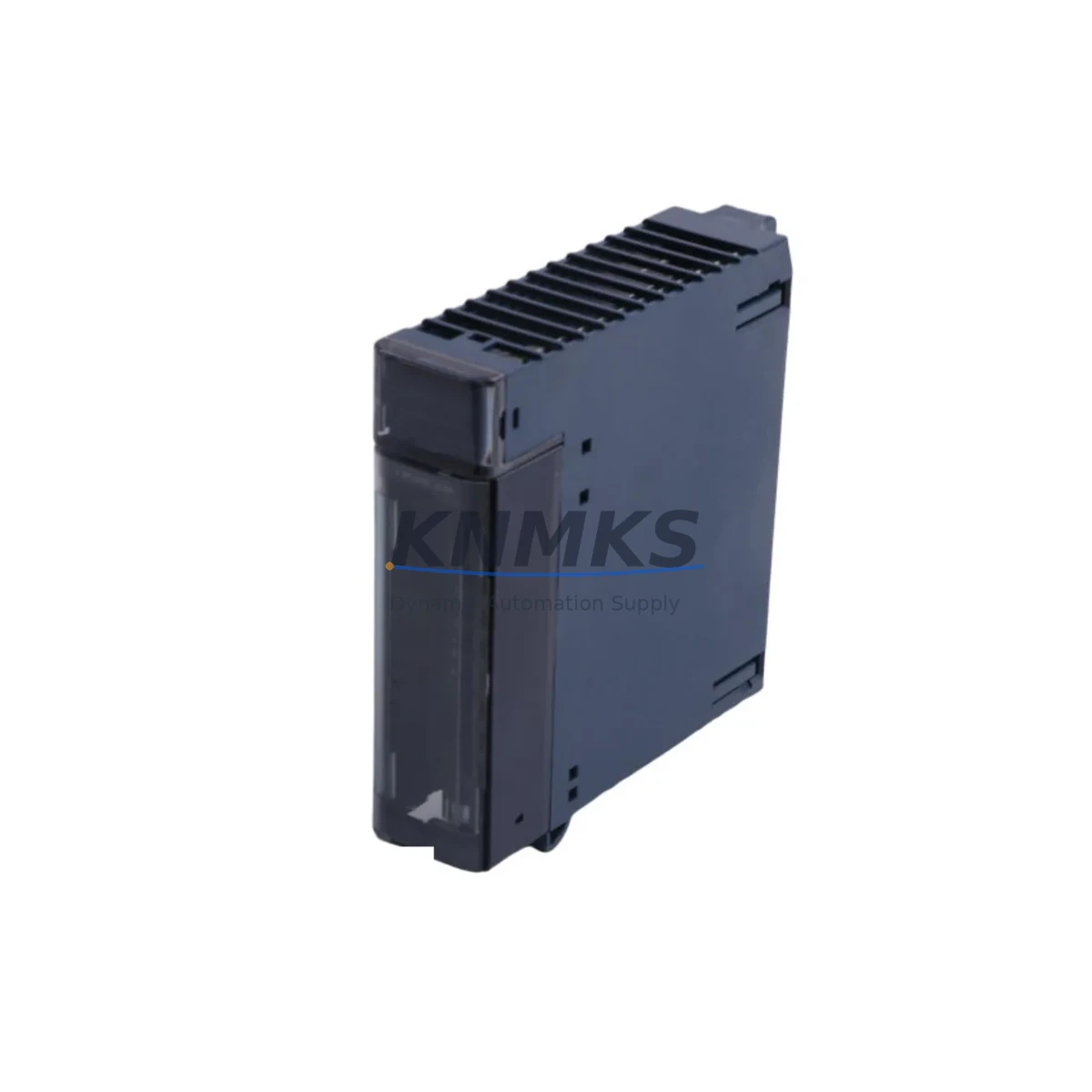

GE IC694MDL930 Fail-Safe Discrete Output Module

Overview

GE IC694MDL930 Fail-Safe Discrete Output Module: Fault-Tolerant Control for Critical Industrial Sites

The GE IC694MDL930 is a 16-point, 120VAC discrete output module engineered for the GE Fanuc Series 90-30 PLC platform. Designed to meet the demanding requirements of continuous production environments, this module delivers fail-safe switching performance across high-electromagnetic-interference (EMI) zones, dusty or humid enclosures, high-temperature control cabinets, and vibration-intensive industrial sites. Whether deployed in petrochemical interlocks, power generation switchgear, mining conveyor control, or water treatment automation, the IC694MDL930 provides the output reliability that safety-critical loops cannot compromise.

Each output channel is individually fused and optically isolated, ensuring that a single-point fault — whether caused by load short-circuit, surge transient, or wiring fault — does not cascade into adjacent channels or upstream CPU logic. This channel-level protection architecture is fundamental to IEC 61511 safety instrumented system (SIS) design principles, where output module integrity directly determines the probability of failure on demand (PFD) for the overall safety function.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered Series 90-30 control cabinet, the IC694MDL930 operates as part of a layered protection architecture. The module slots into the same rack alongside the IC694CPU315 or IC694CPU320 CPU module, sharing the high-speed backplane bus for deterministic scan-cycle output updates — critical for time-sensitive interlock responses in emergency shutdown (ESD) systems.

Power integrity for the rack is typically maintained by the IC693PWR321 or IC694PWR331 power supply module, which provides regulated 5VDC and 24VDC rails with built-in overvoltage and overcurrent protection. Voltage sags, brownouts, or utility switching transients that would otherwise corrupt output states are absorbed at the power supply stage before reaching the IC694MDL930’s output drivers.

For applications requiring analog process variable monitoring alongside discrete output control — common in PID-controlled heating, pressure regulation, or flow management loops — the IC694ALG221 analog input module is frequently co-deployed in the same rack. Signal drift from thermocouple aging or 4–20mA loop degradation is detected at the analog input stage, allowing the CPU to command safe-state outputs through the IC694MDL930 before a process excursion occurs.

In high-EMI environments such as variable frequency drive (VFD) motor control centers or arc furnace switchgear rooms, the IC693CMM321 communications module provides shielded serial or Ethernet connectivity that isolates the PLC backplane from conducted noise on field wiring. Pairing this with the IC694MDL930’s optical isolation ensures that neither the output switching transients nor external field noise propagate into the CPU’s logic execution.

Where safety relay outputs are required for SIL-rated interlock circuits, the IC694MDL930 is commonly used to drive PNOZ X series or equivalent safety relay modules, providing the energize-to-trip or de-energize-to-trip logic interface between the PLC output and the final control element — whether a solenoid valve, motor contactor, or emergency stop relay.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The IC694MDL930 is deployed in burner management systems (BMS) and emergency shutdown (ESD) panels where 120VAC discrete outputs must switch solenoid valves, ignition transformers, and alarm annunciators with zero tolerance for spurious operation. Its optical isolation and surge suppression prevent ground loop currents — endemic in large grounded process plants — from inducing false output states.

Electric Power Generation & Substation Automation: In turbine governor control and generator protection relay panels, the module drives trip coils, breaker close/open commands, and annunciator outputs. The 85–132VAC operating range accommodates utility voltage fluctuations without requiring additional signal conditioning, reducing cabinet component count and potential failure points.

Mining & Mineral Processing: Conveyor belt interlocks, crusher motor starters, and ventilation fan controls in underground or open-pit mining environments subject control hardware to extreme vibration, coal dust ingress, and wide temperature swings. The IC694MDL930’s IEC 60068-2-6 vibration compliance and sealed module housing maintain output integrity under these conditions.

Water & Wastewater Treatment: Pump station automation, chlorination dosing control, and UV disinfection system outputs rely on discrete output modules that can operate continuously in high-humidity, chemically aggressive environments. The module’s non-condensing 95% RH rating and corrosion-resistant housing support long-term deployment in wet well and chemical dosing enclosures.

Metallurgy & Steel Production: Rolling mill drive sequencing, ladle transfer car control, and furnace atmosphere management require output modules that withstand radiated heat, electromagnetic interference from large induction furnaces, and mechanical shock from heavy equipment. The IC694MDL930’s thermal operating range and EMI immunity ratings address these site-specific stressors.

Port & Marine Automation: Ship-to-shore crane PLC panels, ballast water management systems, and cargo handling automation aboard vessels require output modules certified for marine-grade vibration and humidity exposure. The IC694MDL930’s environmental ratings align with the operational demands of offshore and port automation control cabinets.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the IC694MDL930?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions as specified in the GE Fanuc Series 90-30 hardware reference manual. This includes output channel failure, backplane interface faults, and isolation degradation. Support requests are processed with replacement dispatch within 3–5 business days upon fault confirmation.

Q2: What pre-shipment testing is performed before dispatch?
Every IC694MDL930 unit undergoes a full functional output verification test across all 16 channels, an optical isolation integrity check, a backplane communication handshake test with a Series 90-30 CPU, and a visual inspection for physical damage or connector wear. A test report is available upon request for quality-critical procurement processes.

Q3: Is the IC694MDL930 compatible with both Series 90-30 and RX3i racks?
The IC694MDL930 is natively designed for the Series 90-30 5-slot and 10-slot rack backplane. It is not directly compatible with the PACSystems RX3i (IC695 series) backplane without an adapter carrier. For RX3i migration projects, the IC695MDL765 is the recommended equivalent discrete output module. Compatibility verification with your specific rack and CPU revision is recommended before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain forward buffer stock of the IC694MDL930 to support 12-month planned maintenance cycles and unplanned emergency replacements. For facilities operating multiple Series 90-30 racks, we offer volume reservation agreements that guarantee unit availability and fixed pricing over a defined supply period, eliminating lead-time risk from OEM production changes or distributor stock-outs.
