GE IC694MDL646 Migration-Ready Discrete Output Module

Overview

GE IC694MDL646 Migration-Ready Discrete Output Module: Legacy System Retrofit and Control Upgrade

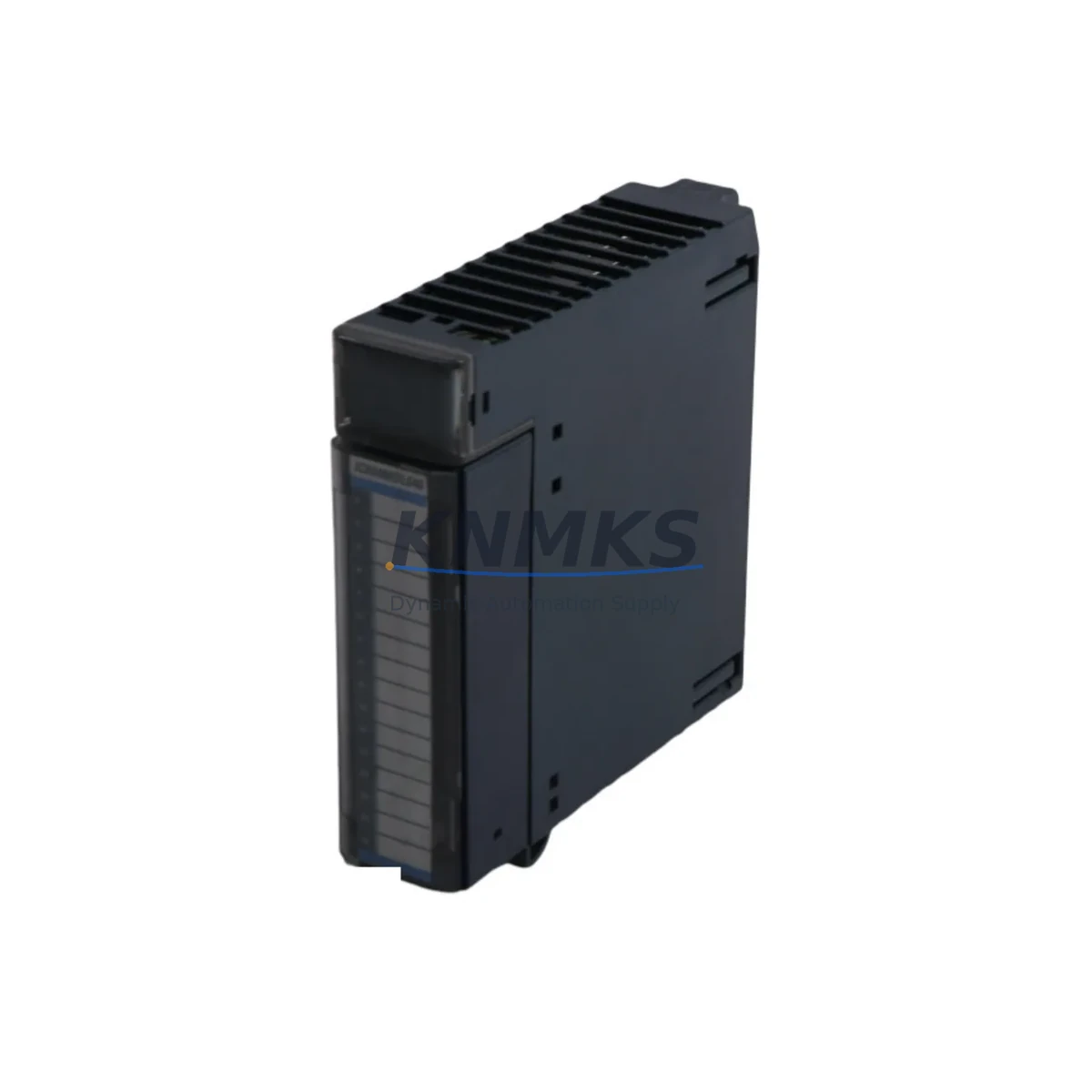

The GE IC694MDL646 is a 16-point, 24VDC sourcing discrete output module designed for the GE PACSystems RX3i platform. As a direct functional replacement for the legacy IC693MDL646 used in Series 90-30 control systems, the IC694MDL646 is a critical component in plant-wide modernization projects where engineers must maintain output signal integrity while transitioning to a more capable control architecture. Whether you are upgrading a legacy Series 90-30 rack to a PACSystems RX3i backplane, consolidating I/O in a retrofit control cabinet, or sourcing a tested spare to extend the operational life of an existing RX3i system, the IC694MDL646 delivers the field-proven reliability that industrial environments demand.

Each unit is pre-shipment tested under load conditions to verify channel-level output switching, current sourcing capacity, and backplane communication integrity. With a support terms confirmed by quotation from date of dispatch and confirmed in-stock availability, the IC694MDL646 supports both emergency replacement scenarios and planned maintenance schedules without extended lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IC694MDL646 into a retrofit project requires a structured review of the surrounding control architecture before the module is installed. In a typical Series 90-30 to PACSystems RX3i migration, the IC694MDL646 is installed into an IC694CHS392 or IC694CHS397 universal backplane alongside the replacement CPU — commonly an IC694CPU310 or IC694CPU320 — and the system power supply, such as the IC694PWR321 or IC694PWR330. Engineers should confirm that the total output current load across all 16 channels does not exceed the power supply’s available 24VDC output budget, particularly in dense I/O configurations where multiple output modules share the same backplane segment.

Terminal block wiring from the legacy IC693MDL646 installation can typically be transferred directly to the IC694MDL646 without re-termination, as the 20-pin removable terminal block pinout is preserved. However, field engineers should verify wire gauge compatibility and terminal torque specifications before reusing existing terminations, especially in installations where the original wiring dates back more than five years.

In systems where the legacy control architecture included a Series 90-30 communications module — such as an Ethernet interface or a DeviceNet scanner — the migration plan must account for protocol continuity. The RX3i platform supports Ethernet Global Data (EGD) and SRTP natively through modules such as the IC694CMM002 communications coprocessor or the IC695ETM001 Ethernet module, allowing existing SCADA and HMI communication links to be re-established with minimal ladder logic changes. Where the original system used a dedicated serial communications link to an operator panel or third-party HMI, the IC694MDL646’s output channel assignments should be verified against the HMI screen tag database to confirm that output coil addresses remain consistent after the CPU migration.

For installations that include analog I/O alongside discrete outputs, the IC694ALG220 or IC694ALG232 analog input modules may be installed in adjacent backplane slots. Module address assignments in Proficy Machine Edition must be reviewed to ensure that the IC694MDL646’s slot position does not conflict with existing I/O map references in the application program. A full hardware configuration download to the replacement CPU is required before any output channel testing begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a discrete output module replacement or full RX3i migration requires preparation that begins well before the maintenance window opens. The IC694MDL646 supports a hot-swap-aware installation sequence when the RX3i CPU is placed in Stop/Fault mode, allowing the module to be seated and the hardware configuration to be verified before the CPU is returned to Run mode. This approach protects the original program logic from unintended output activation during the installation phase.

Prior to the maintenance window, engineers should export the full hardware configuration and ladder logic program from the existing CPU using Proficy Machine Edition, and store a verified backup on an offline programming device. If the migration involves replacing a Series 90-30 CPU with an RX3i CPU, the program conversion utility in Proficy Machine Edition can translate the majority of standard ladder rungs, timer and counter blocks, and I/O references automatically, reducing manual rework to edge cases involving platform-specific function blocks.

During the cutover, output channel states should be forced to a safe de-energized condition before the legacy module is removed. After the IC694MDL646 is installed and the hardware configuration is downloaded, each output channel should be individually forced and verified against the field device response before the system is returned to automatic control. This channel-by-channel verification step, combined with the pre-shipment testing performed on every IC694MDL646 unit prior to dispatch, significantly reduces the risk of discovering a module fault during the live commissioning phase.

For systems where continuous process control is required and a full shutdown is not feasible, a parallel installation strategy — where the new RX3i rack is built and tested offline before being switched into service — is recommended. This approach allows the IC694MDL646 and its associated backplane, power supply, and CPU to be fully commissioned in a staging environment before the final field cutover, compressing the live switchover to a single controlled transfer of field wiring and communication links.

Retrofit Support FAQ

Q: Is the IC694MDL646 a direct replacement for the IC693MDL646 in a Series 90-30 rack?
A: No — the IC694MDL646 is designed for the PACSystems RX3i backplane and cannot be installed directly into a Series 90-30 rack. The migration path requires replacing the Series 90-30 rack and CPU with RX3i equivalents. The field wiring terminal block and output channel assignments are compatible, which simplifies the wiring transition.

Q: What commissioning steps are required after installing the IC694MDL646?
A: After seating the module in the RX3i backplane, a full hardware configuration download from Proficy Machine Edition is required. Each output channel should be individually forced and verified against the connected field device before the CPU is returned to Run mode. Pre-shipment testing confirms module-level functionality, but field-level verification of wiring continuity and load response is always recommended.

Q: How is the support terms confirmed by quotation applied, and what does it cover?
A: The support terms confirmed by quotation begins from the date of dispatch and covers manufacturing defects and functional failures under normal operating conditions. Each IC694MDL646 unit is pre-shipment tested for output channel switching, current sourcing capacity, and backplane communication before dispatch. Support requests are handled directly through KNMKS — contact [email protected] for support.

Q: What is the typical lead time, and is stock available for immediate dispatch?
A: The IC694MDL646 is maintained availability confirmed by RFQ for immediate dispatch. Orders confirmed before the daily dispatch cutoff are typically shipped the same business day. For bulk orders or long-term supply agreements covering 12–36 months of planned consumption, contact KNMKS directly to discuss reserved stock arrangements and volume pricing.
