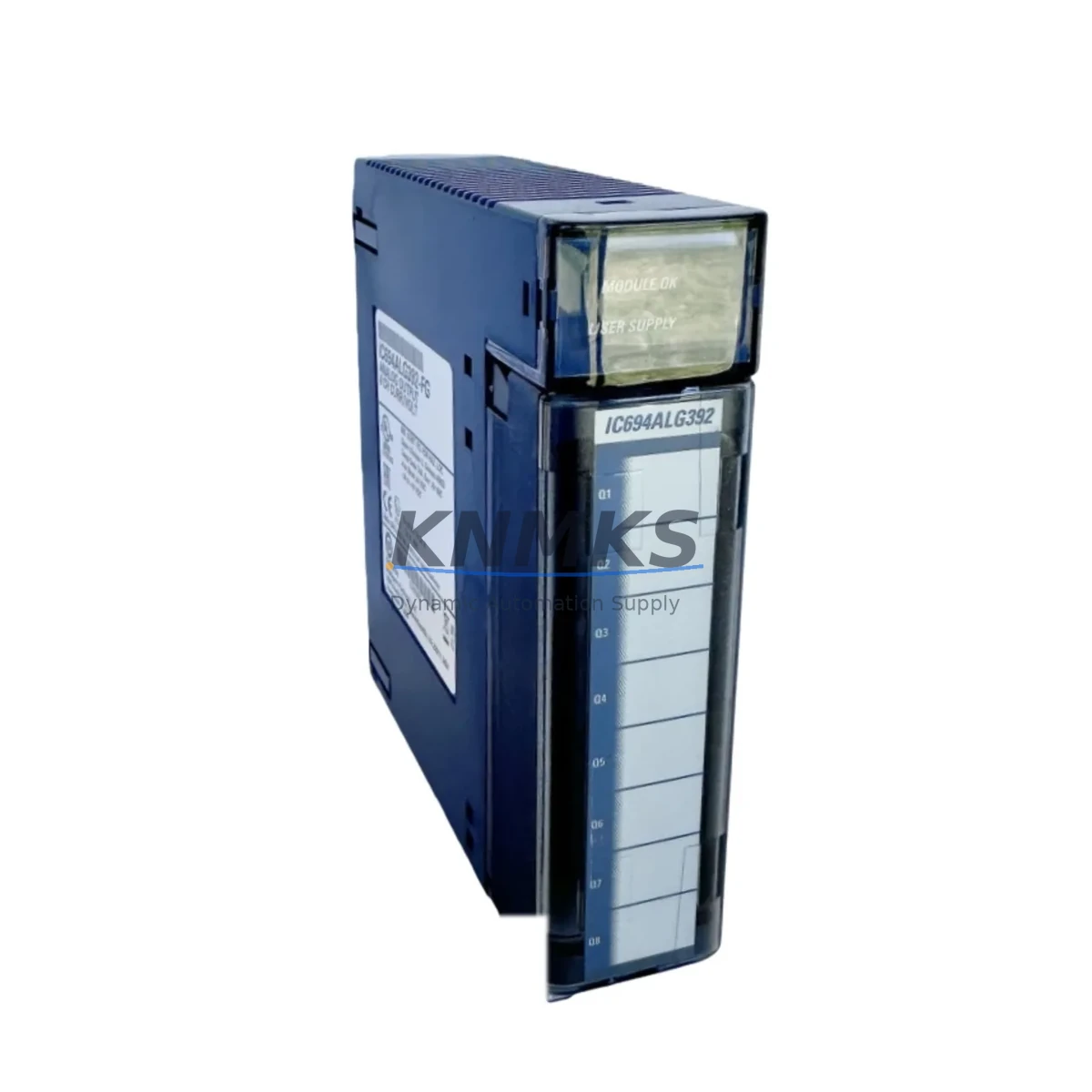

GE IC694ALG392-FG Migration-Ready Analog Output Module for Legacy Control Systems

The GE IC694ALG392-FG is an 8-channel analog output module designed for the GE PACSystems RX3i platform, and it remains one of the most sought-after retrofit components for facilities transitioning away from legacy Series 90-30 and early RX3i control architectures. Whether your plant is executing a phased migration, recovering from an unplanned failure of a discontinued module, or consolidating aging control cabinets into a modernized automation backbone, the IC694ALG392-FG provides a verified, wiring-compatible replacement path that minimizes engineering rework and reduces total downtime exposure.

Each unit shipped by KNMKS is sourced from controlled inventory channels, subjected to pre-shipment functional testing across all 8 output channels, and backed by a support terms confirmed by quotation covering hardware defects under normal industrial operating conditions. Global logistics support is available for urgent retrofit deployments across energy, petrochemical, water treatment, and discrete manufacturing sectors.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC694ALG392-FG retrofit begins well before the module arrives on-site. The first step is a thorough audit of the existing rack configuration. In most legacy RX3i installations, the IC694ALG392-FG shares a rack with power supply modules such as the IC695PSA040 or IC695PSD040, and the available wattage budget must be recalculated whenever additional output modules are introduced or repositioned. Facilities running mixed racks that include IC694MDL754 discrete output modules or IC694ALG221 analog input modules should pay particular attention to slot sequencing, as PME hardware configuration files are slot-position-sensitive.

Terminal wiring is the most common source of commissioning delays during analog output retrofits. The IC694ALG392-FG uses a removable terminal block, and field wiring from legacy installations — particularly those originally connected to IC693ALG392 modules on Series 90-30 racks — may require re-termination or the use of signal conditioning adapters to match the RX3i terminal layout. Where 4–20 mA loops feed downstream instruments such as control valves, variable frequency drives, or positioners, each loop should be verified for continuity and correct polarity before enabling outputs in the PLC program.

For sites that rely on HMI visualization through iFIX, CIMPLICITY, or third-party SCADA platforms connected via the IC695ETM001 Ethernet module, analog output tag bindings should be validated against the updated %AQ address map before the new module is brought online. If the retrofit also involves upgrading the CPU from an IC695CPE305 to an IC695CPE330 or IC695CPE400, the program logic should be re-compiled and downloaded using the latest Proficy Machine Edition release to ensure full compatibility with the new hardware configuration. Communication links to remote I/O drops using IC695RMX128 or similar expansion modules should be tested under live conditions prior to final handover.

Where the retrofit scope extends to replacing aging communication infrastructure, sites may also need to evaluate the IC695PBM300 PROFIBUS master module or IC695CMM002 serial communications module if legacy field devices rely on non-Ethernet protocols. Addressing these dependencies during the planning phase — rather than discovering them during a live cutover — is the single most effective way to compress total retrofit duration.

Downtime Control During System Migration

Minimizing production interruption during an analog output module replacement requires a structured cutover plan. The recommended approach is to perform a full program backup from the IC695CPE330 or IC695CPE400 CPU using Proficy Machine Edition before any hardware is disturbed. This backup should be stored both locally and on a secure network share, and the hardware configuration file should be exported separately so that slot assignments and I/O forcing states are preserved.

Where process conditions allow, analog outputs should be forced to their safe-state values — typically 4 mA for current loops or 0 V for voltage outputs — before the module is physically removed. This prevents uncontrolled actuator movement during the swap window. The IC694ALG392-FG can typically be installed and recognized by the CPU within minutes of power restoration, provided the hardware configuration in PME already reflects the correct module type and slot position.

For critical continuous processes where even brief output interruptions are unacceptable, a parallel commissioning approach is recommended: install the new module in an adjacent available slot, configure it in PME, verify all channel outputs against reference instruments, and then perform a controlled switchover of field wiring terminal blocks. This approach keeps the original module active until the replacement is fully validated, reducing the risk window to the duration of the terminal transfer rather than the full commissioning cycle.

Post-swap verification should include a channel-by-channel output sweep across the full engineering range, confirmation that HMI faceplate values track correctly, and a review of any alarm conditions that may have been triggered during the outage window. KNMKS recommends retaining the replaced module as a temporary spare for a minimum of 30 days following successful commissioning, providing a rapid fallback option if latent issues emerge under production load.

Retrofit Support FAQ

Q: Is the IC694ALG392-FG a direct drop-in replacement for the IC694ALG392 (without the -FG suffix)?
A: Yes, the -FG suffix denotes a conformal-coated variant for enhanced environmental protection. It is electrically and mechanically identical to the standard IC694ALG392 and installs in the same RX3i backplane slot without any hardware configuration changes in PME. Both variants share the same %AQ address mapping and terminal block pinout.

Q: What pre-shipment testing does KNMKS perform on the IC694ALG392-FG?
A: Each unit undergoes functional output verification across all 8 channels in both voltage and current output modes prior to shipment. A test report is available on request. Units are shipped in anti-static packaging with individual serial number documentation to support traceability requirements in regulated industries.

Q: Can this module be used in a Series 90-30 (IC693) rack?
A: No. The IC694ALG392-FG is designed exclusively for the GE PACSystems RX3i backplane architecture. It is not compatible with IC693 Series 90-30 racks. Customers migrating from Series 90-30 to RX3i will require a full rack replacement including an RX3i backplane (IC695CHS012 or equivalent), a compatible CPU, and a reconfigured power supply module.

Q: What is the support terms coverage and what does it include?
A: KNMKS provides a support terms confirmed by quotation from the date of shipment covering manufacturing defects and hardware failures under normal operating conditions. The support terms includes advance replacement support for critical applications where lead time cannot be tolerated. Support requests are processed via [email protected] with a typical response time of one business day.
