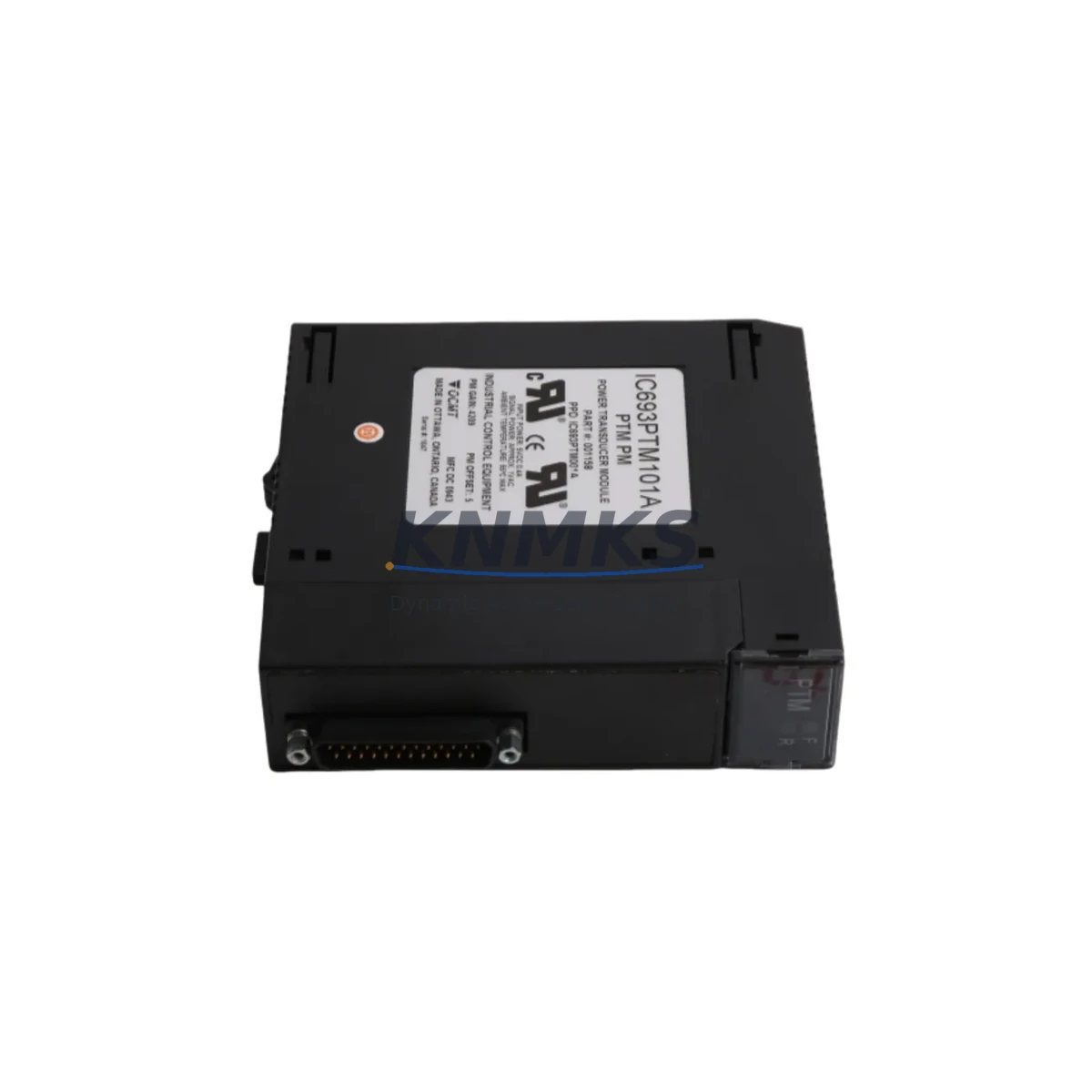

GE IC693PTM101A Fail-Safe Power Transducer Module

Overview

GE IC693PTM101A Fail-Safe Power Transducer Module: Critical Industrial Control Reliability

The GE IC693PTM101A is a precision Power Transducer Module engineered for the GE Fanuc Series 90-30 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — from petrochemical processing plants and power generation facilities to mining operations, water treatment systems, and continuous manufacturing lines — this module delivers the fail-safe power measurement and signal conditioning performance that critical control loops depend on.

In high-stakes industrial settings, power quality directly determines process safety. Voltage sags, harmonic distortion, transient surges, and ground faults can corrupt analog measurement chains, trigger nuisance trips in safety interlocks, or cause undetected signal drift that leads to costly unplanned shutdowns. The IC693PTM101A addresses these risks by providing accurate, isolated power transducer functionality within the Series 90-30 backplane, ensuring that the PLC’s control logic receives clean, stable measurement data regardless of upstream power disturbances.

KNMKS maintains verified stock of the IC693PTM101A with a support terms confirmed by quotation and mandatory pre-shipment functional testing on every unit. Each module is inspected for backplane connector integrity, firmware version compatibility, and analog output accuracy before dispatch — eliminating the risk of receiving a degraded spare that fails at the worst possible moment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The IC693PTM101A does not operate in isolation — its reliability is amplified when deployed alongside a well-engineered Series 90-30 control cabinet architecture. In continuous production environments, the module is typically installed in the same rack as the GE IC693CPU374 or IC693CPU364 central processing units, which handle the ladder logic execution that depends on accurate power measurement data from the PTM101A. Any signal drift or measurement error from a degraded transducer module propagates directly into the CPU’s control decisions, making module quality non-negotiable.

On the power supply side, the GE IC693PWR321 and IC693PWR330 rack power supply modules provide the regulated 5 VDC and 24 VDC rails that the IC693PTM101A and its companion I/O modules require. In facilities with unstable utility power — common in mining, port operations, and heavy metallurgical plants — pairing the PTM101A with a high-quality rack PSU and an upstream isolation transformer is a standard protection strategy that prevents backplane noise from corrupting transducer readings.

For analog signal integrity in high-EMI cabinets, the GE IC693ALG392 analog input module is frequently deployed alongside the IC693PTM101A to handle additional process variable measurements. Shielded cable routing, proper cabinet grounding, and ferrite suppression on field wiring are essential complements to the module’s built-in isolation. In safety interlock circuits, the GE IC693MDL940 relay output module is commonly used in the same rack to execute trip commands based on the power quality data the PTM101A provides — creating a closed-loop protection architecture that responds to abnormal power conditions before they escalate to equipment damage or process safety incidents.

For distributed control architectures, the GE IC693CMM321 communications module enables the Series 90-30 rack to exchange power measurement data with supervisory SCADA systems or DCS platforms, ensuring that the IC693PTM101A’s readings are available for plant-wide energy management and predictive maintenance programs.

Critical Industrial Safety Applications

The IC693PTM101A is deployed across a broad spectrum of critical industrial applications where power measurement accuracy directly affects process safety and operational continuity.

In petrochemical and refinery facilities, the module monitors power consumption in motor control centers driving compressors, pumps, and agitators. Abnormal power factor readings detected by the PTM101A can indicate developing motor faults, bearing wear, or process overloads — enabling predictive maintenance interventions before a catastrophic failure triggers an emergency shutdown or, worse, a safety incident in a hazardous area.

In power generation and substation control environments, the IC693PTM101A provides the power transducer functionality needed to monitor auxiliary loads, excitation systems, and protection relay power supplies. Accurate, isolated power measurement is essential in these environments where ground faults and high-voltage transients are constant threats to control system integrity.

In mining and mineral processing operations, the module operates in control cabinets exposed to heavy dust ingress, high vibration from crushing and conveying equipment, and significant electrical noise from variable frequency drives. Its robust design and galvanic isolation make it a dependable choice for longwall mining control systems, conveyor drive monitoring, and ventilation fan power management.

In water and wastewater treatment plants, the IC693PTM101A supports energy monitoring for high-power pump stations and aeration blowers, where continuous operation is a regulatory requirement. Unplanned downtime in these facilities can have direct public health consequences, making fail-safe control hardware a compliance necessity, not merely a best practice.

In metallurgical and steel production facilities, the module is used in electric arc furnace control systems and rolling mill drive monitoring, where power quality measurement must remain accurate despite extreme electromagnetic interference from high-current switching equipment.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the IC693PTM101A?
The KNMKS support terms confirmed by quotation cover functional failure under normal operating conditions. Every IC693PTM101A unit is pre-tested before shipment to verify backplane communication, analog output accuracy, and isolation integrity. If a unit fails within the confirmed support period under normal use, KNMKS provides replacement or repair support. Contact [email protected] for support terms claim procedures.

Q2: How is each IC693PTM101A tested before shipment?
Every unit undergoes a mandatory pre-shipment functional test that includes backplane connector inspection, power-on self-test verification, analog output signal accuracy check, and visual inspection for physical damage or component degradation. This process ensures that no untested or degraded module leaves our facility.

Q3: Is the IC693PTM101A compatible with all Series 90-30 rack configurations?
The IC693PTM101A is designed for the GE Fanuc Series 90-30 I/O bus and is compatible with standard 5-slot, 10-slot, and expansion rack configurations. Compatibility with specific CPU firmware versions and rack power supplies should be verified against the GE Series 90-30 Hardware Reference Manual. KNMKS technical support can assist with compatibility confirmation for your specific rack configuration.

Q4: Can KNMKS support long-term supply agreements for the IC693PTM101A?
Yes. KNMKS specializes in long-term spare parts supply for legacy GE Fanuc Series 90-30 systems, with inventory planning horizons of 12 to 36 months. For facilities running continuous production processes where unplanned downtime is not acceptable, we offer reserved stock arrangements and priority dispatch agreements. Contact [email protected] or +86 18359268345 to discuss your site’s spare parts requirements.
