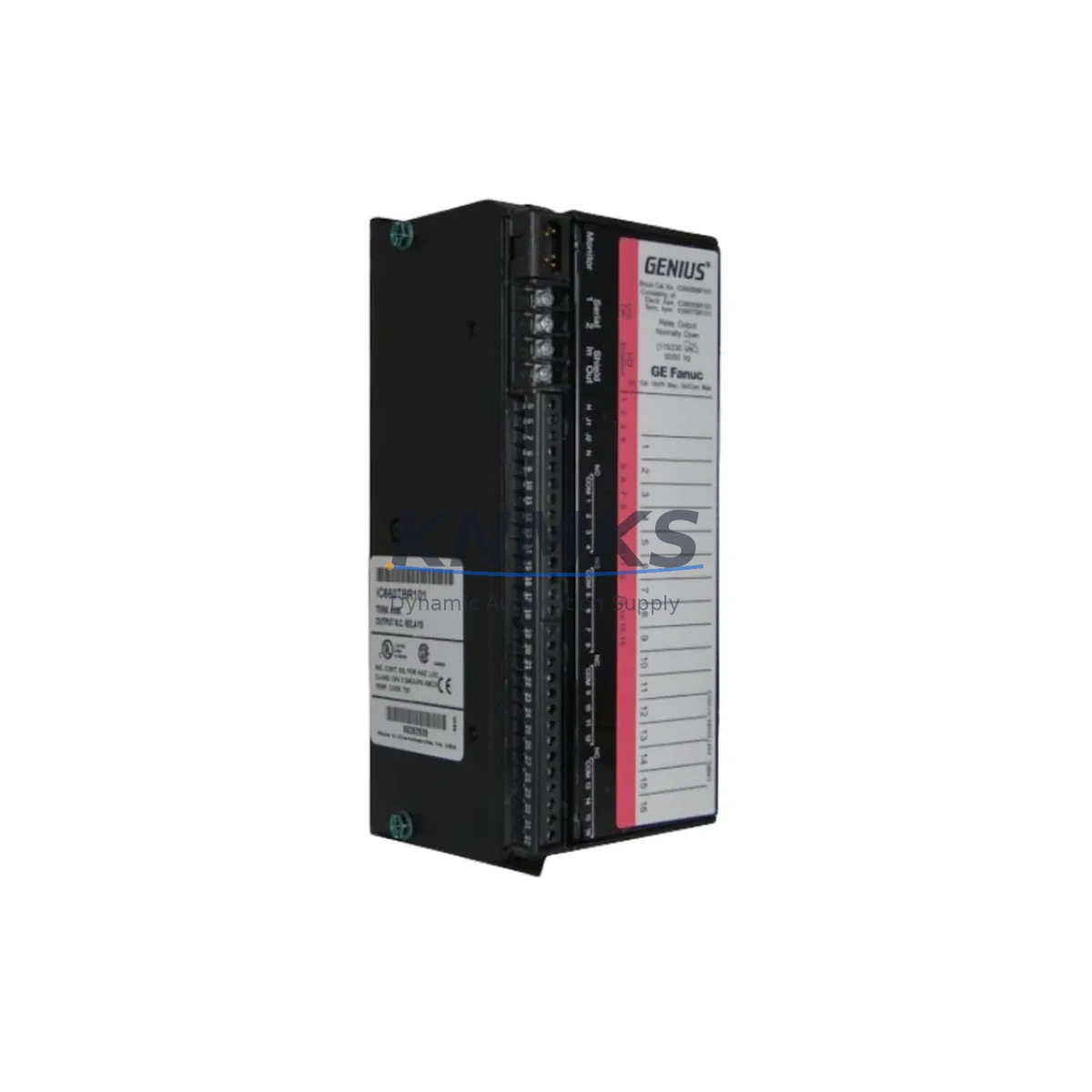

GE IC660BBR101 Fail-Safe Relay Output Module

Overview

GE IC660BBR101 Fail-Safe Relay Output Module: Fault Protection and Critical Industrial Field Reliability

The GE IC660BBR101 is a 16-point, 120/240VAC relay output module engineered for the GE Genius Bus architecture within the Series 90-70 programmable control platform. Designed to operate in demanding continuous-process environments, this module delivers deterministic output switching with built-in fault isolation, making it a cornerstone component for safety-critical control cabinets in petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processing lines, port automation, and marine vessel control systems.

In high-stakes industrial environments where unplanned downtime carries severe operational and safety consequences, the IC660BBR101 provides the output-side reliability that process engineers and maintenance teams depend on. Its relay-based architecture ensures hard-contact isolation between the control logic and field loads, eliminating the risk of signal leakage or false actuation that can occur with solid-state alternatives under high-EMI or ground-fault conditions. Each output channel is independently protected, so a single-point field fault does not cascade into a full-module failure or disrupt adjacent control loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The IC660BBR101 is most effective when integrated as part of a coordinated control cabinet protection strategy. In a typical Series 90-70 control architecture, the module operates alongside the GE IC660BBA020 Genius Bus Controller, which manages bus arbitration and ensures that output commands are delivered with deterministic timing even under high network load. For applications requiring redundant power delivery to the output field circuits, pairing the IC660BBR101 with a GE IC693PWR321 power supply module provides regulated 24VDC bus power with over-voltage and short-circuit protection, reducing the risk of output-side brownout during load switching transients.

In control cabinets exposed to high inrush currents from motor starters or solenoid valve banks, the relay contacts of the IC660BBR101 benefit from upstream protection provided by properly rated GE IC693MDL940-series discrete output modules used in parallel protection schemes, or from dedicated surge arrestors installed at the terminal block level. For installations in dusty, humid, or chemically aggressive environments — common in mining headframes, coastal port facilities, and chemical processing units — the module should be housed alongside GE IC693CHS397 rack assemblies with positive-pressure purge or sealed enclosure strategies to maintain contact integrity over extended service intervals.

Communication integrity is equally critical. The Genius Bus segment carrying IC660BBR101 commands should be protected by proper bus termination resistors and shielded cable runs, consistent with GE’s Genius Bus installation guidelines. In multi-drop bus topologies serving large field I/O networks, the GE IC660CBB902 Genius Bus Interface Unit provides the necessary bus repeating and isolation to prevent signal degradation across long cable runs or across electrically noisy plant sections. For safety interlock loops where output state confirmation is mandatory, integrating the IC660BBR101 with a GE IC693ALG392 analog input module for feedback monitoring closes the control loop and enables the PLC to verify that relay actuation has produced the expected field response.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the IC660BBR101 is deployed in emergency shutdown (ESD) panel output stages, controlling motorized valve actuators, pump trip circuits, and flare ignition systems. Its hard-contact relay architecture ensures that output de-energization occurs reliably on loss of bus communication or PLC fault, satisfying the fail-safe output requirement of SIL-rated interlock loops without requiring additional external relay interposing in many configurations.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module manages excitation control outputs, breaker trip coil circuits, and auxiliary relay panels. The 120/240VAC dual-voltage rating makes it directly compatible with the mixed-voltage auxiliary bus systems common in power plant switchgear rooms, eliminating the need for intermediate voltage conversion and reducing panel wiring complexity.

In mining and mineral processing operations, where conveyor interlocks, crusher motor controls, and ventilation fan circuits must remain operational through dust storms, ground vibration, and wide ambient temperature swings, the IC660BBR101’s robust relay output design and Genius Bus diagnostics allow maintenance teams to identify and isolate faults remotely before they escalate into production stoppages. The module’s 16-point density reduces the number of I/O racks required in distributed control cabinets, lowering both capital cost and potential failure points.

In water and wastewater treatment plants, the module controls pump station outputs, chemical dosing valve actuators, and UV disinfection system contactors. Its ability to operate reliably in high-humidity environments — common in wet well pump stations and chemical storage areas — makes it a preferred replacement for aging discrete output modules in legacy GE-based SCADA and DCS architectures.

In metallurgical and steel mill applications, the IC660BBR101 manages rolling mill interlock outputs, furnace burner management relay circuits, and ladle transfer crane controls. The high-voltage relay rating is well-suited to the 240VAC motor control circuits prevalent in heavy industrial drive systems, and the module’s fault-reporting capability via the Genius Bus allows plant engineers to implement predictive maintenance strategies based on output cycle count and fault history data.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the GE IC660BBR101?
Every IC660BBR101 unit shipped by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Support requests are processed directly through our sales team at [email protected].

Q2: How is the IC660BBR101 tested before shipment?
All units undergo full functional verification prior to dispatch. Testing includes bus communication handshake confirmation, individual relay output actuation across all 16 points, contact resistance measurement, and insulation integrity checks. A test record is available upon request for quality-critical procurement processes.

Q3: Is the IC660BBR101 compatible with both Series 90-70 and Series 90-30 controllers?
The IC660BBR101 is natively designed for the GE Series 90-70 platform via the Genius Bus Block I/O architecture. It is also compatible with Series 90-30 systems when used with an appropriate Genius Bus Controller interface module. Compatibility with specific firmware revisions of the host PLC should be confirmed against GE’s Genius Bus compatibility matrix prior to installation.

Q4: Can KNMKS support long-term spare parts supply for aging GE Series 90-70 systems?
Yes. KNMKS maintains stock of IC660BBR101 and a broad range of complementary GE Genius Bus and Series 90-70 components to support multi-year spare parts programs. We work with plant engineering and procurement teams to develop 12–36 month stocking plans that reduce the risk of production interruption due to obsolete part shortages. Contact our team to discuss a tailored spare parts supply agreement.
