GE IC600LX648K Spare Part for Series Six PLC Uptime

Overview

GE IC600LX648K Spare Part for Series Six PLC Uptime

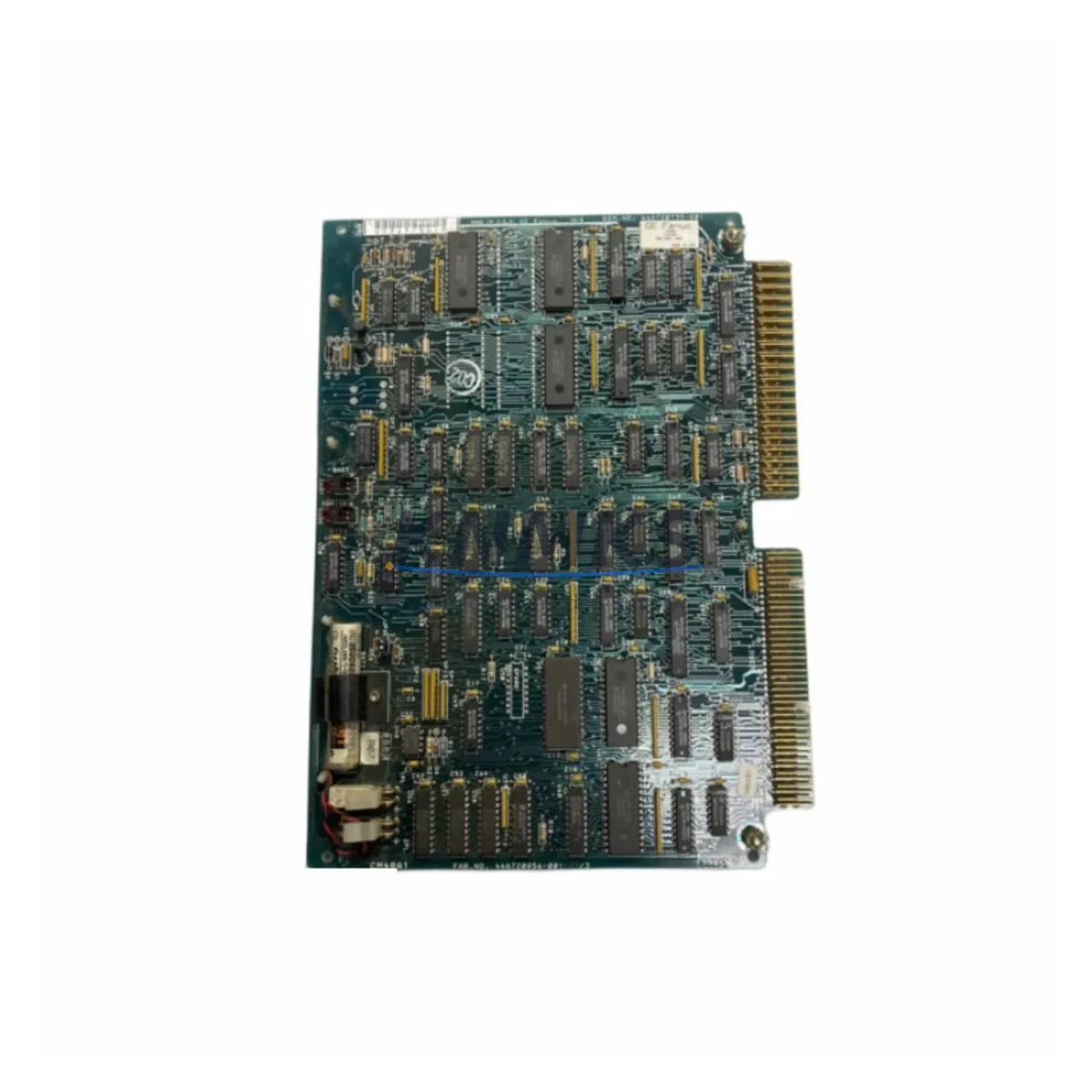

The GE IC600LX648K (cross-reference: IC600FP608K) is a proven memory module spare part for the General Electric Series Six programmable logic controller platform — one of the most widely deployed legacy PLC architectures in continuous process industries. For maintenance engineers managing aging Series Six control systems in petrochemical plants, power generation facilities, water treatment stations, and heavy manufacturing lines, maintaining a verified stock of this module is a fundamental strategy for protecting production continuity and minimizing unplanned downtime.

The IC600LX648K serves as the program and data memory backbone of the Series Six CPU rack. When this module degrades or fails — often signaled by memory fault codes, erratic program execution, or CPU communication errors — the entire control loop dependent on that rack is at risk. Unlike modern PLC platforms with hot-swap redundancy, many Series Six installations operate in simplex configurations where a single module failure can halt an entire production line. Having a pre-tested, shelf-ready IC600LX648K on hand is not optional for critical sites — it is a maintenance imperative.

From a procurement engineering perspective, sourcing this module requires careful attention to revision compatibility and firmware alignment. The IC600LX648K and its functional equivalent IC600FP608K must be matched to the installed Series Six CPU module — such as the IC600CPU522 or IC600CPU514 — to ensure correct memory addressing and program integrity. Before installation, maintenance teams should also inspect the IC600BF900 Series Six baseplate for backplane connector wear, verify the IC600PM501 power supply module output stability, and confirm that the IC600YB840 I/O link interface is free of communication faults that could corrupt memory initialization.

Every IC600LX648K unit shipped by KNMKS undergoes pre-dispatch functional verification, including power-on self-test confirmation, memory read/write cycle validation, and visual inspection of edge connectors and module housing. Units are packaged in anti-static enclosures with humidity indicators to preserve module integrity during transit and storage. A support terms confirmed by quotation is included with every shipment, covering verified manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Series Six PLC system extends well beyond the memory module itself. When scheduling a replacement of the IC600LX648K, experienced maintenance engineers treat the intervention as an opportunity to audit the entire CPU rack assembly. The IC600PM501 power supply module should be load-tested to confirm it is delivering stable 5 VDC and 24 VDC rails within tolerance — voltage sag or ripple at the backplane is a leading cause of premature memory module failure and data corruption in Series Six systems.

The IC600BF900 baseplate connector pins should be inspected for oxidation, mechanical deformation, or contamination from dust and condensation — particularly in foundry, cement, or coastal environments where airborne particulates and salt mist accelerate connector degradation. If the system uses the IC600YB840 I/O link interface module to communicate with remote I/O racks, its link status LEDs and diagnostic registers should be verified before and after memory module replacement to rule out communication faults that could prevent correct program reload.

For sites running Series Six systems with IC600CB900 coaxial I/O bus cables, cable continuity and termination resistance should be checked as part of the same maintenance window — a degraded I/O bus can cause intermittent scan errors that are often misdiagnosed as memory faults. Additionally, if the control cabinet houses IC600FP501 or IC600FP502 discrete I/O modules, their field wiring terminal blocks and fuse holders should be inspected for loose connections that could generate spurious fault signals during the post-replacement program restart sequence.

Maintaining a minimum spare inventory of one IC600LX648K per Series Six CPU rack in service is the industry-standard recommendation for facilities with mean-time-to-repair (MTTR) targets under four hours. For multi-rack installations or systems controlling safety-critical processes, a two-unit buffer per site is advisable to cover simultaneous failures during extended production campaigns.

Site Replacement Workflow

Replacing the IC600LX648K on a live Series Six system requires a structured, safety-conscious procedure to minimize risk to personnel and process equipment. The recommended workflow is as follows:

1. Pre-Replacement Preparation: Back up the current PLC program from the CPU to the programming terminal using the GE Series Six programming software. Confirm the backup file integrity by comparing program block checksums. Notify the operations team and obtain a formal work permit if the system controls a safety-classified process.

2. Power-Down Sequence: Place the CPU in STOP mode and verify all controlled outputs are in a safe state. De-energize the CPU rack via the IC600PM501 power supply disconnect. Confirm zero voltage at the backplane using a calibrated multimeter before touching any module.

3. Module Extraction and Installation: Remove the faulty IC600LX648K by releasing the module locking tabs and sliding it straight out of the backplane slot. Insert the replacement IC600LX648K firmly until the connector seats fully and the locking tabs engage. Avoid touching the edge connector contacts.

4. Program Reload and Verification: Re-energize the rack and allow the CPU to complete its power-on self-test sequence. Load the backed-up program from the programming terminal. Verify program block checksums match the pre-failure backup. Place the CPU in RUN mode and monitor the first 15 minutes of operation for any fault codes or anomalous I/O behavior.

5. Post-Replacement Documentation: Record the replacement date, module serial number, fault symptoms, and post-replacement test results in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the IC600LX648K directly interchangeable with the IC600FP608K?
Yes. The IC600FP608K is the functional equivalent and cross-reference for the IC600LX648K within the GE Series Six platform. Both part numbers share the same memory capacity, backplane interface, and CPU compatibility profile. KNMKS supplies both references from the same verified inventory pool and confirms compatibility prior to shipment based on your installed CPU revision.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover verified functional defects — including memory read/write failures, power-on self-test faults, and backplane communication errors — arising under normal operating conditions within the rated temperature and humidity envelope. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside specified environmental limits. Support requests are processed with a replacement-first policy to minimize your downtime.

Q3: How do you verify compatibility before shipment?
KNMKS technical staff review the customer-provided CPU model number and revision against the IC600LX648K compatibility matrix before confirming the order. Where revision data is unavailable, we request the nameplate photograph of the installed CPU module. Each unit is powered on and subjected to a memory self-test cycle before packaging. A test report is available upon request for critical-site procurement requirements.

Q4: Can KNMKS support long-term supply for Series Six spare parts beyond this module?
Yes. KNMKS maintains an active inventory program for GE Series Six components, including CPU modules, power supplies, I/O modules, baseplates, and communication interfaces. For facilities managing multi-year maintenance contracts or decommissioning timelines, we offer reserved inventory arrangements and advance procurement planning support. Contact our technical sales team to discuss your site’s Series Six lifecycle requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

General Electric
Assorted Brands

Model / Series

IC600LX648K IC600FP608K
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: General Electric IC600LX648K IC600FP608K
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
