GE IC600BF843 Migration-Ready Analog Input Module for Series Six

Overview

GE IC600BF843 Migration-Ready Analog Input Module for Series Six: Legacy System Migration & Compatible Upgrade

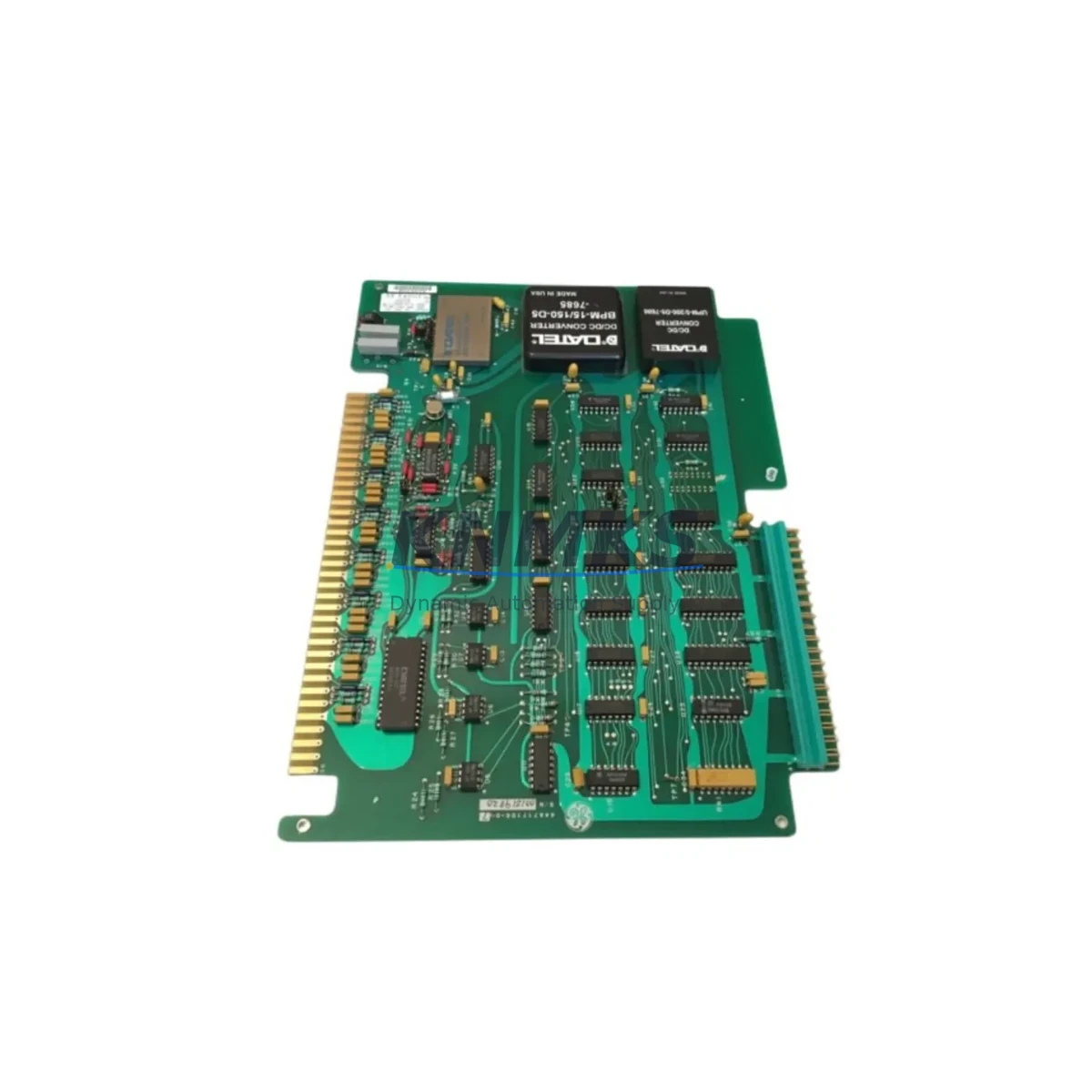

The GE IC600BF843 is a proven analog input module engineered for the GE Series Six PLC platform — one of the most widely deployed legacy programmable logic controller families in industrial process control, discrete manufacturing, and utility automation. As original equipment manufacturers phase out Series Six hardware and end-of-life notices accumulate, plant engineers and system integrators face the critical challenge of sourcing verified replacement modules that maintain signal integrity, backplane compatibility, and program continuity without forcing a full control system overhaul.

The IC600BF843 accepts multiple analog signal types and interfaces directly with the Series Six backplane, making it the preferred drop-in replacement for facilities operating aging control cabinets where a full migration to a modern platform such as GE Fanuc 90-30 or GE PACSystems RX3i is not yet feasible or economically justified. For sites managing phased modernization programs, maintaining a verified inventory of IC600BF843 modules extends the operational life of existing control infrastructure while migration planning proceeds in parallel.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC600BF843 retrofit begins well before the module arrives on site. Engineers should pull the original I/O configuration report from the Series Six CPU — typically a GE IC600CP502 or IC600CP514 central processor unit — and cross-reference every analog channel address against the current ladder logic or function block program. Any mismatch between the replacement module’s slot address and the program’s I/O table will cause analog scaling errors or fault conditions at startup.

Terminal wiring is the next critical checkpoint. The IC600BF843 uses a field-side terminal block that must be inspected for corrosion, loose ferrules, and correct shielding practice, particularly in environments with high electromagnetic interference from variable frequency drives or large motor starters sharing the same control cabinet. Where field cables run alongside power conductors, signal isolation using a dedicated signal isolator or barrier strip is strongly recommended before commissioning the replacement module.

For facilities planning a longer-term migration toward modern platforms, the IC600BF843 can serve as a bridge module while the control strategy is being re-engineered. During this transition period, a GE IC600BF901 discrete output module or IC600BF831 analog output module may also require replacement as part of the same rack refresh. Keeping a matched set of Series Six I/O modules from the same production batch reduces the risk of subtle hardware revision incompatibilities that can surface during extended parallel-run testing.

Rack and chassis integrity must also be assessed. The IC600CH series chassis — including the IC600CH016 and IC600CH008 — should be inspected for backplane connector wear, bent guide pins, and power rail continuity before inserting a new module. A faulty backplane connection is one of the most common causes of intermittent analog faults that are incorrectly attributed to the module itself. If the chassis shows signs of degradation, sourcing a replacement chassis alongside the IC600BF843 is the lower-risk path.

Communication architecture should be reviewed if the retrofit is part of a broader SCADA or DCS integration project. Series Six systems communicating via GE Series Six SNP or CCM protocol to an upstream historian or HMI — such as a legacy iFIX or Cimplicity node — will require the communication module configuration to remain unchanged. If the HMI faceplate references specific analog tag addresses tied to the IC600BF843’s slot position, those tag bindings must be verified in the HMI project before the module swap is executed to prevent display errors or alarm suppression during the cutover window.

Finally, for sites where a GE IC600PM504 or equivalent power module is already operating near rated capacity, adding or replacing analog input modules is an opportunity to audit total rack current draw. Analog input modules with active signal conditioning draw more backplane current than discrete I/O modules, and an undersized power supply is a common root cause of unexplained module resets in aging Series Six installations.

Downtime Control During System Migration

Minimizing unplanned downtime during an IC600BF843 swap requires a structured pre-outage checklist and a clear rollback plan. Before the scheduled maintenance window opens, the site team should capture a full program backup from the Series Six CPU using the original programming software, verify that the backup restores correctly to a spare CPU if available, and document all analog channel scaling parameters — including engineering unit ranges, alarm setpoints, and PID tuning constants — that are stored in the program data table rather than in the module hardware.

During the physical swap, the module should be removed and reinserted with the rack power off. Hot-insertion is not supported on Series Six hardware, and attempting it risks backplane damage that can cascade into a multi-module failure event. Once the replacement IC600BF843 is seated and the rack is powered, the CPU should be placed in STOP mode before transitioning to RUN to allow the I/O scan to initialize cleanly and confirm that all analog channels report expected values before process control is resumed.

If the site operates a redundant control path — for example, a secondary Series Six rack handling critical loop control while the primary rack is serviced — the switchover sequence should be tested during a low-production period before the actual migration window. This rehearsal identifies any timing dependencies in the control logic that could cause a bump in process variables during the handover. For continuous process industries such as chemical, oil and gas, or power generation, even a brief analog signal interruption can trigger downstream interlocks, making pre-tested switchover procedures non-negotiable.

Post-swap commissioning should include a channel-by-channel analog verification using a calibrated signal source to confirm that each input reads correctly across the full engineering unit range. Any deviation greater than the module’s specified accuracy band should be investigated before the system is returned to automatic control. Retaining the original module for a defined hold period — typically 30 days — provides a fallback option if latent issues emerge after the maintenance window closes.

Retrofit Support FAQ

Q1: Is the IC600BF843 a direct drop-in replacement for other Series Six analog input modules?
The IC600BF843 is designed for the Series Six backplane and occupies a standard single slot. However, different Series Six analog input modules support different channel counts, signal ranges, and resolution specifications. Before substituting the IC600BF843 for another part number, confirm that the channel configuration, input signal type, and I/O address mapping in the CPU program match the replacement module’s specification. Where the original module is a different variant, a program modification may be required to adjust scaling or channel assignments.

Q2: What pre-shipment testing is performed on the IC600BF843?
Each IC600BF843 unit undergoes functional power-on testing prior to shipment. A test certificate confirming basic operational status is available on request. Units are inspected for physical damage, connector integrity, and component condition. For applications requiring extended burn-in or calibration certification, please contact our sales team at [email protected] to discuss testing options before order placement.

Q3: Can the IC600BF843 be used in a system that is being migrated to a GE PACSystems platform?
The IC600BF843 is a Series Six native module and is not electrically or mechanically compatible with PACSystems RX3i or RX7i racks. During a phased migration, the IC600BF843 can continue to operate in the legacy Series Six rack while the new PACSystems rack is commissioned in parallel. Data exchange between the two platforms during the transition period is typically handled via a protocol gateway or by running both systems in parallel with the SCADA layer reading from both CPU data sources until the cutover is complete.

Q4: What is the support terms coverage and what does it include?
All IC600BF843 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a support terms claim, KNMKS will arrange for evaluation and replacement or repair. Customers are encouraged to retain original packaging and installation records to support any support terms claim process.
