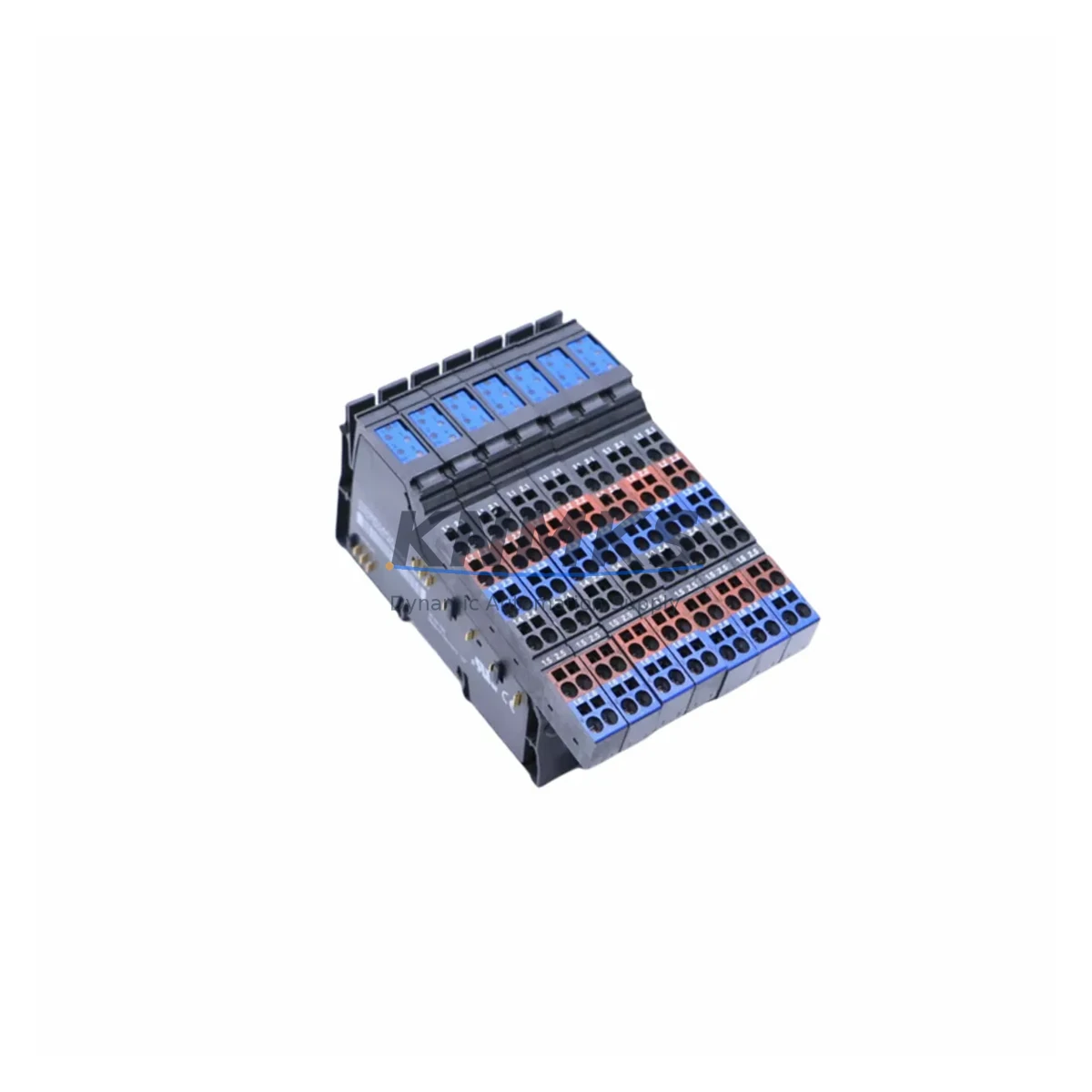

GE IC220MDL642A Maintenance-Proven Spare Part for Factory Uptime

Overview

GE IC220MDL642A Maintenance-Proven Spare Part for Factory Uptime

The GE IC220MDL642A is a 16-channel 24VDC digital input module designed for the GE VersaPoint distributed I/O system, widely deployed in discrete manufacturing, automotive assembly, food processing, and material handling automation. As a maintenance-proven spare part, the IC220MDL642A supports rapid fault isolation and same-day slot replacement, enabling maintenance engineers to restore control system availability without extended downtime windows. Each unit supplied by KNMKS is pre-tested, ships with a support terms confirmed by quotation, and is sourced from verified supply channels to ensure original specification compliance.

For facilities running GE VersaPoint I/O islands integrated with GE PACSystems RX3i or RX7i controllers, maintaining a stocked IC220MDL642A is a standard risk mitigation practice. Digital input channel failures — caused by field wiring faults, surge events, or component aging — are among the most common causes of unplanned line stoppages. A pre-qualified replacement module on the shelf reduces mean time to repair (MTTR) from hours to minutes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IC220MDL642A in a VersaPoint I/O island, a disciplined maintenance engineer will not limit the inspection to the failed module alone. The VersaPoint architecture distributes power and communication across a shared bus, meaning adjacent components are subject to the same environmental stresses and aging cycles.

Begin with the IC220PWR001 VersaPoint power supply module — verify output voltage stability under load before re-energizing the island. A degraded power supply is a frequent root cause of intermittent digital input faults that are misdiagnosed as module failures. Next, inspect the IC220BUS001 bus coupler or PROFIBUS-DP head station for communication errors; a corrupted bus coupler can cause the entire I/O island to drop offline, masking individual channel faults.

Check the IC220MDL740A or IC220MDL741A digital output modules in the same cabinet — output modules in the same I/O island share the power bus and are exposed to the same inductive load switching transients that can degrade input module optocouplers over time. If the facility uses analog signals alongside digital I/O, inspect the IC220ALG220 or IC220ALG320 analog input modules for drift or calibration deviation, particularly in temperature-sensitive process environments.

For cabinets with mixed signal types, verify the condition of signal isolators and terminal blocks on the field wiring side. Corroded or loose terminal connections are a leading cause of false input states that trigger nuisance alarms and unnecessary module replacements. Finally, confirm that 24VDC field power fuses and surge protection devices on the input wiring circuits are intact — a blown fuse on the field supply rail will disable all 16 channels simultaneously and is often mistaken for a module fault during rapid fault diagnosis.

Stocking the IC220MDL642A alongside these complementary components as part of a structured VersaPoint spare parts kit is the most cost-effective strategy for minimizing unplanned downtime in facilities where GE PACSystems-based control is critical to production continuity.

Site Replacement Workflow

Step 1 — Isolate and document: Place the affected VersaPoint I/O island in safe state via the PACSystems controller. Record the slot position, channel assignments, and any active fault codes from the programmer terminal (Proficy Machine Edition or equivalent).

Step 2 — Power down the island: De-energize the VersaPoint power supply module feeding the affected island segment. Confirm zero voltage on the bus before handling modules.

Step 3 — Remove the failed IC220MDL642A: Disengage the module locking tab and slide the module off the terminal base. The terminal base and field wiring remain in place — no rewiring is required, which is a key advantage of the VersaPoint modular architecture.

Step 4 — Install the replacement module: Slide the new IC220MDL642A onto the existing terminal base until the locking tab engages. The module is keyed to prevent incorrect module type insertion.

Step 5 — Re-energize and verify: Restore power to the island. Confirm all 16 input channels report correct states in the PACSystems controller diagnostic display. Clear any latched faults and verify normal scan cycle operation.

Step 6 — Update maintenance records: Log the replacement date, module serial number, and any associated field wiring findings. Schedule a follow-up inspection of adjacent power and communication modules within 30 days.

This plug-and-play replacement process — enabled by the VersaPoint terminal base architecture — typically achieves full system restoration in under 20 minutes for a prepared maintenance team, making pre-stocked IC220MDL642A units a high-value investment for any facility operating GE PACSystems-based automation.

Spare Parts Support FAQ

Q1: Is the IC220MDL642A still available as a new original part?
A: Yes. KNMKS maintains multi-region stock of the IC220MDL642A sourced from verified original supply channels. Each unit is pre-tested before shipment and ships with a support terms confirmed by quotation. Long-term supply agreements are available for facilities requiring guaranteed annual allocation.

Q2: How do I confirm compatibility with my existing VersaPoint I/O island?
A: The IC220MDL642A is compatible with all standard GE VersaPoint terminal bases and is supported by GE PACSystems RX3i and RX7i controllers running current Proficy Machine Edition firmware. Confirm your island’s bus coupler model and power supply rating before ordering. Our technical team can assist with compatibility verification based on your system configuration.

Q3: What is included in the pre-shipment testing process?
A: Every IC220MDL642A unit undergoes functional verification of all 16 input channels, bus communication interface check, and visual inspection for physical integrity before dispatch. Test records are available upon request for quality-critical procurement processes.

Q4: Can KNMKS support emergency same-day or next-day dispatch for unplanned outages?
A: Yes. KNMKS maintains ready stock across multiple regional warehouses to support emergency dispatch for unplanned downtime events. Contact our sales team at [email protected] or +86 18359268345 to confirm stock availability and arrange priority shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

GE
Assorted Brands

Model / Series

IC220MDL642A
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: GE IC220MDL642A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
