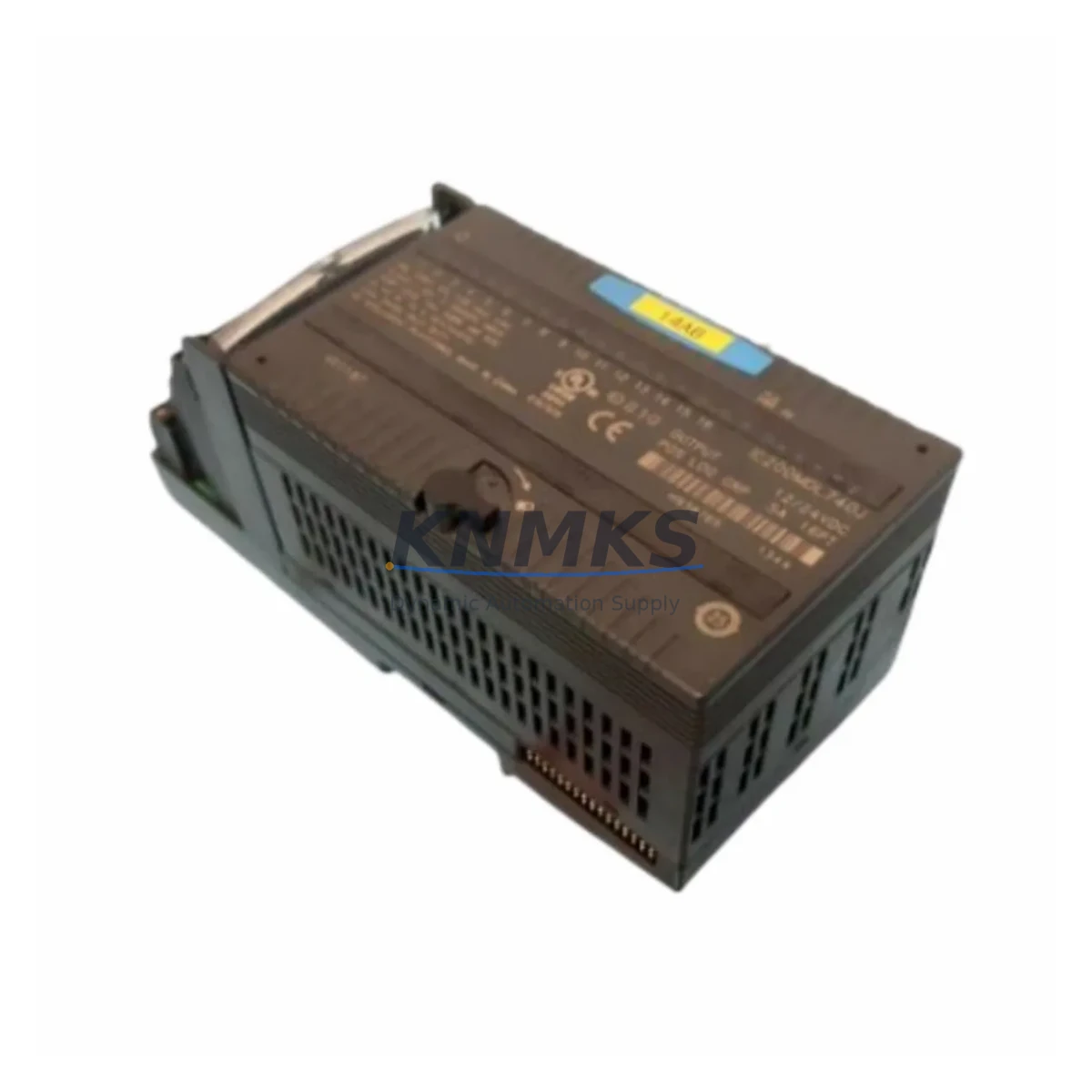

The GE IC200MDL740J is a 16-point 120VAC discrete output module designed for the GE VersaMax I/O system — one of the most widely deployed modular I/O platforms in North American and global industrial automation. As a maintenance-proven spare part, the IC200MDL740J is a critical component for facilities that depend on continuous production uptime, fast fault recovery, and long-term system availability in legacy and active VersaMax installations.

Sourced as an original GE Fanuc Automation component, each IC200MDL740J unit is pre-shipment tested to verify output channel integrity, module communication, and backplane compatibility before dispatch. This ensures that maintenance engineers receive a field-ready spare — not a shelf-aged unit — capable of direct installation with minimal commissioning time.

For procurement engineers managing MRO budgets and spare parts inventory, the IC200MDL740J represents a low-risk, high-availability investment. Its standardized form factor, well-documented wiring interface, and broad compatibility with VersaMax I/O carriers and CPU modules make it a reliable choice for both emergency replacement and planned annual maintenance stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IC200MDL740J in a VersaMax I/O rack, a thorough site inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure system stability. Maintenance engineers should begin by verifying the 120VAC supply rail feeding the output module — voltage fluctuations or transient spikes are a leading cause of premature output module degradation. The IC200PWR001 or equivalent VersaMax power supply module should be checked for output ripple and load capacity before the new IC200MDL740J is installed.

Adjacent I/O modules in the same carrier — including discrete input modules such as the IC200MDL640 (120VAC input, 16-point) — should be inspected for shared wiring faults or ground loops that may have contributed to the original failure. Terminal blocks and field wiring connected to the output channels should be torqued to specification and inspected for insulation breakdown, particularly in high-cycle or high-temperature environments.

For systems using VersaMax remote I/O drops connected via Genius Bus or Profibus, the IC200BEM003 or IC200BEM104 bus expansion modules should be verified for communication integrity after module replacement. A loss of I/O communication during the swap can mask underlying network issues that will resurface under load.

Facilities running mixed I/O configurations should also audit the IC200MDL330 analog output modules and IC200ALG320 analog input modules in the same cabinet — analog signal drift is often misdiagnosed as a discrete output fault. Signal isolators between field devices and the VersaMax rack can prevent ground-induced noise from corrupting output states.

Finally, fuse holders and circuit protection devices on the 120VAC output load circuits should be inspected and replaced if showing signs of thermal stress. Maintaining a stocked set of fuses rated for the output load, alongside a spare IC200MDL740J, is a best practice for facilities with zero-tolerance downtime requirements.

Site Replacement Workflow

The IC200MDL740J is designed for hot-swap replacement in VersaMax I/O systems that support module insertion without full rack power-down, though site safety procedures should always be followed. The recommended replacement workflow is as follows:

Step 1 — Isolate the affected output circuit: De-energize the 120VAC field loads connected to the faulty module’s output terminals. Do not remove the module under live load conditions.

Step 2 — Document the wiring configuration: Photograph or record the terminal assignments for all 16 output channels before disconnecting field wiring. The IC200MDL740J uses a standard VersaMax terminal block layout; verify against the original wiring diagram.

Step 3 — Remove the faulty module: Release the module locking tab on the VersaMax carrier and slide the IC200MDL740J out of its slot. Inspect the carrier connector for bent pins or contamination.

Step 4 — Install the replacement unit: Seat the new IC200MDL740J firmly into the carrier slot until the locking tab engages. Reconnect field wiring per the documented terminal assignments.

Step 5 — Restore power and verify: Re-energize the output circuit and confirm all 16 channels respond correctly via the PLC program or HMI status display. Log the replacement date and module serial number in the site maintenance record.

This workflow minimizes downtime to under 30 minutes for experienced maintenance personnel and eliminates the need for PLC program changes or I/O address reassignment, as the IC200MDL740J is a direct form-fit-function replacement for all J-revision VersaMax output modules.

Spare Parts Support FAQ

Q1: Is the IC200MDL740J compatible with all VersaMax I/O carriers?
The IC200MDL740J is compatible with the full range of GE VersaMax I/O carriers, including the IC200CHS002, IC200CHS005, IC200CHS014, and IC200CHS022 series. Compatibility extends to both local and remote I/O drop configurations. Always verify the carrier revision level against the GE VersaMax hardware manual for your specific installation.

Q2: What pre-shipment testing is performed on each IC200MDL740J unit?
Each IC200MDL740J is functionally tested prior to shipment to verify output channel switching, backplane communication, and module identification. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request for quality-critical procurement requirements.

Q3: How should the IC200MDL740J be stored as a long-term spare?
Store the IC200MDL740J in its original anti-static packaging in a dry, temperature-controlled environment (10°C to 40°C, relative humidity below 85% non-condensing). Avoid storage near strong magnetic fields or high-vibration equipment. Annual inspection of stored spares is recommended to verify connector integrity and packaging condition.

Q4: What is the support terms coverage and long-term supply commitment?
All IC200MDL740J units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Long-term supply availability is maintained to support facilities with extended VersaMax system lifecycles. Contact our team for multi-unit procurement, blanket order arrangements, or end-of-life supply planning.
