GE IC200CHS0022 Maintenance-Proven Spare Part for Factory Uptime

Overview

GE IC200CHS0022 Maintenance-Proven Spare Part for Factory Uptime

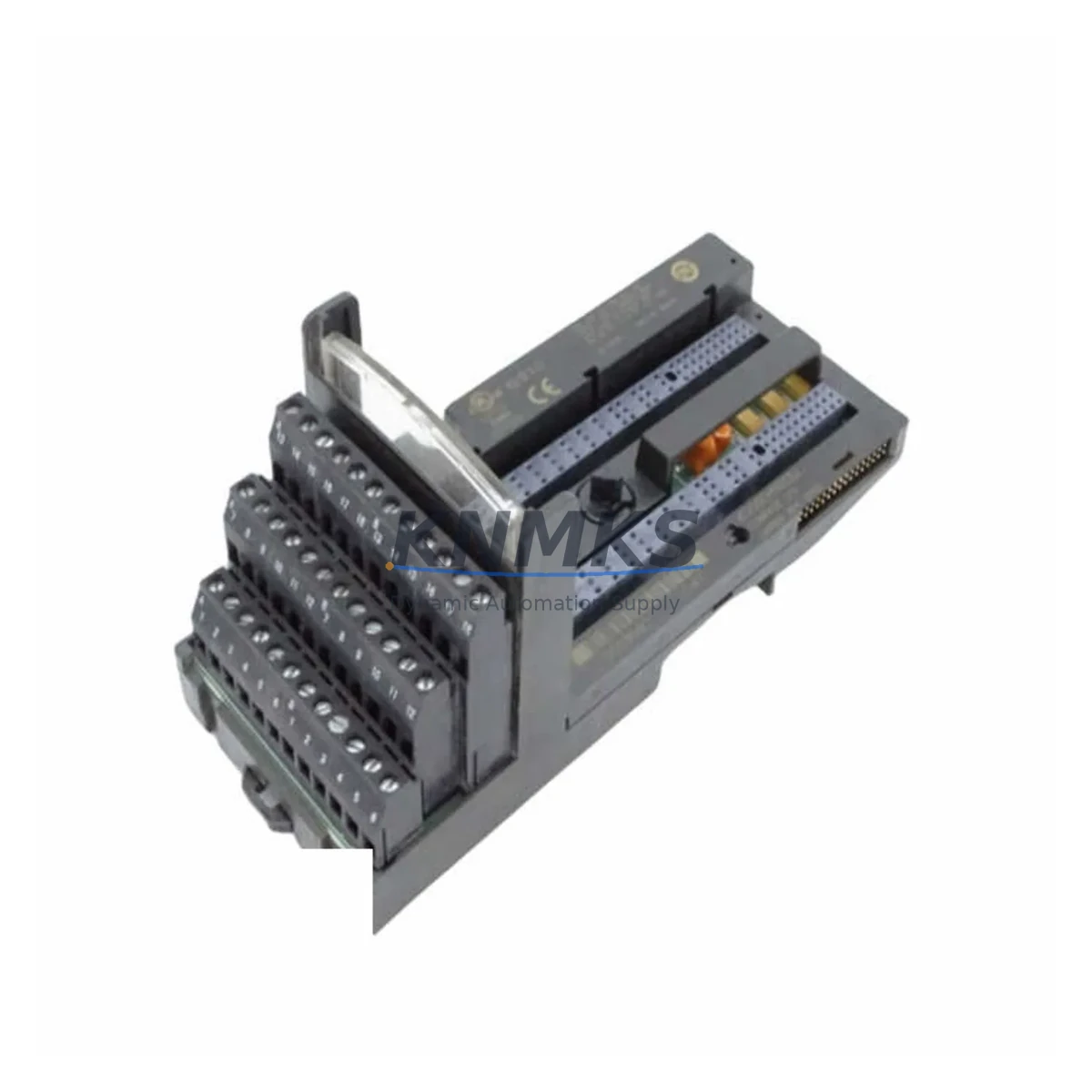

The GE IC200CHS0022 is a VersaMax I/O Carrier Module manufactured by GE (Emerson Automation), designed to serve as the mechanical and electrical backbone for VersaMax I/O modules within distributed control architectures. As a critical backplane-level component, the IC200CHS0022 provides the physical mounting interface and internal bus connectivity that allows discrete and analog I/O modules to communicate with the VersaMax CPU or Network Interface Unit (NIU). In maintenance-intensive environments — including automotive assembly, food processing, water treatment, and petrochemical facilities — this carrier module is a foundational spare that directly determines whether a control node can be restored within minutes or hours after a fault event.

Sourced as an original GE Fanuc / Emerson Automation component, each IC200CHS0022 unit offered by KNMKS undergoes pre-shipment functional verification to confirm bus integrity, connector alignment, and mechanical fit. A support terms confirmed by quotation is included with every shipment, covering manufacturing defects and functional failures under normal operating conditions. Long-term supply continuity is maintained to support facilities running legacy VersaMax systems where OEM production has been discontinued or lead times are extended.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VersaMax I/O node experiences an unplanned outage traced to a failed or damaged IC200CHS0022 carrier, the replacement scope should extend beyond the carrier itself. Maintenance engineers should simultaneously inspect the IC200PWR002 or equivalent VersaMax power supply module to confirm stable 24 VDC bus voltage, as carrier failures are frequently preceded by power transients. The I/O modules seated in the carrier — such as IC200MDL640 (16-point 24 VDC discrete input) or IC200MDL741 (16-point relay output) — should be removed, visually inspected for burn marks or connector damage, and re-seated or replaced as needed before the new carrier is commissioned.

For systems using a VersaMax Network Interface Unit (NIU) such as the IC200PBI001 (PROFIBUS DP) or IC200UDD104 (DeviceNet), verify that the NIU’s communication status LEDs return to normal after carrier replacement. A carrier fault can cause the NIU to drop from the fieldbus network, triggering cascading alarms in the DCS or SCADA layer. Communication module diagnostics should be cleared and re-initialized post-replacement.

Terminal blocks and field wiring connected to the I/O modules mounted on this carrier should be inspected for loose terminations, insulation degradation, and correct labeling. In high-vibration environments, wiring harnesses adjacent to the carrier should be re-secured with cable ties. If the control cabinet houses IC200CHS001 or IC200CHS014 carriers in adjacent nodes, those should be included in the same inspection cycle to prevent sequential failures. Fuse holders and circuit protection devices feeding the 24 VDC I/O supply rail should also be checked for continuity and rated amperage compliance.

For facilities maintaining a structured spare parts inventory, it is recommended to stock at least one IC200CHS0022 per VersaMax I/O node cluster, alongside matched I/O modules and a spare NIU. This approach reduces mean time to repair (MTTR) from hours to under 30 minutes for most carrier-related faults.

Site Replacement Workflow

Step 1 — Isolation: Place the affected VersaMax I/O node in safe state. Disable outputs via the CPU or NIU configuration tool (Proficy Machine Edition or equivalent). De-energize the 24 VDC field power supply feeding the carrier before any physical intervention.

Step 2 — Module Removal: Unlatch and remove all I/O modules from the existing IC200CHS0022 carrier. Label each module’s slot position to ensure correct re-installation. Disconnect field wiring terminal blocks if they are integrated with the I/O modules.

Step 3 — Carrier Replacement: Remove the failed IC200CHS0022 from the DIN rail or panel mount. Install the replacement carrier, ensuring the bus connector aligns correctly with the NIU or CPU expansion port. Secure the DIN rail locking clips.

Step 4 — Module Re-installation: Re-seat I/O modules in their original slot positions. Reconnect field wiring terminal blocks. Verify all module locking tabs are fully engaged.

Step 5 — Power-Up and Verification: Re-energize the 24 VDC supply. Confirm all I/O module status LEDs indicate normal operation. Verify the NIU re-establishes communication on the fieldbus network. Perform a functional I/O check from the CPU or SCADA system before returning the node to production.

This workflow is compatible with direct replacement of older IC200CHS0022 units without requiring CPU configuration changes, firmware updates, or hardware re-addressing, preserving full system compatibility and minimizing downtime.

Spare Parts Support FAQ

Q1: Is the IC200CHS0022 compatible with all VersaMax I/O modules?
The IC200CHS0022 is designed for the GE VersaMax I/O platform and is compatible with the IC200MDL series of discrete and analog I/O modules. Compatibility with specific NIU types (PROFIBUS, DeviceNet, Ethernet) should be confirmed against the system’s existing hardware configuration. KNMKS technical support can assist with compatibility verification prior to order.

Q2: What pre-shipment testing is performed on each unit?
Each IC200CHS0022 is inspected for mechanical integrity (connector pins, locking tabs, DIN rail clips) and bus connector continuity before shipment. Units showing signs of physical damage, corrosion, or non-conforming connector geometry are excluded from inventory. A support terms confirmed by quotation cover functional failures from the shipment date.

Q3: Can this carrier replace an older IC200CHS0022 without reconfiguring the PLC program?
Yes. The IC200CHS0022 is a passive carrier module with no firmware or addressable parameters. Direct physical replacement does not require changes to the CPU program, I/O addressing, or NIU configuration, provided the replacement I/O modules are of the same type and slot positions are maintained.

Q4: What is the long-term supply outlook for IC200CHS0022?
GE VersaMax hardware has reached end-of-active-production status from the OEM. KNMKS maintains a dedicated inventory of IC200CHS0022 and related VersaMax components to support facilities extending the operational life of existing systems. Long-term supply agreements and bulk procurement options are available for facilities with multi-node VersaMax installations.
