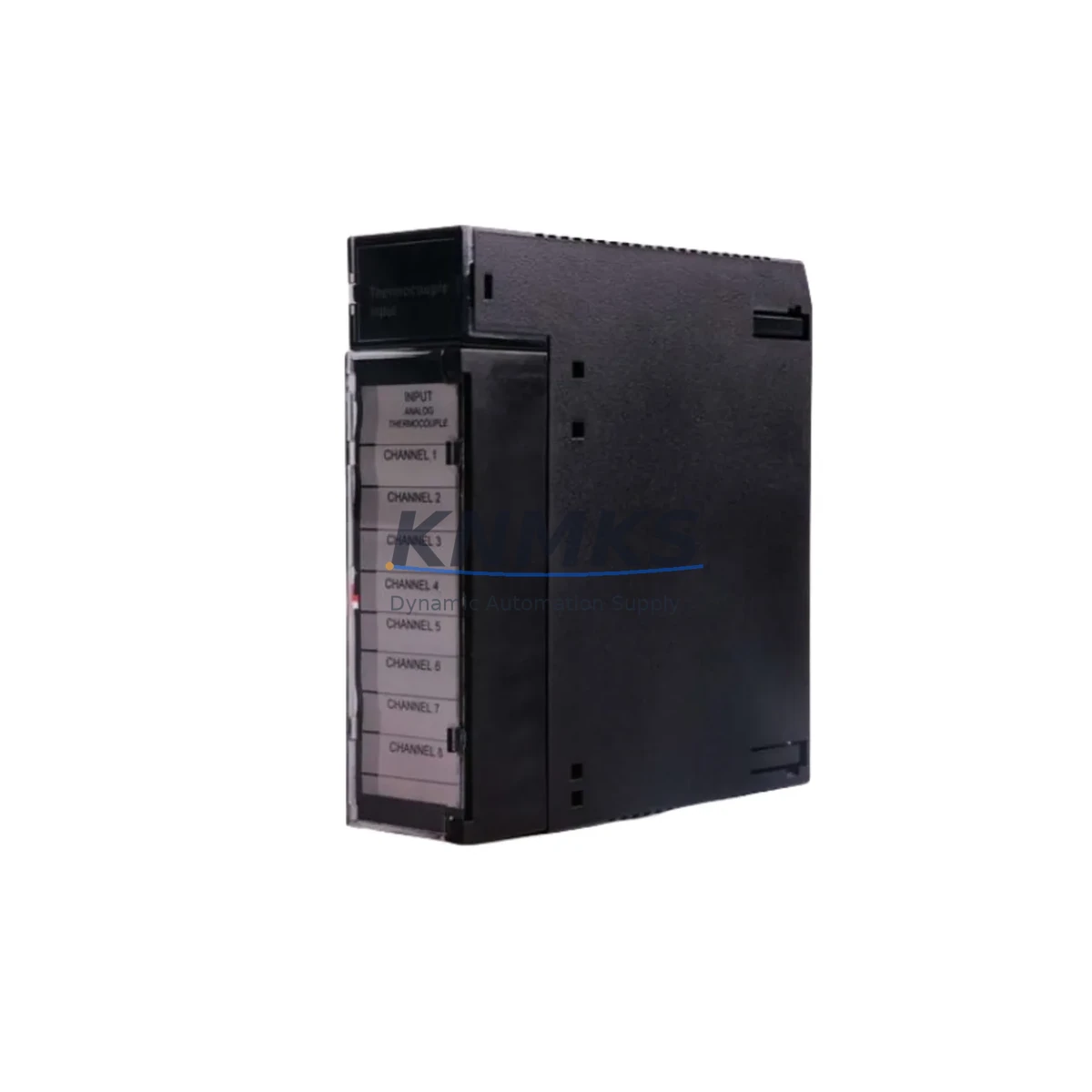

GE HE693THM809C Fail-Safe Thermocouple Input Module

Overview

GE HE693THM809C Fail-Safe Thermocouple Input Module for Industrial Control Reliability

In high-stakes industrial environments — from petrochemical reactors and power generation turbines to metallurgical furnaces and continuous mining conveyors — temperature measurement is not merely a process variable. It is a safety-critical signal that governs interlock logic, protective shutdowns, and equipment longevity. The GE HE693THM809C is an 8-channel thermocouple analog input module engineered for the GE Series 90-30 PLC platform, delivering the signal integrity, noise immunity, and fail-safe response that demanding field applications require.

Designed to accept a wide range of thermocouple types — including J, K, T, E, R, S, and B — the HE693THM809C converts millivolt-level thermocouple signals into high-resolution digital values for the Series 90-30 CPU. Its onboard cold-junction compensation ensures measurement accuracy even as ambient cabinet temperatures fluctuate, a critical feature in control cabinets installed near heat-generating drives, transformers, or high-current bus bars. The module’s differential input architecture provides strong common-mode rejection, protecting signal fidelity in environments with heavy electromagnetic interference from variable frequency drives, arc furnaces, or high-voltage switching equipment.

When a thermocouple wire breaks or a sensor fails open, the HE693THM809C responds with a configurable upscale or downscale burnout detection signal, allowing the PLC program to trigger a safe-state response rather than acting on a false reading. This fail-safe behavior is essential in applications where an undetected sensor fault could lead to overtemperature damage, process runaway, or personnel hazard. The module integrates directly into the Series 90-30 rack alongside the IC693CPU374 or IC693CPU364 CPU modules, sharing the backplane bus without requiring additional signal conditioning hardware between the field device and the controller.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable temperature monitoring in a control cabinet begins with a well-coordinated hardware architecture. The HE693THM809C slots into a standard Series 90-30 rack — such as the IC693CHS391 10-slot baseplate — and draws power from the rack’s shared power supply bus. For installations where power quality is a concern, pairing the rack with a IC693PWR321 or IC693PWR330 power supply module ensures stable 5 VDC and 24 VDC rails even during line voltage sags or transient surges common in heavy industrial facilities.

In applications where thermocouple signals must travel long cable runs from field sensors to the control cabinet — as is typical in boiler houses, kiln control rooms, or offshore platform control enclosures — signal integrity can be compromised by ground loops, induced noise, or cable capacitance. Installing a dedicated signal isolator or barrier at the cabinet entry point, upstream of the HE693THM809C, eliminates ground-loop currents and provides galvanic separation between the field wiring and the PLC backplane. This is particularly important when thermocouples are mounted on grounded metallic equipment where stray currents are present.

Communication between the Series 90-30 CPU and supervisory SCADA or DCS systems is typically handled through an IC693CMM321 communications module or an Ethernet interface such as the IC693CPU374‘s embedded port. Ensuring that the communication link remains stable during temperature excursions or process upsets is critical — a lost communication link during a high-temperature alarm condition can delay operator response and increase risk. The HE693THM809C’s deterministic scan-cycle reporting ensures that temperature data is refreshed every PLC scan, giving the CPU current information to evaluate interlock conditions without latency.

For cabinets operating in dusty, humid, or chemically aggressive environments — such as those found in water treatment chlorination buildings, cement plant control rooms, or coastal port facilities — the module’s conformal-coated PCB construction provides additional protection against moisture ingress and corrosive contamination, extending service life beyond what standard commercial-grade electronics can offer.

Critical Industrial Safety Applications

The HE693THM809C is deployed across a broad range of safety-critical and process-critical industries where temperature measurement directly governs equipment protection and personnel safety.

In petrochemical and refinery applications, the module monitors reactor vessel temperatures, heat exchanger outlet conditions, and fired heater tube skin temperatures. When a thermocouple reading exceeds a defined high-high setpoint, the Series 90-30 CPU executes an emergency shutdown sequence — closing feed valves, activating quench systems, and triggering alarm annunciators — all within a single PLC scan cycle. The HE693THM809C’s open-wire burnout detection ensures that a failed thermocouple does not mask a genuine overtemperature condition.

In power generation facilities, turbine bearing temperatures, generator winding temperatures, and transformer oil temperatures are monitored continuously. A single missed overtemperature event can result in catastrophic equipment failure and extended outage. The module’s high-resolution conversion and cold-junction compensation maintain measurement accuracy across the full operating range, supporting both normal monitoring and protective relay coordination.

In metallurgical and steel mill environments, furnace zone temperatures, ladle preheating temperatures, and rolling mill bearing temperatures are tracked in real time. The HE693THM809C’s immunity to electromagnetic interference from induction furnaces and large motor drives ensures that temperature readings remain stable and trustworthy even in the most electrically noisy environments on the plant floor.

In mining and mineral processing operations, conveyor drive motor temperatures, crusher bearing temperatures, and flotation cell heater temperatures are monitored to prevent unplanned shutdowns. The module’s robust construction and wide operating temperature range make it suitable for control rooms located close to the process, where ambient conditions may be challenging.

In water and wastewater treatment plants, the HE693THM809C monitors heat exchanger temperatures in sludge digestion systems and UV disinfection reactor temperatures, supporting continuous process operation with minimal maintenance intervention.

Safety and Quality FAQ

Q1: Does the HE693THM809C come with a support terms, and what does it cover?
Yes. Every HE693THM809C unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including channel-by-channel signal verification and burnout detection confirmation — before dispatch. Documentation of test results is available upon request.

Q2: How is compatibility with my existing Series 90-30 rack confirmed before shipment?
The HE693THM809C is a standard Series 90-30 I/O module and is compatible with all standard 90-30 rack configurations, including 5-slot, 10-slot, and expansion racks. KNMKS verifies the module’s firmware revision and physical connector condition prior to shipment. If you provide your CPU model and rack configuration, our technical team can confirm slot compatibility and any firmware considerations before the order is processed.

Q3: What is the lead time, and is stock available for urgent replacement needs?
KNMKS maintains ready stock of the HE693THM809C to support urgent spare parts requirements and unplanned maintenance events. Standard orders ship within 1–3 business days. For critical plant shutdowns or emergency replacement scenarios, expedited shipping options are available globally. Contact [email protected] or call +86 18359268345 to confirm current stock levels and shipping timelines.

Q4: Can the HE693THM809C be used as a direct replacement for a failed module without reprogramming the PLC?
In most cases, yes. The HE693THM809C is a form-fit-function replacement for the same module position in a Series 90-30 rack. Module configuration parameters — including thermocouple type selection, engineering unit scaling, and alarm setpoints — are stored in the CPU program and are automatically downloaded to the replacement module upon power-up. No hardware reprogramming is required, though it is recommended to verify channel configuration in the programming software (Proficy Machine Edition or Logicmaster 90-30) after module replacement to confirm all parameters are correctly applied.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

GE
Assorted Brands

Model / Series

HE693THM809C
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: GE HE693THM809C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
