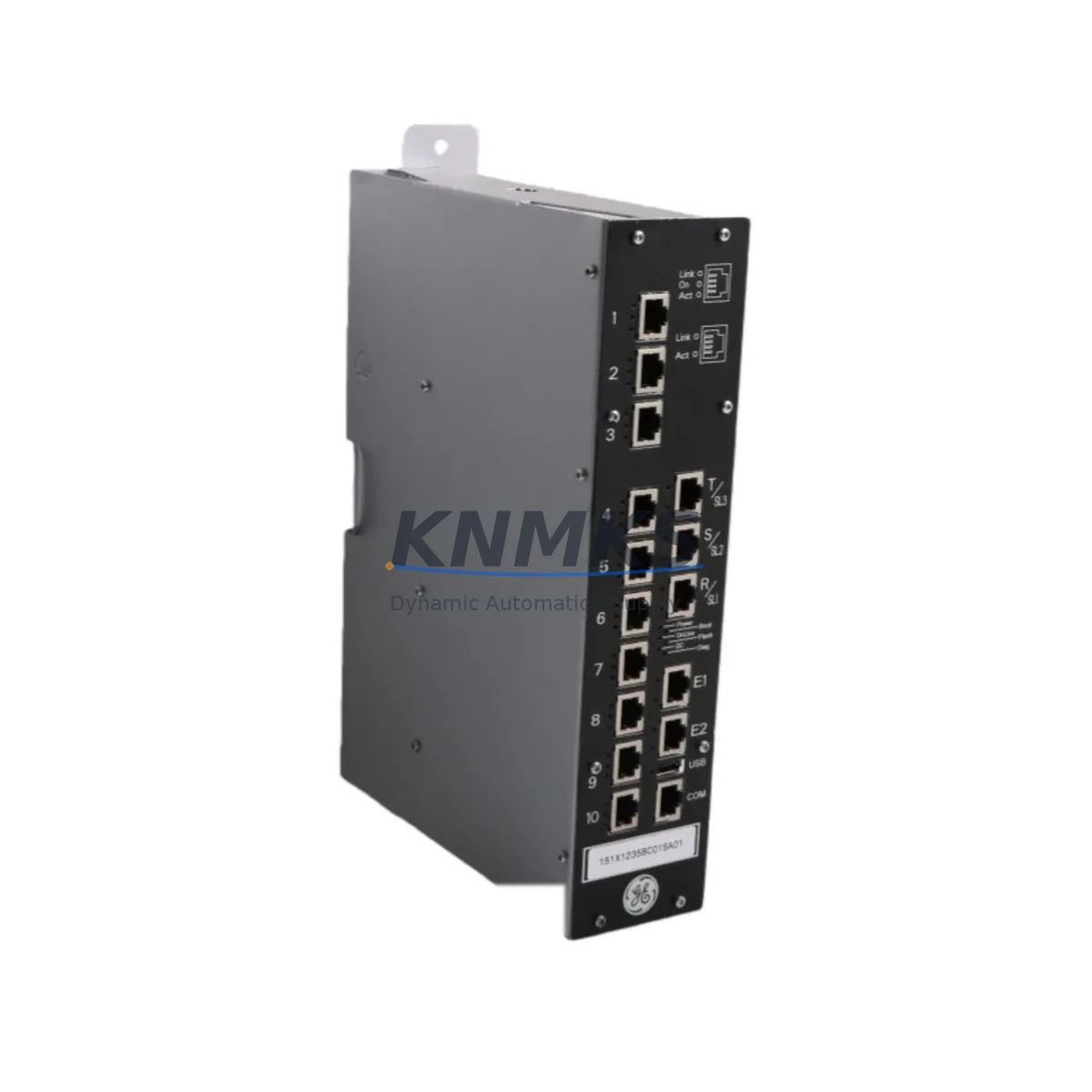

GE Fanuc 151X1235BC01SA41 Migration-Ready Turbine Controller

Overview

GE Fanuc 151X1235BC01SA41 Migration-Ready Turbine Controller for Legacy Control Systems

The GE Fanuc 151X1235BC01SA41 is a migration-ready turbine controller module designed for direct replacement within GE Mark VI control systems. As legacy Mark V and early Mark VI installations approach end-of-life, plant engineers and maintenance teams face increasing pressure to source verified, drop-in compatible spare parts that eliminate extended downtime and protect existing control logic. The 151X1235BC01SA41 addresses this challenge by offering full backward compatibility with the Mark VI backplane architecture, preserving terminal wiring assignments, module addressing, and communication link configurations that were established during original commissioning.

Before installing this module into an existing turbine control cabinet, engineers should verify several critical parameters. Power supply capacity must be confirmed — the Mark VI controller rack typically requires a dedicated 28 VDC bus, and adding or replacing a controller module may affect total rail loading, particularly if the cabinet also houses I/O modules such as the IS200TBCIH1B terminal board or associated analog input cards. Terminal block wiring should be mapped against the original as-built drawings to confirm that signal assignments on the J1 and J2 connectors match the replacement module’s pinout. Backplane slot addressing must be validated in the ToolboxST configuration software to ensure the module is recognized at the correct logical address within the or controller redundancy group.

Program compatibility is a key concern during any Mark VI controller swap. The application logic stored in ToolboxST should be exported and archived before the replacement procedure begins. After installation, the firmware version on the 151X1235BC01SA41 must be confirmed to match or exceed the version expected by the existing application build — mismatched firmware can prevent successful download or cause unexpected behavior during the first online synchronization. If the site operates a redundant controller pair, the replacement module must be brought online in simplex mode first, verified against the running unit, then promoted to full redundancy.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 151X1235BC01SA41 into an operating turbine control system requires careful coordination across multiple hardware and software layers. The Mark VI architecture distributes control functions across the controller module, I/O packs, and terminal boards — meaning a controller replacement does not occur in isolation. Maintenance teams should audit the condition of associated components before committing to a controller swap alone.

The IS200VTURH1B or IS200VTURH1BBA voltage regulator interface board, if present in the same cabinet, should be inspected for connector wear and firmware currency, as its interaction with the replacement controller module will be re-established during the first online synchronization. Similarly, the IS200TREGH1B excitation terminal board and any associated PPRO protection processor cards should be confirmed as functional before the new controller is brought online — a fault in a downstream protection module can mask successful controller installation and complicate troubleshooting.

For sites migrating from Mark V to Mark VI, the communication architecture shift from ARCNET to IONet (Ethernet) represents the most significant protocol migration challenge. The 151X1235BC01SA41 operates natively on IONet, and any remaining ARCNET-based HMI workstations or data historians must be bridged or replaced. The GE Mark VI HMI running Cimplicity or a third-party SCADA platform connected via OPC-DA or OPC-UA will require tag remapping if the controller’s variable naming convention changes during the migration. It is strongly recommended to export the full HMI tag database before cutover and validate critical display screens — particularly turbine speed, exhaust temperature spreads, and fuel control valve positions — against live values immediately after the replacement controller comes online.

I/O expansion requirements should also be assessed at the planning stage. If the retrofit is part of a broader control system upgrade that adds new measurement points — such as additional thermocouple inputs via an IS200TBAIH1B analog input terminal board, or new discrete outputs via an IS200TBCIH1B — the backplane slot allocation and IONet bandwidth must be recalculated. Programming cables such as the IC693CBL316 or equivalent USB-to-serial adapters used for legacy Mark V communication should be replaced with standard Ethernet patch cables for Mark VI ToolboxST connectivity, simplifying the commissioning workflow and reducing adapter-related communication errors.

Downtime Control During System Migration

Minimizing turbine downtime during a controller replacement requires a structured pre-outage preparation process. All configuration files, including the ToolboxST project archive, the current firmware image, and the HMI application backup, should be staged on the engineering workstation before the maintenance window begins. A full I/O force table review should be completed to identify any active overrides that must be documented and reinstated after the replacement.

During the physical swap, the original controller module should be removed only after confirming that the turbine is in a safe, shutdown state and that all protection interlocks are armed through hardware-independent means. The 151X1235BC01SA41 should be inserted into the correct backplane slot, powered up in isolation, and confirmed as recognized by ToolboxST before any application download is attempted. The firmware version displayed in the ToolboxST device tree should be recorded and compared against the project’s target firmware specification.

After a successful application download, the controller should be placed in RUN mode and all critical process variables verified against independent instrumentation before the turbine is returned to service. For redundant controller configurations, the replacement unit should complete at least one full synchronization cycle with the primary controller before the maintenance window is closed. This approach protects the original program logic, maintains field control continuity, and reduces the risk of an unplanned trip during the post-maintenance startup sequence. All replacement modules supplied by KNMKS are pre-tested prior to shipment, reducing on-site commissioning time and providing confidence in module functionality before installation begins.

Retrofit Support FAQ

Q: Is the 151X1235BC01SA41 a direct drop-in replacement for my existing Mark VI controller module?
A: In most Mark VI installations, yes. The module is designed to fit the standard Mark VI controller rack slot and is compatible with existing backplane interfaces, terminal wiring, and ToolboxST configuration. However, firmware version compatibility and slot addressing should always be verified against your specific system configuration before installation.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, connect to the module via ToolboxST, confirm firmware version, download the archived application, verify all I/O points against the force table, and validate critical process variables before returning the turbine to service. For redundant systems, complete a full synchronization cycle before closing the maintenance window.

Q: How is the module tested before shipment?
A: All 151X1235BC01SA41 modules supplied by KNMKS undergo functional testing prior to shipment. Testing covers power-up initialization, backplane communication, and basic I/O response verification. A support terms confirmed by quotation cover functional defects under normal operating conditions from the date of shipment.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains inventory of the 151X1235BC01SA41 to support urgent replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity or long-term supply commitments, contact our sales team to discuss stocking agreements and extended lead time planning.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

GE Fanuc
Assorted Brands

Model / Series

151X1235BC01SA41
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: GE Fanuc 151X1235BC01SA41
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
