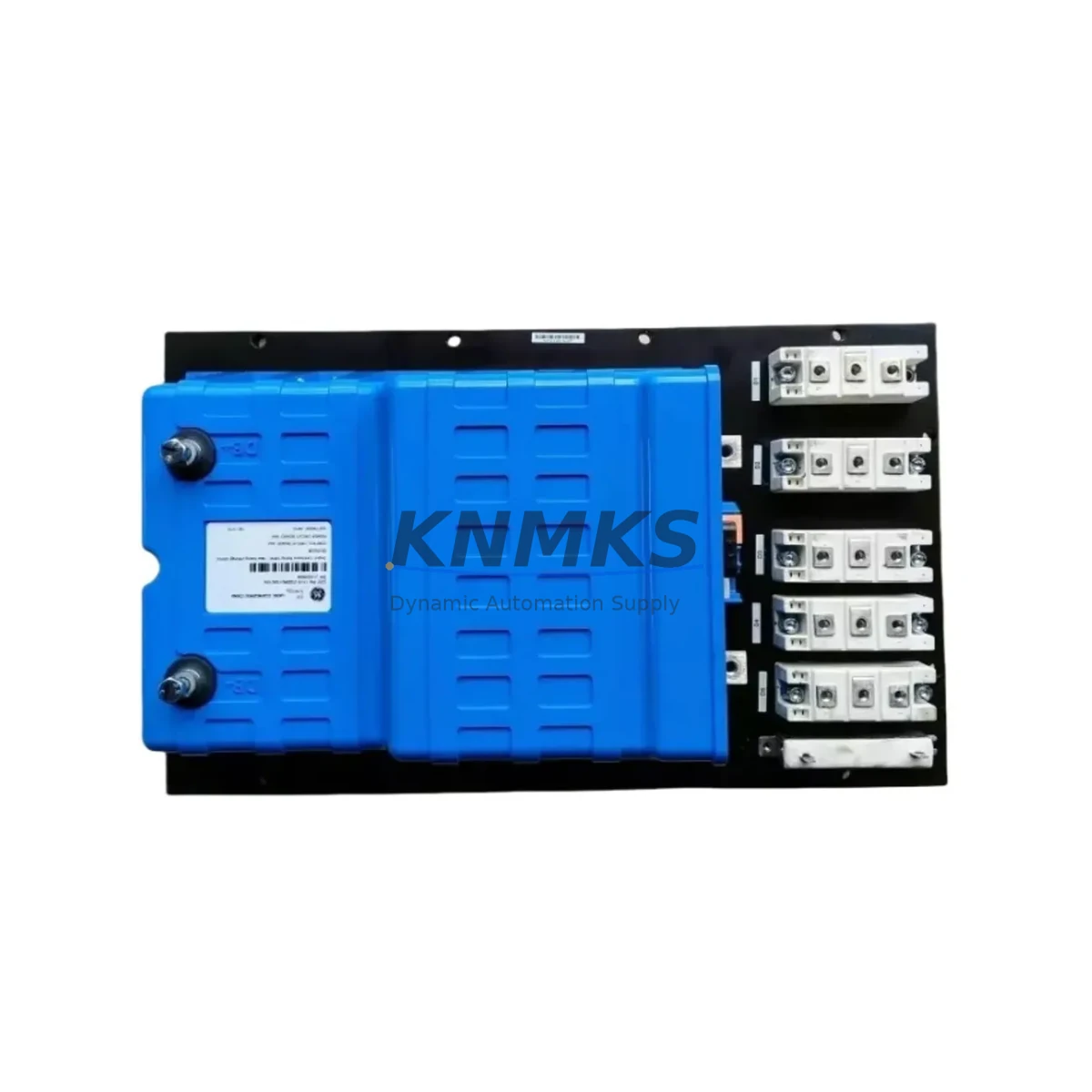

GE 151X1233DB01SA01 Fail-Safe Turbine Control Module

Overview

GE 151X1233DB01SA01 Fail-Safe Turbine Control Module: Critical Reliability for Industrial Turbine Systems

The GE 151X1233DB01SA01 is a mission-critical turbine control module engineered for the GE Mark V distributed control platform — one of the most widely deployed gas turbine control architectures in power generation, oil & gas, and petrochemical industries worldwide. Designed to operate continuously in demanding field environments, this module delivers fail-safe performance across the full spectrum of industrial hazards: high electromagnetic interference (EMI), voltage surges, thermal stress, mechanical vibration, and corrosive or humid atmospheres.

In continuous production environments where unplanned turbine trips translate directly into lost revenue and safety incidents, the 151X1233DB01SA01 provides the control loop integrity that plant engineers depend on. Its robust signal conditioning architecture suppresses noise-induced drift, ensuring that turbine speed, temperature, and load signals remain accurate even in high-interference switchgear rooms or outdoor enclosures exposed to wide temperature swings. The module’s internal watchdog and self-diagnostic routines actively monitor circuit health, triggering a controlled safe-state output rather than an unpredictable failure — a fundamental requirement for SIL-rated safety instrumented systems (SIS) and critical interlock loops.

Surge protection circuitry on all I/O channels guards against transient overvoltage events common in power plant environments, where capacitor bank switching, motor starts, and lightning-induced surges can propagate through control wiring. This protection is especially valuable in installations where the GE Mark V TCCA (Turbine Control Core Assembly) and TCCB boards share the same control cabinet backplane, as cross-channel interference is a known failure vector in aging Mark V systems. The 151X1233DB01SA01 is fully backward-compatible with the Mark V TMR (Triple Modular Redundant) architecture, supporting hot-standby redundancy configurations that eliminate single-point-of-failure risk in critical turbine trains.

For control cabinet protection, this module integrates seamlessly with companion components including the GE IS200TSVOH1A servo output board, the GE DS200TCQCG1A I/O terminal board, and the GE IS200TREGH1B regulation board — all of which share the Mark V backplane communication bus. When combined with a properly specified GE Mark V PPRO protection processor and a redundant 24VDC UPS power supply module, the complete control cabinet achieves the fault-tolerance levels required for API 670 machinery protection compliance. Replacement of the 151X1233DB01SA01 in the field requires no firmware re-flashing when the replacement unit is sourced from a qualified supplier with original GE firmware pre-loaded — a critical advantage during emergency maintenance windows.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable Mark V turbine control cabinet is only as strong as its weakest component. The GE 151X1233DB01SA01 anchors the control loop, but sustained cabinet reliability depends on a coordinated protection strategy across all critical subsystems. The GE IS200TSVOH1A servo output board manages actuator drive signals for fuel control valves and inlet guide vanes — components where signal integrity failures can cause dangerous turbine overspeed or flame-out events. Pairing the 151X1233DB01SA01 with a verified IS200TSVOH1A ensures that both the sensing and actuation sides of the control loop maintain synchronized, fault-tolerant operation.

On the power supply side, the GE Mark V PPRO protection processor continuously monitors turbine parameters against trip setpoints, and its reliable operation depends on a stable, conditioned DC supply. A dedicated redundant 24VDC UPS module with automatic switchover eliminates power-related nuisance trips — one of the most common causes of unplanned turbine shutdowns in aging control systems. For communication integrity, the GE DS200TCQCG1A terminal board provides the physical I/O interface between field instruments and the Mark V processor cards; worn or corroded terminal connections on this board are a frequent source of intermittent signal faults that can be misdiagnosed as processor failures.

In high-vibration installations such as offshore platforms or heavy industrial compressor trains, the GE IS200TREGH1B regulation board provides voltage regulation stability that prevents logic-level fluctuations from propagating into the control bus. Maintaining a documented spare-parts inventory that includes the 151X1233DB01SA01 alongside these companion boards is a recognized best practice in API 689 spare parts management for rotating machinery control systems — reducing mean time to repair (MTTR) from days to hours during critical failure events.

Critical Industrial Safety Applications

The GE 151X1233DB01SA01 is deployed across the most demanding industrial sectors where turbine control reliability is directly linked to process safety and regulatory compliance.

In petrochemical and refinery applications, this module controls gas turbine-driven compressors in ethylene crackers and LNG liquefaction trains, where a turbine trip can trigger a full plant emergency shutdown (ESD) sequence. The module’s fail-safe output architecture ensures that any internal fault results in a controlled, predictable safe state rather than an ambiguous output that could confuse the plant DCS or SIS logic.

In power generation — including combined-cycle gas turbine (CCGT) plants and cogeneration facilities — the 151X1233DB01SA01 supports load-frequency control loops that must respond within milliseconds to grid frequency deviations. Its low-latency signal processing and deterministic scan cycle make it suitable for primary frequency response applications where control delay directly impacts grid stability.

In mining and mineral processing, gas turbine-driven generators power remote sites where grid connection is unavailable or unreliable. The module’s wide operating temperature range and vibration tolerance make it well-suited for harsh open-pit or underground environments where control cabinet conditions are far from ideal.

In water treatment and desalination plants, turbine-driven high-pressure pumps require continuous, uninterrupted control to maintain process pressure and flow. The 151X1233DB01SA01’s self-diagnostic capability allows maintenance teams to identify developing faults during scheduled inspection windows rather than discovering failures during production.

In metallurgical and steel production facilities, where blast furnace gas turbines operate in high-dust, high-temperature environments, the module’s EMI shielding and sealed construction provide the environmental protection needed for long-interval maintenance cycles. Port and marine applications — including LNG carrier turbine control systems — benefit from the module’s corrosion-resistant design and compliance with marine electrical standards.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the GE 151X1233DB01SA01?
The support terms confirmed by quotation cover all functional defects arising from manufacturing or component failure under normal operating conditions. If the module fails to perform its specified control functions within the confirmed support period, we provide a replacement unit or documented resolution support. The confirmed support period begins from the date of confirmed delivery and applies to both new and refurbished units supplied by KNMKS.

Q2: How is the module tested before shipment?
Every GE 151X1233DB01SA01 unit undergoes a full functional test on a GE Mark V-compatible test bench prior to shipment. Testing covers power-on self-test (POST) completion, I/O channel continuity and signal accuracy, communication bus response, and watchdog circuit verification. A test report is available upon request for units destined for safety-critical applications.

Q3: Is this module compatible with all GE Mark V configurations, including TMR systems?
Yes. The 151X1233DB01SA01 is compatible with both Simplex and TMR (Triple Modular Redundant) Mark V configurations. It supports hot-swap replacement in TMR systems when proper isolation procedures are followed, allowing maintenance without full turbine shutdown in systems with redundant processor voting. Compatibility with specific Mark V software revisions should be confirmed against your system’s configuration record prior to installation.

Q4: Can KNMKS guarantee long-term supply availability for this part?
KNMKS maintains regional warehouse stock of high-demand GE Mark V spare parts including the 151X1233DB01SA01, with inventory replenishment managed through a global sourcing network. For customers with planned maintenance schedules or blanket-stock programs, we offer reserved inventory agreements that guarantee unit availability against your maintenance calendar — eliminating lead-time risk for critical turbine control spares.
