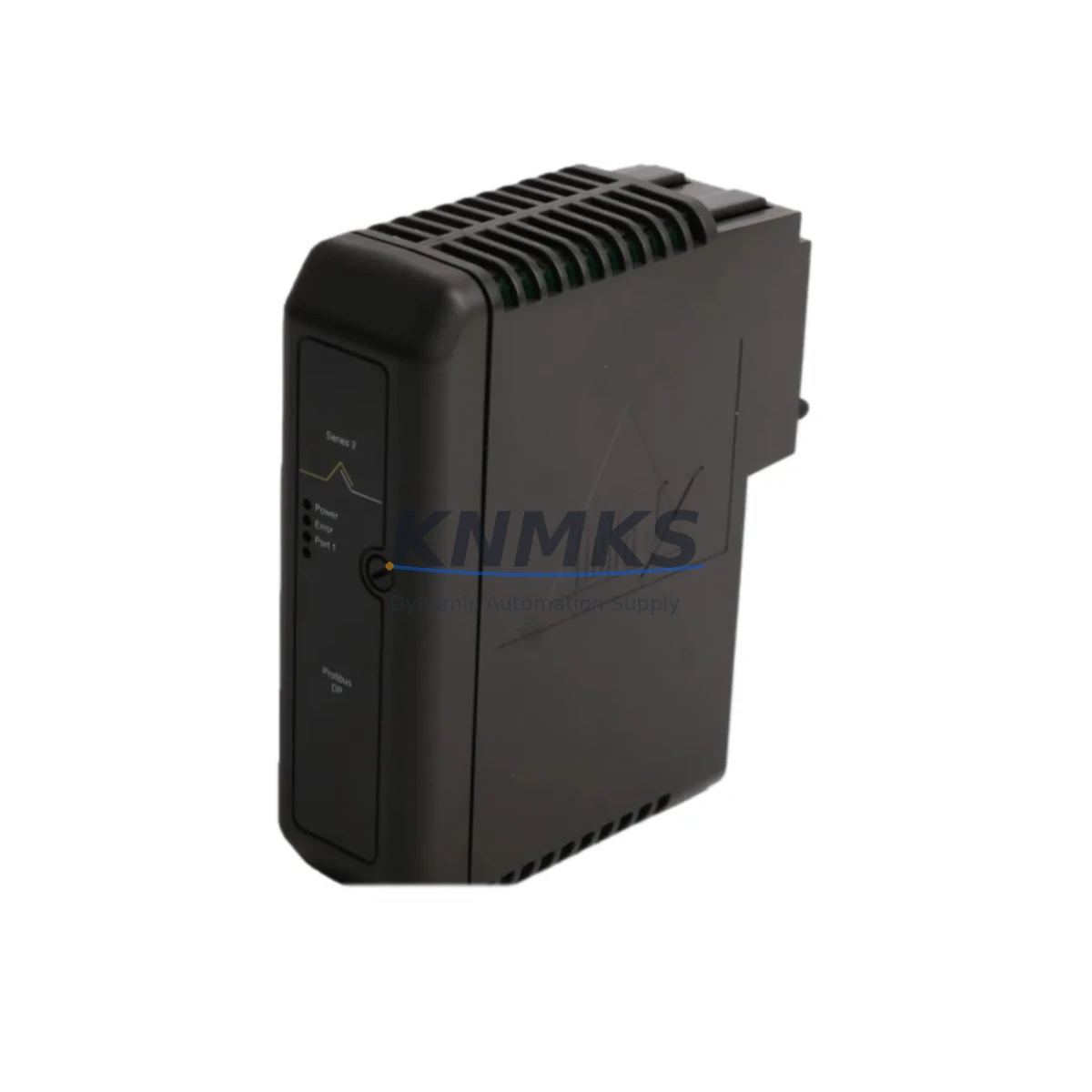

Emerson KJ3243X1-BK1-SE4022 Fail-Safe Profibus DP Interface

Overview

Emerson KJ3243X1-BK1-SE4022 Fail-Safe Profibus DP Interface: Fault-Protected Reliability for Critical Industrial Control

The Emerson KJ3243X1-BK1-SE4022 is a safety-enhanced Profibus DP Interface Module engineered for the DeltaV KJ-Series distributed control system (DCS) platform. Designed to operate in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this module delivers fail-safe communication integrity between field devices and the control system backbone.

In critical process environments where unplanned downtime carries severe operational and safety consequences, the KJ3243X1-BK1-SE4022 provides a hardened Profibus DP communication path that resists signal drift, electromagnetic interference, power fluctuations, and environmental stress. Its architecture is built around the principle that control loop continuity is non-negotiable — every design decision prioritizes fault detection, graceful degradation, and rapid recovery over raw throughput.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The KJ3243X1-BK1-SE4022 is most effective when deployed as part of a coordinated control cabinet protection strategy. In high-reliability DCS architectures, this Profibus DP interface module works in concert with the Emerson KJ3221X1-BA1 DeltaV I/O Interface Carrier, which provides the physical backplane connectivity and power distribution rail that the KJ3243X1-BK1-SE4022 relies upon for stable operation. Any degradation in the carrier’s power rail directly affects Profibus DP communication quality, making carrier health monitoring a prerequisite for safe module operation.

On the power supply side, pairing the KJ3243X1-BK1-SE4022 with a Emerson KJ4001X1-BA1 DeltaV Power Supply Module ensures that the 24 VDC bus remains within tolerance even during grid disturbances or local load switching events. Voltage sags below 21.6 VDC or spikes above 26.4 VDC can cause Profibus DP token-passing errors and trigger unnecessary fault states — a properly rated and redundant power supply eliminates this failure mode entirely.

For installations in environments with high electromagnetic interference — such as variable frequency drive (VFD) rooms, high-voltage switchgear bays, or arc furnace control buildings — the Profibus DP segment connected to the KJ3243X1-BK1-SE4022 should be protected by a dedicated Profibus DP Repeater / Segment Coupler (such as the Siemens 6ES7972-0AA02-0XA0 or equivalent). This isolates the DCS-side segment from field-side noise sources and prevents common-mode interference from propagating into the KJ-Series backplane.

Surge protection at the cabinet entry point is equally critical. A Phoenix Contact TRABTECH Profibus DP Surge Arrester installed at the cable gland entry prevents lightning-induced transients and switching surges from reaching the KJ3243X1-BK1-SE4022’s communication ports. Combined with proper cable shielding and grounding practices per IEC 61158-2, this forms a complete surge defense layer for the Profibus segment.

For safety interlock circuits that depend on Profibus DP status feedback, the Emerson DeltaV SIS Safety Instrumented System Controller provides the logic solver layer that interprets KJ3243X1-BK1-SE4022 communication health as a process safety input. Loss of Profibus DP communication can be configured as a safety demand, triggering a controlled shutdown of associated process equipment before a hazardous condition develops.

Finally, cabinet thermal management must not be overlooked. The Rittal SK 3105 Cabinet Air Conditioner or equivalent thermoelectric cooling unit maintains internal cabinet temperature below 45°C, ensuring that the KJ3243X1-BK1-SE4022 and adjacent KJ-Series modules operate within their rated thermal envelope during summer peaks or in high-ambient-temperature plant areas such as compressor buildings and furnace control rooms.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, catalytic cracking, and hydroprocessing units, the KJ3243X1-BK1-SE4022 maintains Profibus DP communication between the DeltaV DCS and field instruments including smart positioners, flow transmitters, and pressure sensors. Any communication interruption in these loops can cause incorrect valve positioning, leading to process upsets or safety system activation. The module’s deterministic fault detection ensures that the DCS receives a valid communication-loss alarm before any unsafe condition can develop undetected.

Power Generation (Thermal and Hydro): Turbine control and boiler management systems require sub-second response times and zero tolerance for spurious trips. The KJ3243X1-BK1-SE4022’s high-immunity EMI design prevents interference from generator excitation systems and high-current bus bars from corrupting Profibus DP data frames, maintaining control loop integrity during load changes and grid synchronization events.

Mining and Mineral Processing: In underground and surface mining operations, control cabinets are exposed to vibration from blasting and heavy machinery, dust ingress, and wide temperature swings. The KJ3243X1-BK1-SE4022’s robust construction and sealed cabinet compatibility make it suitable for crusher control, conveyor management, and ventilation safety systems where communication reliability directly affects personnel safety.

Water and Wastewater Treatment: SCADA-integrated DCS platforms in water treatment facilities use Profibus DP to communicate with pump drives, valve actuators, and analytical instruments. The KJ3243X1-BK1-SE4022 supports reliable data exchange in high-humidity environments typical of pump stations and chemical dosing areas, reducing the risk of communication-induced dosing errors or pump cavitation events.

Metallurgy and Steel Production: Electric arc furnace (EAF) and continuous casting environments generate extreme electromagnetic noise. The KJ3243X1-BK1-SE4022’s surge-protected design and high common-mode rejection capability allow it to maintain stable Profibus DP communication even in close proximity to EAF transformer rooms and ladle handling cranes.

Port and Marine Applications: Ship-to-shore crane control systems and offshore platform DCS installations require modules that can withstand salt-laden air, vibration, and wide supply voltage variations. The KJ3243X1-BK1-SE4022’s tolerance for 24 VDC supply fluctuations and its robust communication stack make it a reliable choice for marine-grade control cabinet integration.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the KJ3243X1-BK1-SE4022?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions. If the module fails to perform its specified Profibus DP communication function within the confirmed support period, KNMKS will provide a replacement unit or documented resolution support. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each KJ3243X1-BK1-SE4022 unit?
Every unit undergoes a full functional verification test prior to dispatch, including Profibus DP communication handshake validation, power input range testing, and visual inspection for physical integrity. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the KJ3243X1-BK1-SE4022 compatible with all DeltaV DCS versions?
The KJ3243X1-BK1-SE4022 is designed for the Emerson DeltaV KJ-Series I/O subsystem and is compatible with DeltaV DCS versions that support the KJ-Series hardware platform. Compatibility with specific DeltaV software versions should be confirmed against Emerson’s hardware compatibility matrix for your site’s DCS version. KNMKS technical support can assist with compatibility verification prior to purchase.

Q4: Can KNMKS guarantee long-term supply and replacement support for this module?
Yes. KNMKS maintains dedicated inventory of Emerson KJ-Series modules including the KJ3243X1-BK1-SE4022 to support long-term maintenance contracts, planned turnarounds, and emergency replacement requirements. For sites with critical spare part strategies, KNMKS can provide supply commitment agreements to ensure availability over multi-year maintenance cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Emerson
Assorted Brands

Model / Series

KJ3243X1-BK1-SE4022
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Emerson KJ3243X1-BK1-SE4022
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
