Emerson Fisher CL6827X1-A1 Fail-Safe DCS Input Module

Overview

Emerson Fisher CL6827X1-A1 Fail-Safe DCS Input Module for Critical Industrial Control Reliability

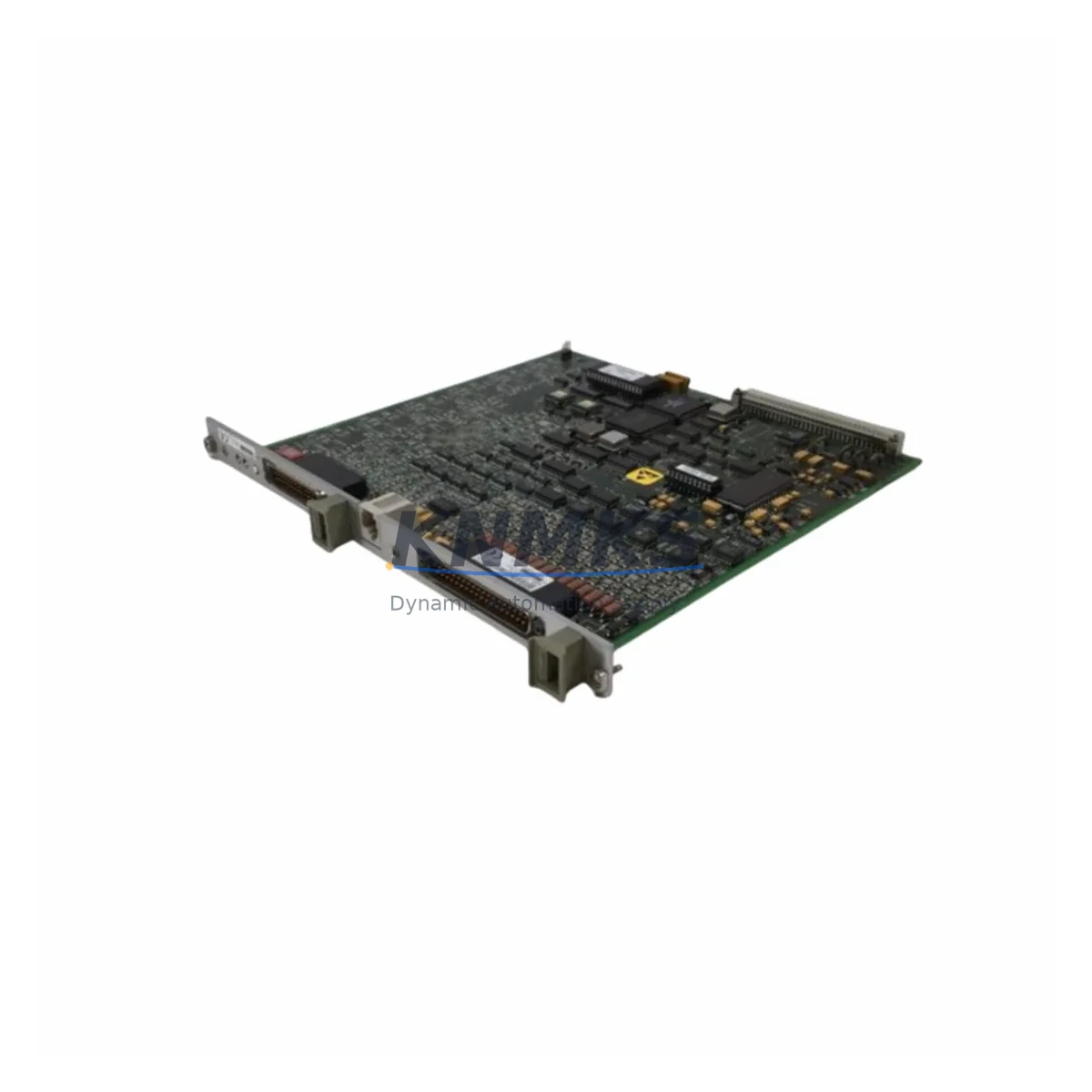

The Emerson Fisher CL6827X1-A1 (also referenced as 12P1392X042) is a high-integrity DCS input module engineered for the PROVOX RS3 distributed control system platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mineral processing sites, and continuous manufacturing lines — this module delivers the signal fidelity, fault tolerance, and electrical protection that safety-critical control loops demand. Every unit is pre-shipment tested, backed by a support terms confirmed by quotation, and maintained in multi-region stock to support both emergency replacements and planned outages without lead-time risk.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a PROVOX RS3 control cabinet, the CL6827X1-A1 input module operates as part of a tightly integrated I/O architecture where signal quality and power stability are interdependent. Field signal integrity begins at the marshalling terminal, where proper cable shielding and grounding practices prevent common-mode noise from corrupting analog inputs before they reach the module. Within the cabinet, the RS3 Power Supply Module provides regulated DC power to the I/O bus; any voltage ripple or micro-interruption at the power rail can cause false input readings or module resets — making a stable, redundant power supply configuration essential to the CL6827X1-A1’s reliable operation.

The RS3 Controller Card (the central processing unit of the PROVOX RS3 system) polls the CL6827X1-A1 cyclically over the RS3 I/O bus. Communication anomalies — such as bus contention, address conflicts, or cable degradation — can cause the controller to flag the input module as faulted, triggering a fail-safe state in the associated control loop. Pairing the CL6827X1-A1 with a properly configured RS3 Communication Interface Module ensures that the I/O bus remains stable even under high scan-rate conditions or during partial cabinet power cycling.

For applications involving safety instrumented functions, the CL6827X1-A1 is often installed alongside RS3 Output Modules and RS3 Relay Output Cards that drive final control elements such as solenoid valves, motor starters, and emergency shutdown actuators. Surge events on field wiring — common in outdoor installations near high-voltage switchgear or in lightning-prone regions — can propagate into the cabinet and damage unprotected I/O modules. Installing surge protection barriers or Zener diode barriers on field signal cables upstream of the CL6827X1-A1 significantly reduces this risk and extends module service life. Additionally, the RS3 Termination Panel, which provides the physical interface between field cables and the I/O module, should be inspected and cleaned periodically in dusty or humid environments to prevent contact resistance from introducing signal offset errors.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units such as crude distillation, catalytic cracking, and hydroprocessing, the CL6827X1-A1 acquires critical process variables — temperature, pressure, flow, and level — that feed into the DCS regulatory control and safety interlock logic. Signal dropout or drift in these loops can trigger unplanned shutdowns or, in worst cases, unsafe process excursions. The module’s fail-safe configuration ensures that on signal loss, the associated control output defaults to a pre-defined safe state, preventing runaway conditions.

Power Generation & Utilities: Boiler control systems, turbine protection circuits, and generator excitation control rely on high-speed, accurate analog input acquisition. The CL6827X1-A1’s EMI-resistant design makes it suitable for installation in generator control rooms where high-frequency switching noise from power electronics is prevalent. Its compatibility with the PROVOX RS3 platform allows direct hot-swap replacement during scheduled maintenance windows without requiring controller reconfiguration.

Mining & Mineral Processing: Conveyor control, crusher protection, and flotation cell level control in mining operations subject control hardware to continuous vibration, dust ingress, and wide ambient temperature swings. The CL6827X1-A1’s robust mechanical design and wide operating temperature range support reliable operation in these conditions, reducing the frequency of unplanned I/O module replacements that can halt production.

Water & Wastewater Treatment: Pump station control, chemical dosing, and effluent monitoring systems in water treatment facilities require long-term signal stability from input modules. The CL6827X1-A1’s drift compensation and surge protection capabilities ensure that flow and level measurements remain accurate over extended operating periods, supporting regulatory compliance and process safety.

Metallurgy & Steel Production: Electric arc furnace control, rolling mill automation, and ladle metallurgy systems generate extreme electromagnetic interference. The CL6827X1-A1’s shielded input design and compliance with industrial EMC standards make it a dependable choice for I/O acquisition in these high-interference environments, where signal corruption can lead to costly product defects or equipment damage.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CL6827X1-A1?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified input acquisition function within the confirmed support period, KNMKS will provide a replacement unit. The confirmed support period begins from the date of shipment and applies to all units dispatched from KNMKS inventory.

Q2: What pre-shipment testing is performed on each unit?
Every CL6827X1-A1 unit undergoes full functional verification before dispatch, including signal-path continuity checks, power-on self-test validation, and input channel response testing. This ensures that each module arrives at the customer site in verified working condition, minimizing the risk of installation failures during critical maintenance windows.

Q3: Is the CL6827X1-A1 a direct drop-in replacement for the original PROVOX RS3 I/O chassis?
Yes. The CL6827X1-A1 (12P1392X042) is designed as a direct replacement for the original Emerson Fisher PROVOX RS3 input module position. It is backward-compatible with existing RS3 I/O chassis configurations and does not require controller firmware changes or I/O database modifications in standard replacement scenarios. Always verify the chassis slot assignment and I/O configuration file before installation.

Q4: Can KNMKS support long-term or recurring supply of the CL6827X1-A1 for planned maintenance programs?
Yes. KNMKS maintains multi-region inventory of the CL6827X1-A1 and can support both emergency single-unit replacements and scheduled bulk procurement for annual maintenance programs. Long-term supply agreements are available for customers operating multiple PROVOX RS3 systems who require guaranteed stock availability and priority dispatch for critical spare parts.
