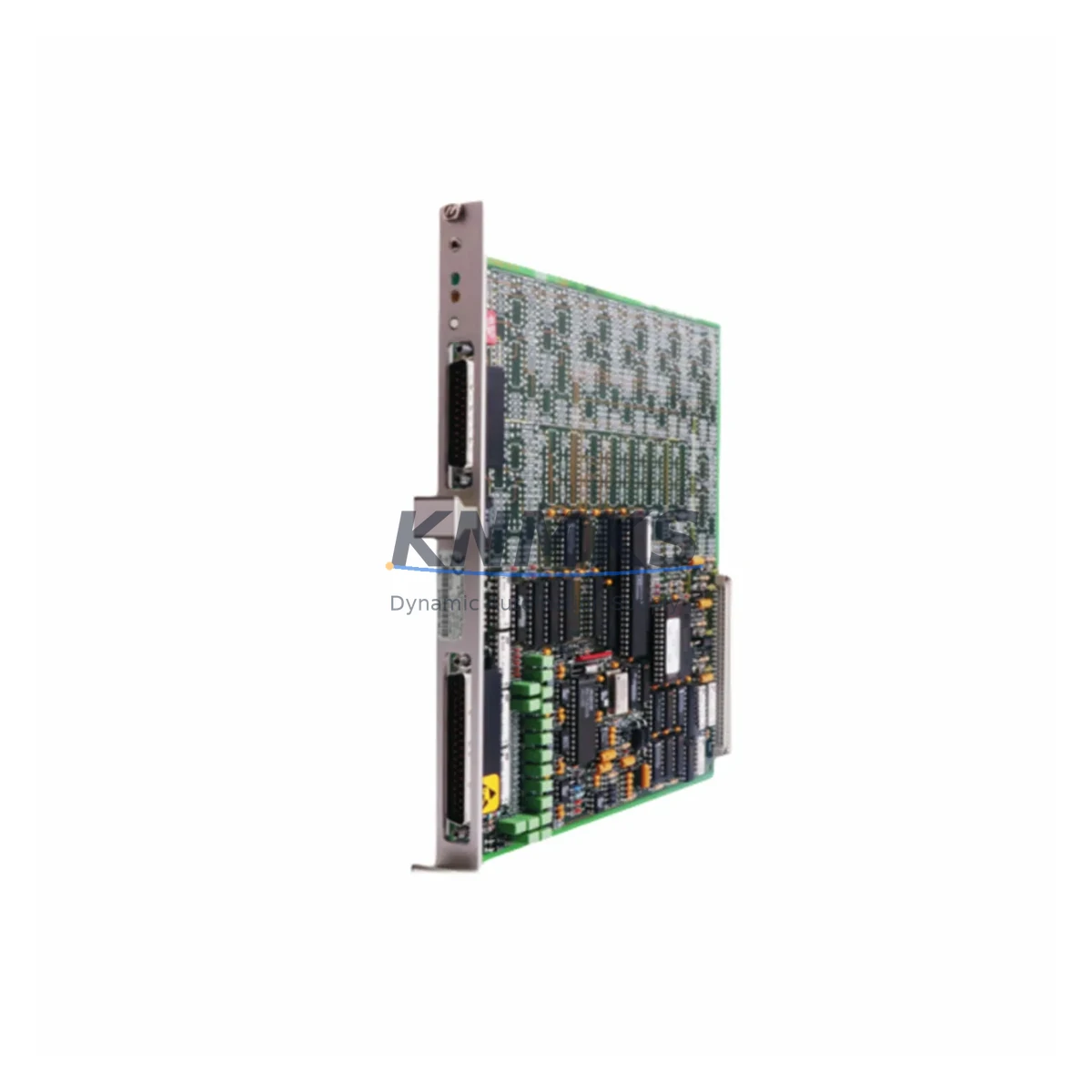

Emerson CL6824X1-A2 12P0767X012 Migration-Ready DCS Analog Input

Overview

Emerson CL6824X1-A2 12P0767X012 Migration-Ready DCS Analog Input Module for Legacy Control Systems

The Emerson Fisher CL6824X1-A2 (12P0767X012) is a DCS analog input module engineered for direct replacement and retrofit deployment within legacy Emerson DeltaV and Fisher Controls distributed control architectures. As automation facilities face increasing pressure to modernize aging infrastructure without full system overhauls, this module provides a validated migration path that preserves existing I/O wiring, backplane slot assignments, and control logic integrity. Whether you are managing a scheduled outage, responding to an emergency module failure, or executing a phased Phase 1 / Phase 2 migration plan, the CL6824X1-A2 is pre-tested, in-stock, and backed by a support terms confirmed by quotation.

This module is particularly relevant for plants running legacy Emerson RS3, DeltaV S-series, or Fisher PROVOX control platforms where original spare parts have reached end-of-life or end-of-support status. The CL6824X1-A2 supports standard 4–20 mA analog input signal ranges and is compatible with the terminal block wiring configurations common to its predecessor modules, significantly reducing rewiring time during replacement. Before installation, engineers should verify the backplane interface version, confirm the module address assignment within the DCS controller configuration, and validate that the firmware revision on the host controller supports the module’s hardware generation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CL6824X1-A2 into an existing control system requires a structured pre-migration assessment. Begin by auditing the current rack and chassis configuration to confirm that the target slot is physically and electrically compatible with this module generation. In many legacy DeltaV installations, the I/O subsystem includes a mix of analog input cards, discrete output modules, and communication interface cards sharing a common backplane. Replacing a single analog input card without verifying the backplane power budget can introduce instability across adjacent modules.

Power supply capacity is a critical checkpoint. The DeltaV power supply module serving the affected I/O carrier must be confirmed to support the combined load of all installed cards, including the replacement CL6824X1-A2. In systems where the original power supply is also approaching end-of-life, a concurrent power supply replacement — such as a compatible Emerson DeltaV PS2 or PS4 series unit — should be evaluated as part of the same maintenance window to avoid repeat outages.

Terminal block wiring should be documented and photographed before removal of the legacy module. The CL6824X1-A2 is designed for drop-in compatibility, but field wiring labels, shield grounding points, and signal pair assignments must be verified against the as-built loop drawings. In plants where the original documentation is incomplete, a signal trace using a loop calibrator prior to removal will confirm live channel assignments and prevent mislabeling during reinstallation.

For systems that include HART-enabled field instruments, confirm that the host DeltaV controller and its associated HART multiplexer or HART interface module are configured to pass HART communication through the new analog input card. In some legacy configurations, HART pass-through is enabled at the module level and must be re-enabled after a card swap. This is particularly relevant in installations where the DeltaV Asset Management Solution (AMS) is used for field device diagnostics, as HART connectivity is required for AMS to maintain device health records.

Where the migration scope extends beyond a single card replacement — for example, when upgrading an entire I/O carrier or migrating from an older DeltaV M-series controller to a newer DeltaV S-series or DeltaV Sis platform — the CL6824X1-A2 should be evaluated alongside the associated DeltaV I/O carrier, the controller module, and any relevant redundancy modules. A phased approach, where analog input channels are migrated carrier by carrier while discrete and communication modules remain on the legacy platform, is a proven strategy for minimizing control disruption during multi-week migration projects.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS analog input module replacement requires preparation that begins well before the maintenance window opens. The CL6824X1-A2 should be staged, tested, and confirmed functional before the legacy module is removed from service. A bench test using a loop calibrator to simulate 4 mA, 12 mA, and 20 mA input signals will verify that the replacement module reads correctly before it enters the live control environment.

During the swap, the DCS operator should place the affected control loops in manual mode to prevent automatic control actions from responding to the temporary loss of analog input signal. For critical process loops — such as those controlling pressure, temperature, or flow in safety-instrumented systems — the safety instrumented system (SIS) logic should be reviewed to confirm that the analog input loss does not trigger an unintended safety action or process shutdown.

After physical installation, the module must be recognized by the DeltaV controller before control loops can be returned to automatic. In most DeltaV configurations, this involves downloading the I/O configuration to the controller and confirming that the new module appears in the DeltaV Explorer with the correct channel assignments. HMI faceplates and alarm setpoints should be verified against the pre-migration baseline to confirm that no configuration drift occurred during the download process.

For sites operating under IEC 61511 or ISA-84 safety standards, a management of change (MOC) record should be completed before the module swap, and a post-installation functional test should be documented to satisfy safety lifecycle requirements. The support terms confirmed by quotation on the CL6824X1-A2 provides coverage for the initial post-installation period, reducing financial risk during the critical early phase of operation after a module replacement.

Retrofit Support FAQ

Q1: Is the CL6824X1-A2 a direct drop-in replacement for the original Emerson Fisher analog input module in my DeltaV system?
A: The CL6824X1-A2 (12P0767X012) is designed as a direct replacement for compatible legacy Emerson Fisher DCS analog input modules. Terminal block wiring, backplane slot dimensions, and signal range (4–20 mA) are consistent with predecessor modules. However, you should verify the module address assignment in your DeltaV I/O configuration and confirm that your host controller firmware revision supports this hardware generation before installation.

Q2: Has this module been tested before shipment, and what does the support terms confirmed by quotation cover?
A: Yes. Every CL6824X1-A2 unit is functionally tested prior to dispatch, including signal input verification across the full 4–20 mA range. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Support requests are supported by our technical team with replacement dispatch from multi-region stock.

Q3: What should I check regarding HART communication compatibility when replacing this analog input module?
A: If your field instruments use HART protocol for device diagnostics or configuration, confirm that HART pass-through is enabled at the module level in your DeltaV controller configuration after the swap. In systems using Emerson AMS Device Manager, re-establish the HART communication path and verify that field device records are accessible before returning loops to automatic control.

Q4: Can you supply multiple units for a phased migration project, and what is the typical lead time?
A: Yes. We maintain multi-region stock of the CL6824X1-A2 to support both emergency single-unit replacements and bulk orders for phased migration projects. Standard in-stock units are dispatched within 1–3 business days. For project-based procurement requiring 5 or more units, contact our sales team to confirm availability and arrange a supply agreement aligned with your migration schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Emerson
Assorted Brands

Model / Series

CL6824X1-A2 12P0767X012
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Emerson CL6824X1-A2 12P0767X012
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
