Emerson CL6721X1-A3 41B5215X122 Spare Part for Factory Uptime

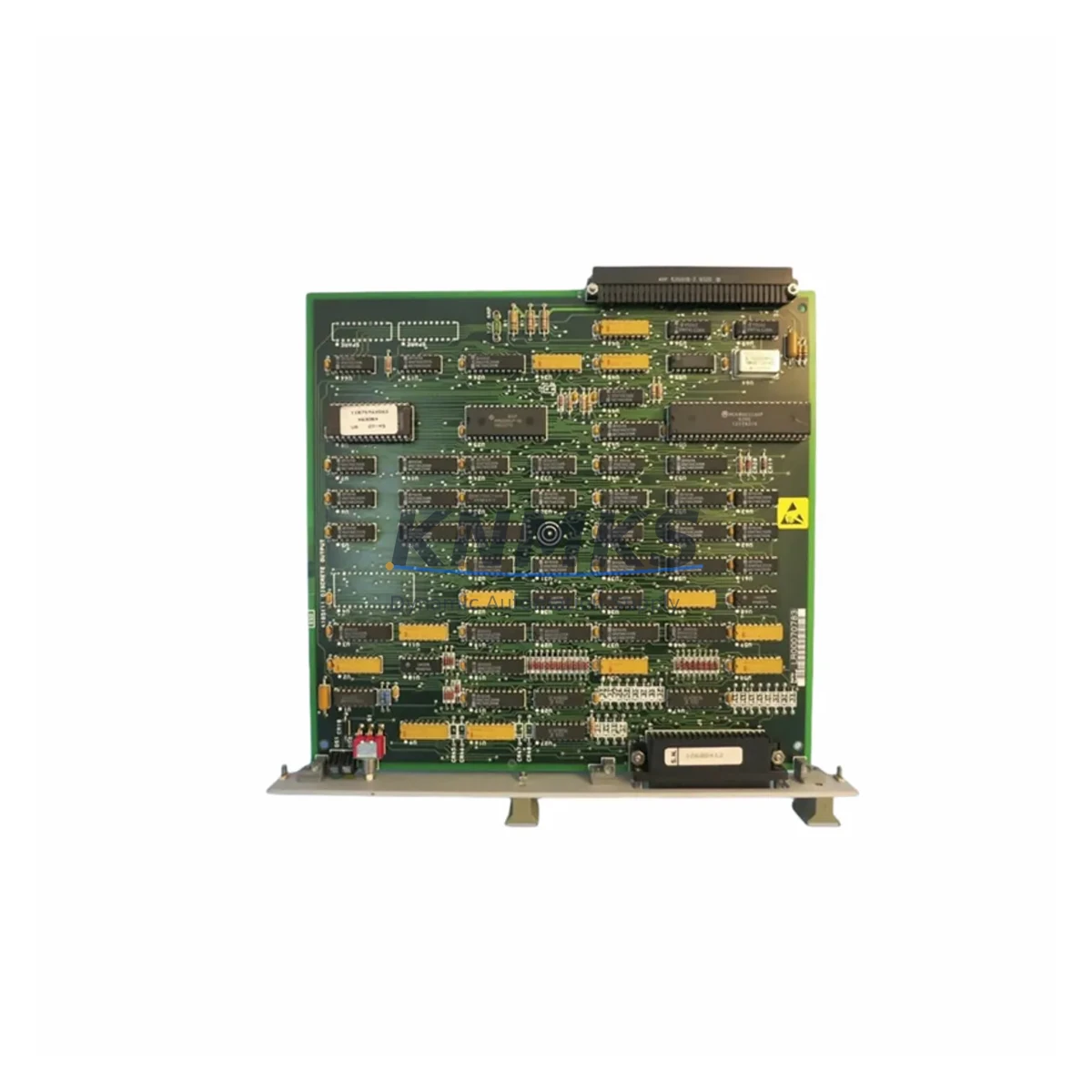

The Emerson CL6721X1-A3 (part number 41B5215X122) is an original discrete I/O module designed for the Emerson DeltaV distributed control system. In process industries — including oil & gas, chemical, power generation, and pharmaceuticals — this module serves as a critical interface between field instruments and the DeltaV controller network. When a CL6721X1-A3 fails or degrades, the affected I/O channel loses visibility into field device status, triggering alarms, forcing manual overrides, and risking unplanned shutdown. Holding a verified spare on-site eliminates the procurement lead time that turns a minor fault into a multi-day outage.

Our CL6721X1-A3 41B5215X122 units are sourced from authorized channels, individually pre-tested against OEM electrical specifications, and shipped with a support terms confirmed by quotation. Each unit is inspected for firmware compatibility, connector integrity, and channel isolation before dispatch. Multi-region stock ensures global delivery details confirmed by RFQ for both emergency callouts and scheduled turnaround maintenance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Maintenance engineers replacing a CL6721X1-A3 41B5215X122 should treat the event as a full I/O subsystem inspection, not an isolated module swap. Begin by verifying the 24 VDC field power supply feeding the I/O carrier — a marginal power supply is a common root cause of discrete I/O module failure and will damage a replacement unit if left uncorrected. Check the DeltaV power supply module (PS-series) output voltage and ripple before re-energizing the new card.

Inspect the I/O carrier and backplane connector for bent pins, corrosion, or contamination. A damaged carrier will cause intermittent channel faults even with a new module installed. If the carrier shows wear, plan a concurrent carrier replacement during the same maintenance window to avoid a repeat callout.

Review the field wiring terminations on the associated marshalling cabinet terminal blocks. Loose or corroded terminals on discrete input circuits are a frequent source of spurious alarms that are misdiagnosed as module failure. Torque all terminals to specification and verify continuity on each channel before closing the cabinet.

For sites running DeltaV with CHARM I/O architecture, confirm that the replacement module firmware revision is compatible with the current DeltaV system version. Mismatched firmware can prevent the module from being recognized by the controller. Coordinate with your DeltaV system administrator to verify the software baseline before installation.

Procurement engineers building a spare parts inventory around the CL6721X1-A3 should also stock the associated DeltaV I/O carrier, the relevant CHARM characterization module if applicable, and at least one spare DeltaV power supply module for the affected cabinet. For sites with aging DeltaV S-series infrastructure, consider holding a spare DeltaV controller card (MD-series or MD Plus) as part of the same cabinet-level spare kit — a controller fault during a discrete I/O replacement is a low-probability but high-impact scenario. Signal isolators on critical discrete loops and the associated fuse protection for field circuits should be inspected and replaced on a scheduled basis rather than reactively.

Site Replacement Workflow

Step 1 — Isolate and document. Place the affected I/O channel in manual mode in the DeltaV operator station. Document the current channel configuration, tag assignments, and alarm setpoints before removing the module. Take a photograph of the wiring and carrier labeling for reference during reinstallation.

Step 2 — De-energize safely. Follow your site LOTO procedure. Remove field power from the I/O carrier before extracting the CL6721X1-A3 module. Do not hot-swap discrete I/O modules unless the DeltaV system version and carrier type explicitly support hot insertion — verify this in the DeltaV hardware manual for your revision.

Step 3 — Inspect and clean. Before inserting the replacement module, inspect the carrier slot for debris, moisture, or connector damage. Clean with dry compressed air if required. Verify the replacement unit’s part number (41B5215X122) and firmware label match the removed unit or are confirmed compatible with your DeltaV system version.

Step 4 — Install and commission. Seat the replacement CL6721X1-A3 firmly into the carrier. Restore field power and observe the DeltaV diagnostic display for module health status. Confirm all channels report correctly in the DeltaV Explorer and that field device states match physical conditions before returning the loop to automatic control.

Step 5 — Test and close out. Perform a functional test on each discrete channel — verify both ON and OFF states for input channels, and confirm output actuation for output channels. Update the maintenance management system (CMMS) with the replacement record, including the new module serial number and support terms expiry date. Return the failed module to your repair vendor or dispose of per site procedures.

Spare Parts Support FAQ

Q: Is the CL6721X1-A3 41B5215X122 compatible with all DeltaV system versions?
A: The CL6721X1-A3 is designed for the Emerson DeltaV I/O subsystem and is compatible with DeltaV S-series and M-series controller platforms. Compatibility with specific DeltaV software versions depends on the module firmware revision. We recommend confirming your DeltaV system version with our technical team before ordering to ensure the supplied unit matches your site baseline.

Q: What pre-shipment testing is performed on each unit?
A: Every CL6721X1-A3 41B5215X122 unit undergoes electrical functional testing against OEM specifications, including channel isolation verification, power consumption check, and connector integrity inspection. Units that do not pass all test criteria are not shipped. A test record is available on request.

Q: Can you support long-term supply agreements for this module?
A: Yes. We maintain multi-region stock of the CL6721X1-A3 and can support blanket purchase orders and long-term supply agreements for sites with recurring maintenance requirements or fleet-wide DeltaV installations. Contact our sales team to discuss volume pricing and reserved stock arrangements.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the module’s rated operating range. Support requests are processed with a replacement unit dispatched after the failed unit is returned for inspection.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Emerson
Assorted Brands

Model / Series

CL6721X1-A3 41B5215X122
Assorted Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Emerson CL6721X1-A3 41B5215X122
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
