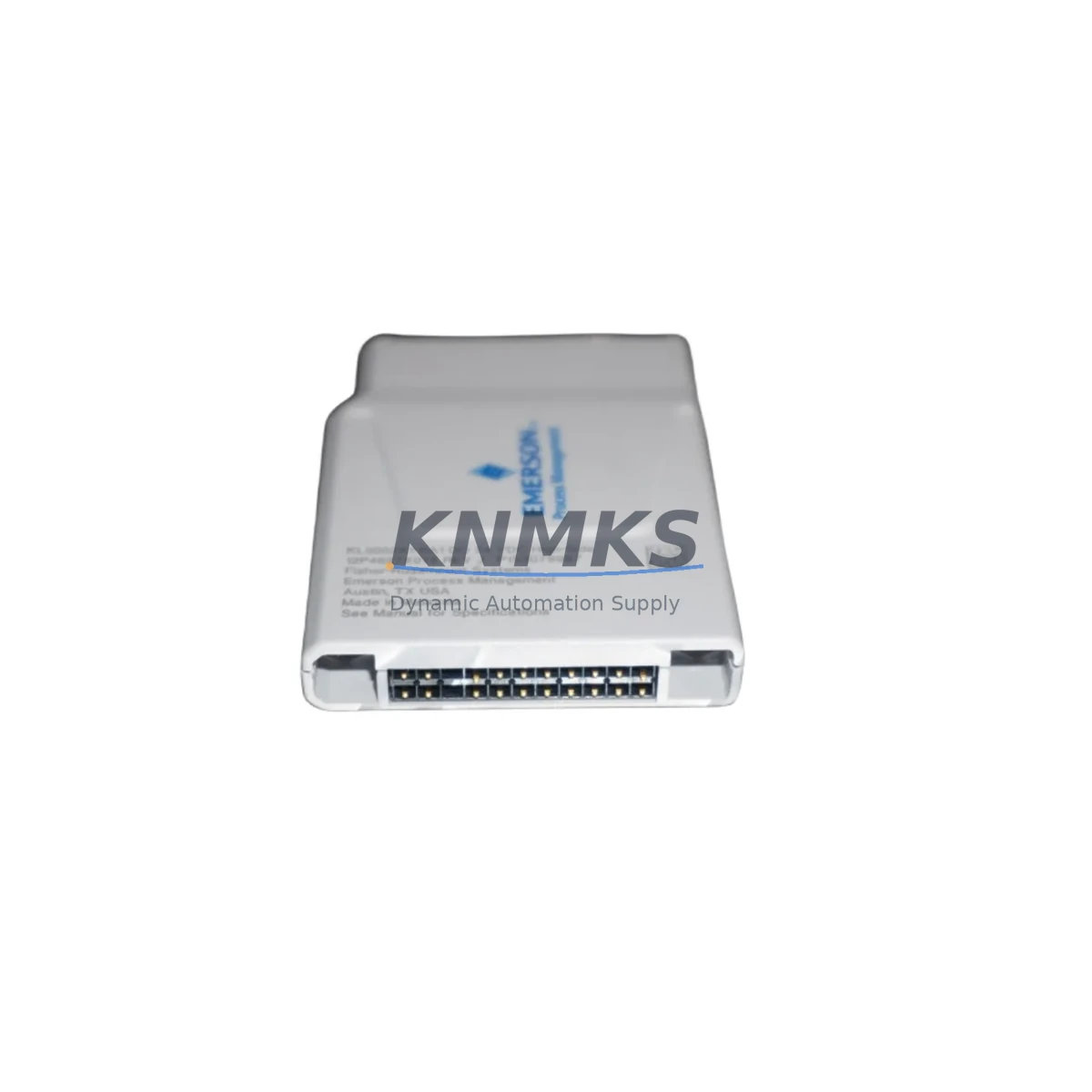

Emerson 12P4627X072 Fail-Safe CHARM I/O for DCS Reliability

The Emerson 12P4627X072 is a CHARM (Characterization Module) Terminal Block engineered for DeltaV Electronic Marshalling systems operating in the most demanding continuous-process environments. Designed to eliminate the rigid, pre-wired I/O architecture of legacy DCS cabinets, this terminal block enables flexible, field-characterizable signal assignment — dramatically reducing the risk of control interruption during plant expansions, retrofits, or emergency reconfigurations. In petrochemical complexes, power generation facilities, and offshore platforms where unplanned downtime carries catastrophic operational and safety consequences, the 12P4627X072 delivers the signal integrity and fault tolerance that critical interlock loops demand.

At its core, the 12P4627X072 is built to maintain stable, noise-immune signal transmission in environments characterized by high electromagnetic interference, ground loops, and transient voltage surges common to heavy industrial switchgear rooms and motor control centers. Its robust terminal block construction resists vibration-induced loosening and maintains reliable contact resistance across wide temperature cycles — a critical attribute in outdoor marshalling cabinets exposed to solar loading or sub-zero winter conditions. Signal drift, a persistent threat in aging analog I/O loops, is actively mitigated through the CHARM module’s on-board characterization, ensuring that 4–20 mA transmitter signals from pressure, temperature, and flow instruments reach the DeltaV controller with full fidelity.

Within a fully integrated DeltaV Electronic Marshalling cabinet, the 12P4627X072 operates alongside the Emerson CIOC (CHARM I/O Card), which provides the intelligent I/O processing layer, and the DeltaV S-series Controller that executes the safety and regulatory control strategies. Power distribution to the marshalling cabinet is typically managed through redundant Emerson KJ3221X1-BA1 Power Supplies, ensuring that a single power rail failure does not propagate to the I/O layer. For installations requiring SIL-rated safety instrumented functions, the 12P4627X072 is commonly deployed in conjunction with Emerson SIS Logic Solvers and validated CHARM Safety I/O modules to form a complete IEC 61511-compliant safety loop from field sensor to final element. Surge protection at the cabinet entry point — typically provided by DIN-rail mounted transient voltage suppressors — further shields the CHARM terminal blocks from lightning-induced or switching transients that could corrupt analog signals or damage module electronics.

The 12P4627X072 is equally suited to brownfield migration projects where plants are transitioning from conventional, hardwired marshalling panels to the Electronic Marshalling architecture. Unlike traditional I/O cards that require fixed signal-type assignment at design time, the CHARM architecture allows maintenance engineers to reassign signal types in the field without hardware changes — a capability that directly reduces the risk of misconfiguration errors during turnaround maintenance windows. This flexibility also supports phased migration strategies, allowing critical loops to be cut over to the new DeltaV system while legacy Emerson DeltaV MD or MX controllers remain in service on adjacent process units.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DeltaV Electronic Marshalling installation depends on a layered protection strategy that extends well beyond the CHARM terminal block itself. At the power layer, redundant Emerson KJ3221X1-BA1 24 VDC Power Supplies ensure continuous cabinet energization even during a single supply failure — a non-negotiable requirement for safety-critical process units running continuous interlock monitoring. The Emerson CIOC (CHARM I/O Card) mounted above the terminal block layer provides the intelligent signal processing and DeltaV network communication, and its hot-swap capability means that a failed CIOC can be replaced without de-energizing the marshalling cabinet or interrupting adjacent I/O channels.

For installations in high-surge environments — such as substations, compressor stations, or coastal facilities exposed to lightning — DIN-rail transient voltage suppressors (TVS) installed at the cabinet entry point protect the 12P4627X072 and associated CHARM modules from destructive voltage spikes. Communication integrity between the marshalling cabinet and the DeltaV controller network is maintained through Emerson DeltaV FOUNDATION Fieldbus H1 Cards or standard Ethernet-based controller links, depending on the plant’s network architecture. In SIL-rated applications, Emerson SIS Logic Solver modules interface directly with the safety I/O layer, ensuring that the 12P4627X072’s field wiring terminations feed validated, diagnostics-capable safety loops that meet IEC 61511 proof-test interval requirements.

Critical Industrial Safety Applications

The Emerson 12P4627X072 CHARM Terminal Block is deployed across a broad spectrum of high-consequence industrial environments where control system reliability is directly linked to personnel safety and asset protection.

In petrochemical and refinery operations, the 12P4627X072 terminates field instrument signals from pressure transmitters, thermocouple inputs, and valve position feedback in distillation, hydrocracking, and gas compression units — environments where a single I/O failure in a critical interlock loop can trigger an emergency shutdown or, in the worst case, a process safety incident. The CHARM architecture’s ability to reassign signal types without rewiring is particularly valuable during turnaround maintenance, when instrument loop changes are frequent and time-critical.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 12P4627X072 supports boiler control, turbine protection, and auxiliary system monitoring loops where signal integrity under high-EMI conditions from large rotating machinery is essential. Water and wastewater treatment plants rely on the CHARM architecture for pump control, chemical dosing, and effluent monitoring loops, where the terminal block’s robust construction withstands the humid, chemically aggressive cabinet environments common to these facilities.

Mining and mineral processing operations deploy the 12P4627X072 in conveyor control, crusher monitoring, and flotation cell automation — applications characterized by heavy vibration, dust ingress, and wide ambient temperature swings that challenge conventional I/O terminal connections. In metallurgical plants, the module supports electric arc furnace control and rolling mill automation, where high-current switching generates severe electromagnetic transients that demand robust I/O signal conditioning. Port and marine terminal automation systems use the CHARM architecture for crane control, bulk material handling, and vessel loading systems, where the flexibility of field-characterizable I/O simplifies the integration of diverse sensor types across large, geographically distributed control cabinets.

Safety and Quality FAQ

Q1: Does the Emerson 12P4627X072 come with a support terms?
Yes. Every 12P4627X072 unit supplied by KNMKS is covered by a 12-month full functional support terms from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm terminal integrity, module seating, and compatibility with DeltaV Electronic Marshalling architecture before dispatch.

Q2: How is the 12P4627X072 tested before shipment?
All units are subject to pre-shipment inspection covering physical condition, terminal block integrity, and where applicable, functional verification against Emerson DeltaV system compatibility criteria. This process ensures that field installation proceeds without the delays and safety risks associated with receiving defective or counterfeit spare parts.

Q3: Is the 12P4627X072 compatible with existing DeltaV Electronic Marshalling cabinets?
Yes. The 12P4627X072 is a direct-fit CHARM Terminal Block for Emerson DeltaV Electronic Marshalling systems. It is compatible with standard CHARM I/O Cards (CIOC) and supports all standard CHARM module types (AI, AO, DI, DO). Plants upgrading from earlier DeltaV I/O architectures can integrate this terminal block without modifications to existing cabinet wiring infrastructure.

Q4: Can KNMKS support long-term spare parts supply for the 12P4627X072?
Yes. KNMKS maintains stock of the 12P4627X072 and related DeltaV Electronic Marshalling components to support multi-year spare parts programs for continuous-process plants. Long-term supply agreements and priority allocation for critical-site customers are available. Contact [email protected] or call +86 18359268345 to discuss your site’s spare parts strategy.
