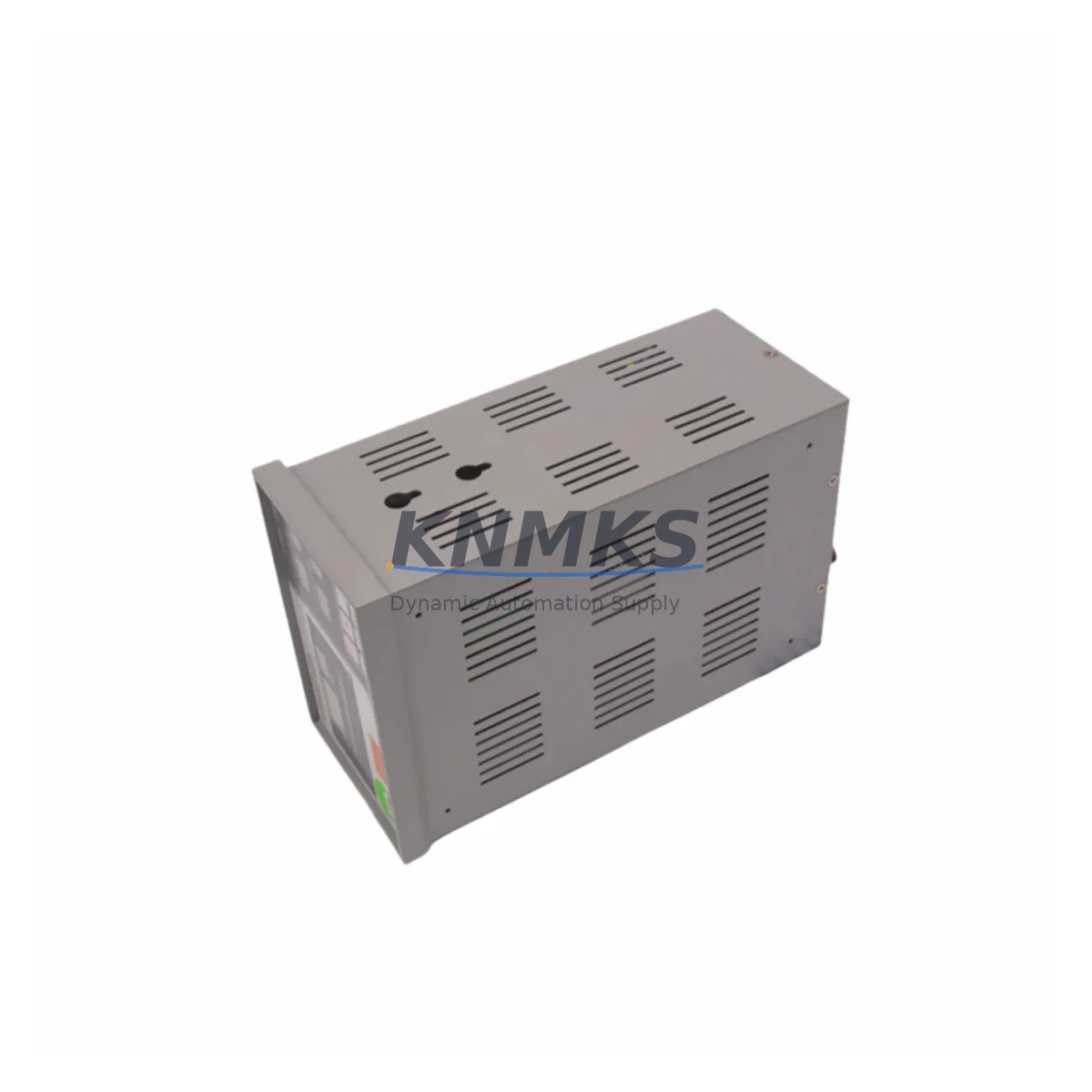

DIAVAC LIMITED PT-1DA Migration-Ready Vacuum Gauge Controller

Overview

DIAVAC LIMITED PT-1DA Migration-Ready Vacuum Gauge Controller for Legacy Control Systems

The DIAVAC LIMITED PT-1DA is a migration-ready Pirani vacuum gauge controller designed as a direct replacement for end-of-life and discontinued vacuum measurement modules in legacy industrial control systems. Whether your facility is executing a scheduled outage upgrade, an emergency spare replacement, or a phased control cabinet modernization, the PT-1DA delivers verified drop-in compatibility within the PT Series platform — minimizing engineering rework and reducing unplanned downtime risk.

Sourced from multi-region stock and pre-shipment tested before dispatch, each PT-1DA unit ships with a support terms confirmed by quotation and full traceability documentation. This makes it a reliable choice for semiconductor fabs, vacuum furnace lines, thin-film deposition systems, and any process environment where vacuum integrity is critical to production continuity.

The PT-1DA operates as a standalone Pirani gauge controller with analog output and RS-232 serial communication, making it compatible with existing HMI screens and SCADA supervisory layers without requiring signal re-engineering. Engineers replacing a failed or obsolete vacuum controller can retain original wiring terminations, preserve existing setpoint logic, and avoid HMI screen redevelopment — provided terminal mapping is verified against the original PT Series wiring diagram prior to installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a vacuum gauge controller in a live production environment requires careful pre-migration planning across multiple system layers. The PT-1DA retrofit typically intersects with several adjacent components that must be reviewed before the changeover window begins.

On the power distribution side, engineers should audit the control cabinet’s 24 VDC auxiliary rail and AC supply capacity. If the cabinet also houses a DIAVAC LIMITED DT-1000 series digital vacuum gauge or a companion PT-2DA dual-channel controller, total load must be recalculated to confirm the existing power supply module can support the combined draw without tripping protection circuits.

For signal wiring and terminal adaptation, the PT-1DA uses a standard screw-terminal block. When migrating from an older PT Series unit, technicians should photograph and document the original terminal layout before disconnection. If the legacy unit used a different terminal pitch or a proprietary connector block, a terminal adapter plate or re-termination to standard M3 screw terminals will be required. This step is especially important when the vacuum controller shares a wiring duct with Pirani sensor cables routed from the process chamber.

On the communication and protocol layer, the PT-1DA’s RS-232 interface must be matched to the host system’s COM port configuration. If the existing SCADA or PLC — such as a Mitsubishi MELSEC Q Series CPU module or a Yokogawa FA-M3 controller — communicates via RS-485 or Ethernet/IP, a serial protocol converter or gateway module will be required to bridge the interface gap. Baud rate, parity, stop bits, and data frame format must be confirmed against the host’s communication driver settings before the first power-on.

For I/O mapping and PLC program compatibility, the relay output assignments of the PT-1DA must be cross-referenced with the existing PLC I/O table. If the original controller used different relay numbering or contact logic (NO vs. NC), the PLC ladder program may require minor edits to preserve interlock and alarm logic. This is a low-risk change but must be validated in simulation before live commissioning.

Finally, installation space confirmation is essential. The PT-1DA’s panel cutout dimensions and depth clearance behind the panel must be verified against the existing cabinet layout — particularly if the cabinet also houses a vacuum pump controller or mass flow controller module in adjacent slots.

Downtime Control During System Migration

Minimizing production downtime during a vacuum controller replacement requires a structured changeover protocol. The PT-1DA’s drop-in compatibility within the PT Series platform significantly reduces the engineering burden, but the following practices are recommended to protect program logic, maintain field control continuity, and reduce retrofit risk.

Pre-migration checklist: Before the maintenance window, capture a full backup of the PLC program, HMI screen configuration, and SCADA tag database. Document all active setpoints, relay assignments, and RS-232 communication parameters from the outgoing unit. If the system uses a data logger or historian connected to the vacuum controller’s analog output, confirm the logging channel will tolerate a brief signal interruption without triggering a process alarm cascade.

During changeover: Power down the control cabinet in the correct sequence — isolate the vacuum controller circuit before removing the unit. Install the PT-1DA, re-terminate wiring per the documented layout, and restore power. Perform a bench-level sensor check using a calibrated reference gauge before reconnecting the process chamber sensor head. Confirm the RS-232 link is active and the host system is receiving valid pressure readings before releasing the system to production.

Post-installation verification: Run the system through a full vacuum cycle and verify that all relay setpoints trigger at the correct pressure thresholds. Confirm HMI displays are updating correctly and that no communication timeout alarms are active. Log the commissioning results and update the maintenance record with the new unit’s serial number and support terms start date.

With proper pre-migration preparation, a PT-1DA replacement can typically be completed within a single planned maintenance shift, keeping unplanned downtime to a minimum and preserving full process control continuity.

Retrofit Support FAQ

Q1: Is the PT-1DA a direct drop-in replacement for other PT Series vacuum controllers?
The PT-1DA is designed as a migration-compatible replacement within the DIAVAC LIMITED PT Series family. For units outside the PT Series — such as older DIAVAC DT or VT series controllers — terminal mapping, sensor head compatibility, and communication protocol must be individually verified before installation. Contact our technical team with your original model number for a compatibility assessment.

Q2: What wiring checks are required before installation?
Verify terminal pitch, wire gauge compatibility, and relay contact logic (NO/NC) against the original unit’s wiring diagram. Confirm the Pirani sensor cable connector type matches the PT-1DA’s sensor input port. If the original installation used a proprietary connector, a field-wired adapter may be required. All terminal connections should be torqued to specification and insulation resistance tested before power-on.

Q3: Has the PT-1DA been tested before shipment?
Yes. Every PT-1DA unit undergoes pre-shipment functional testing covering power-on self-test, analog output calibration verification, relay output actuation, and RS-232 communication handshake. A test report is available upon request. Each unit ships with a support terms confirmed by quotation from the date of dispatch.

Q4: What is the lead time and stock availability?
The PT-1DA is maintained in multi-region stock to support both emergency replacement and scheduled outage planning. Standard dispatch is within 2–5 business days for in-stock units. For bulk orders or long-term supply agreements, contact our sales team to confirm allocation and lead time commitments.
