Coherent HPC813-1 Maintenance-Proven Spare Part for Factory Uptime

Overview

Coherent HPC813-1 Maintenance-Proven Spare Part for Factory Uptime

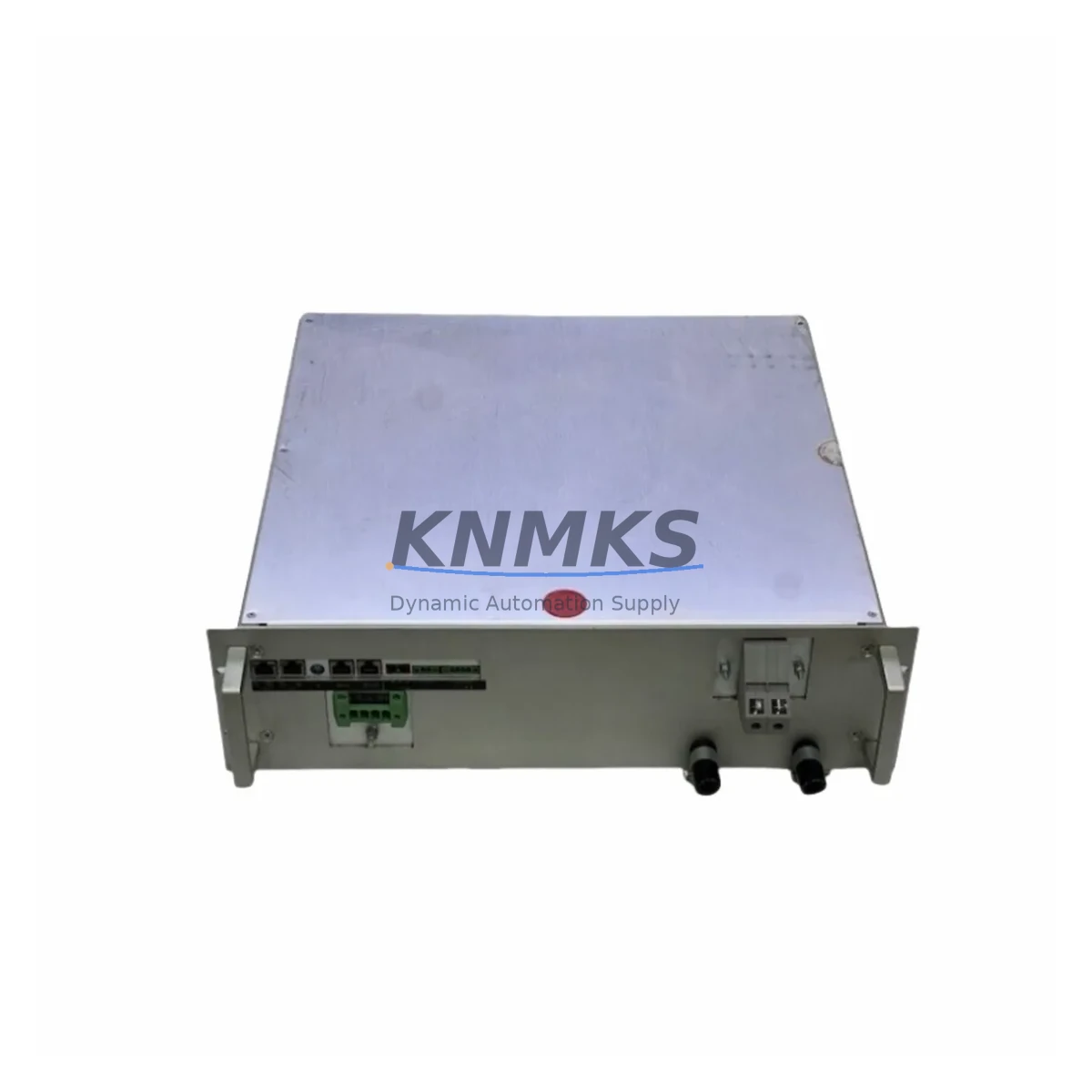

The Coherent HPC813-1 is an original RF CO2 laser power supply module engineered for the Coherent HPC Series laser systems. In high-throughput industrial environments — from precision cutting and marking lines to medical device manufacturing — unplanned laser downtime translates directly into production loss and costly recovery cycles. Stocking a verified HPC813-1 spare is the most reliable strategy to eliminate extended outages and maintain continuous laser uptime.

This unit is sourced as an original Coherent component, subjected to full pre-shipment functional testing, and dispatched with a support terms confirmed by quotation. Whether you are managing a planned annual overhaul, responding to an emergency power supply failure, or building a resilient spare parts inventory for a multi-laser facility, the HPC813-1 provides the electrical compatibility and performance consistency that maintenance engineers depend on.

RF CO2 laser power supplies are among the most failure-prone components in aging laser systems. Capacitor degradation, RF driver fatigue, and thermal cycling stress accumulate over years of continuous operation. A proactive replacement strategy — keeping one HPC813-1 on the shelf — reduces mean time to repair (MTTR) from days to hours and protects production schedules against unpredictable component failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Coherent HPC813-1 RF power supply is flagged during routine inspection or fails in service, the replacement procedure should be treated as a system-level maintenance event — not an isolated component swap. Maintenance engineers and procurement teams should simultaneously audit the following associated components to prevent repeat failures and ensure the laser system returns to full rated performance:

Laser Tube and RF Coupling Assembly: A degraded CO2 laser tube can place abnormal load on the RF power supply, accelerating HPC813-1 wear. Inspect the tube for gas pressure integrity and discharge uniformity before commissioning the replacement supply.

Coherent HPC Series Control Board: The control board governs RF modulation commands and interlock logic. If the HPC813-1 failed due to an overvoltage or interlock fault, the control board should be inspected for latent damage before the new supply is energized.

Input Power Filter and EMI Suppression Module: RF power supplies are sensitive to mains-borne transients. Verify that the input EMI filter and surge suppression components are intact and within specification. A compromised filter is a common root cause of premature RF supply failure.

Cooling Fan Assembly and Thermal Management: The HPC813-1 generates significant heat during RF excitation. Inspect the internal cooling fan, heatsink contact surfaces, and airflow path within the laser cabinet. Blocked airflow is a leading cause of thermal-stress failure in RF power supplies.

Beam Delivery Optics and Shutter Assembly: While not electrically connected to the power supply, degraded output optics increase the effective load on the laser system and can mask power supply performance issues during post-replacement verification. Include optics inspection in the maintenance checklist.

Interlock and Safety Relay Circuit: Coherent HPC Series systems use hardware interlocks to protect the RF supply from fault conditions. Test all interlock relays, door switches, and emergency stop circuits before returning the system to production. A faulty interlock relay can cause nuisance shutdowns or, worse, allow the supply to operate outside safe parameters.

Procurement engineers should note that the HPC813-1 has a long lead time from OEM channels when ordered reactively. Maintaining one unit in bonded stock — with a defined rotation schedule tied to annual laser maintenance — is the most cost-effective approach to supply chain risk management for facilities operating multiple Coherent HPC Series lasers.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the laser system at the main disconnect. Apply LOTO per site safety procedures. Allow the RF power supply capacitors to discharge fully (minimum 5 minutes after power removal) before opening the laser cabinet.

Step 2 — Documentation: Photograph all cable routing, connector positions, and mounting hardware before disassembly. The HPC813-1 connects to the RF excitation circuit, control signal harness, and DC input bus — correct reconnection is critical to system performance and safety.

Step 3 — Component Removal: Disconnect the RF output coaxial connector, DC input terminals, and control signal harness in sequence. Remove the mounting fasteners and extract the HPC813-1 from the laser cabinet. Note the orientation of the unit for correct reinstallation.

Step 4 — Inspection of Mating Interfaces: Before installing the replacement HPC813-1, inspect the RF output connector, DC bus terminals, and control harness for corrosion, heat damage, or mechanical wear. Clean contact surfaces as required.

Step 5 — Installation and Reconnection: Mount the replacement HPC813-1 in the original orientation. Reconnect the DC input, control harness, and RF output connector in reverse disassembly order. Verify torque on all terminal connections.

Step 6 — Functional Verification: Restore power and perform a controlled system startup. Verify RF output power, laser beam quality, and interlock status before returning the system to production. Log the replacement in the site maintenance record.

This workflow applies directly to facilities replacing aging HPC813-1 units in legacy Coherent HPC Series installations. The procedure minimizes downtime, preserves system compatibility, and ensures the replacement unit is commissioned correctly on the first attempt.

Spare Parts Support FAQ

Q1: Is the HPC813-1 an original Coherent component or an aftermarket substitute?
The HPC813-1 units we supply are original Coherent OEM components, not aftermarket or remanufactured substitutes. Each unit undergoes full pre-shipment functional testing to verify RF output performance and electrical integrity before dispatch. A support terms confirmed by quotation is included with every shipment.

Q2: How do I confirm compatibility between the HPC813-1 and my specific HPC Series laser system?
Compatibility should be verified against your laser system’s serial number, revision level, and the part number listed in the Coherent HPC Series service documentation. If you are uncertain, provide your system serial number and current installed part number to our technical team before ordering. We will confirm compatibility before shipment.

Q3: What is the recommended inventory strategy for facilities operating multiple Coherent HPC Series lasers?
For facilities with two or more HPC Series lasers in continuous production, we recommend maintaining a minimum of one HPC813-1 in bonded spare stock at all times. Pair this with a defined annual inspection cycle — checking RF output power, cooling performance, and interlock function — to identify units approaching end of service life before they fail in production.

Q4: Can you support long-term supply of the HPC813-1 for multi-year maintenance contracts?
Yes. We maintain verified stock of the HPC813-1 and can support blanket purchase orders, scheduled releases, and long-term supply agreements for facilities with ongoing maintenance requirements. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

HPC813-1
Assorted Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Other Brands HPC813-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
