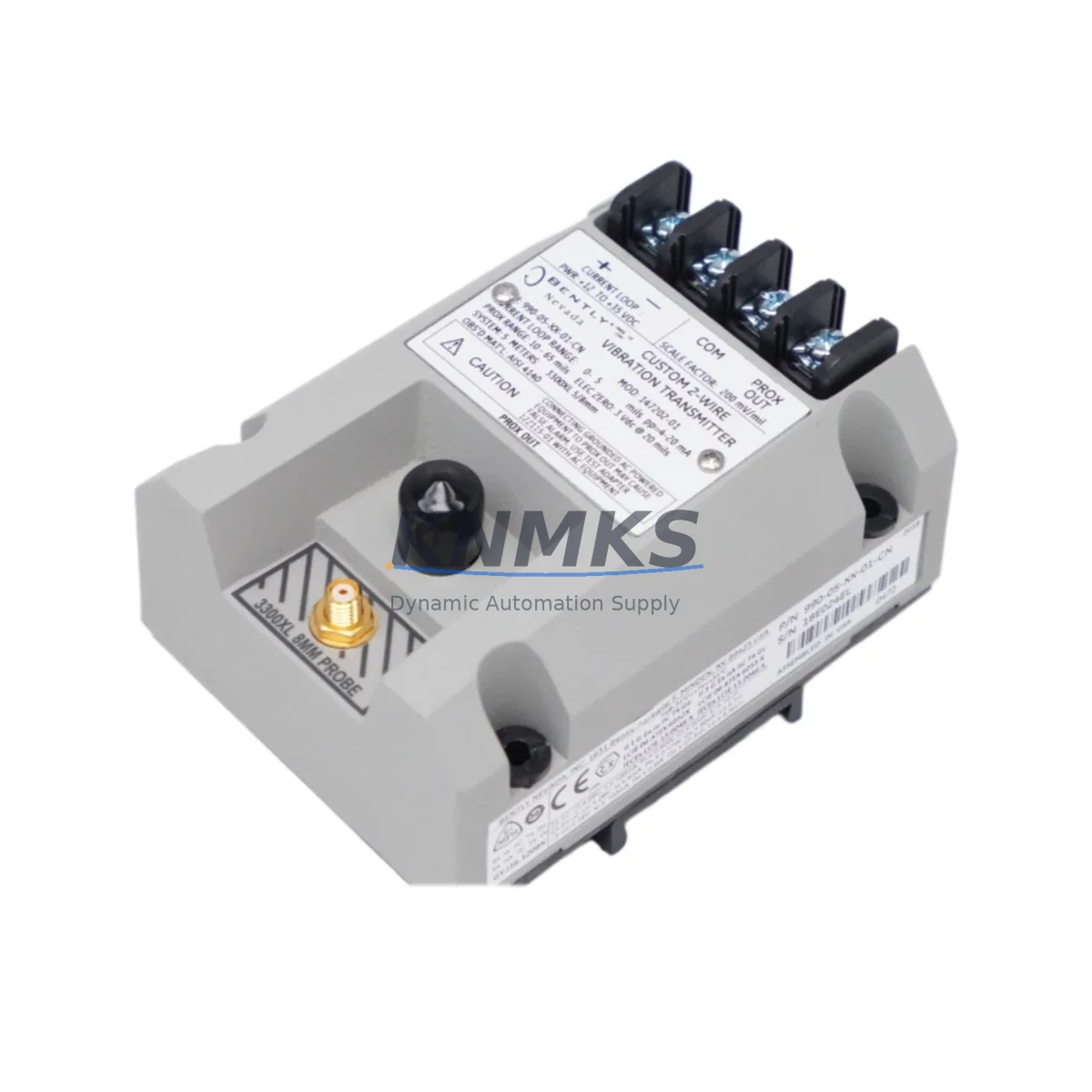

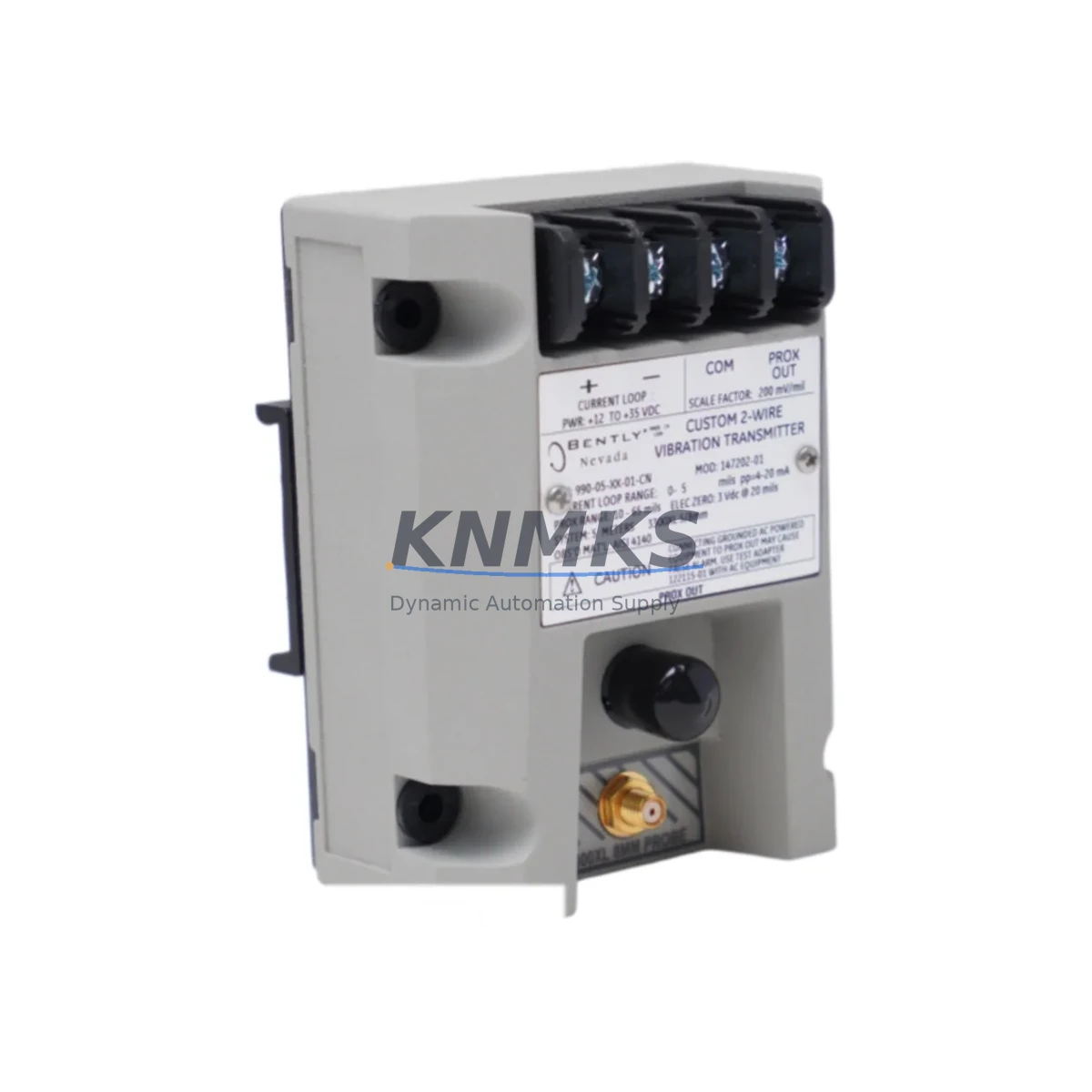

Bently Nevada 990-08-XX-01-CN Migration-Ready Vibration Transmitter

Overview

Bently Nevada 990-08-XX-01-CN Migration-Ready Vibration Transmitter: Legacy System Migration and Compatible Upgrade

The Bently Nevada 990-08-XX-01-CN (MOD:163930-02) is a migration-ready vibration transmitter engineered for direct replacement and retrofit integration within legacy Bently Nevada 990 Series monitoring architectures. As industrial facilities face increasing pressure to modernize aging condition monitoring infrastructure — particularly systems built around discontinued 990 Series modules — this transmitter provides a verified, drop-in compatible solution that minimizes engineering risk, reduces downtime, and extends the operational life of existing control cabinets and machinery protection systems.

Whether you are replacing a failed unit on a critical rotating machine, upgrading a legacy panel to meet current safety standards, or migrating from an obsolete monitoring platform to a modern Bently Nevada 3500 Series rack, the 990-08-XX-01-CN delivers the signal integrity, terminal compatibility, and firmware alignment required for a successful field retrofit. Each unit is pre-tested prior to shipment, backed by a support terms confirmed by quotation, and supported by in-stock inventory for rapid deployment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 990-08-XX-01-CN into an existing machinery protection system requires a structured pre-installation review. Before removing the legacy unit, engineers should document the existing terminal wiring diagram, confirm the field cable shielding configuration, and record the current alarm and danger setpoints from the host monitoring system — typically a Bently Nevada 3300 Series or 3500 Series rack-mounted monitor.

In many legacy installations, the 990 Series transmitter feeds directly into a Bently Nevada 3500/42M or 3500/45 position monitor card housed in a 3500 Series rack. When migrating to a replacement transmitter, it is essential to verify that the new unit’s output impedance and loop resistance are within the acceptable input range of the monitor card. If the existing rack uses a Bently Nevada 3500/20 power supply module, confirm that the available loop power budget accommodates the replacement transmitter’s current draw across the full 4–20 mA range.

For facilities operating mixed-generation control cabinets — where a legacy 990 Series transmitter coexists with newer Bently Nevada TDXnet or System 1 software — the retrofit plan should include a review of the I/O mapping within the data acquisition layer. If the transmitter signal is conditioned through a signal isolator or barrier (such as a Pepperl+Fuchs or MTL series isolator) before entering the DCS analog input card, the isolator’s input range and output scaling must be re-verified after the transmitter swap to prevent erroneous readings at the HMI or historian.

Where the legacy system includes a Bently Nevada 990-05-XX-01-CN proximitor or a companion 990-04-XX-01-CN extension cable assembly, these components should be inspected for wear and connector integrity during the same maintenance window. Replacing the transmitter while retaining a degraded proximitor or a cracked extension cable introduces a new failure point that can mask the improvement achieved by the transmitter upgrade. Similarly, if the installation uses a Bently Nevada 3500/92 communication gateway for Modbus or Ethernet/IP data export to a SCADA system, the gateway’s tag configuration should be reviewed to confirm that the new transmitter’s engineering units and scaling match the existing tag definitions.

For control cabinets undergoing broader modernization — such as migration from a legacy Allen-Bradley SLC 500 or Siemens S5 PLC platform to a current-generation controller — the 990-08-XX-01-CN’s standard 4–20 mA output ensures forward compatibility with virtually any modern analog input module, including Siemens ET 200SP AI modules or Allen-Bradley 1756-IF16 ControlLogix analog input cards, without requiring protocol conversion hardware.

Downtime Control During System Migration

Minimizing unplanned downtime during a vibration transmitter replacement is a primary concern for maintenance teams operating continuous process equipment. The 990-08-XX-01-CN is pre-tested and shipped in a ready-to-install condition, eliminating the need for bench calibration before field installation. This allows maintenance teams to execute a hot-swap procedure during a planned maintenance window without requiring extended loop calibration time.

To protect the original control program logic during the swap, it is strongly recommended to place the associated monitor channel into bypass mode within the Bently Nevada 3500 Series rack before disconnecting the field wiring. This prevents spurious trip signals from propagating to the safety system or DCS during the physical replacement. If the system is integrated with a Safety Instrumented System (SIS), the bypass procedure must be coordinated with the safety team and documented in the Management of Change (MOC) record.

Once the replacement transmitter is wired and powered, a loop check should be performed by injecting a known milliamp signal at the transmitter terminals and confirming the correct reading at the monitor card and HMI display. This step verifies wiring continuity, confirms correct channel addressing, and validates that the HMI graphic tag is correctly mapped to the new transmitter before the bypass is removed and the channel is returned to normal monitoring service.

For facilities with limited maintenance windows, having a pre-tested, in-stock replacement unit available — rather than relying on spot procurement — is the single most effective strategy for reducing mean time to repair (MTTR). KNMKS maintains ready inventory of the 990-08-XX-01-CN and can support same-day or next-day dispatch for urgent replacement requirements.

Retrofit Support FAQ

Q1: Is the 990-08-XX-01-CN a direct replacement for all 990-08 suffix variants?
The 990-08-XX-01-CN covers a range of gap voltage and measurement configurations indicated by the XX suffix. Please confirm the specific suffix of your legacy unit against the replacement datasheet. KNMKS technical support can assist in cross-referencing the original part number to confirm compatibility before shipment.

Q2: What wiring changes are required when replacing the legacy transmitter?
In most cases, the terminal block layout is compatible with the existing field wiring, and no rewiring is required. However, it is recommended to verify the shield grounding point and confirm that the cable screen is terminated at one end only (typically at the monitor end) to avoid ground loops that can introduce noise into the 4–20 mA signal.

Q3: Has the unit been tested before shipment?
Yes. Every 990-08-XX-01-CN unit supplied by KNMKS undergoes functional output testing prior to dispatch. Test records are available upon request. The unit is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q4: What is the lead time and inventory availability?
KNMKS maintains in-stock inventory of the 990-08-XX-01-CN to support urgent replacement requirements. Standard lead time for in-stock units is 1–3 business days for international shipment. For large-quantity orders or long-term supply agreements, please contact our sales team to discuss scheduling and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

990-08-XX-01-CN MOD:163930-02

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 990-08-XX-01-CN MOD:163930-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
