Bently Nevada 106765-30 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 106765-30 Maintenance-Proven Spare Part for Factory Uptime

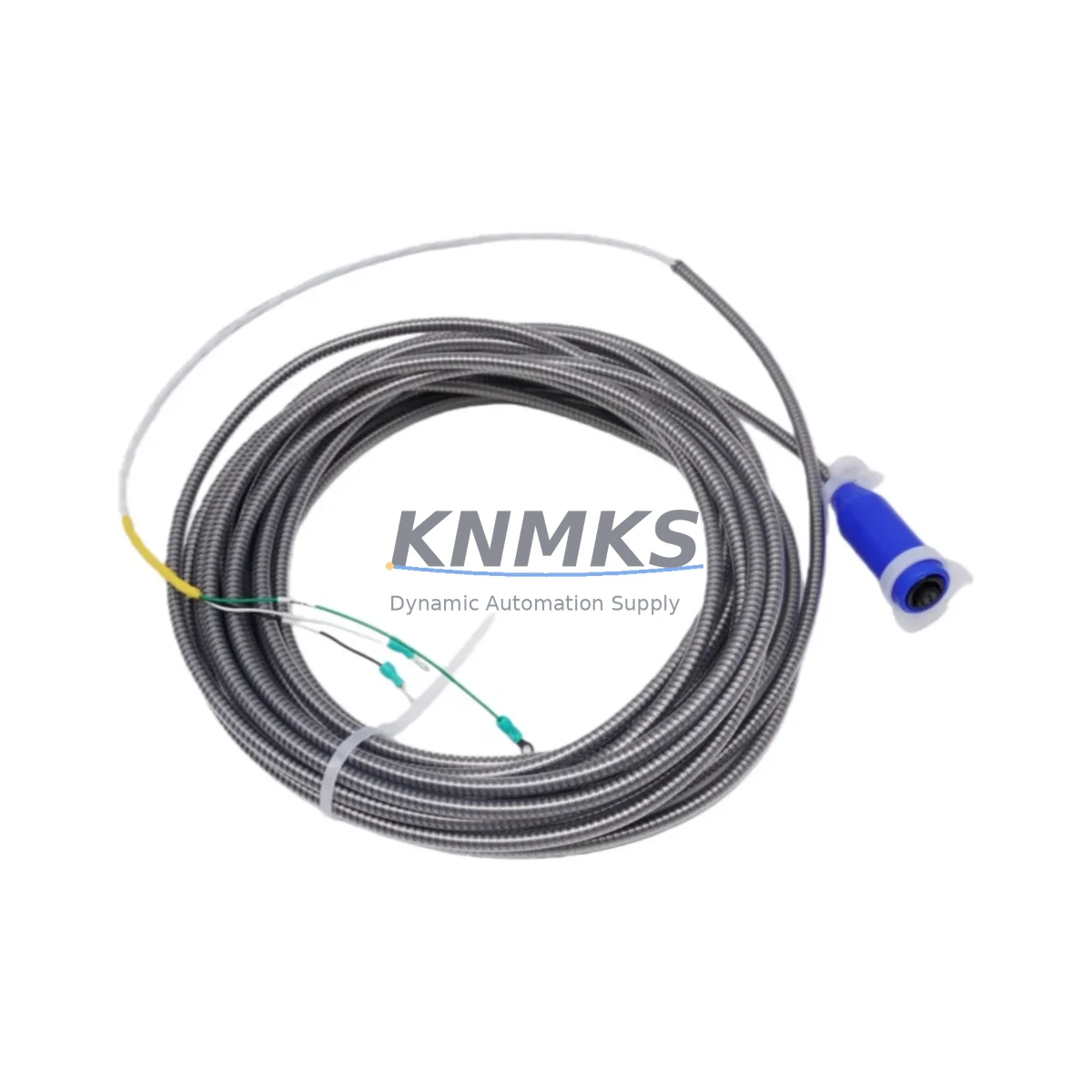

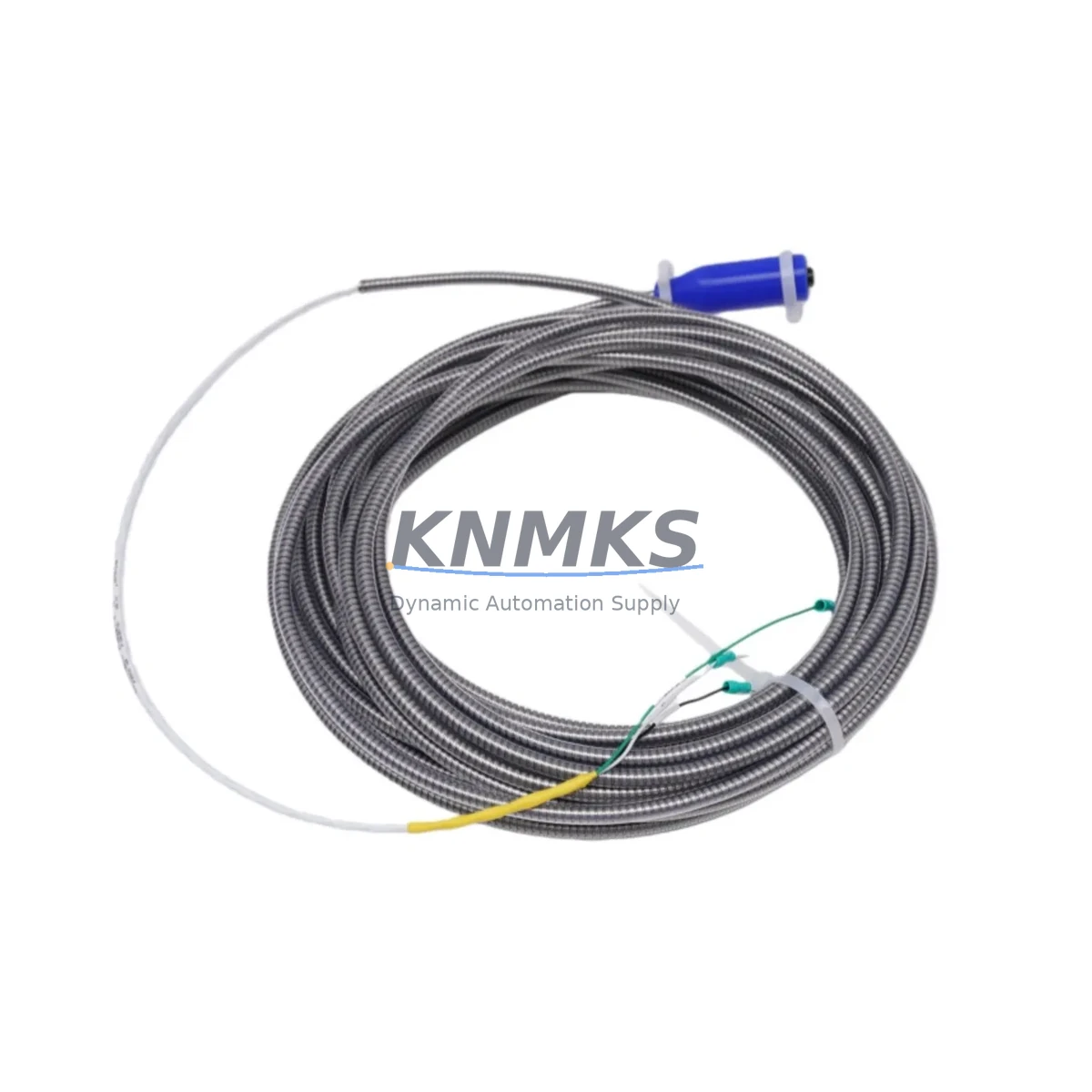

The Bently Nevada 106765-30 is a 30-foot (9.1 m) Velomitor XA sensor interconnect cable engineered for continuous-duty machinery protection applications. Designed to interface directly with Bently Nevada Velomitor XA piezoelectric velocity transducers, this cable delivers reliable signal transmission in rotating machinery environments including turbines, compressors, pumps, fans, and motors. As an original spare part, the 106765-30 maintains full electrical compatibility with the 3300 XL Machinery Protection System and associated monitoring racks, ensuring that vibration and velocity data reaches the monitoring system without signal degradation or grounding anomalies.

For maintenance engineers managing critical rotating assets, having a verified 106765-30 cable in the spare parts inventory is a fundamental risk-reduction measure. Cable failures — caused by mechanical fatigue, connector corrosion, conduit abrasion, or chemical exposure — are among the most common causes of false trips and nuisance alarms in machinery protection systems. Replacing a degraded cable with a tested original spare restores measurement integrity and eliminates a common diagnostic variable during fault isolation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 106765-30 interconnect cable during scheduled maintenance or emergency corrective action, a thorough inspection of the surrounding measurement chain is strongly recommended. The cable is one element in a complete vibration monitoring loop, and degradation in adjacent components can mask the root cause of a measurement fault or lead to repeat failures shortly after cable replacement.

Begin by inspecting the Velomitor XA transducer (typically a 330525 or 330527 series unit) for physical damage, mounting torque, and base contamination. A cable fault and a transducer fault can produce identical symptoms — high noise floor, signal dropout, or out-of-range DC bias — so both should be evaluated simultaneously. Next, verify the 3300 XL monitor card input channel: check the OK relay output, the bias voltage reading at the BNC input, and the channel configuration in the System 1 software to confirm the channel has not been inadvertently disabled or reconfigured.

Inspect the junction box or field terminal block where the cable terminates. Corroded terminals, loose set screws, and moisture ingress at the junction are frequent contributors to intermittent signal faults that are misdiagnosed as cable failures. If the installation uses signal conditioners or signal isolators between the transducer and the monitor rack, verify that the isolator output is within specification and that the power supply to the isolator is stable. A failing 24 VDC instrument power supply can cause multiple channel faults simultaneously and should be checked when more than one measurement point is affected.

For installations where the 106765-30 runs through conduit shared with power cables, verify that EMI shielding continuity is intact and that the shield drain wire is grounded at one end only, per Bently Nevada installation guidelines. Ground loops introduced through improper shield termination are a common source of 50/60 Hz noise that appears as a vibration signal. Additionally, review the rack backplane connections within the 3300 XL chassis: loose module seating or a failing backplane power rail can produce symptoms that appear to originate in the field wiring. Finally, confirm that any barrier or Zener safety barriers used in hazardous area installations are within their rated voltage and current limits, as a degraded barrier will attenuate the transducer signal and produce a low-amplitude reading that may not trigger an alarm but will compromise machinery protection integrity.

Site Replacement Workflow

Step 1 — Isolate and document. Before disconnecting the existing cable, record the current vibration amplitude, DC bias voltage, and OK status from the 3300 XL monitor. This baseline confirms whether the fault is present at the time of replacement and provides a reference for post-replacement verification.

Step 2 — De-energize the transducer circuit. Disable the monitor channel or remove the monitor card to de-energize the IEPE constant-current excitation before disconnecting the cable. This prevents connector arcing and protects the transducer input stage.

Step 3 — Remove and inspect the old cable. Examine the full cable run for abrasion, kinking, connector corrosion, and jacket damage. Document findings for the maintenance record. If the cable shows signs of chemical attack or heat damage, investigate the root cause before installing the replacement.

Step 4 — Install the 106765-30. Route the new cable following the original cable path. Avoid sharp bends at connectors. Torque connectors to the manufacturer’s specification. Ensure the shield drain wire is terminated correctly at the junction box.

Step 5 — Re-energize and verify. Re-enable the monitor channel. Confirm DC bias voltage is within the normal range (typically 8–12 VDC for Velomitor XA), the OK relay is energized, and the vibration reading is consistent with the machine’s known baseline. Compare against the pre-replacement record.

Step 6 — Update the maintenance record. Log the replacement date, cable serial number, pre- and post-replacement readings, and any associated findings. This record supports future fault analysis and spare parts planning.

Spare Parts Support FAQ

Q: Is the 106765-30 a direct drop-in replacement for older Bently Nevada Velomitor XA cable assemblies?
A: Yes. The 106765-30 is the standard 30-foot interconnect cable for the Velomitor XA transducer family and is a direct replacement for any same-length cable in this series. No re-termination, re-configuration, or software change is required in the 3300 XL system after replacement.

Q: How is the cable tested before shipment?
A: Each 106765-30 unit undergoes continuity testing, insulation resistance measurement, and connector integrity inspection prior to packaging. Test records are retained and can be provided upon request. The support terms confirmed by quotation cover manufacturing defects and electrical performance.

Q: Can you support long-term or blanket purchase orders for this part?
A: Yes. We support scheduled delivery agreements and blanket POs for critical spare parts including the 106765-30. Long-term supply commitments help maintenance teams maintain minimum stock levels without tying up capital in excess inventory. Contact our team to discuss lead times and volume pricing.

Q: What is the recommended spare parts holding quantity for a plant with multiple Velomitor XA installations?
A: Industry practice for critical rotating machinery protection components is to hold a minimum of one spare cable per monitored machine, with an additional buffer of 10–20% of the total installed count for plants with more than ten measurement points. For facilities with long procurement lead times or remote locations, a higher buffer is advisable. We can assist with a spare parts audit and stocking recommendation based on your installed base.

—
