Bently Nevada 990-05-XX-03-CN Migration-Ready Vibration Transmitter

Overview

Bently Nevada 990-05-XX-03-CN Migration-Ready Vibration Transmitter: Legacy System Retrofit and Compatibility Upgrade

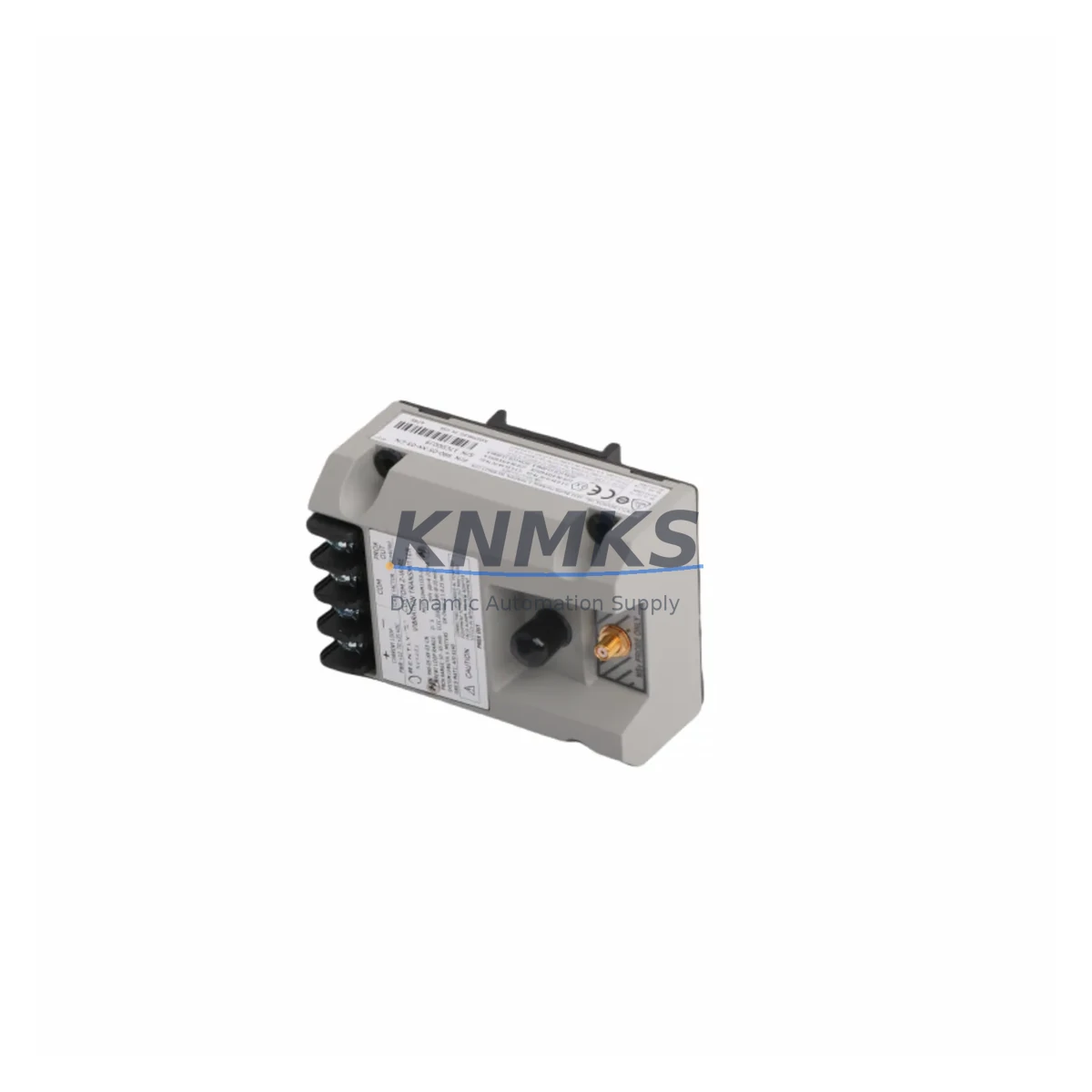

The Bently Nevada 990-05-XX-03-CN (part number 104M1359-01) is a DIN Rail-mounted vibration transmitter from the 990 Series, designed for continuous machinery health monitoring in rotating equipment applications. As legacy Bently Nevada 3300 Series and 7200 Series proximity systems approach end-of-life, the 990-05-XX-03-CN provides a structured migration path for facilities seeking to preserve 4–20mA signal compatibility while transitioning to modern condition monitoring architectures. This unit is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 990-05-XX-03-CN into an existing control cabinet, the retrofit scope typically extends beyond the transmitter itself. Engineers replacing legacy Bently Nevada 3300 XL 8mm proximity systems must first audit the existing rack space and DIN Rail capacity within the control enclosure. If the cabinet houses a Bently Nevada 3500 Series rack-based monitoring system, the 990 Series DIN Rail transmitter can serve as a supplementary channel for non-critical bearing positions, freeing rack slots for priority machinery.

Power supply capacity is a critical pre-installation checkpoint. Many legacy cabinets running 3300 Series monitors operate on shared 24VDC bus rails. Adding the 990-05-XX-03-CN requires confirming that the existing power supply module — often a Phoenix Contact or Siemens SITOP unit — has sufficient current headroom. If the PSU is already near capacity, a dedicated 24VDC branch with appropriate fusing should be added before commissioning.

Terminal wiring adaptation is frequently required when migrating from older Bently Nevada field wiring harnesses. The 990-05-XX-03-CN uses a standard screw-terminal interface, but field cables originally routed to 3300 Series junction boxes may require re-termination or the use of signal isolator modules to maintain loop integrity and eliminate ground loops. A signal isolator — such as those in the Pepperl+Fuchs KFD or MTL 5000 Series — is recommended when the cable run exceeds 50 meters or crosses electrical noise zones.

For facilities running Emerson DeltaV or Honeywell Experion DCS platforms, the 4–20mA output of the 990-05-XX-03-CN maps directly to standard AI (Analog Input) cards without additional signal conditioning. DCS tag reassignment, alarm setpoint migration, and historian configuration should be completed in the engineering workstation prior to cutover. If the existing HMI faceplate references a 3300 Series channel address, the display logic must be updated to reflect the new transmitter loop tag before the system goes live.

Where Modbus RTU integration is required — for example, when feeding vibration data into a SCADA platform such as Wonderware System Platform or Ignition — an external RS-485 converter paired with a loop-powered Modbus transmitter interface can bridge the 4–20mA signal to the digital bus. This approach avoids replacing the entire monitoring architecture and preserves existing PLC ladder logic and function block programming.

Downtime Control During System Migration

Minimizing unplanned downtime during vibration transmitter replacement requires a structured cutover sequence. The recommended approach is to pre-wire and bench-test the 990-05-XX-03-CN against a calibrated signal source before the scheduled maintenance window. Confirm output linearity across the 4–20mA range and document the zero and span readings for the commissioning record.

During the cutover window, isolate the legacy transmitter loop at the field junction box rather than at the DCS marshalling cabinet. This preserves the existing cable continuity and allows the new transmitter to be connected without disturbing adjacent loops. Once the 990-05-XX-03-CN is wired and powered, perform a live loop check against the DCS AI card before releasing the channel to automatic control.

If the replaced unit was part of a Bently Nevada 3500 Series rack providing trip and alarm relay outputs, confirm that the relay logic is either replicated in the DCS or that a temporary bypass is in place during the transition. Protecting the original program logic — particularly any SIS (Safety Instrumented System) interlocks referencing the vibration channel — is essential to maintaining field control continuity and avoiding spurious trips during commissioning.

All units are dispatched with pre-shipment functional testing documentation. Stocked inventory ensures same-week dispatch for emergency replacement scenarios, reducing the risk of extended machinery downtime due to parts availability.

Retrofit Support FAQ

Q1: Is the 990-05-XX-03-CN a direct replacement for Bently Nevada 3300 Series proximity monitors?
The 990-05-XX-03-CN is a functional replacement for applications requiring 4–20mA vibration signal output. It does not replicate the rack-based relay trip outputs of the 3300 Series. For full trip functionality, the 3500 Series rack system or a dedicated safety relay module should be retained or added alongside the 990 Series transmitter.

Q2: What wiring changes are required during installation?
The transmitter uses a screw-terminal DIN Rail block. Field cables from existing Bently Nevada proximity probes (8mm or 11mm) must be verified for compatibility with the 990 Series driver input specifications. Re-termination at the cabinet end is typically required; field-side cabling can usually be reused if shielding integrity is confirmed.

Q3: Has this unit been tested before shipment?
Yes. Every 990-05-XX-03-CN unit is functionally tested prior to dispatch, with output loop verification across the full 4–20mA range. Test records are available upon request for quality documentation purposes.

Q4: What support terms and stock availability apply?
This unit carries a support terms confirmed by quotation from the date of shipment. Stock is maintained across multiple regional warehouses to support emergency replacement and planned maintenance schedules. Lead time for in-stock units is typically 3–7 business days for international dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

990-05-XX-03-CN 104M1359-01

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 990-05-XX-03-CN 104M1359-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
