Bently Nevada 990-05-XX-01-05 Migration-Ready Proximitor Sensor

Overview

Bently Nevada 990-05-XX-01-05 Migration-Ready Proximitor Sensor: Legacy System Migration and Compatible Upgrade

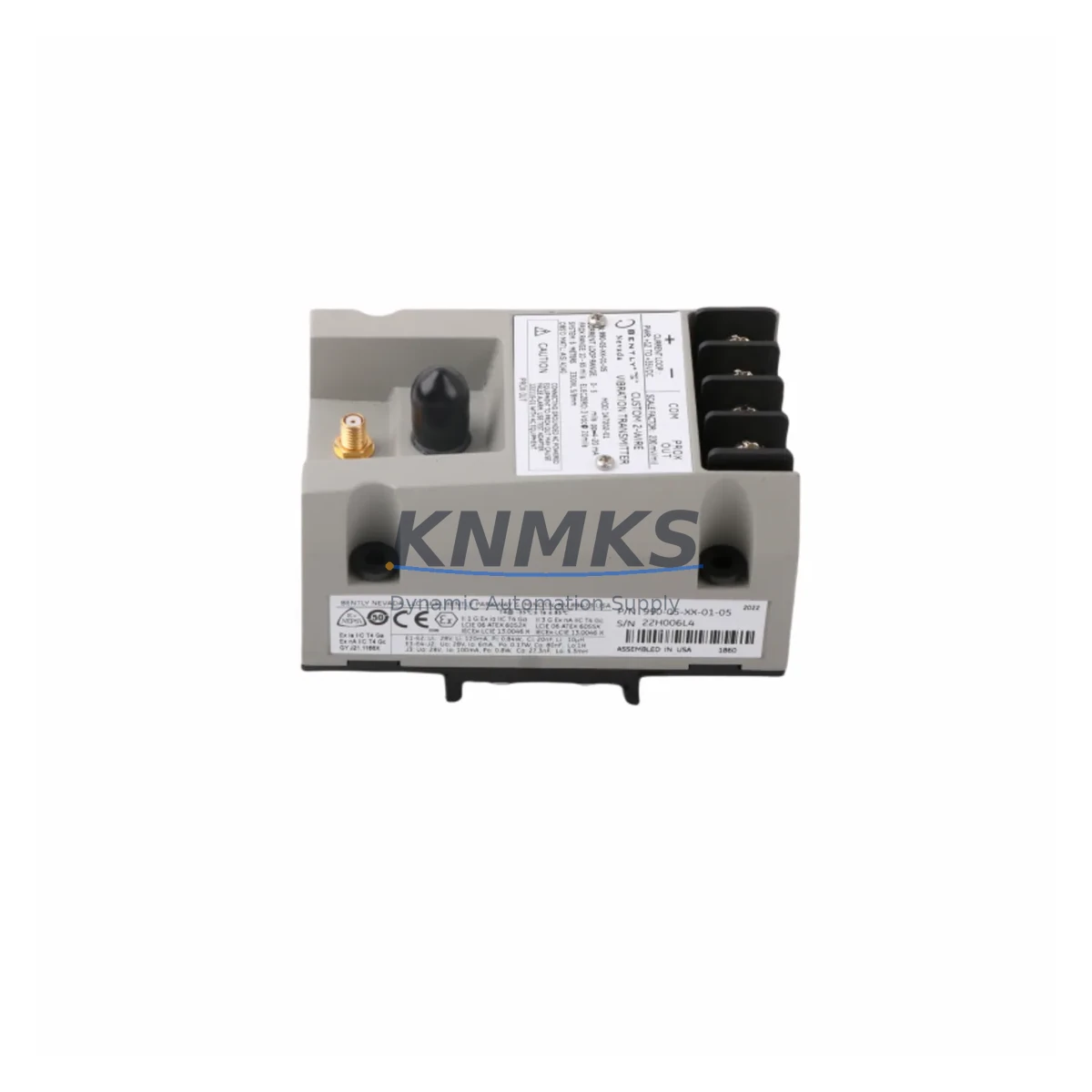

The Bently Nevada 990-05-XX-01-05 MOD 147202-01 is a migration-ready proximitor sensor engineered for direct replacement of discontinued 990 Series units in rotating machinery protection systems. Designed to preserve existing wiring harnesses, terminal block layouts, and signal conditioning chains, this unit eliminates the need for full panel redesign during control cabinet upgrades. Whether you are modernizing a turbine protection rack, replacing a failed proximitor in a compressor train, or extending the service life of a legacy Bently Nevada 3500 Series monitoring system, this module delivers verified drop-in compatibility with minimal downtime exposure.

Before committing to installation, engineers should confirm the following parameters against the existing system: power supply rail voltage (typically –24 VDC for 990 Series proximitors), coaxial cable type and extension cable length (RG-58 or equivalent), gap voltage at the target shaft surface, and the sensitivity setting (V/mm or V/mil) programmed into the downstream Bently Nevada 3500/40M or 3500/42M proximitor I/O module. Mismatched sensitivity between the proximitor and the monitor rack is the most common commissioning error during legacy replacements and must be verified before energizing the loop.

For installations where the original 990-05-XX-01-05 was paired with a Bently Nevada 330180 or 330130 extension cable assembly, the replacement unit maintains full electrical compatibility provided cable total length does not exceed the original specification. Terminal connections at the junction box should be inspected for corrosion and re-torqued to manufacturer specification during the retrofit window to prevent intermittent signal faults post-commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 990-05-XX-01-05 MOD 147202-01 into an operating plant environment requires a structured pre-outage checklist. Begin by auditing the existing Bently Nevada 3500 Series rack configuration: identify which slots are occupied by 3500/40M proximitor I/O modules, confirm the rack’s power module (typically a 3500/15 or 3500/20) has sufficient current headroom for the replacement unit, and document all channel-to-machine-train assignments before any hardware is disturbed.

For systems where the 990 Series proximitor feeds into a Bently Nevada 3500/42M velocity and acceleration monitor, verify that the input channel configuration in the monitor’s non-volatile memory still reflects the correct transducer type after the swap. In some legacy installations, the channel configuration was stored in a now-discontinued configuration software version; in these cases, use the current System 1 software or a compatible TDXnet interface to re-read and validate channel parameters post-installation.

Where the control cabinet also houses a Bently Nevada 3500/22M transient data interface or a 3500/92 communication gateway, confirm that the PROFIBUS node address assigned to the rack has not been altered during any prior maintenance activity. Address conflicts on the PROFIBUS segment will cause the entire rack to drop from the DCS scan list, resulting in a loss of all vibration data — a critical risk during post-retrofit startup. Physical installation space should also be confirmed: the 990 Series proximitor housing dimensions are standardized, but conduit entry angles and junction box depth vary by installation vintage and must be measured before the outage window begins.

Signal isolators installed between the proximitor output and the DCS analog input card — commonly MTL or Pepperl+Fuchs barrier modules — should be inspected and replaced if they show signs of drift, as a degraded isolator will mask the true performance of the new proximitor during acceptance testing. Finally, if the plant HMI displays real-time vibration trend data sourced from this proximitor channel, coordinate with the control room team to confirm that the HMI tag mapping and alarm setpoints remain valid after the hardware swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximitor replacement requires pre-staging all replacement hardware, tools, and documentation before the maintenance window opens. For the 990-05-XX-01-05 MOD 147202-01, the recommended sequence is: (1) export the current channel configuration from the 3500 rack using System 1 or the rack’s front-panel interface; (2) de-energize the proximitor loop at the junction box rather than at the rack to preserve rack power and avoid disturbing adjacent channels; (3) swap the proximitor and extension cable assembly; (4) re-energize and verify gap voltage at the monitor card front panel before closing the junction box; (5) confirm alarm and danger setpoints are active in the monitor; (6) restore the PROFIBUS link and verify the channel appears correctly in the DCS and HMI.

This sequence preserves the original program logic in the 3500 rack, avoids inadvertent reset of trip multiply or bypass states on adjacent channels, and allows the control room to maintain continuous visibility of all other machine-train parameters throughout the swap. Where a hot-swap is not possible and the machine must be taken offline, coordinate with operations to ensure that all associated shutdown interlocks are properly bypassed and documented per the plant’s management of change procedure. All units supplied by KNMKS are pre-tested and shipped with functional test records, reducing the risk of a failed-on-arrival event that would extend the outage window.

Retrofit Support FAQ

Q1: Is the 990-05-XX-01-05 MOD 147202-01 a direct replacement for all 990 Series proximitor variants?
A: This unit is compatible with the standard 990 Series form factor and electrical specification. Confirm the MOD number and sensitivity setting of the unit being replaced before ordering. Where the original MOD number differs, contact our technical team with the full nameplate data for cross-reference confirmation.

Q2: What commissioning checks are required after installation?
A: Verify gap voltage (typically –10 VDC ±0.5 V at nominal gap), confirm output signal linearity across the measurement range, check that the monitor card alarm setpoints are active, and validate PROFIBUS communication to the DCS. Document all readings in the plant’s maintenance management system before returning the machine to service.

Q3: Does KNMKS provide wiring diagrams or terminal connection guides for this retrofit?
A: Yes. Upon order confirmation, KNMKS provides a retrofit reference sheet covering terminal assignments, cable routing recommendations, and gap-setting procedures specific to the 990 Series installation. Contact admin@knmks.com for pre-order technical consultation.

Q4: What support terms and stock availability does KNMKS offer?
A: All units carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Stock is maintained for immediate dispatch. Each unit ships with a functional test report. For volume orders or long-term spare parts agreements, contact our procurement team for lead time and pricing confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

990-05-XX-01-05 MOD 147202-01

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 990-05-XX-01-05 MOD 147202-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
