Bently Nevada 990-05-50-01-01 Maintenance-Proven Spare Part

Overview

Bently Nevada 990-05-50-01-01 Maintenance-Proven Spare Part for Factory Uptime

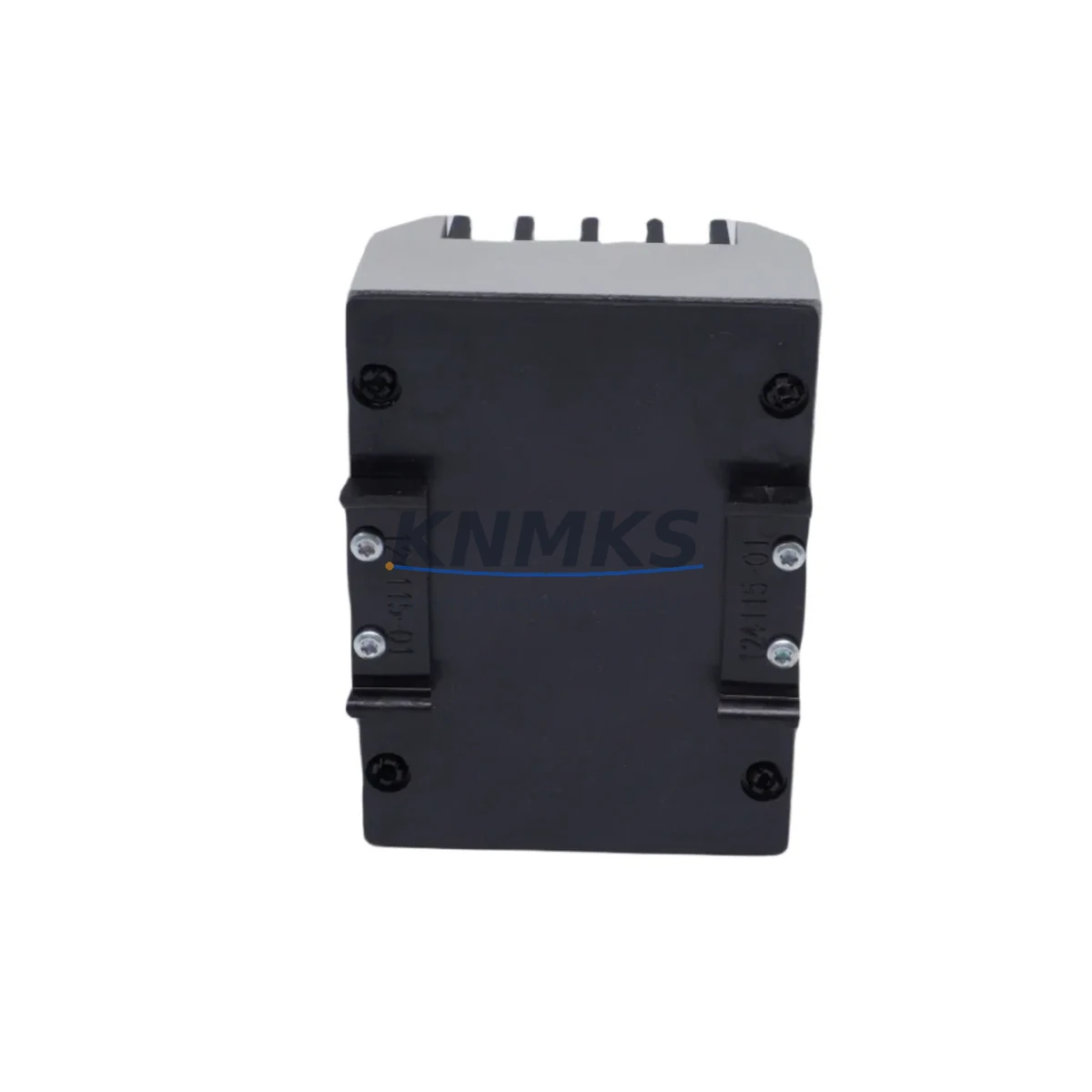

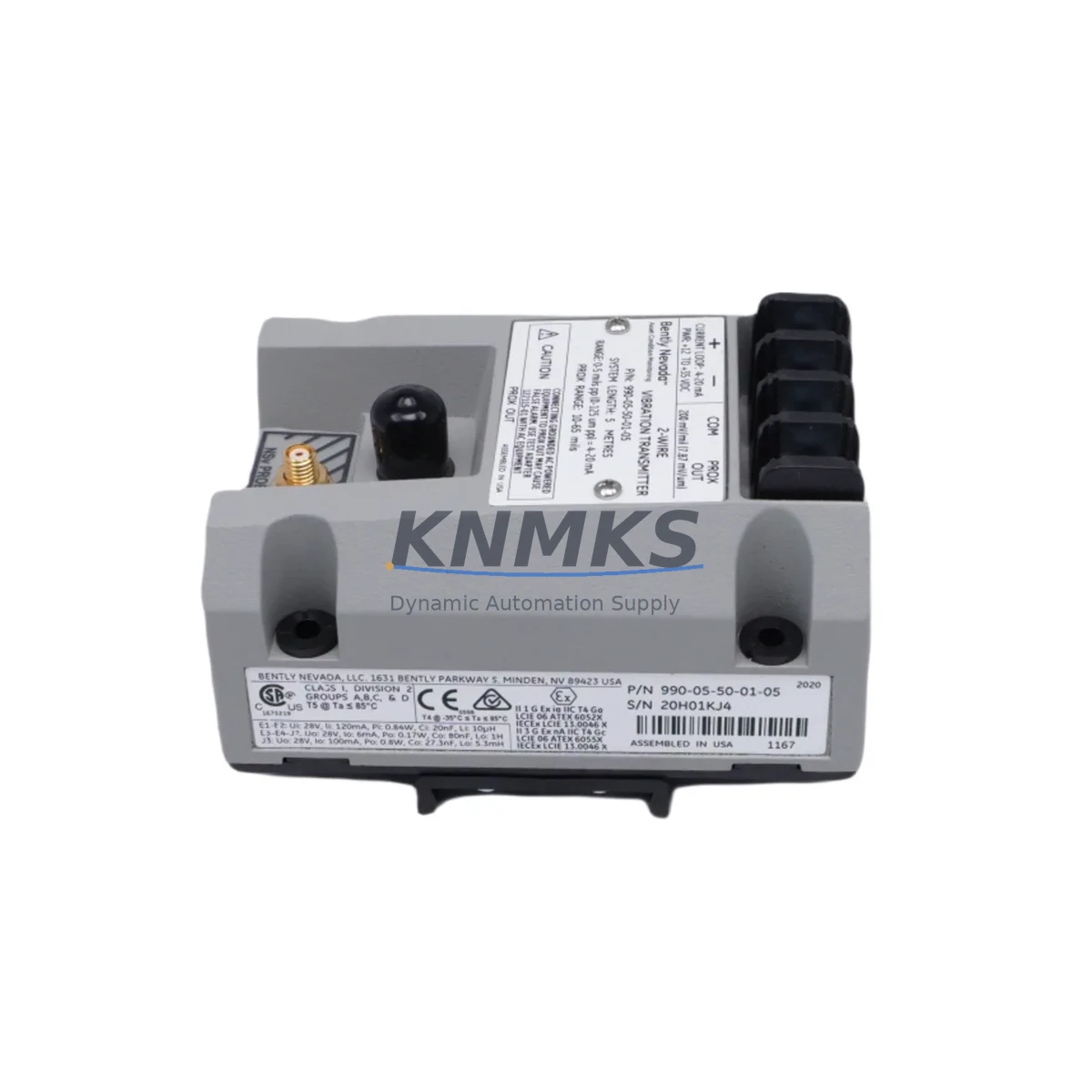

The Bently Nevada 990-05-50-01-01 is a field-proven vibration transmitter from the 990 Series, engineered for continuous machinery protection in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial environments. As a direct OEM-compatible replacement, this unit delivers a standard 4–20 mA output signal proportional to vibration velocity or acceleration, enabling seamless integration into existing Bently Nevada monitoring systems, DCS loops, and safety instrumented systems without signal recalibration or wiring modification.

For maintenance engineers managing aging machinery protection infrastructure, the 990-05-50-01-01 represents a critical line-replaceable unit (LRU). Its compact DIN-rail or panel-mount form factor, combined with wide-range power supply compatibility, makes it a reliable candidate for emergency swap-out during unplanned shutdowns as well as scheduled annual overhauls. Stocking this transmitter as a certified spare eliminates the procurement lead-time risk that frequently extends turbine, compressor, or pump downtime beyond acceptable thresholds.

Each unit supplied by KNMKS is sourced from verified channels, subjected to pre-shipment functional testing, and dispatched with full traceability documentation. A support terms confirmed by quotation cover operational defects under normal industrial service conditions, giving procurement engineers the confidence to approve this part for critical asset protection loops.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 990-05-50-01-01 vibration transmitter, experienced maintenance engineers treat the swap as an opportunity to audit the entire signal chain feeding the machinery protection system. A single transmitter failure rarely occurs in isolation — adjacent components in the same cabinet or measurement loop are often subject to the same thermal cycling, vibration fatigue, and moisture ingress that degraded the original unit.

Begin by verifying the 24 VDC loop power supply feeding the transmitter. A marginal or noisy supply rail is a common root cause of erratic 4–20 mA readings and premature transmitter failure. If the cabinet uses a shared DC bus, check the output voltage under full load and inspect the power supply’s capacitor health — units such as the Bently Nevada 3500/15 Power Supply module or equivalent DIN-rail SMPS should be on the annual inspection list alongside the transmitter itself.

Next, inspect the signal cable and cable shield termination. The 990 Series transmitter is sensitive to ground loops introduced by improper shield grounding at both ends of a shielded twisted-pair run. Verify that the shield is grounded at one end only (typically the control room end) and that the cable is routed away from high-voltage conductors. Damaged or water-ingressed cable is a frequent cause of signal drift that is misdiagnosed as transmitter failure.

At the DCS or safety system end, confirm that the 4–20 mA analog input card — such as a Honeywell HC900 AI module, Emerson DeltaV MD Plus I/O card, or equivalent — is reading within calibrated range. A faulty AI channel can mask a healthy transmitter or falsely indicate a loop fault. If the plant uses a Bently Nevada 3500/42M Proximitor/Seismic Monitor card in a 3500 rack, verify that the rack’s backplane power and communication bus are functioning correctly before condemning the field transmitter.

For plants running older Bently Nevada 7200 Series or 3300 Series monitors, the 990-05-50-01-01 may serve as a migration-ready upgrade path, providing a modern 4–20 mA interface where legacy voltage-output sensors previously fed proprietary monitor cards. Confirm input card compatibility and scaling before commissioning.

Finally, review the terminal block and fuse protection in the field junction box or marshalling cabinet. Corroded terminal blocks (Phoenix Contact or equivalent) and blown 0.5 A signal-circuit fuses are often overlooked during a transmitter swap. Replacing these low-cost components during the same maintenance window eliminates a second call-out and keeps the loop in service through the next planned outage cycle.

Site Replacement Workflow

Step 1 — Isolation & permit: Obtain a work permit and isolate the measurement loop at the DCS marshalling cabinet. Place the associated DCS tag in manual mode or bypass the SIS voting logic per your site MOC procedure to prevent a spurious trip during the swap.

Step 2 — Document as-found condition: Record the existing 4–20 mA reading, loop resistance, and supply voltage before disconnecting the transmitter. Photograph terminal wiring and label all conductors. This baseline is essential for post-installation verification.

Step 3 — Remove the old unit: Disconnect the signal cable at the transmitter terminals. If the unit is DIN-rail mounted, release the rail clip. For panel-mount installations, remove the mounting screws and carefully extract the unit without stressing the conduit entry.

Step 4 — Install the 990-05-50-01-01 replacement: Mount the new unit in the same position. Reconnect wiring per the original terminal documentation, observing polarity on the 4–20 mA loop (+/−). Verify cable shield grounding is single-ended. Torque terminal screws to the manufacturer’s specification to prevent loose connections under vibration.

Step 5 — Loop verification: Restore loop power and confirm the transmitter powers up correctly. Use a calibrated loop calibrator or HART communicator to verify the 4 mA (zero) and 20 mA (full-scale) output points against the machine’s known vibration baseline. Confirm the DCS AI card is receiving the expected signal within ±0.1 mA of the calibrated value.

Step 6 — Return to service: Remove the bypass, return the DCS tag to automatic, and document the replacement in the plant CMMS (SAP PM, Maximo, or equivalent). Update the spare parts inventory to trigger a replenishment order for the next 990-05-50-01-01 unit, maintaining a minimum one-unit buffer stock for each critical measurement loop.

Spare Parts Support FAQ

Q1: Is the 990-05-50-01-01 a direct drop-in replacement for older 990 Series transmitters with the same part number suffix?
Yes. The 990-05-50-01-01 maintains backward-compatible wiring pinout and 4–20 mA output scaling with earlier production runs of the 990 Series. However, always verify the output range configuration (velocity vs. acceleration) matches your existing DCS scaling before returning the loop to automatic control.

Q2: What is the lead time and can KNMKS support emergency orders?
Standard in-stock units ship within 1–3 business days from our regional warehouse. For emergency shutdown recovery, contact our sales team directly at admin@knmks.com or +86 18359268345 to confirm real-time stock availability and expedited freight options. We maintain buffer stock of high-demand 990 Series components specifically to support unplanned outage recovery.

Q3: How is each unit tested before shipment?
Every 990-05-50-01-01 unit undergoes a pre-shipment functional test that verifies loop-powered operation, 4–20 mA output linearity at zero and full-scale, and terminal integrity. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing and operational defects under normal industrial service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a support terms claim, contact admin@knmks.com with the order reference, installation date, and a brief description of the fault symptom. KNMKS will arrange return logistics and provide a replacement or credit within the agreed resolution timeline.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

990-05-50-01-01

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 990-05-50-01-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
