Bently Nevada 990-04-XX-01-CN Maintenance-Proven Spare Part

Overview

Bently Nevada 990-04-XX-01-CN Maintenance-Proven Spare Part for Factory Uptime

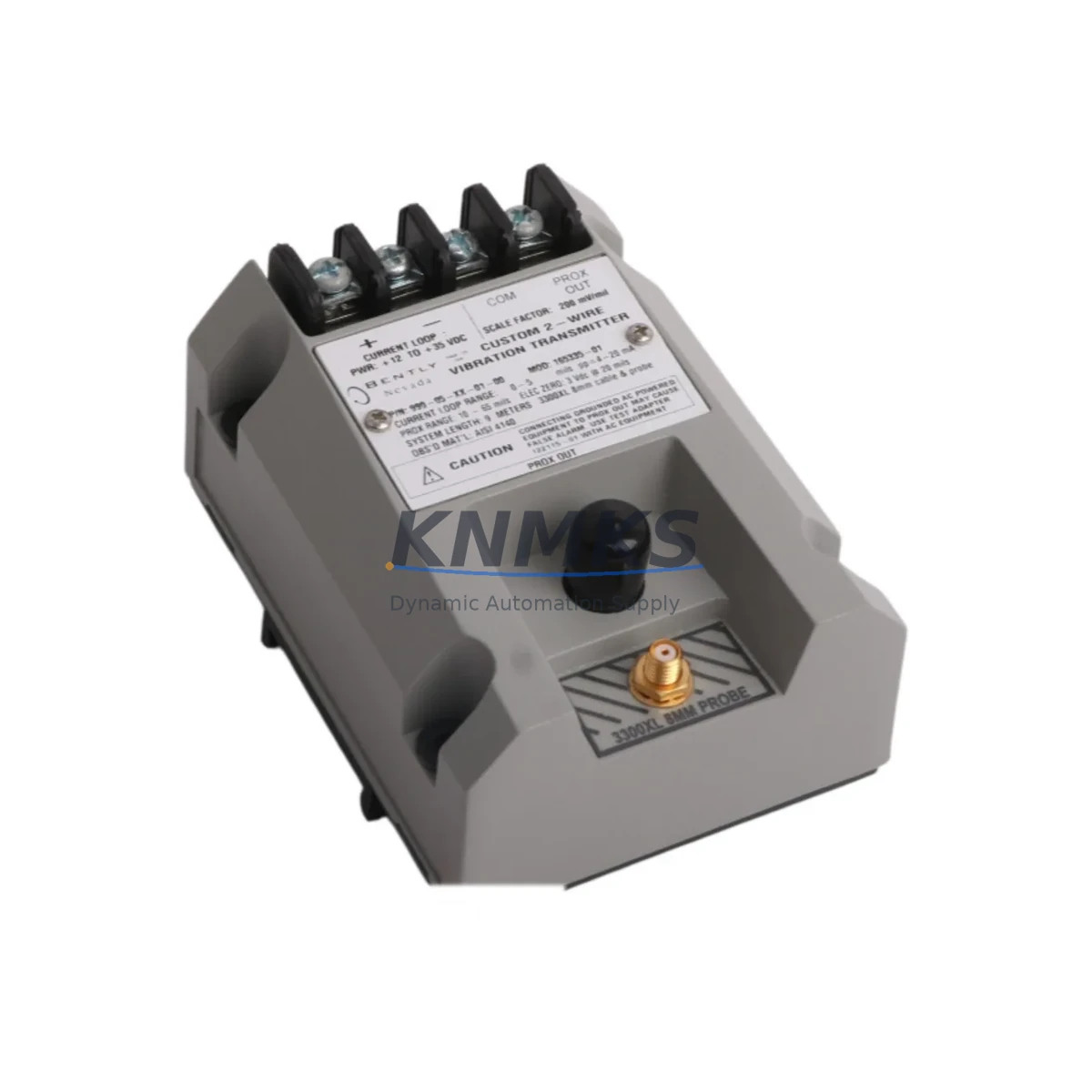

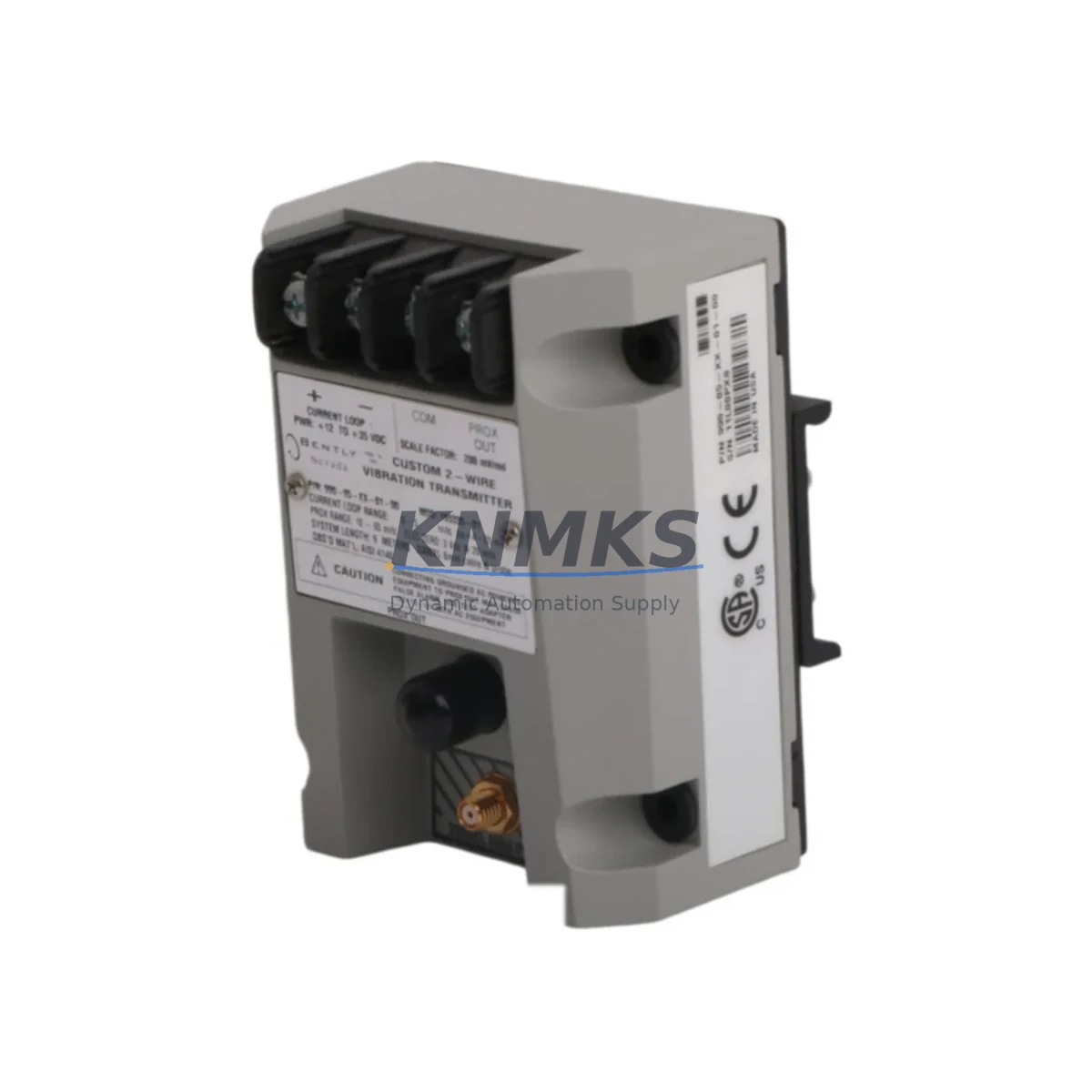

The Bently Nevada 990-04-XX-01-CN MOD:165335-01 is a field-proven vibration transmitter spare part designed to keep rotating machinery protection systems running without interruption. As part of the renowned Bently Nevada 990 Series, this module delivers reliable 4–20 mA output signals for continuous vibration monitoring on turbines, compressors, pumps, and other critical rotating assets. For maintenance engineers managing plant uptime and procurement engineers building resilient spare parts inventories, having a verified replacement unit on the shelf is the single most effective strategy against unplanned downtime.

KNMKS supplies this unit as an original spare, fully tested prior to shipment, with a support terms confirmed by quotation. Every unit undergoes functional verification to confirm signal output accuracy, loop integrity, and housing condition before dispatch. Long-term supply continuity is supported, making this an ideal candidate for annual maintenance budgets and strategic spare parts programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 990-04-XX-01-CN vibration transmitter is flagged during a routine control cabinet inspection or a predictive maintenance round, the replacement workflow rarely ends with the transmitter alone. Experienced maintenance engineers know that the surrounding electrical circuit must be evaluated in parallel to prevent repeat failures and ensure the restored signal path is fully reliable.

Start by inspecting the Bently Nevada 3300 XL 8mm Proximitor probe and extension cable connected to the transmitter input. A worn or damaged probe cable is one of the most common root causes of erratic vibration readings that are incorrectly attributed to the transmitter itself. Verify cable continuity and shield integrity before installing the replacement unit.

Next, check the 24 VDC loop power supply feeding the 4–20 mA circuit. Voltage sags or ripple on the supply rail can cause the transmitter to report false high-vibration alarms. A dedicated DIN-rail industrial power supply — such as those in the Phoenix Contact QUINT or TRIO series — should be verified for output stability under load.

The terminal block connections (Weidmüller or Phoenix Contact type) at both the transmitter and the receiving end of the 4–20 mA loop should be inspected for corrosion, loose ferrules, and correct torque. In high-vibration environments, terminal screws can back off over time, introducing intermittent signal loss that is difficult to diagnose remotely.

If the 990-04-XX-01-CN feeds into a Bently Nevada 3500/42M Proximitor / Seismic Monitor rack card, confirm that the rack card’s input channel configuration matches the transmitter’s output range. A misconfigured channel scale will produce incorrect engineering-unit readings even with a perfectly functional transmitter installed.

For plants running older Bently Nevada 3300 Series monitoring racks, verify that the rack’s I/O module and backplane connectors are free of oxidation. Backplane contact issues are a known failure mode in legacy installations and can mask the true source of a vibration alarm. Keeping a spare 3300/16 I/O Module alongside the 990-04-XX-01-CN transmitter in your spare parts cabinet is a recommended practice for sites with aging infrastructure.

Finally, confirm that any signal isolators or barriers in the loop — particularly in hazardous-area installations — are within their rated service life. A degraded galvanic isolator can introduce loop resistance that shifts the 4–20 mA signal by several milliamps, leading to incorrect vibration readings at the DCS or safety system input.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the vibration monitoring channel at the 3500 rack or monitoring system. Place the channel in bypass mode to prevent spurious trips during the replacement procedure.

Step 2 — Document Existing Wiring: Photograph or sketch the existing terminal connections on the 990-04-XX-01-CN before disconnecting any wires. Note the loop+ and loop− polarity, the probe input terminals, and any shield grounding points.

Step 3 — Remove the Faulty Unit: Disconnect the probe cable and the 4–20 mA loop wiring. Remove the transmitter from the DIN rail. Inspect the mounting rail and surrounding components for signs of heat damage, moisture ingress, or mechanical stress.

Step 4 — Install the Replacement: Clip the new 990-04-XX-01-CN MOD:165335-01 onto the DIN rail. Reconnect wiring in the documented order, ensuring correct polarity and proper ferrule crimping on all conductors. Torque terminal screws to the manufacturer’s specification.

Step 5 — Loop Verification: Apply power and verify the 4–20 mA output at the receiving end using a calibrated loop calibrator or multimeter. Confirm that the signal corresponds to the expected vibration level (typically near the 4 mA zero-vibration baseline with the machine at rest).

Step 6 — System Restoration: Remove the channel bypass at the monitoring rack. Confirm that the DCS or safety system is receiving a valid, in-range signal. Log the replacement in the maintenance management system (CMMS) with the new unit’s serial number and installation date.

This workflow is compatible with both direct replacement of legacy 990-04-XX-01-CN units and upgrade scenarios where older 990 Series transmitters are being standardized across a plant-wide vibration monitoring program.

Spare Parts Support FAQ

Q1: Is the 990-04-XX-01-CN MOD:165335-01 compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 990-04-XX-01-CN outputs a standard 4–20 mA signal that is compatible with Bently Nevada 3500 Series rack input cards, including the 3500/42M Proximitor / Seismic Monitor. Confirm the channel input range configuration in the rack software matches the transmitter’s output scale before commissioning.

Q2: How do you verify the unit is functional before installation?
KNMKS performs a pre-shipment functional test on every unit, confirming loop output accuracy and signal integrity. Upon receipt, customers can perform a bench verification using a 24 VDC power supply and a calibrated milliammeter to confirm the 4 mA zero-signal baseline before installation.

Q3: What is the recommended spare parts inventory strategy for the 990-04-XX-01-CN?
For critical rotating machinery applications — turbines, compressors, and large pumps — a minimum of one spare unit per monitored machine train is recommended. Sites with multiple identical transmitters should consider a pooled spare ratio of 10–15% of the installed base, reviewed annually during scheduled maintenance planning cycles.

Q4: What support terms and long-term supply support does KNMKS provide?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. KNMKS maintains long-term supply capability for the 990 Series product line, supporting both immediate emergency replacement orders and scheduled annual procurement programs. Contact our team for volume pricing and lead time confirmation.
