Bently Nevada 9200-06-05-10-00 Maintenance-Proven Spare Part

Overview

Bently Nevada 9200-06-05-10-00 Maintenance-Proven Spare Part for Factory Uptime

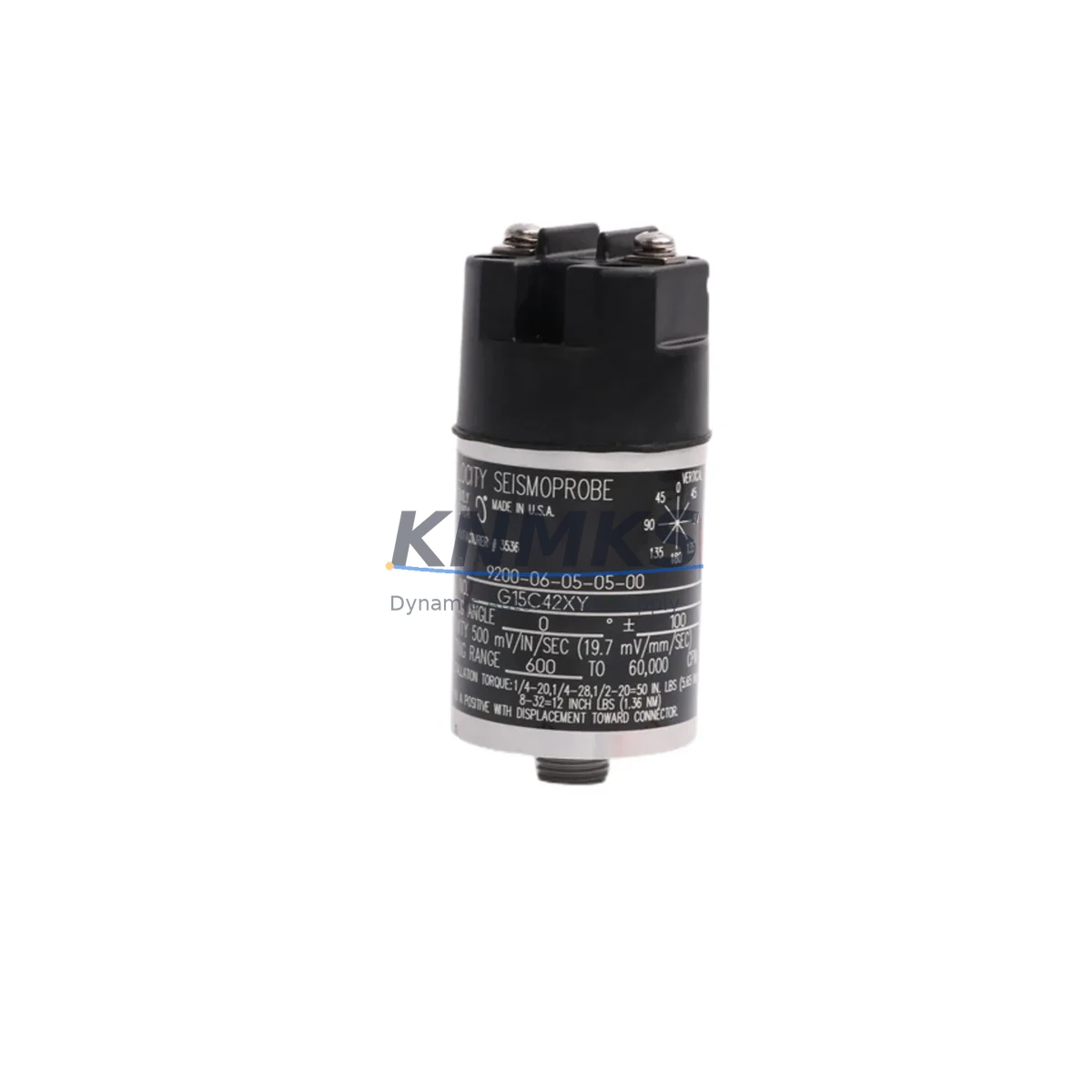

The Bently Nevada 9200-06-05-10-00 is a seismic velocity transducer engineered for continuous vibration monitoring in rotating machinery environments. As a critical sensing element within the Bently Nevada 9200 Series platform, this spare part is essential for maintenance engineers managing turbines, compressors, pumps, fans, and other rotating assets in energy, petrochemical, manufacturing, and infrastructure facilities. Sourced as an original spare, the 9200-06-05-10-00 is fully tested prior to shipment and backed by a support terms confirmed by quotation, ensuring reliable drop-in replacement with zero compromise on measurement accuracy or system compatibility.

For maintenance and procurement engineers, having a verified spare of the 9200-06-05-10-00 on the shelf is a fundamental risk-reduction strategy. Seismic velocity transducers are wear-sensitive components subject to cable fatigue, connector corrosion, and sensitivity drift over extended service cycles. A failed or degraded transducer can trigger false alarms, mask genuine vibration anomalies, or cause unplanned shutdowns — all of which translate directly into lost production time and emergency procurement costs. Stocking this spare eliminates that exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 9200-06-05-10-00 seismic velocity transducer during scheduled maintenance or emergency callout, a disciplined inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure data integrity from the first power-on after replacement.

Begin with the signal cable and extension cable connecting the transducer to the monitoring rack. Cable insulation breakdown and connector pin corrosion are among the most common root causes of transducer signal loss — replacing the transducer without inspecting the cable will not resolve an intermittent fault. Verify cable continuity, shield integrity, and connector seating before closing the junction box.

At the monitoring rack, inspect the Bently Nevada 3500/42M or equivalent velocity monitor module that receives the 9200-06-05-10-00 signal. Check the input channel configuration, alert and danger setpoints, and confirm the channel is not in bypass mode. If the monitor card shows signs of age or has accumulated fault history, consider stocking a spare monitor card alongside the transducer.

Review the power supply module feeding the monitoring rack — typically a 24 VDC or 28 VDC regulated supply. Voltage sag or ripple at the rack input can introduce noise into velocity measurements and cause nuisance trips. A spare Bently Nevada 3500/15 Power Supply or equivalent is a prudent addition to the critical spares list for any facility running continuous monitoring.

Inspect the terminal blocks and field wiring terminations in the marshalling cabinet. Loose or oxidized terminations are a frequent source of signal drift that is often misattributed to transducer failure. Torque-check all terminals in the affected loop during the replacement window.

If the facility uses a Bently Nevada 3500 Series rack with a 3500/20 rack interface module or 3500/22M transient data interface, verify that the rack communication to the plant DCS or historian is intact after the transducer swap. A channel reconfiguration or rack reset can temporarily interrupt Modbus or Ethernet/IP communication to the control system.

For facilities with signal isolators or barriers in the transducer loop — particularly in Zone 1 or Zone 2 hazardous areas — confirm that the isolator output range and impedance remain compatible with the replacement 9200-06-05-10-00. Mismatched isolator output can cause calibration offset even when the transducer itself is functioning correctly.

Finally, update the CMMS work order with the replacement date, new serial number, and post-installation vibration baseline readings. This record is critical for support terms validation and for trending transducer performance over the next service interval.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit. Place the affected monitoring channel in bypass at the 3500 Series rack to suppress spurious alarms during the replacement. Do not de-energize the rack unless required by site procedure.

Step 2 — Transducer Removal: Disconnect the signal cable at the transducer connector. Remove the transducer from its mounting stud or magnetic base. Inspect the mounting surface for corrosion, thread damage, or contamination. Clean and re-prepare the surface before installing the replacement unit.

Step 3 — Cable Inspection: Before connecting the 9200-06-05-10-00 replacement, perform a point-to-point continuity check on the extension cable. Verify shield continuity from the transducer end to the rack terminal. Replace the cable if insulation resistance is below site acceptance criteria.

Step 4 — Installation and Connection: Install the replacement 9200-06-05-10-00 to the manufacturer’s torque specification. Connect the signal cable and verify connector locking. Restore the channel from bypass at the monitoring rack.

Step 5 — Functional Verification: Confirm live velocity readings are within the expected baseline range for the machine at normal operating speed. Compare against historical trend data in the historian or DCS. Document the post-installation baseline in the CMMS.

Step 6 — Spare Replenishment: Raise a purchase order to replenish the consumed spare. Lead times for original Bently Nevada components can extend to 8–16 weeks through standard distribution channels. Maintaining a minimum stock of one unit per monitored machine train is the recommended inventory posture for critical rotating assets.

Spare Parts Support FAQ

Q1: Is the 9200-06-05-10-00 a direct drop-in replacement for older 9200 Series transducers?
Yes. The 9200-06-05-10-00 is designed as a form-fit-function replacement within the Bently Nevada 9200 Series platform. No reconfiguration of the monitoring rack is required for a like-for-like swap. If the existing installation uses a non-standard cable length or connector variant, confirm the cable assembly part number before ordering.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, sensitivity check, and functional output test prior to dispatch. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging to maintain condition during international transit.

Q3: Can you support long-term supply agreements for this part?
Yes. KNMKS supports blanket purchase orders and annual supply agreements for critical spare parts including the 9200-06-05-10-00. Long-term agreements provide price stability, guaranteed stock reservation, and priority dispatch — particularly valuable for facilities with multiple monitored machine trains or multi-site maintenance programs.

Q4: What is the support terms coverage and how is a claim processed?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. To initiate a support terms claim, contact KNMKS with the order reference, installation date, and a description of the observed fault. Replacement units are dispatched upon claim validation, with return logistics coordinated by KNMKS.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

9200-06-05-10-00

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 9200-06-05-10-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
