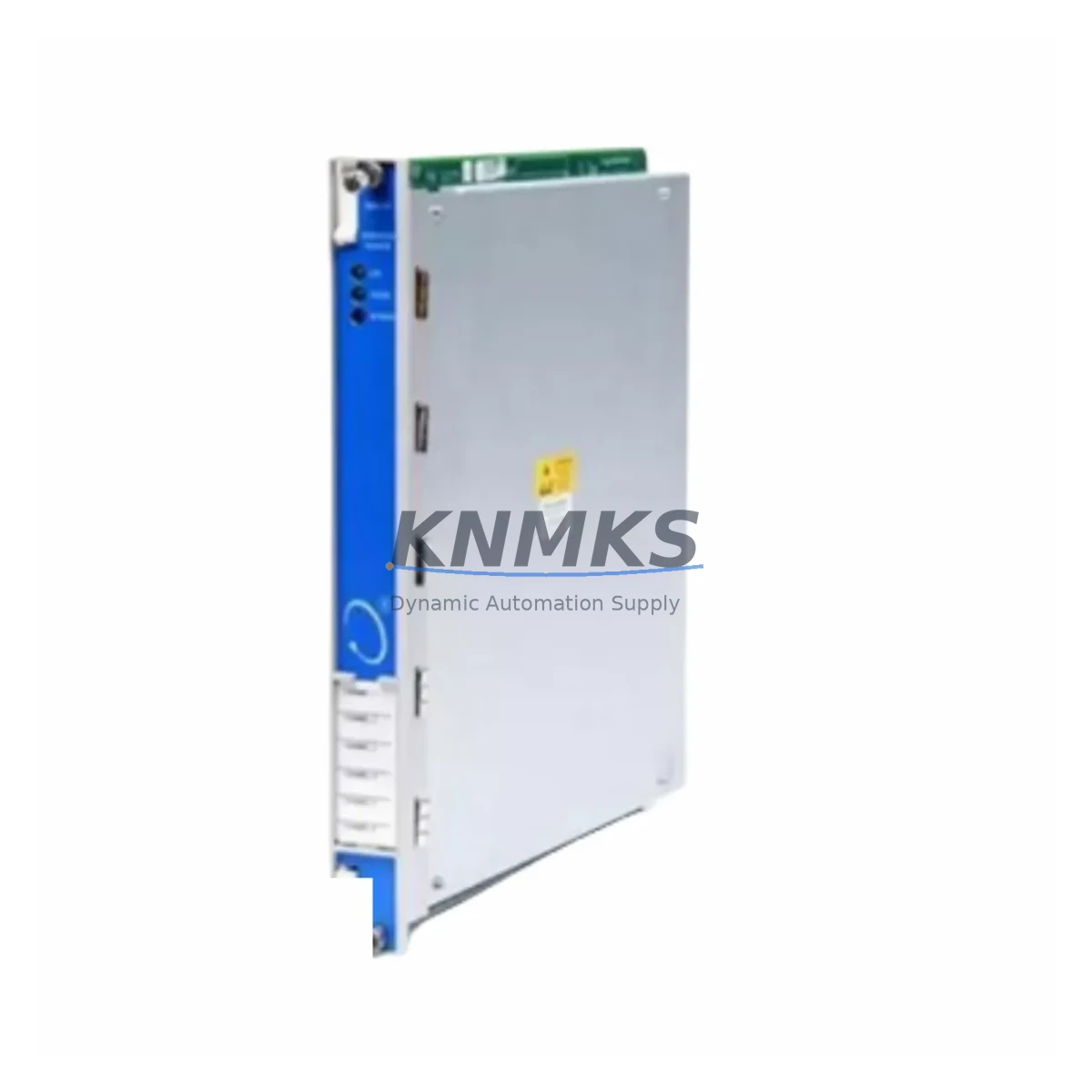

Bently Nevada 3500/94M 184826-01 Retrofit Display Monitor

Overview

Bently Nevada 3500/94M 184826-01 Retrofit Display Monitor: Legacy System Migration & Compatible Upgrade

The Bently Nevada 3500/94M 184826-01 is a retrofit-ready display monitor engineered for the Bently Nevada 3500 Series Machinery Protection System (MPS). As industrial facilities face increasing pressure to extend the operational life of legacy vibration monitoring and machinery protection infrastructure, this module provides a verified drop-in replacement path for aging or discontinued display components within the 3500 rack architecture. Whether you are managing a planned turnaround, responding to an unplanned failure, or executing a phased control system modernization, the 3500/94M 184826-01 is a critical component in maintaining continuous protection of rotating equipment including turbines, compressors, pumps, and motors.

Before initiating a replacement, engineers must confirm several key parameters: the existing rack slot assignment and backplane interface compatibility, terminal wiring pinout against the original I/O drawing, power supply capacity within the 3500 rack (typically sourced from the Bently Nevada 3500/15 Power Supply Module), communication link configuration to the host DCS or SCADA platform, and firmware revision compatibility with the existing system manager software. The 3500/94M 184826-01 is designed to integrate within the standard 3500 Series 19-inch rack chassis, and installation space confirmation is essential prior to ordering, particularly in congested control cabinets where adjacent modules such as the Bently Nevada 3500/22M Transient Data Interface or 3500/42M Proximitor/Seismic Monitor may impose physical constraints.

For facilities migrating from earlier-generation Bently Nevada systems — including the 3300 Series or standalone 7200 Series monitors — the 3500/94M 184826-01 represents a structured upgrade path that preserves existing sensor wiring and transducer infrastructure where possible. Protocol migration considerations are equally important: if the legacy system communicated via RS-232 or proprietary Bently Nevada serial links, the replacement plan must account for integration with modern Modbus TCP, FOUNDATION Fieldbus, or OPC-UA gateways. In many retrofit scenarios, a Bently Nevada 3500/92 Communication Gateway Module is added to the rack to bridge legacy serial data to the plant’s current DCS communication backbone, eliminating the need for full system replacement and significantly reducing project cost and downtime exposure.

HMI screen reconfiguration is another frequently overlooked element of display monitor replacement. When the 3500/94M 184826-01 is installed as a replacement, operators must verify that existing HMI faceplates, alarm setpoint displays, and trend historian tags are remapped to the new module’s channel assignments. This is particularly relevant in facilities running GE Proficy iFIX, Wonderware InTouch, or Emerson DeltaV as the supervisory platform, where tag database updates and driver reconfiguration may be required before the system is returned to service.

Inventory availability for the 3500/94M 184826-01 is maintained to support both emergency breakdown replacement and planned maintenance schedules. Each unit undergoes pre-shipment functional testing to verify display output, communication interface integrity, and power consumption within specification. A support terms confirmed by quotation is provided on all units, covering manufacturing defects and functional failures under normal operating conditions. Lead time and stock status are confirmed at the time of order.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Bently Nevada 3500/94M 184826-01 begins with a thorough audit of the existing 3500 rack configuration. Engineers should document the current slot map, noting the positions of all installed modules including the 3500/15 Power Supply, 3500/20 Rack Interface Module, monitor modules such as the 3500/42M Proximitor/Seismic Monitor, and any I/O terminal blocks connected to field sensors. This documentation forms the baseline for the replacement plan and ensures that wiring reconnection after module swap is accurate and traceable.

Terminal block wiring is one of the most time-sensitive tasks during a display monitor replacement. The 3500/94M 184826-01 uses the standard 3500 Series I/O terminal block interface, and technicians should photograph or scan the existing wiring before disconnection. Signal isolation requirements should also be reviewed: in applications where the display monitor interfaces with high-voltage field signals or shares a common ground with other instrumentation, a signal isolator or barrier may be required to protect the new module and maintain measurement accuracy.

For facilities that have not yet migrated their communication infrastructure, the addition of a Bently Nevada 3500/92 Communication Gateway to the rack during the same maintenance window is strongly recommended. This avoids a second planned outage and allows the modernized rack to communicate with current plant DCS and historian platforms. Programming cable access — typically via the front-panel RS-232 port or USB adapter — should be confirmed and the appropriate Bently Nevada System Manager software version prepared on the engineering workstation before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a display monitor replacement requires preparation that begins well before the maintenance window. The replacement 3500/94M 184826-01 should be on-site and verified against the existing module’s part number and revision level before the equipment is taken offline. A pre-configured spare — with firmware loaded and communication parameters set — reduces in-cabinet commissioning time significantly.

Original program logic and alarm setpoint configurations stored in the 3500 System Manager should be backed up to a secure engineering workstation prior to any hardware change. This backup protects against configuration loss in the event of an unexpected system reset during module swap. After installation, a structured commissioning sequence — including power-on self-test verification, channel-by-channel signal check against known reference inputs, alarm trip test, and communication link confirmation to the DCS — should be completed before the equipment is returned to normal operation. Where possible, a parallel monitoring arrangement using portable vibration analyzers during the transition period provides an additional layer of protection for critical rotating machinery and supports a controlled, low-risk return to service.

Retrofit Support FAQ

Q1: Is the 3500/94M 184826-01 a direct drop-in replacement for my existing 3500/94M display monitor?
In most cases, yes. The 184826-01 revision is designed for direct slot replacement within the 3500 Series rack. However, you should confirm the firmware revision of your existing System Manager software and verify that the terminal block wiring pinout matches your current I/O drawing before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What commissioning steps are required after installing the 3500/94M 184826-01?
After physical installation and terminal block reconnection, connect to the module via the Bently Nevada System Manager software to verify channel configuration, alarm setpoints, and communication link status. Perform a channel-by-channel signal verification using a known reference input, confirm DCS tag mapping, and conduct an alarm trip test before returning the system to service. Firmware upload may be required if the replacement module ships with a different firmware version than your existing system.

Q3: Can this module be used to migrate from a Bently Nevada 3300 Series or 7200 Series system?
The 3500/94M 184826-01 is a 3500 Series module and requires a 3500 Series rack chassis. Migration from 3300 or 7200 Series systems typically involves rack replacement as well as module replacement. In these projects, the 3500/94M 184826-01 is installed as part of a broader rack modernization that may also include new power supply, rack interface, and communication gateway modules. We can provide a complete bill of materials for your migration project upon request.

Q4: What does the support terms confirmed by quotation cover, and what is your stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit is functionally tested prior to shipment, including display output verification, communication interface check, and power consumption measurement. Stock availability is confirmed at the time of order. For critical spares or emergency requirements, please contact our sales team directly to confirm lead time and arrange expedited shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/94M 184826-01
3500 Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Bently Nevada 3500/94M 184826-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
