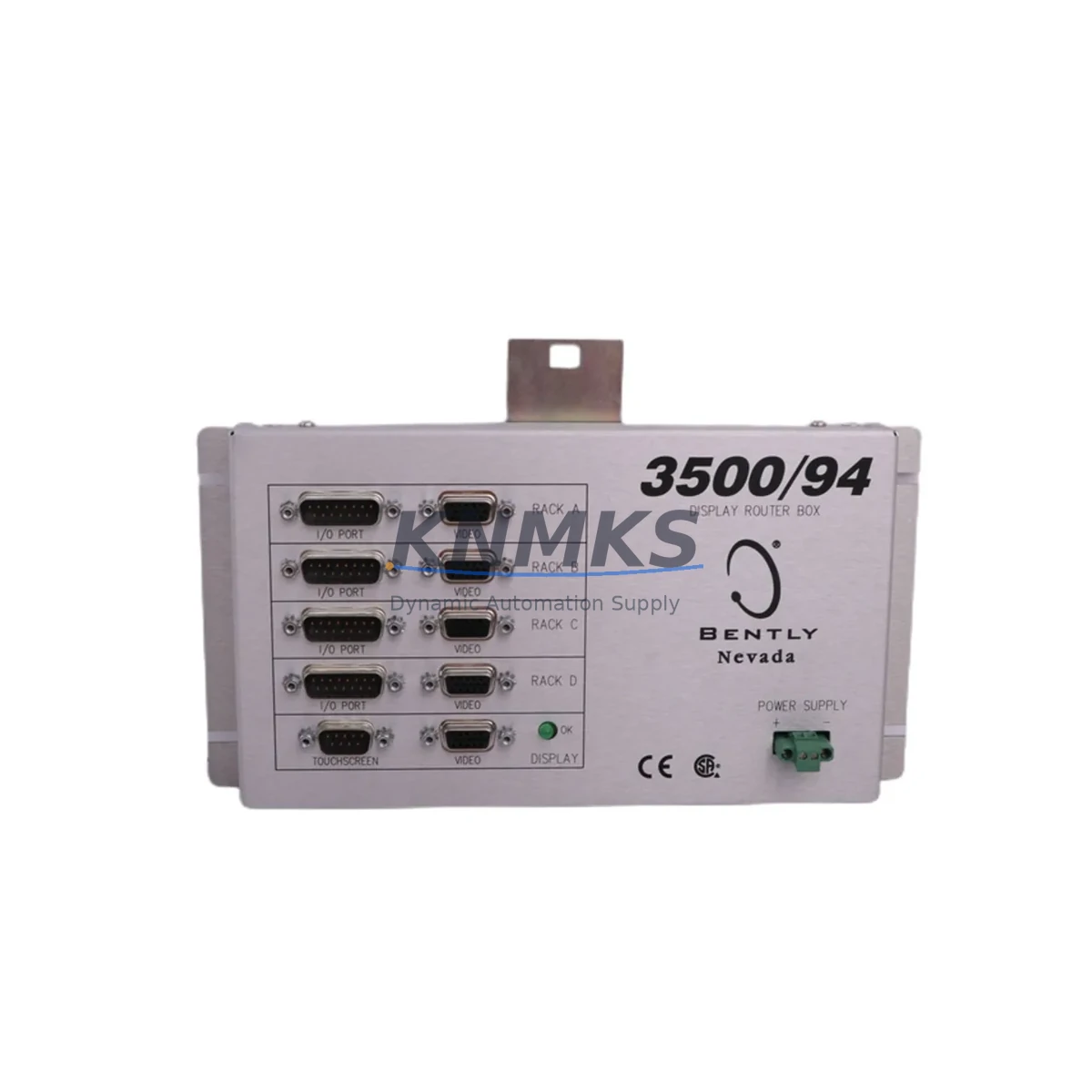

Bently Nevada 3500/94 145988-01 Migration-Ready Display Router

Overview

Bently Nevada 3500/94 145988-01 Migration-Ready Display Router for Legacy Control Systems

The Bently Nevada 3500/94 145988-01 Display Router Module is a critical component within the Bently Nevada 3500 Series machinery protection and condition monitoring platform — one of the most widely deployed vibration monitoring architectures in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. As legacy 3500 Series installations age and original spare parts become increasingly scarce, the 3500/94 145988-01 serves as a verified, migration-ready replacement that allows facilities to extend the operational life of their existing monitoring infrastructure without committing to a full system overhaul.

The Display Router Module functions as the interface bridge between the 3500 rack’s internal data bus and external display or operator interface systems. It routes real-time vibration, position, and process variable data from installed monitor modules — such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor/Seismic Monitor — to connected HMI panels, DCS workstations, or SCADA systems. When planning a retrofit or spare-part replacement, engineers must confirm that the existing rack backplane revision is compatible with the 145988-01 firmware baseline, as earlier 3500 rack generations may require a firmware update on the 3500/20 Rack Interface Module (RIM) before the Display Router can communicate correctly with the host system.

For facilities migrating from older Bently Nevada 7200 Series or 3300 Series installations to the 3500 platform, the 3500/94 145988-01 is typically introduced as part of a phased rack modernization. During this process, technicians must map existing I/O channel assignments, verify terminal block wiring compatibility, and confirm that the new module’s slot address does not conflict with other installed modules in the same chassis. The 3500/01 Rack Power Supply capacity should also be audited — particularly in fully populated racks — to ensure sufficient headroom for the Display Router’s power draw alongside other active modules such as communication gateways or I/O expansion cards.

Communication protocol migration is another key consideration. The 3500/94 145988-01 supports standard Bently Nevada data output formats compatible with Modbus RTU, and in many installations it interfaces with a 3500/92 Communication Gateway Module to bridge rack data to plant-level DCS or historian systems via Ethernet or serial links. When replacing a failed or end-of-life Display Router, the communication link configuration — including baud rate, node address, and data map — must be documented and restored post-installation to avoid disruption to upstream SCADA or condition monitoring software.

HMI screen mapping is frequently overlooked during Display Router replacements. If the facility uses a dedicated Bently Nevada operator display or a third-party HMI configured to poll specific data registers from the 3500 rack, the replacement 145988-01 must be confirmed to present identical register addresses and data scaling. Any deviation may require HMI tag remapping or driver reconfiguration before the system can return to normal monitored operation. Coordinating this step in advance — ideally during a planned maintenance window — is essential to controlling downtime.

Installation space within the 3500 rack is standardized, and the 3500/94 145988-01 occupies a dedicated slot in the 19-inch rack chassis. However, facilities should verify that no adjacent modules — such as a 3500/15 Power Supply Input Module or a relay output module — have been repositioned since the original system commissioning, as slot assignments affect the rack’s internal address map and the Display Router’s ability to correctly enumerate connected monitor modules.

All units supplied by KNMKS undergo pre-shipment functional verification, including power-on self-test confirmation, communication port integrity checks, and visual inspection for connector pin condition and PCB integrity. Each 3500/94 145988-01 is shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained to support urgent spare-part requirements, with expedited shipping available for critical plant applications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the Bently Nevada 3500/94 145988-01 into an existing machinery protection system requires a structured pre-installation audit. Begin by documenting the current rack population: record every installed module by slot position, including monitor modules such as the 3500/42M Proximitor/Seismic Monitor, relay output modules, and any installed 3500/92 Communication Gateway units. This inventory forms the baseline for verifying that the replacement Display Router will be recognized correctly by the rack’s internal addressing logic.

Terminal block wiring at the Display Router’s output connector must be mapped before removal of the failed unit. Photograph or document all wire labels, shield terminations, and connector pin assignments. If the existing installation uses a 3500/20 Rack Interface Module for system-level communication, confirm that its firmware version is listed as compatible with the 145988-01 in the Bently Nevada revision history. Incompatible firmware combinations can result in the Display Router failing to enumerate on the rack bus, which will suppress data output to connected HMI or DCS systems.

For facilities that also operate 3500/15 Power Supply Input Modules or redundant power configurations, the rack power budget must be recalculated after adding the replacement Display Router. In high-density racks with multiple I/O and communication modules, available power headroom can be marginal, and an undersized supply will cause intermittent module resets or communication dropouts. If the rack power supply is already operating near capacity, consider scheduling a concurrent power supply audit as part of the same maintenance window.

Signal isolation requirements should also be reviewed. In installations where the Display Router interfaces with third-party DCS systems via serial links, a signal isolator or surge protection device on the communication line may be required to meet site electrical safety standards. Confirm with the site electrical team whether existing surge protection on the communication cable is rated for the interface voltage levels of the 145988-01 output.

Finally, if the facility uses a programming cable or laptop-based configuration tool to set Display Router parameters, confirm that the configuration software version is compatible with the 145988-01 hardware revision. Some earlier configuration utilities do not recognize newer module firmware, which can prevent parameter upload or verification during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a Display Router replacement is achievable with disciplined pre-staging and a clear commissioning sequence. Before removing the failed 3500/94 unit, export or photograph the full rack configuration from the Bently Nevada System 1 software or equivalent condition monitoring platform. This configuration backup preserves channel assignments, alarm setpoints, and communication parameters, and allows rapid restoration if the replacement module requires reconfiguration.

Where plant operations permit, schedule the Display Router swap during a planned maintenance window aligned with rotating equipment inspection cycles. If the machinery protection system must remain partially active during the swap — for example, if only one rack in a multi-rack installation is being serviced — confirm with the control room that bypass or inhibit modes are correctly applied to the affected channels to prevent spurious trips during the installation period.

After physical installation of the 145988-01, perform a structured power-on verification sequence: confirm module LED status, verify rack bus communication via the 3500/20 RIM diagnostic display, and check that the Display Router is correctly enumerating all connected monitor modules. Restore the communication link to the DCS or SCADA system and confirm that all data tags are updating correctly before releasing the inhibit or bypass on the affected channels. Document the commissioning steps and sign off the work order before returning the system to normal monitored operation. A disciplined commissioning sequence typically allows a Display Router replacement to be completed within a two- to four-hour maintenance window, depending on site access and communication system complexity.

Retrofit Support FAQ

Q1: Is the Bently Nevada 3500/94 145988-01 a direct replacement for earlier Display Router revisions?
The 145988-01 is the current production revision of the 3500/94 Display Router. It is designed to be backward-compatible with standard 3500 rack configurations, but facilities should verify the 3500/20 Rack Interface Module firmware revision before installation. In most cases, no rack reconfiguration is required for a like-for-like replacement of an earlier 3500/94 revision.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/94 145988-01 supplied by KNMKS undergoes power-on self-test verification, communication port integrity checks, and physical inspection of connector pins and PCB condition before shipment. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I confirm wiring compatibility before installation?
Document all terminal block connections on the existing Display Router before removal, including wire labels, shield terminations, and connector pin assignments. The 145988-01 uses the standard 3500 Series output connector pinout. If the existing installation has been modified from the original Bently Nevada wiring diagram, consult the site as-built drawings before proceeding.

Q4: What is the lead time and inventory availability?
KNMKS maintains stock inventory of the 3500/94 145988-01 to support urgent spare-part requirements. Standard lead time is confirmed at order placement. Expedited shipping is available for critical plant applications. Contact [email protected] or +86 18359268345 for current stock status and delivery options.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/94 145988-01
3500 Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Bently Nevada 3500/94 145988-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
