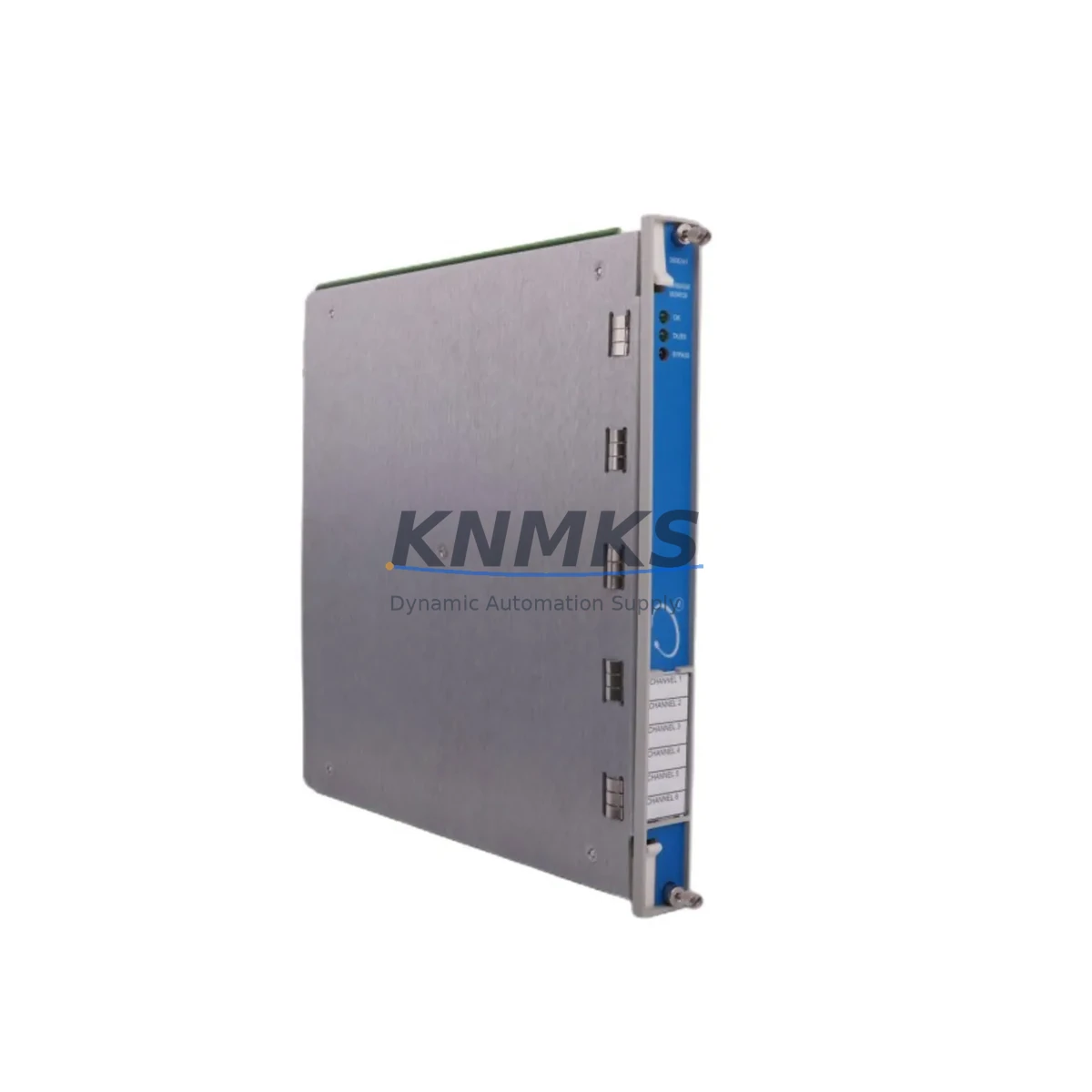

The Bently Nevada 3500/61 136711-02 is an original temperature monitor module designed for the 3500 Series Machinery Protection System — one of the most widely deployed continuous monitoring platforms in rotating equipment environments worldwide. Whether you are managing a gas turbine train, a centrifugal compressor skid, or a steam turbine generator set, the 3500/61 module plays a critical role in real-time temperature surveillance and trip logic. Sourcing a verified, tested replacement unit is essential to restoring system integrity and minimizing unplanned downtime.

At KNMKS, every 3500/61 136711-02 unit is inspected, functionally tested, and shipped with a support terms confirmed by quotation. We maintain long-term stock of 3500 Series modules to support both emergency replacement and planned annual maintenance cycles. Our team understands the urgency of machinery protection failures — we prioritize same-day quotation and rapid dispatch for critical spare requests.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3500/61 136711-02 temperature monitor module is flagged during a routine control cabinet inspection or triggers a system alert, the replacement workflow should extend beyond the module itself. A thorough maintenance engineer will use this event as an opportunity to audit the surrounding components in the same rack and electrical circuit.

Begin by verifying the rack power supply — the Bently Nevada 3500/15 or 3500/20 Power Supply Module should be checked for output voltage stability and any signs of capacitor aging or thermal stress. A degraded power supply can cause intermittent faults that mimic module failure. Next, inspect the 3500/01 Rack Interface Module (RIM), which manages communication between the rack and the host monitoring system; a failing RIM can corrupt temperature data and generate false alarms.

The thermocouple or RTD field wiring connected to the 3500/61 inputs should be tested for continuity, insulation resistance, and correct polarity. Damaged or corroded terminal blocks — particularly in high-vibration or high-humidity environments — are a common root cause of temperature channel faults. If the installation uses a 3500/32 4-Channel Relay Module for trip output, verify that relay contacts are clean and that setpoint configurations remain consistent with the updated module.

For systems integrated with a DCS or safety instrumented system (SIS), confirm that the 4–20 mA analog output signals from the new module are correctly received at the marshalling panel or I/O card. Signal isolators or barriers in the loop should be tested for drift. If the plant uses a Bently Nevada 3500/92 Communication Gateway Module for Modbus or Ethernet/IP integration, verify that the new module is recognized by the gateway after installation.

Finally, update the maintenance log and spare parts register to reflect the replacement. Proactive stocking of a second 3500/61 136711-02 unit — alongside a spare 3500/15 Power Supply and a 3500/01 RIM — is strongly recommended for any facility operating critical rotating machinery where unplanned downtime carries significant production or safety risk.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow plant LOTO procedures. Confirm the rack is in bypass or that the affected channel is inhibited in the monitoring system before removing the module.

Step 2 — Module Removal: Release the front-panel locking mechanism on the 3500/61 slot. Carefully extract the module from the backplane connector. Inspect the backplane pins for damage or contamination before inserting the replacement unit.

Step 3 — Configuration Verification: Before installing the new 136711-02 module, confirm that the configuration file (stored in the 3500 rack or uploaded via System 1 / Bently Nevada Configuration software) matches the required channel assignments, engineering units, alert and danger setpoints, and thermocouple/RTD type.

Step 4 — Installation and Power-Up: Seat the replacement module firmly into the backplane. Restore power and observe the module status LEDs. A solid green OK LED indicates successful initialization. Verify that all four temperature channels are reading within expected ranges.

Step 5 — Functional Test and Handover: Simulate or inject a test signal on each channel to confirm alarm and trip logic is functioning correctly. Document the replacement in the plant maintenance management system (CMMS) and update the spare parts inventory accordingly.

This workflow is compatible with both legacy 3500 rack configurations and upgraded systems running alongside newer Bently Nevada System 1 Evolution software environments, ensuring continuity across old and new infrastructure without requiring full system replacement.

Spare Parts Support FAQ

Q1: Is the 3500/61 136711-02 compatible with all 3500 Series rack configurations?
The 136711-02 variant is designed for standard 3500 Series 19-inch rack chassis. Compatibility depends on rack firmware version and configuration software revision. We recommend confirming your rack model and software version before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: What testing is performed before shipment?
Every unit undergoes functional testing to verify channel inputs, analog output signals, and communication with the rack backplane. Units that do not pass functional verification are not shipped. A test report is available upon request for critical applications.

Q3: Can you support long-term or recurring supply of the 3500/61 136711-02?
Yes. KNMKS maintains ongoing stock of 3500 Series modules to support annual maintenance schedules, multi-unit plant requirements, and emergency replacement programs. We can establish a standing supply agreement with agreed lead times and pricing for facilities with recurring demand.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. In the event of a support terms claim, we will provide a replacement unit or documented resolution support after evaluation. Contact [email protected] to initiate a support terms claim.
