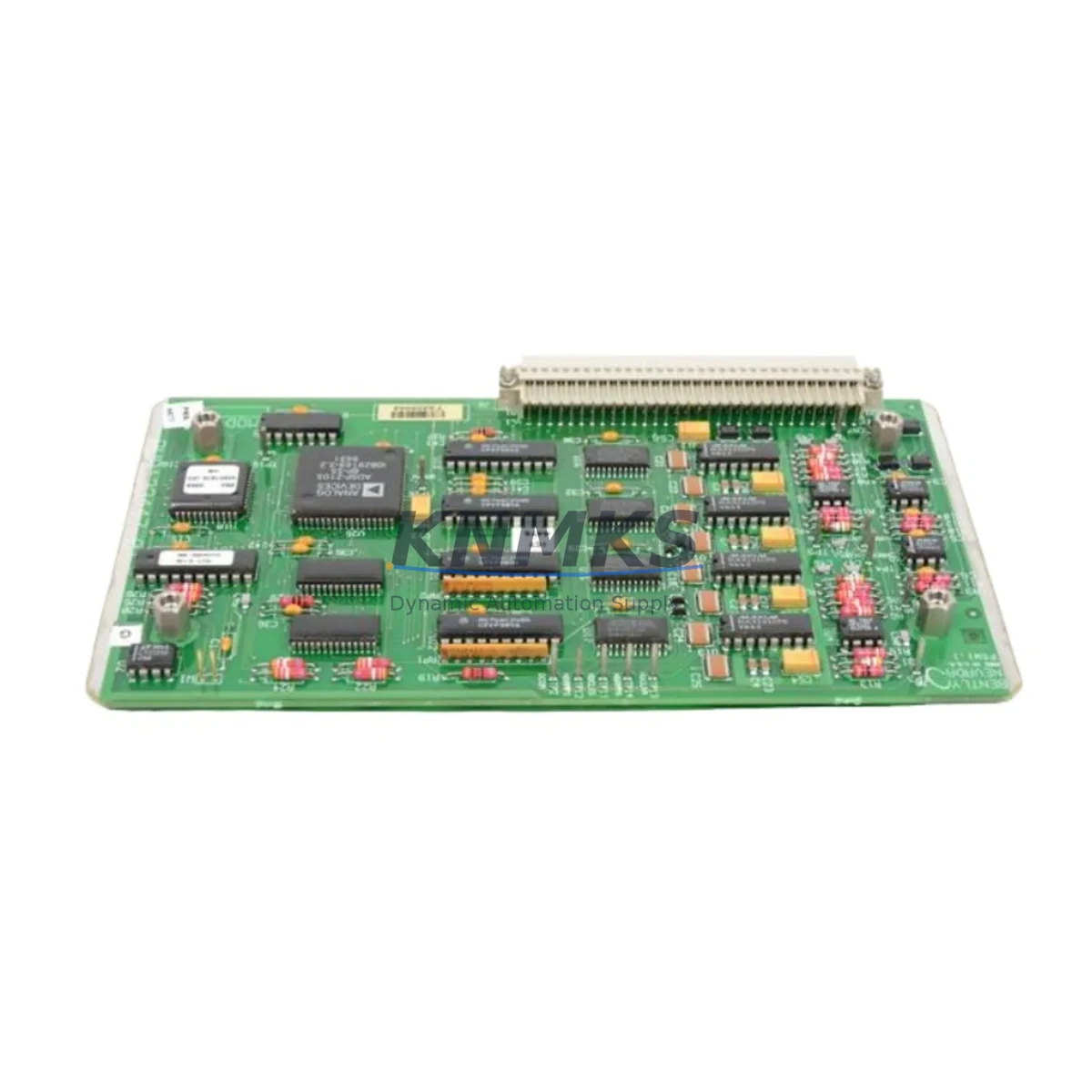

The Bently Nevada 123447-01 is a TDXnet Sampler Board designed for the 3500 Series Machinery Protection System — one of the most widely deployed continuous monitoring platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. As a direct original spare, the 123447-01 supports uninterrupted vibration data acquisition and signal sampling within the 3500 rack architecture, making it a critical component for any maintenance team responsible for turbine, compressor, pump, or motor protection systems.

For maintenance engineers managing aging 3500 Series racks, the 123447-01 is a high-priority line item in any annual inspection or emergency replacement plan. Signal degradation, intermittent channel faults, or complete sampler board failure can trigger false trips or — more critically — missed machinery fault events. Stocking a verified replacement unit eliminates the risk of extended downtime caused by long lead times on discontinued or allocation-constrained modules. Our inventory is sourced, inspected, and tested prior to shipment, with each unit backed by a support terms confirmed by quotation covering functional performance under normal operating conditions.

Procurement engineers sourcing 123447-01 units for blanket stock programs or emergency replenishment will find our supply chain positioned for rapid response. We maintain regional warehouse stock to support same-week dispatch for critical shutdown recovery scenarios, and we provide full traceability documentation upon request to satisfy site quality and compliance requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 123447-01 TDXnet Sampler Board during a planned outage or emergency shutdown recovery, a thorough inspection of the surrounding 3500 rack components is essential to confirm system integrity and prevent repeat failures. Maintenance engineers should begin by verifying the condition of the 3500/15 Power Supply Module, which provides regulated DC power to all rack-mounted cards — a degraded power supply can cause erratic sampler behavior that mimics board-level faults. Confirm output voltage stability and inspect for signs of capacitor aging or thermal stress before reinstalling the replacement 123447-01.

Next, inspect the 3500/20 Rack Interface Module (RIM), which manages communication between the 3500 rack and the host monitoring system. A faulty RIM can prevent the new sampler board from being recognized by the system, leading to configuration errors or missed channel acknowledgment. Similarly, review the 3500/22M Transient Data Interface (TDI) if installed — this module works in close coordination with the TDXnet Sampler Board for transient capture and waveform storage, and any firmware mismatch or connector degradation should be addressed during the same maintenance window.

Signal integrity upstream of the sampler board is equally important. Inspect the 3500/40M Proximitor/Seismic Monitor or equivalent I/O monitor cards feeding vibration signals into the rack. Verify that Bently Nevada proximity probe cables, extension cables, and field wiring terminations are free of insulation damage, connector corrosion, or shield continuity breaks — these are common root causes of sampler board channel faults that persist after a board swap. Rack backplane connectors should be cleaned and inspected for bent pins or oxidation before seating the replacement 123447-01.

For facilities running integrated condition monitoring, also confirm the status of the 3500/92 Communication Gateway Module or equivalent Modbus/OPC interface card. Communication module faults can mask sampler board recovery after replacement, causing operators to incorrectly conclude the new board is defective. A complete rack self-test sequence following installation will confirm all modules are communicating correctly before returning the machinery protection system to service.

Site Replacement Workflow

Replacing the Bently Nevada 123447-01 in a live 3500 Series rack requires a structured approach to minimize downtime and maintain system compatibility. Begin by documenting the current rack configuration — slot assignments, channel configurations, and alarm setpoints — using the System 1 or Rack Configuration Software before powering down the affected rack section. This ensures the replacement board can be configured to match the existing system parameters without requiring a full recommissioning cycle.

After safely de-energizing the rack slot, remove the faulty 123447-01 and inspect the backplane connector for damage. Seat the replacement board firmly, ensuring the ejector levers are fully engaged. Power the rack section back up and observe the module status LEDs for normal initialization behavior. Use the configuration software to push the saved channel configuration to the new board and verify that all monitored channels return to normal status with expected signal levels.

For sites migrating from older 3500 Series configurations or transitioning from legacy Bently Nevada rack variants, the 123447-01 maintains backward compatibility within the TDXnet architecture, allowing direct substitution without rack-level hardware changes. This back-to-back compatibility significantly reduces the engineering effort required for emergency replacements and supports a standardized spare parts strategy across multiple machine trains or plant units. Final acceptance should include a channel-by-channel signal verification against baseline vibration readings to confirm the replacement unit is performing within specification before returning the machinery protection system to continuous monitoring service.

Spare Parts Support FAQ

Q1: Is the 123447-01 compatible with all 3500 Series rack configurations?
The 123447-01 TDXnet Sampler Board is designed for use within the Bently Nevada 3500 Series rack architecture and is compatible with standard TDXnet-based configurations. Compatibility with specific rack revisions or firmware versions should be confirmed against your site’s System 1 configuration documentation. Our technical team can assist with compatibility verification prior to order placement.

Q2: How is each unit tested before shipment?
Every 123447-01 unit undergoes functional verification testing prior to dispatch. We check board-level power integrity, communication handshake, and channel response to confirm the module meets operational specifications. A support terms confirmed by quotation is provided on all units, covering functional performance under normal industrial operating conditions.

Q3: What is the recommended inventory strategy for the 123447-01?
For facilities operating multiple 3500 Series racks or machine trains, we recommend maintaining at least one spare 123447-01 on-site as part of a critical spares program. Given the potential for extended lead times on new production units, holding a tested spare eliminates the risk of prolonged downtime during an unplanned failure event. Blanket stock agreements are available for multi-unit procurement.

Q4: Can you support long-term supply for the 123447-01?
Yes. We maintain ongoing sourcing relationships to support long-term supply of the 123447-01 and related 3500 Series components. For facilities with extended maintenance cycles or multi-year spare parts programs, we can provide supply commitment agreements and priority allocation to ensure continuity of supply for critical machinery protection spares.
