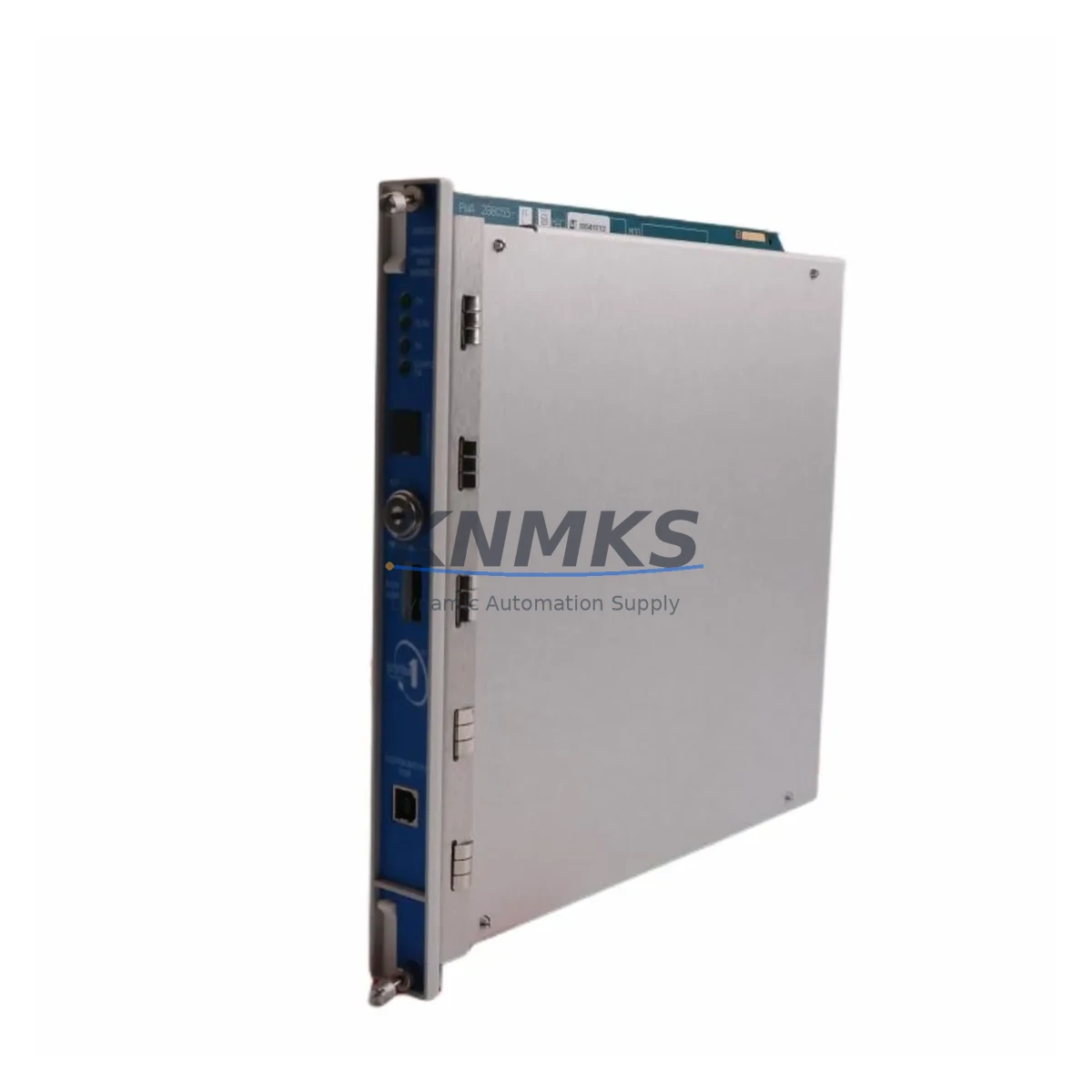

Bently Nevada 3500/60 163179-01 Migration-Ready Temperature Monitor for Legacy Control Systems

The Bently Nevada 3500/60 163179-01 is a temperature monitor module designed for the 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. As the 3500 Series ages and original spare parts become increasingly difficult to source, the 3500/60 163179-01 has become a critical component in legacy system maintenance, planned retrofit programs, and emergency replacement scenarios where unplanned downtime carries significant operational and financial consequences.

This module monitors thermocouple and RTD inputs to provide continuous temperature measurement for bearings, casings, lube oil systems, and process-critical equipment. It occupies a standard 3500 rack slot and communicates over the proprietary Bently Nevada monitoring bus, making it directly interchangeable with original factory-installed units in most 3500 rack configurations. For engineers managing aging machinery protection infrastructure, the 3500/60 163179-01 represents a proven, specification-matched replacement that avoids the engineering overhead of a full platform migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3500/60 163179-01 in an operating facility requires careful pre-installation planning to avoid configuration errors and extended downtime. Before removing the existing module, engineers should document all channel assignments, alarm setpoints, transducer types, and OK relay wiring from the current configuration — either through the Bently Nevada System 1 software interface or by manually recording the front-panel DIP switch and jumper settings.

The 3500 rack backplane provides power and communication to all installed modules. Before swapping the temperature monitor, confirm that the 3500/05 rack power supply module is delivering stable ±24 VDC and that the rack’s communication gateway — typically a 3500/22 transient data interface or 3500/92 communication gateway — is online and not in a fault state. A power supply anomaly during module replacement can corrupt configuration data stored in adjacent modules.

Wiring at the I/O terminal block must be verified against the original loop drawings. The 3500/60 uses a dedicated terminal block that connects thermocouple or RTD field wiring directly to the module. Cold junction compensation for thermocouple inputs is handled internally, but the field wiring polarity must be confirmed before energizing. If the existing terminal block shows signs of corrosion or loose terminations — common in installations exceeding ten years — replacement with a new 3500-series compatible terminal block is recommended as part of the retrofit.

For facilities running System 1 Evolution software, the replacement module will be automatically recognized once inserted and powered. However, channel configuration must be re-applied if the module is a new unit rather than a reconfigured spare. Engineers should have the configuration file or a printed channel setup sheet available at the rack before beginning the swap. In systems where the 3500/01 rack interface module manages configuration storage, verify that the stored configuration matches the intended channel setup before going live.

If the retrofit is part of a broader control cabinet upgrade — for example, migrating from an older DCS platform to a modern safety instrumented system — the temperature signals from the 3500/60 163179-01 may need to be re-routed through a signal isolator or marshalling panel before reaching the new controller. In these cases, a DIN-rail mounted signal conditioner or isolator module should be included in the retrofit BOM to maintain signal integrity and ground loop isolation between the legacy monitoring system and the new control platform.

Downtime Control During System Migration

Minimizing downtime during a 3500/60 163179-01 replacement begins with pre-staging. The replacement module should be fully configured and bench-tested before the maintenance window opens. Using the Bently Nevada rack configuration software offline, engineers can pre-load the channel configuration onto the new module so that installation is limited to physical insertion, terminal block reconnection, and alarm verification — a process that can typically be completed in under 30 minutes for a single-module swap.

Where the process cannot tolerate any monitoring gap, a temporary bypass strategy should be considered. This involves routing the thermocouple or RTD signals to a portable temperature indicator or a spare channel on an adjacent 3500/60 module (if available) while the primary module is replaced. The bypass maintains temperature visibility for the operator and preserves the ability to respond to abnormal conditions during the swap window.

Original program logic in the host DCS or safety system is not affected by replacing a 3500 monitor module, since the 3500 system operates as a standalone machinery protection layer with its own relay outputs. However, if the temperature monitor’s relay outputs are wired into the plant DCS for alarm annunciation or interlock logic, the DCS engineer should be notified before the swap to prevent spurious alarms or unintended shutdowns during the module power cycle.

After installation, the commissioning checklist should include: OK relay status confirmation, channel-by-channel temperature readback against a reference thermometer, alarm trip test at the module level, and System 1 software connectivity verification. All test results should be documented and retained as part of the maintenance record. Our pre-shipment functional test report for the 3500/60 163179-01 provides baseline performance data that can be used as a reference during site commissioning.

Retrofit Support FAQ

Q: Is the 3500/60 163179-01 a direct replacement for the original factory-installed unit?
A: Yes. The 163179-01 is the standard configuration of the 3500/60 temperature monitor and is designed for direct slot-for-slot replacement in any standard 3500 Series rack. No rack-level hardware changes are required. Channel configuration must be re-applied if the replacement is a new unit.

Q: What transducer types does the 3500/60 163179-01 support, and do I need to rewire for a different input type?
A: The module supports both thermocouple (multiple types including J, K, T, E) and RTD (Pt100) inputs. Transducer type is selected via software configuration, not hardware jumpers on this revision. If you are replacing a unit that was configured for a specific transducer type, ensure the replacement is configured identically before connecting field wiring.

Q: How do you verify the module before shipment, and what support terms is provided?
A: Every 3500/60 163179-01 unit undergoes a functional test prior to shipment, including power-on verification, channel response check, and OK relay operation. A support terms confirmed by quotation is provided from the date of shipment. A test report is available on request and can be used to support your incoming inspection process.

Q: What is your typical lead time and do you maintain stock?
A: We maintain inventory of the 3500/60 163179-01 and can typically ship within 1–3 business days of order confirmation. For urgent replacement requirements, contact our sales team directly to confirm current stock availability and expedited shipping options.
