Bently Nevada 3500/54M Overspeed Detection Spare for Uptime

Overview

Bently Nevada 3500/54M Overspeed Detection Spare for Uptime

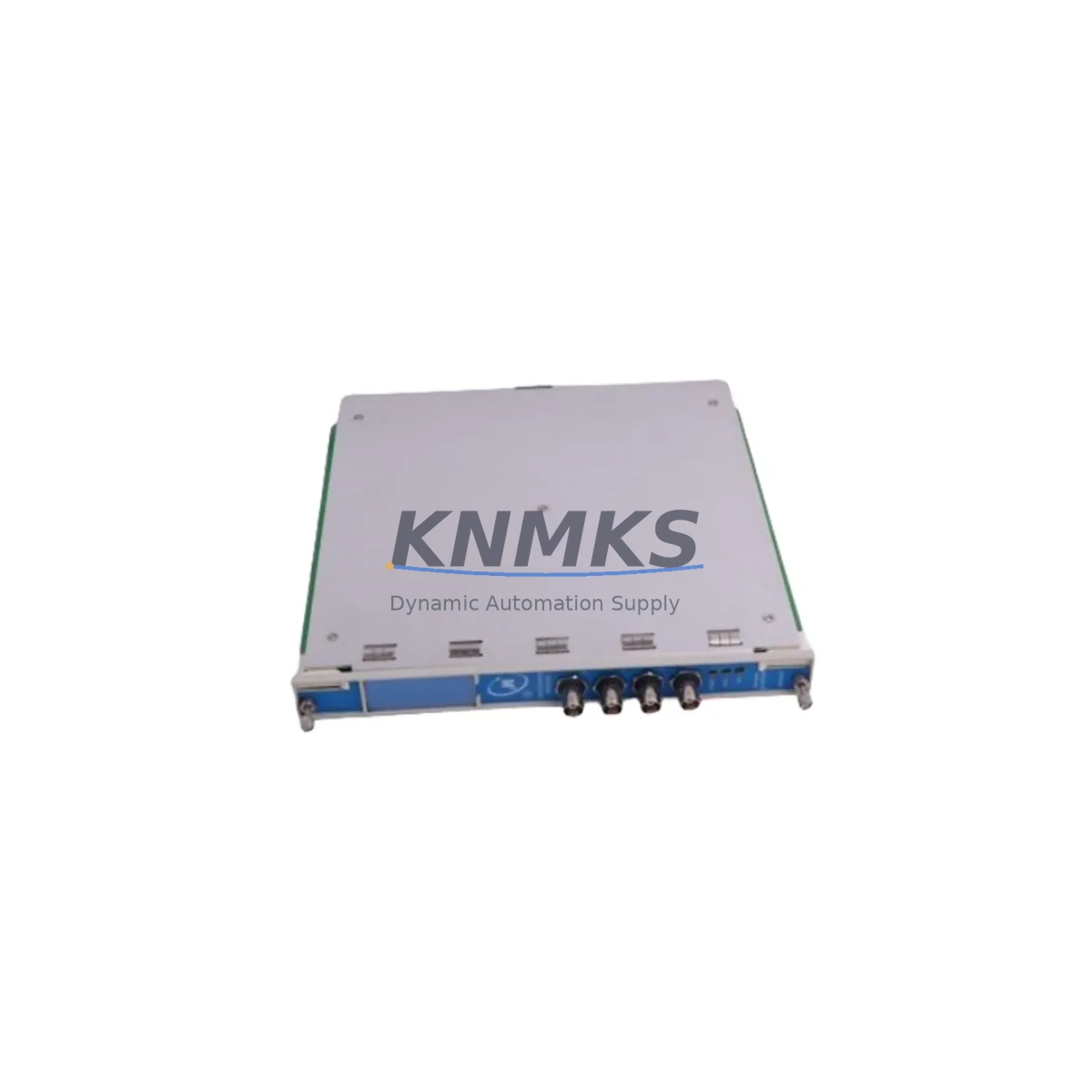

The Bently Nevada 3500/54M (Part No. 286566-01) is a dedicated overspeed detection module engineered for the 3500 Series Machinery Protection System — one of the most widely deployed condition monitoring platforms in rotating equipment-intensive industries. For maintenance engineers managing turbines, compressors, pumps, and generators in continuous production environments, this module represents a critical spare that directly governs machine trip logic and overspeed shutdown integrity.

Overspeed events are among the most destructive failure modes in rotating machinery. When a turbine or compressor shaft exceeds its rated speed threshold — whether due to load rejection, governor failure, or control loop instability — the 3500/54M is the last line of defense before catastrophic mechanical failure. Keeping a verified, tested replacement unit in your spare parts inventory is not optional; it is a fundamental requirement of any responsible machinery protection strategy.

The 3500/54M accepts inputs from magnetic pickup (MPU) sensors or proximity probes and continuously monitors shaft rotational speed against configurable trip setpoints. It integrates directly into the 3500 Series rack alongside modules such as the 3500/15 Power Supply, 3500/22M Transient Data Interface, and 3500/42M Proximitor/Seismic Monitor, forming a tightly coordinated protection architecture. Any gap in this chain — including a degraded or failed overspeed module — compromises the entire trip system’s reliability and may expose the facility to regulatory non-compliance under IEC 61511 or API 670 standards.

From a maintenance planning perspective, the 3500/54M should be treated as a Tier-1 critical spare. During annual shutdowns or scheduled turnarounds, maintenance teams should inspect not only the module itself but also the associated 3500/05 Rack Interface Module, field wiring terminations, and the 3500/20 Rack Interface Module for communication integrity. Proximity probe cables, extension cables, and Proximitor sensors feeding speed signals into the 3500/54M should be checked for continuity, insulation resistance, and connector condition. A degraded signal path upstream of the module can produce nuisance trips or — more dangerously — mask a genuine overspeed condition.

For procurement engineers, sourcing the 3500/54M 286566-01 from a stocked, verified supplier eliminates the lead-time risk that often extends unplanned outages by days or weeks. KNMKS maintains inventory of this module with full pre-shipment functional testing, ensuring that the unit you receive is ready for immediate installation without additional bench verification. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional performance, providing procurement teams with the contractual assurance needed for capital spare justification.

Compatibility with the full 3500 Series rack architecture — including 19-inch and 3U rack configurations — means the 3500/54M 286566-01 can be deployed as a direct replacement without firmware reconfiguration in most standard installations. However, maintenance engineers should confirm the existing rack’s software revision and trip multiplier settings before hot-swapping the module in a live system. Where possible, replacement should be performed during a planned outage window with the associated machine safely isolated and locked out per site LOTO procedures.

In high-criticality applications such as steam turbine-generator sets in power plants, gas compressor trains in LNG terminals, or boiler feed pump drives in petrochemical complexes, the 3500/54M is often paired with redundant speed sensing channels and dual-voting trip logic. Maintenance teams in these environments should also review the condition of the 3500/32 4-Channel Relay Module and associated relay output wiring during any 3500/54M replacement activity, as relay contact wear or wiring degradation can compromise trip actuation even when the detection module itself is functioning correctly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for any 3500 Series installation must account for the interdependencies between the 3500/54M and the broader rack ecosystem. During scheduled inspections, maintenance engineers should simultaneously evaluate the 3500/15 Power Supply Module for output voltage stability and ripple — a degraded power supply can introduce noise into speed signal conditioning circuits and produce erratic trip behavior. The 3500/05 Rack Interface Module governs communication between the rack and the host DCS or SCADA system; any firmware mismatch or communication fault here can prevent alarm acknowledgment and delay operator response to a genuine overspeed event.

Field-side components deserve equal attention. The proximity probes and extension cables feeding speed signals to the 3500/54M should be inspected for mechanical damage, connector corrosion, and gap voltage drift. Proximitor sensors — such as those in the 3300 XL 8mm Proximity Transducer System — should be gap-set and verified against the module’s input range specifications. In environments with high electromagnetic interference, such as near large motor drives or arc furnaces, shielded cable integrity is critical to preventing false speed readings.

For relay output integrity, the 3500/32 4-Channel Relay Module should be tested for contact resistance and actuation response time during any 3500/54M replacement activity. Relay contacts that have experienced repeated trip cycling may exhibit increased contact resistance, which can delay or prevent trip actuation in a real overspeed event. Additionally, terminal blocks and field wiring terminations throughout the rack should be inspected for loose connections, which are a common source of intermittent faults in high-vibration environments.

Where the 3500 Series rack interfaces with a System 1 Evolution condition monitoring software platform, maintenance teams should verify that the replacement 3500/54M module is recognized correctly by the software and that historical trend data is preserved. This is particularly important in facilities where overspeed trend data is used for predictive maintenance scheduling and regulatory reporting.

Site Replacement Workflow

Replacing the Bently Nevada 3500/54M 286566-01 in a live production environment requires a disciplined, step-by-step approach to minimize downtime and ensure system integrity is maintained throughout the process.

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (286566-01) matches the installed module. Review the existing rack configuration file and note all trip setpoints, time delays, and voting logic settings currently programmed in the module. Export or document these settings before removal.

Step 2 — Safe Isolation: Coordinate with operations to place the associated machine in a safe state. Implement site LOTO procedures. Notify the control room that the overspeed protection channel will be temporarily out of service. In SIL-rated installations, follow the site’s Management of Change (MOC) procedure before bypassing any safety function.

Step 3 — Module Removal: Power down the rack slot if hot-swap is not supported in the installed firmware version. Remove the 3500/54M by releasing the front-panel locking mechanism and sliding the module from the rack. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new 3500/54M 286566-01 into the rack slot. Restore power and verify that the module initializes correctly — the front-panel LED indicators should confirm normal operation. Re-enter all trip setpoints and configuration parameters from the pre-removal documentation.

Step 5 — Functional Verification: Perform a channel check by injecting a simulated speed signal and verifying that the module responds correctly at the configured trip threshold. Confirm relay output actuation and DCS alarm annunciation. Document the test results and restore the machine to service.

This workflow reduces mean time to repair (MTTR) and ensures that the replacement module is fully commissioned before the machine returns to load — eliminating the risk of an undetected overspeed condition during startup.

Spare Parts Support FAQ

Q1: What is the support terms coverage for the Bently Nevada 3500/54M 286566-01 supplied by KNMKS?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance from the date of shipment. Each module undergoes pre-shipment functional testing to verify overspeed detection response, relay output actuation, and backplane communication integrity before dispatch.

Q2: How do I confirm compatibility between the 3500/54M 286566-01 and my existing 3500 Series rack?
The 3500/54M 286566-01 is designed for direct slot replacement within the standard 3500 Series 19-inch rack architecture. Compatibility depends on the rack’s firmware revision and the configuration of adjacent modules. We recommend sharing your existing rack configuration file or module list with our technical team prior to ordering so we can confirm fit and flag any firmware alignment requirements.

Q3: Can KNMKS support long-term supply of the 3500/54M for multi-site spare parts programs?
Yes. KNMKS maintains stocked inventory of the 3500/54M 286566-01 and can support blanket purchase orders, scheduled releases, and multi-site spare parts programs. For facilities managing aging 3500 Series installations across multiple plants, we recommend establishing a minimum stock level agreement to eliminate lead-time risk during unplanned outages.

Q4: What should be inspected alongside the 3500/54M during a replacement to ensure full system reliability?
During any 3500/54M replacement, maintenance teams should also inspect the 3500/15 Power Supply for output stability, proximity probe cables and Proximitor sensors for signal integrity, the 3500/32 Relay Module for contact condition, and all rack backplane connectors for contamination or mechanical damage. A comprehensive inspection at the time of module replacement maximizes the value of the maintenance window and reduces the likelihood of a repeat outage from an adjacent component failure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/54M 286566-01
3500 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Bently Nevada 3500/54M 286566-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
