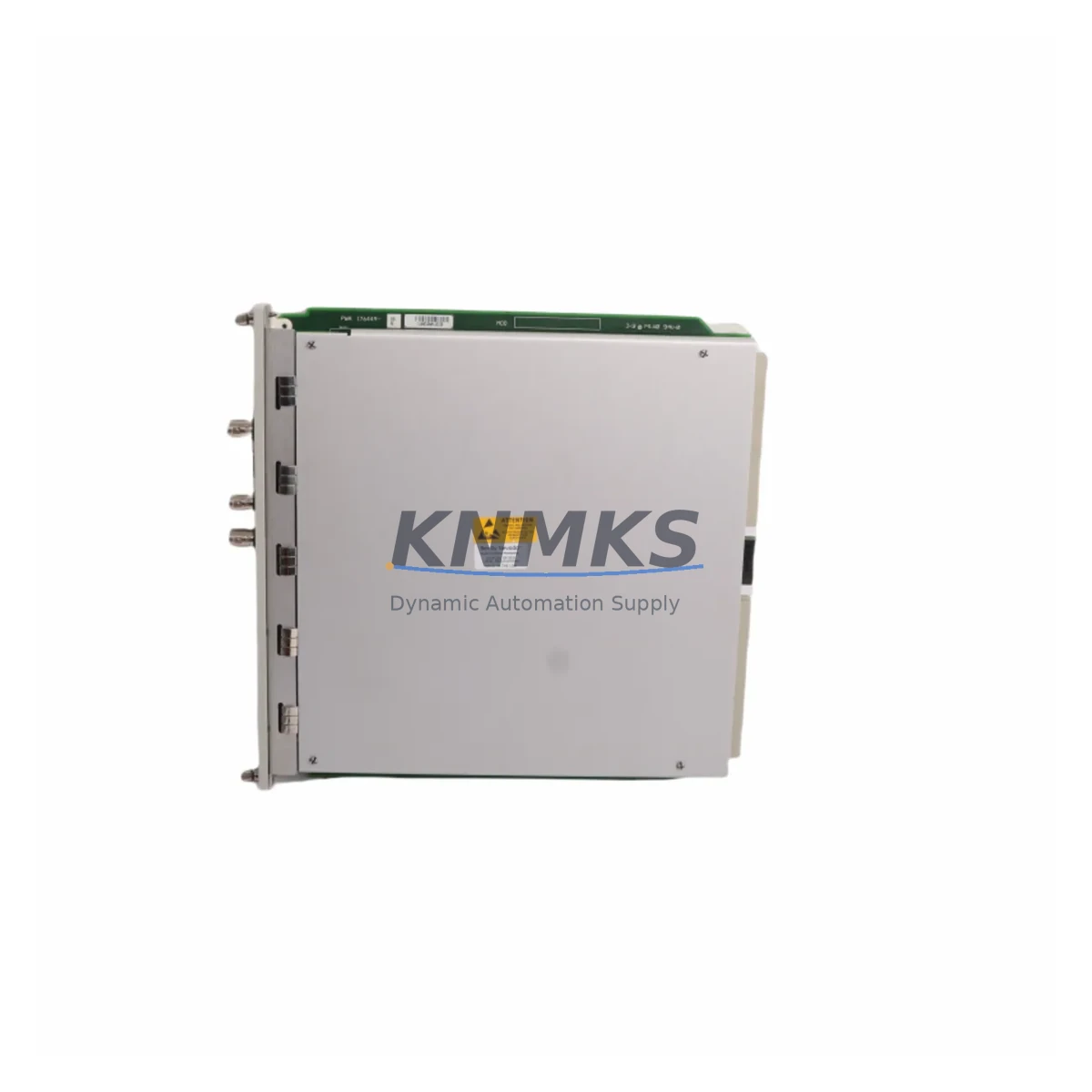

Bently Nevada 3500/42M 176449-99 Migration-Ready Seismic Monitor

Overview

Bently Nevada 3500/42M 176449-99 Migration-Ready Seismic Monitor for Legacy Control Systems

The Bently Nevada 3500/42M 176449-99 is a dual-channel seismic monitoring module engineered for the 3500 Series modular protection rack. As legacy vibration monitoring infrastructure reaches end-of-support cycles, plant engineers and reliability teams face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing rack backplanes, I/O wiring, and Bently Nevada System 1 software environments. The 3500/42M 176449-99 addresses this need directly — it is a migration-ready, drop-in replacement for aging or failed seismic monitor positions within the 3500 rack, requiring no rack reconfiguration, no backplane rewiring, and no software re-engineering when substituting a like-for-like module.

Before initiating a replacement, engineers should confirm the rack slot assignment and verify that the existing 3500/20 Rack Interface Module firmware is compatible with the 176449-99 revision. Terminal block wiring from the field-mounted velocity sensors or accelerometers should be documented prior to module extraction, as the 3500/42M uses a standard I/O terminal block that transfers directly to the replacement unit. Power supply capacity within the rack — typically provided by a 3500/15 Power Supply module — should be confirmed to support the module’s operating current draw without exceeding the rack’s total power budget.

For sites running the Bently Nevada System 1 condition monitoring platform, the 3500/42M 176449-99 communicates over the rack’s internal communication bus and reports seismic data to the System 1 server without requiring driver updates in most revision-matched configurations. Engineers should verify the System 1 database point mapping for the replaced channel to ensure alarm setpoints, full-scale ranges, and transducer type assignments are correctly transferred from the outgoing module’s configuration. This step is critical in facilities where seismic trip logic is integrated with the plant DCS via a 3500/92 Communication Gateway Module using Modbus or OPC protocols.

In retrofit scenarios where the original 3500/42M is being replaced as part of a broader control cabinet upgrade — for example, migrating from an older 3300 Series monitoring system to the 3500 platform — the 176449-99 provides a standardized seismic monitoring baseline that integrates cleanly with new 3500/40M proximity monitor slots, 3500/45 Position Monitor modules, and 3500/50 Tachometer modules already installed in the upgraded rack. This modular co-installation approach allows phased migration: seismic monitoring can be upgraded independently while other rack positions remain on legacy hardware, minimizing total system downtime during the transition.

Installation space confirmation is straightforward — the 3500/42M 176449-99 occupies a single slot in the standard 3500 Series 19-inch rack chassis. No additional mounting hardware or bracket modification is required. Firmware version compatibility should be verified against the rack’s current System Configuration Utility (SCU) version before insertion; mismatched firmware revisions may require a field firmware update using the Bently Nevada configuration software before the module enters normal monitoring mode.

All units supplied are pre-shipment tested against Bently Nevada factory acceptance criteria, covering channel-to-channel isolation, alarm relay output continuity, communication bus handshake verification, and full-scale output linearity. Each module is backed by a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. In-stock availability supports emergency replacement dispatch for unplanned outages, with same-day processing available for critical plant protection applications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 3500/42M 176449-99 into an operating plant environment requires a structured pre-outage planning process. The first step is a rack audit: document all occupied slot positions, confirm the 3500/20 Rack Interface Module revision, and record the current configuration file from the System Configuration Utility. This configuration backup is essential — it preserves all channel setpoints, transducer type assignments, and alarm relay logic that must be restored after module replacement.

Field wiring from seismic velocity sensors or accelerometers connects to the module via the I/O terminal block. Before extraction of the failed or end-of-life module, photograph or document all terminal assignments. The replacement 3500/42M 176449-99 uses the same terminal block pinout, allowing direct reconnection without rewiring. If the installation includes a 3500/32 4-Channel Relay Module for trip output, verify that the relay channel assignments mapped to the seismic monitor position are correctly re-enabled after module insertion and configuration restore.

For plants integrating seismic data into a broader DCS environment — for example, a Honeywell Experion PKS or Emerson DeltaV system receiving vibration trip signals — the 3500/92 Communication Gateway Module handles protocol translation. After replacing the 3500/42M, confirm that the gateway’s Modbus register map still correctly references the new module’s channel data addresses. In some configurations, a gateway re-scan or manual register reassignment may be required. HMI screens displaying seismic trend data should be validated post-replacement to confirm tag bindings remain intact.

Where the retrofit is part of a larger control cabinet modernization — replacing aging 3300 Series hardware with 3500 platform modules — the 3500/42M 176449-99 can be installed alongside new 3500/40M proximity monitor modules and 3500/50 Tachometer modules in a phased slot-by-slot migration. This approach avoids a full rack changeout outage and allows each monitoring channel to be validated independently before the next slot is migrated. Signal isolators may be required at the field junction box level if sensor cable lengths or grounding configurations differ between the legacy and new rack installations.

Downtime Control During System Migration

Minimizing downtime during seismic monitor replacement requires pre-staging the replacement 3500/42M 176449-99 with the correct firmware version and a pre-loaded configuration file before the maintenance window begins. The System Configuration Utility allows offline configuration preparation: engineers can build the full channel configuration — transducer type, full-scale range, alarm setpoints, and relay assignments — on a laptop before the outage, then download the configuration to the new module immediately after insertion. This reduces in-rack configuration time to minutes rather than hours.

Original program logic in the connected DCS or safety system is not affected by the module swap, provided the rack’s communication gateway configuration remains unchanged. Seismic trip relay outputs should be temporarily bypassed or placed in a maintenance override state during the swap window to prevent spurious trips to the plant protection system. Restore relay outputs only after the new module has completed its self-test sequence and channel data is confirmed valid in the System 1 monitoring display.

Field control continuity is maintained by ensuring that adjacent rack modules — including the 3500/15 Power Supply and 3500/20 Rack Interface Module — remain powered and communicating throughout the swap. The 3500 rack architecture supports hot-swap of individual monitoring modules without requiring a full rack power cycle, significantly reducing the risk window during replacement. Post-installation, a functional verification test using a calibrated signal source confirms that both seismic channels respond correctly across the full measurement range before the maintenance override is released.

Retrofit Support FAQ

Q: Is the 3500/42M 176449-99 a direct replacement for earlier 3500/42M revisions?
A: In most cases, yes. The 176449-99 is designed as a drop-in replacement within the 3500 Series rack. However, firmware revision compatibility with the rack’s SCU version should be confirmed before installation. If a firmware mismatch is detected, a field update using Bently Nevada configuration software resolves the issue before the module enters service.

Q: What pre-shipment testing is performed on each unit?
A: Every 3500/42M 176449-99 supplied undergoes channel-to-channel isolation testing, alarm relay output continuity verification, communication bus handshake confirmation, and full-scale output linearity checks. Test records are available upon request. Each unit is covered by a support terms confirmed by quotation from the date of shipment.

Q: Can this module be used in a migration from a 3300 Series seismic monitoring system?
A: Yes. The 3500/42M 176449-99 is a standard entry point for sites migrating from the legacy 3300 Series platform to the 3500 modular architecture. The migration requires rack chassis replacement and field wiring adaptation, but the 3500/42M’s standard terminal block and backplane interface simplify the transition. Compatibility with existing System 1 software environments should be verified based on the installed System 1 version.

Q: What is the lead time and stock availability?
A: The 3500/42M 176449-99 is maintained availability confirmed by RFQ for immediate dispatch. Emergency replacement orders for unplanned outages are processed on a priority basis. Contact our team to confirm current stock levels and arrange expedited shipping to your facility.
