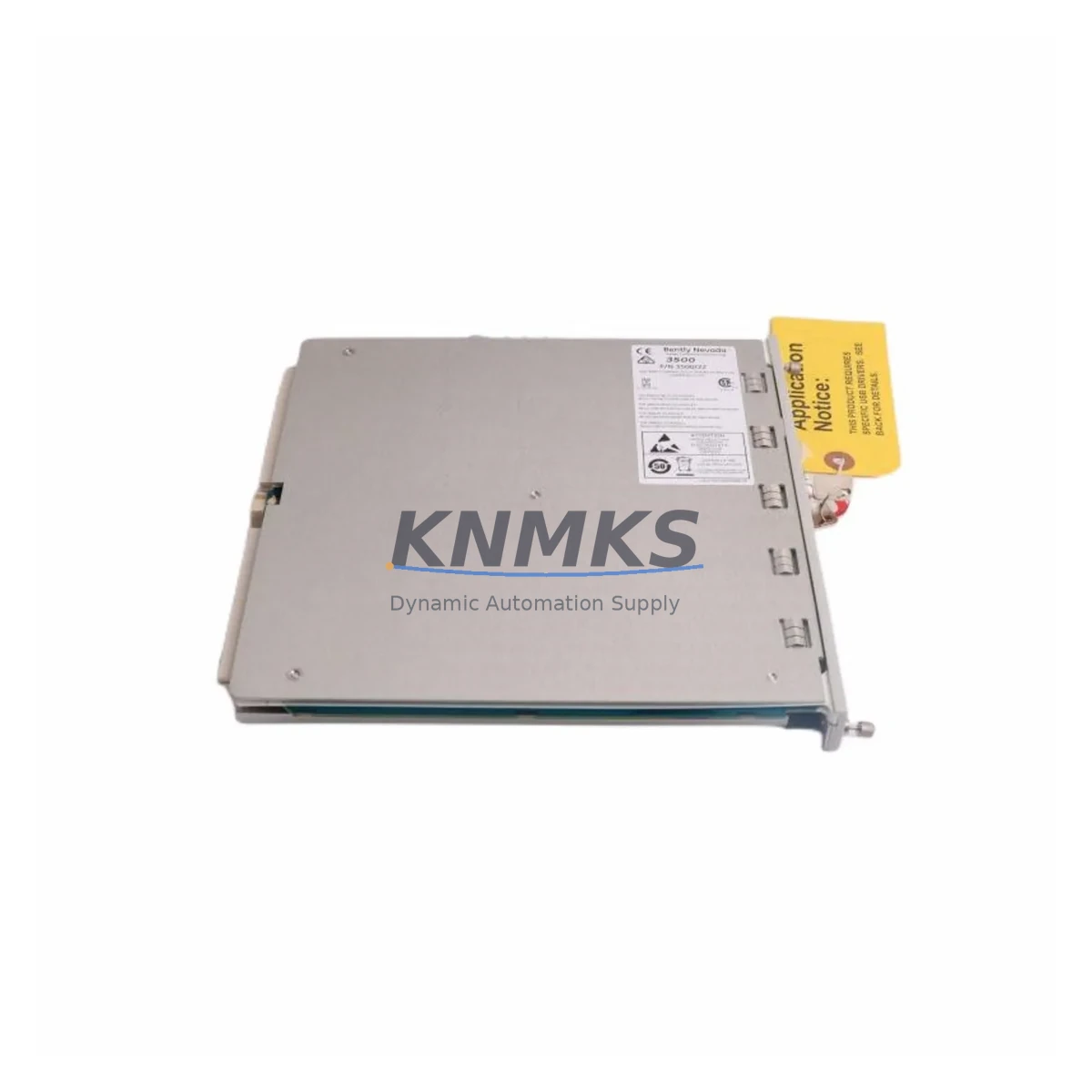

Bently Nevada 3500/42M 176449-02GB Migration-Ready Vibration Monitor

Overview

Bently Nevada 3500/42M 176449-02GB Migration-Ready Vibration Monitor for Legacy Control Systems

The Bently Nevada 3500/42M 176449-02GB is a dual-channel vibration monitor module designed for continuous machinery protection in critical rotating equipment applications. As a migration-ready replacement for aging 3500 Series installations, this module supports direct slot-for-slot substitution within the 3500 rack architecture, making it a preferred choice for petrochemical plants, power generation facilities, mining operations, and water treatment systems that rely on long-cycle spare parts strategies to minimize unplanned downtime.

When planning a retrofit or upgrade involving the 3500/42M 176449-02GB, engineers must verify several key parameters before commissioning. Power supply capacity within the existing 3500 rack — typically provided by a 3500/15 Power Supply module — must be confirmed to support the additional load of the replacement module. Terminal wiring assignments for transducer inputs, relay outputs, and communication interfaces should be mapped against the original I/O documentation to avoid signal mismatches during cutover. The module occupies a standard 3500 Series backplane slot, so physical installation space and rack address configuration must be validated against the existing system layout before removal of the legacy unit.

Program compatibility is a critical checkpoint in any 3500 Series migration. The 3500/42M 176449-02GB communicates over the 3500 rack’s internal communication bus, and its configuration is managed through Bently Nevada’s System 1 software or the legacy 3500 Rack Configuration Software. Before swapping modules, engineers should export and archive the existing rack configuration file, verify that the replacement module’s firmware version is compatible with the installed rack firmware, and confirm that HMI display tags mapped to vibration channels remain valid after the module swap. In distributed control environments where the 3500 rack interfaces with a DCS via a 3500/92 Communication Gateway module, the communication link parameters — including Modbus register maps or OPC server tag assignments — must be reviewed to ensure continuity of data flow to the control room.

For installations where the 3500/42M is part of a broader machinery protection upgrade, it is common to simultaneously address adjacent modules in the same rack. The 3500/20 Rack Interface Module governs overall rack communication and should be inspected for firmware compatibility. Keyphasor inputs, often sourced from a dedicated 3500/25 Keyphasor Module, must remain synchronized with the replacement vibration monitor to preserve phase-referenced vibration measurements. In applications requiring expanded I/O, the 3500/40M Proximitor/Seismic Monitor may be installed in adjacent slots to handle additional transducer channels without requiring a separate rack enclosure.

Field commissioning of the 3500/42M 176449-02GB involves verifying transducer gap voltages, confirming alert and danger setpoints against the machinery OEM’s protection philosophy, and performing a channel-by-channel functional test before returning the machine to service. Where possible, a hot-swap procedure using the rack’s online configuration capability can reduce planned shutdown duration to under two hours for a single-module replacement. All pre-shipment units from KNMKS are bench-tested against factory acceptance criteria, with gap voltage, frequency response, and relay output verification completed before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 3500/42M 176449-02GB typically begins with a full audit of the existing 3500 rack population. In a typical machinery protection cabinet, the rack may house a combination of the 3500/15 Power Supply, 3500/20 Rack Interface Module, 3500/25 Keyphasor Module, 3500/40M Proximitor/Seismic Monitor, and the 3500/92 Communication Gateway alongside the vibration monitor modules. Each of these components has its own firmware dependency and wiring interface, and a phased replacement strategy — addressing the most failure-prone or end-of-life modules first — reduces the risk of cascading compatibility issues during the upgrade window.

Terminal block wiring for the 3500/42M follows the standard Bently Nevada I/O terminal assignment convention. Transducer signal cables, typically RG-58 coaxial or equivalent, connect to the module’s front-panel BNC inputs or rear-panel terminal blocks depending on the rack configuration. Where the existing installation uses a 3500 Series I/O module with a dedicated terminal board, the replacement module should be verified against the same terminal board revision to avoid pin-out mismatches. Signal isolation requirements between the transducer circuit and the rack ground reference should be confirmed against the site’s electrical safety documentation before energizing the replacement module.

In control systems where the 3500 rack feeds vibration data to a broader DCS or safety instrumented system, the migration plan must account for the communication link between the 3500/92 Communication Gateway and the host controller. Modbus TCP or serial Modbus RTU register maps should be documented and preserved across the module swap to prevent loss of process variable data at the DCS historian or alarm management system. Where the site uses a System 1 Evolution software platform for condition monitoring, the replacement module’s channel configuration should be imported into the existing System 1 database to maintain trend continuity and alarm history.

Downtime Control During System Migration

Minimizing planned shutdown duration during a 3500/42M 176449-02GB replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement module should be pre-configured offline using the 3500 Rack Configuration Software, with all setpoints, transducer types, and relay logic replicated from the archived configuration file of the outgoing module. This eliminates the need for on-site configuration during the shutdown, reducing the active replacement time to physical installation, wiring verification, and functional testing only.

Where the process cannot tolerate a full rack power-down, the 3500 Series architecture supports online module replacement in racks equipped with the appropriate rack interface firmware. In this scenario, the replacement module is inserted into the powered rack, the configuration is downloaded via the rack communication bus, and the module is brought online without interrupting adjacent channels. This approach is particularly valuable in continuous process industries — such as petrochemical compressor trains or power plant turbine protection systems — where even a brief loss of vibration monitoring coverage requires a formal management-of-change approval.

Post-installation verification should include a channel-by-channel gap voltage check, a relay output functional test against the DCS interlock logic, and a review of the System 1 or DCS trend data to confirm that the replacement module is reporting correctly. KNMKS provides pre-shipment test documentation for each 3500/42M 176449-02GB unit, including gap voltage measurements and relay contact resistance values, to support the site acceptance test process and reduce on-site commissioning time.

Retrofit Support FAQ

Q: Is the 3500/42M 176449-02GB a direct drop-in replacement for other 3500/42M part numbers?
A: The 176449-02GB is a specific hardware revision of the 3500/42M. It is generally compatible with standard 3500 Series racks, but customers should verify the rack interface module firmware version and the terminal board revision before installation. KNMKS can provide cross-reference support to confirm compatibility with your specific rack configuration.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, download the pre-configured rack configuration file to the module, verify transducer gap voltages on all active channels, confirm relay output wiring continuity to the DCS or safety panel, and perform a functional trip test if permitted by the site’s safety management system. KNMKS supplies pre-shipment test records to support the site acceptance test documentation.

Q: Can the 3500/42M 176449-02GB be used with the System 1 Evolution condition monitoring platform?
A: Yes. The module integrates with System 1 Evolution via the 3500/92 Communication Gateway. Existing channel configurations, alarm setpoints, and trend databases can be preserved by importing the archived rack configuration into the System 1 database before the module swap.

Q: What support terms and inventory support does KNMKS provide for this module?
A: All 3500/42M 176449-02GB units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing, and test documentation is available upon request. KNMKS maintains stock inventory to support urgent spare parts requirements and multi-unit refurbishment projects.
