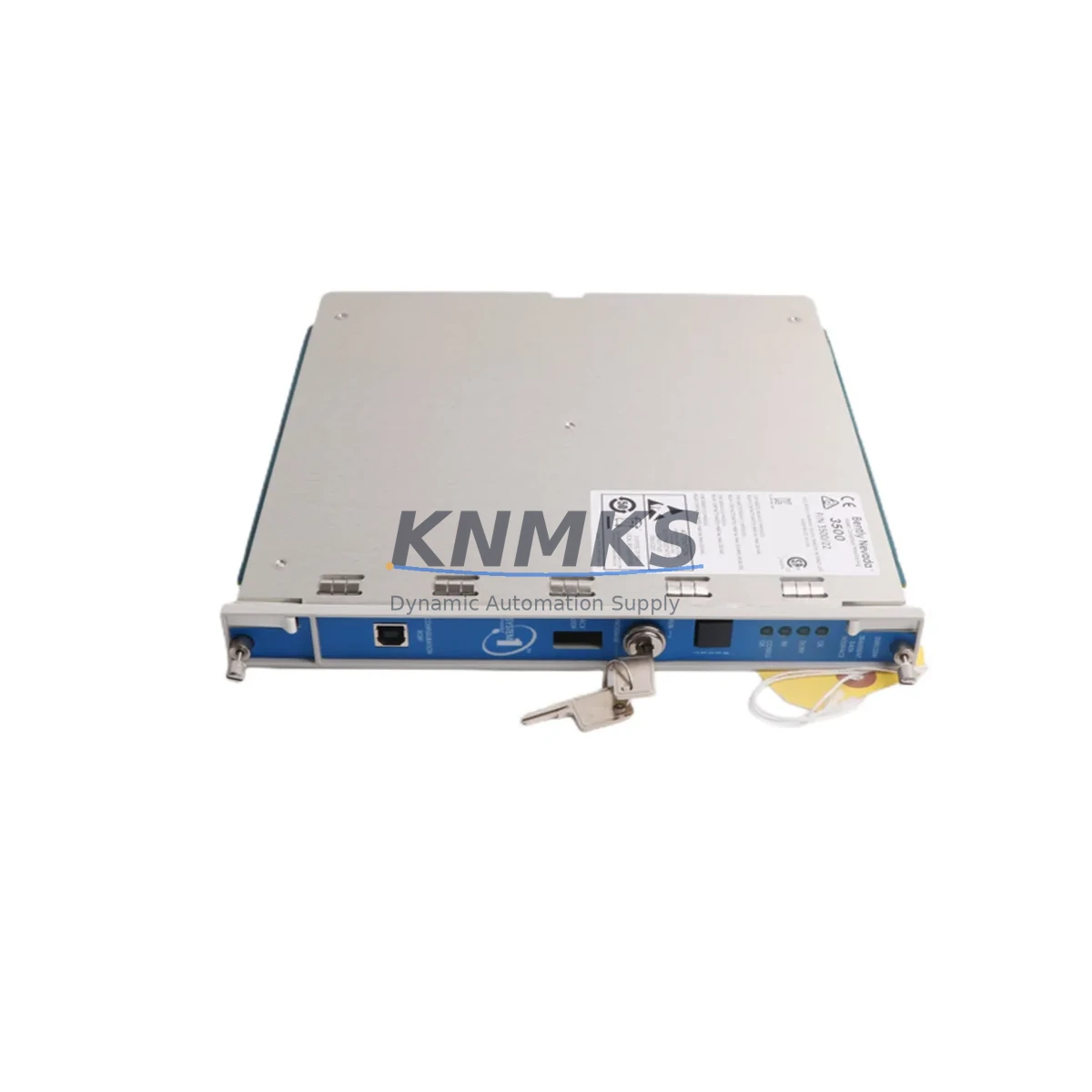

Bently Nevada 3500/22M 288055-01L Spare Part for Uptime

Overview

Bently Nevada 3500/22M 288055-01L Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 3500/22M 288055-01L is a dual-channel transient data interface module designed for the 3500 Series machinery protection system. Engineered for continuous operation in high-demand industrial environments — including petrochemical plants, power generation facilities, offshore platforms, and rotating machinery installations — this module provides real-time vibration monitoring and transient data capture critical to predictive maintenance programs. Sourced as an original spare, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 3500/22M 288055-01L in a 3500 Series rack, maintenance engineers should treat the module swap as part of a broader cabinet inspection rather than an isolated task. Begin by verifying the condition of the 3500/05 Power Supply Module — a degraded power supply is a common root cause of transient data anomalies that are often misattributed to the TDI module itself. Confirm that DC output voltages are within specification before installing the replacement unit.

Next, inspect the 3500/15 AC/DC Power Supply if your rack uses redundant power. Redundant power configurations are standard in critical turbine protection systems, and a failed secondary supply can leave the rack vulnerable during the module swap window. Simultaneously, check the 3500/92 Ethernet I/O Module for firmware version alignment — mismatched firmware between the TDI and the communication module can cause data dropouts after replacement.

Transducer cabling is another high-priority inspection point. Proximity probe cables connected to the 3500/22M are subject to mechanical fatigue in high-vibration environments. Inspect cable shielding, connector integrity, and verify that the 3500/25 Enhanced Keyphasor Module (if installed) is providing a clean reference signal. A degraded Keyphasor signal will corrupt phase angle data even after a successful TDI module replacement.

For sites running extended annual overhauls, it is advisable to simultaneously audit the 3500/40M Proximitor I/O Module and any associated 3500/50 Tachometer Module installed in the same rack. These modules share the backplane data bus and are subject to the same environmental stressors. Replacing the 3500/22M without inspecting adjacent I/O modules risks a repeat fault event within the same maintenance cycle. Stocking a spare 3500/32 4-Channel Relay Module is also recommended for sites where alarm relay outputs are wired into emergency shutdown logic — relay contact wear is a silent failure mode that becomes apparent only under load conditions.

Finally, verify terminal block torque values on all field wiring terminations within the cabinet. Loose terminations are a leading cause of intermittent vibration signal faults that can trigger nuisance trips and complicate fault isolation during production runs.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 3500/22M 288055-01L matches the installed firmware baseline. Cross-reference the rack configuration record and note the slot position of the outgoing module.

Step 2 — Safe Isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. The 3500 Series supports hot-swap capability in some configurations, but verify with your site safety plan before proceeding without a full rack power-down.

Step 3 — Module Extraction: Release the front-panel locking mechanism, extract the module along the card guide rails, and inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Installation and Configuration: Seat the 3500/22M 288055-01L firmly into the rack slot. Reconnect all transducer cables and verify channel assignments match the original configuration file. Use System 1 or Rack Configuration Software to upload the saved configuration and confirm channel OK status.

Step 5 — Functional Verification: Apply a known reference signal to each channel and confirm that vibration amplitude and phase readings are within expected ranges. Verify that alarm setpoints are active and that relay outputs respond correctly to simulated trip conditions.

Step 6 — Documentation: Record the replacement date, module serial number, firmware version, and post-installation test results in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement stock unit.

This workflow supports a direct replacement of legacy 3500/22 (non-M variant) modules in existing racks, maintaining full system compatibility and eliminating the need for rack reconfiguration or wiring changes in most installations.

Spare Parts Support FAQ

Q1: Is the 3500/22M 288055-01L compatible with older 3500 Series racks that use the non-M variant (3500/22)?
In most configurations, the 3500/22M is backward-compatible with existing 3500 Series rack slots previously occupied by the 3500/22. However, firmware and configuration file compatibility should be verified using Bently Nevada’s Rack Configuration Software prior to installation. Contact our technical team for site-specific compatibility confirmation.

Q2: What pre-shipment testing is performed on this module?
Each 3500/22M 288055-01L unit undergoes functional power-on testing, channel signal verification, and backplane communication checks before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with protective rail covers to prevent connector damage in transit.

Q3: What is the recommended spare parts stocking strategy for 3500 Series systems?
For critical rotating machinery applications, we recommend maintaining at minimum one spare TDI module (3500/22M), one power supply module (3500/05 or 3500/15), and one relay module (3500/32) per protected machine train. Sites with multiple 3500 racks should consider a pooled spare strategy with a 12–24 month replenishment horizon to mitigate lead time risk on end-of-life components.

Q4: What support terms and long-term supply support is available?
All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. We maintain ongoing stock of 3500 Series modules to support long-term maintenance programs, including systems where OEM supply has been discontinued. Repeat orders and blanket purchase agreements are available for procurement teams managing multi-site spare parts programs.
