Bently Nevada 3500/05-01-01-00-00-00 Migration-Ready System Chassis for Legacy Control Systems

Overview

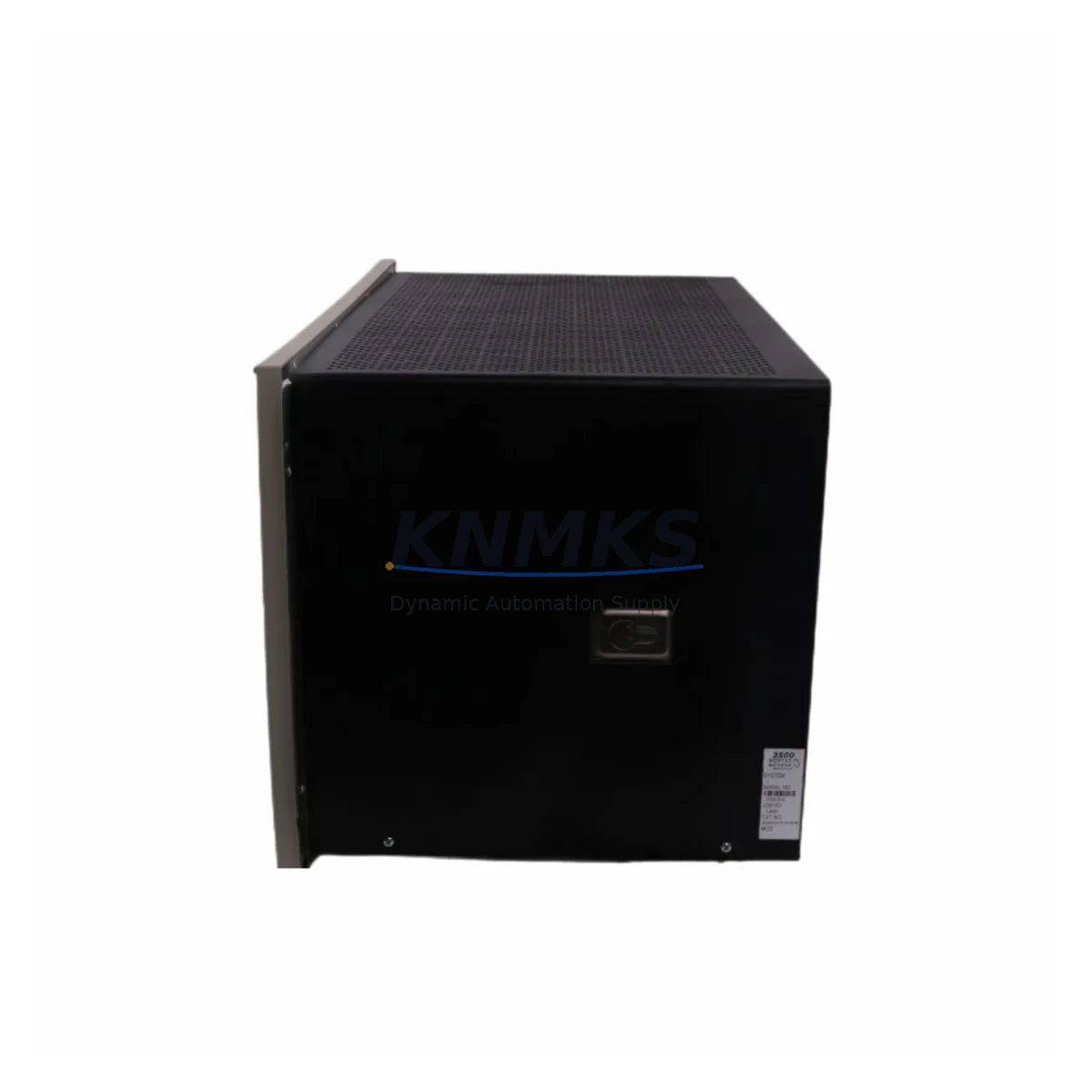

Bently Nevada 3500/05-01-01-00-00-00 Migration-Ready System Chassis for Legacy Control Systems

The Bently Nevada 3500/05-01-01-00-00-00 is a 16-slot system chassis designed as the structural and power backbone of the Bently Nevada 3500 Series machinery protection platform. For facilities operating aging 3500 Series installations — or migrating from earlier Bently Nevada 7200 Series or 3300 Series rack-based monitoring systems — this chassis provides a verified, drop-in compatible foundation that preserves existing wiring infrastructure, module addressing, and communication architecture while enabling a controlled, low-risk upgrade path.

Industrial sites undertaking control system modernization frequently encounter the challenge of replacing discontinued chassis hardware without triggering a full platform overhaul. The 3500/05-01-01-00-00-00 addresses this directly: its backplane interface is fully compatible with the current 3500 Series module lineup, including the 3500/15 Power Supply Module, 3500/20 Rack Interface Module, 3500/22M Transient Data Interface, and 3500/42M Proximitor/Seismic Monitor. This means engineers can slot existing functional modules into a replacement chassis without re-engineering the I/O wiring, reconfiguring module addresses, or rewriting monitor configuration software.

Before committing to a chassis swap, retrofit engineers should verify several critical parameters. Power supply capacity must be confirmed against the total module load — the 3500/15 Power Supply Module supports both AC and DC input variants, and the selected supply must match the site’s available power feed. Terminal wiring on the rear I/O modules should be documented and photographed prior to removal; the 3500 Series uses a rear-entry terminal block design that allows I/O modules to be removed and reinstalled without disturbing field wiring, significantly reducing reconnection risk. Backplane slot addressing must be preserved: each monitor module in the 3500 Series is assigned a rack and slot address that is referenced in the System 1 or Rack Configuration Software, and any deviation will require a configuration update before the system will accept the module as valid.

Communication link continuity is another key consideration. Sites using the 3500/20 Rack Interface Module for Modbus, Ethernet, or Profibus communication to a DCS or SCADA platform must confirm that the replacement chassis backplane supports the same communication protocol stack. In most cases, the 3500/05-01-01-00-00-00 chassis is transparent to the communication layer — the 3500/20 handles all protocol translation — but the physical rack interface connector and backplane pinout must be verified against the installed firmware version of the Rack Interface Module. Firmware compatibility between the 3500/20 and the host DCS should be confirmed before the chassis is energized in the new configuration.

For sites where the 3500 Series chassis is installed in a shared control cabinet alongside other Bently Nevada or third-party equipment, installation space must be measured carefully. The 3500/05-01-01-00-00-00 occupies a standard 19-inch rack form factor, but cabinet depth, cable management clearance, and rear-access requirements for I/O termination must all be confirmed before the replacement chassis is ordered. In retrofit scenarios where the original chassis was mounted in a custom enclosure, a site survey should be completed to confirm that the replacement unit’s physical dimensions and mounting hole pattern are compatible.

Commissioning after chassis replacement follows a structured sequence: power supply installation and verification, module seating and address confirmation, communication link re-establishment, System 1 software reconnection, and full channel-by-channel functional verification against the original baseline. Engineers should retain the original rack configuration file and use it as the reference for post-installation verification. Any changes to monitor setpoints, alarm thresholds, or transducer scaling that were made in the field after the original commissioning must be re-entered if the configuration file predates those changes.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3500/05-01-01-00-00-00 chassis retrofit begins with a complete inventory of the existing rack population. In a typical 3500 Series installation, the chassis will house a combination of the 3500/15 Power Supply Module, one or two 3500/20 Rack Interface Modules for DCS communication, and a mix of monitor modules such as the 3500/42M Proximitor/Seismic Monitor for radial vibration and position measurement, the 3500/40M Proximitor/Seismic Monitor for axial position, and the 3500/50M Tachometer Module for speed and overspeed detection. Each of these modules must be individually documented — serial number, firmware version, configuration file version, and current setpoints — before the chassis swap begins.

The rear I/O termination blocks are a critical element of retrofit planning. The 3500 Series uses a rear-entry I/O module design where field wiring connects to dedicated I/O modules that remain in place when the monitor module is removed. This architecture allows the chassis and monitor modules to be replaced without disturbing field wiring, provided the I/O modules are compatible with the replacement chassis backplane. Engineers should confirm that the I/O module part numbers are consistent with the 3500/05-01-01-00-00-00 chassis specification before proceeding.

For sites where the existing installation includes a 3500/22M Transient Data Interface for high-speed waveform capture and export to System 1 software, the communication path between the TDI and the host workstation must be re-established after the chassis swap. The TDI uses a dedicated Ethernet port on the 3500/20 Rack Interface Module, and the IP address assignment and network routing configuration must be verified and restored as part of the commissioning sequence. Signal isolators or barriers installed between the field transducers and the I/O modules should also be inspected and tested during the retrofit window to confirm that they remain within calibration.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500 Series chassis replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the complete rack configuration should be exported from the Rack Configuration Software and stored in a secure, accessible location. All monitor module setpoints, alarm thresholds, and transducer scaling factors should be documented in a commissioning record that can serve as the post-installation verification checklist.

During the outage, the recommended sequence is: de-energize the rack, remove monitor modules in reverse slot order while labeling each module with its slot position, remove the chassis while leaving I/O modules and field wiring in place, install the replacement 3500/05-01-01-00-00-00 chassis, re-seat monitor modules in their original slot positions, restore power, and verify communication link re-establishment with the DCS or SCADA host. The entire process can typically be completed within a four-to-eight-hour maintenance window for an experienced team with all replacement hardware on-site and pre-tested.

Pre-shipment functional testing of the replacement chassis is performed prior to dispatch. Each unit is powered and verified for backplane continuity and slot integrity before packaging. This reduces the risk of receiving a non-functional unit and eliminates the need for on-site incoming inspection beyond a visual check. Combined with in-stock availability and same-day dispatch capability, this approach supports tight maintenance scheduling and minimizes the risk of extended outage due to hardware delays.

Retrofit Support FAQ

Q: Is the 3500/05-01-01-00-00-00 a direct replacement for my existing 3500 Series chassis?
A: Yes. The 3500/05-01-01-00-00-00 is the standard 16-slot chassis for the Bently Nevada 3500 Series and is compatible with all current 3500 Series monitor modules, power supplies, and rack interface modules. It is the correct replacement for any 3500 Series chassis of the same slot count and form factor.

Q: Will I need to reconfigure my monitor modules after installing the replacement chassis?
A: In most cases, no. If the replacement chassis is installed with the same module population in the same slot positions, and the original rack configuration file is loaded via Rack Configuration Software, the system should resume normal operation without requiring setpoint re-entry. However, any field changes made after the last configuration file export must be manually re-applied.

Q: What is the lead time and support terms coverage for this unit?
A: Units are availability confirmed by RFQ and available for same-day or next-day dispatch. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure. Pre-shipment testing is performed on every unit prior to dispatch.

Q: Can I verify compatibility before ordering?
A: Yes. Please provide your existing chassis part number, installed module list, and communication configuration, and our technical team will confirm compatibility and identify any interface or firmware considerations before the order is placed. Contact [email protected] or call +86 18359268345 for pre-order technical review.
