Bently Nevada 330910-00-03-10-02-00 Maintenance Spare Part

Overview

Bently Nevada 330910-00-03-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

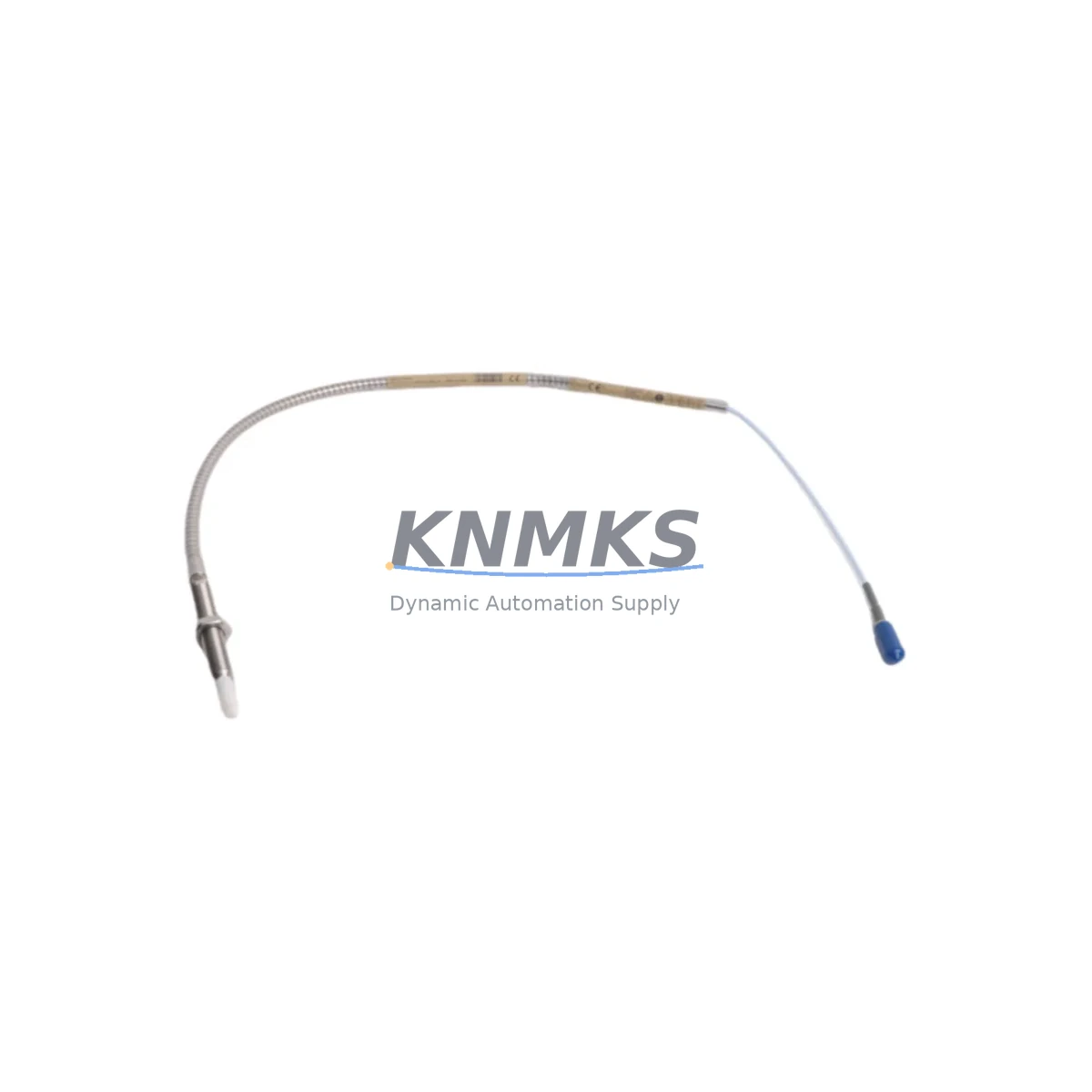

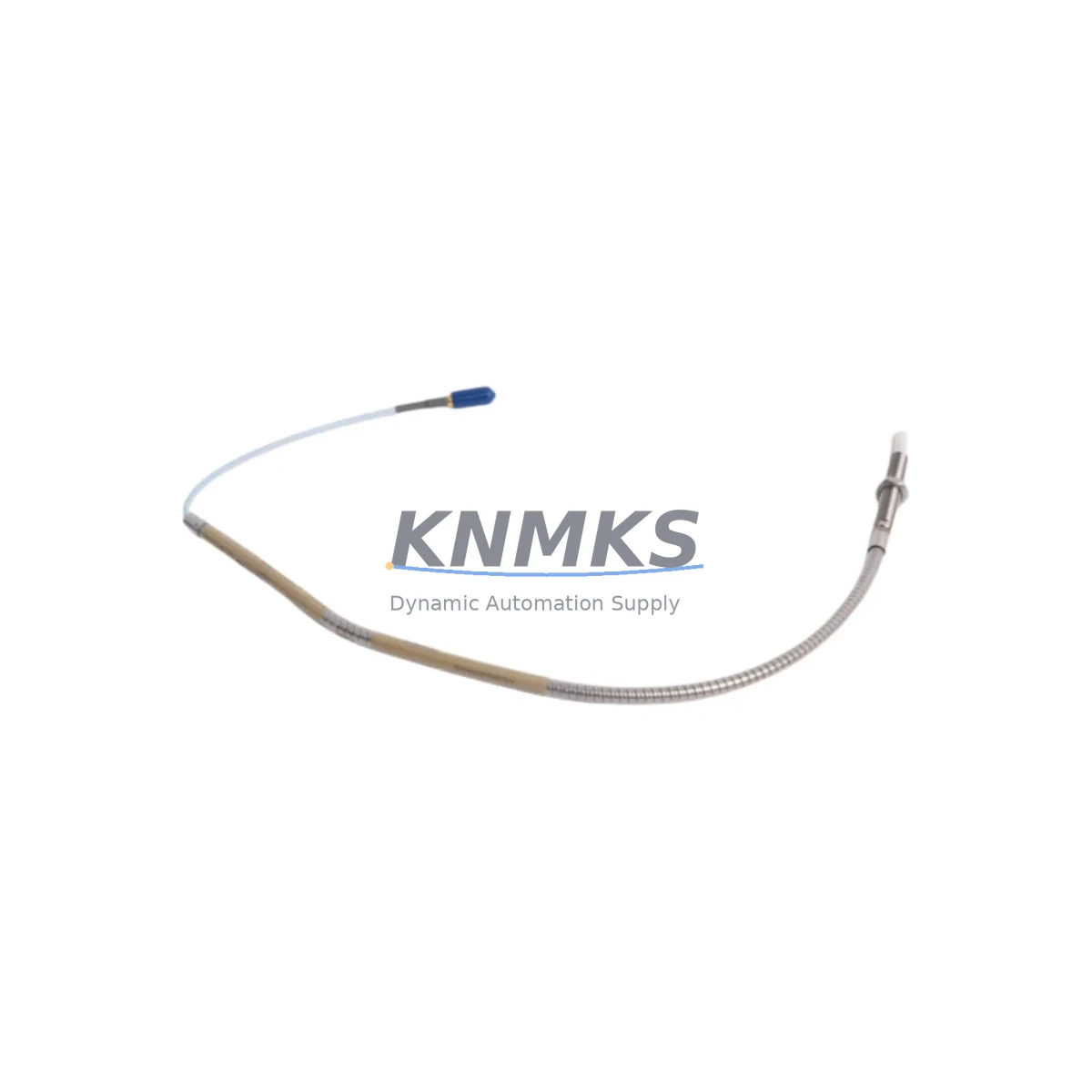

The Bently Nevada 330910-00-03-10-02-00 is a proximity transducer extension cable engineered for the 3500 Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment applications worldwide. This cable serves as the critical signal link between the proximity probe and the 3500 Series monitor rack, transmitting raw eddy-current displacement signals with minimal attenuation across the full operating range. Maintaining a verified spare of the 330910-00-03-10-02-00 in your site inventory is a foundational step in any predictive maintenance or machinery protection program for turbines, compressors, pumps, and gearboxes.

At KNMKS, every 330910-00-03-10-02-00 unit is sourced from authorized supply channels, inspected for connector integrity, cable shielding continuity, and impedance compliance before dispatch. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and signal performance, giving maintenance engineers and procurement teams confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330910-00-03-10-02-00 extension cable is flagged during a routine control cabinet inspection or vibration channel audit, the replacement scope should extend beyond the cable itself. The 3500 Series machinery protection system is an integrated signal chain, and a degraded extension cable is frequently a symptom of broader connector fatigue or environmental ingress affecting adjacent components.

Maintenance engineers should simultaneously verify the condition of the Bently Nevada 3300 XL proximity probe at the measurement point — connector corrosion or tip damage on the probe will persist as a noise source even after the extension cable is replaced. The Bently Nevada 330130 proximitor / oscillator-demodulator mounted in the field junction box should be checked for output voltage stability (typically –18 VDC ±0.5 V at the gap calibration point); a drifting proximitor will produce false vibration readings regardless of cable condition.

Inside the 3500 rack, the 3500/20 rack interface module and the relevant monitor card — such as the 3500/40M proximitor monitor for radial vibration or the 3500/42M velocity monitor for seismic channels — should be reseated and their channel OK status confirmed via the 3500 Rack Configuration Software. Backplane connector pins on the monitor card should be inspected for fretting corrosion, particularly in high-vibration environments.

Procurement engineers building annual spare parts kits for 3500-based protection systems should also stock the 3500/15 power supply module as a critical single-point-of-failure component. A failed rack power supply will simultaneously drop all monitoring channels, making it a high-priority spare. Additionally, the Bently Nevada 3500/92 communication gateway module — used for Modbus or Ethernet integration to the plant DCS or SCADA — should be included in the spare inventory for sites where remote monitoring continuity is operationally critical.

For sites running legacy 3300 Series monitors alongside newer 3500 racks, maintaining cross-compatible extension cables and confirming connector pinout compatibility before installation is essential to avoid signal inversion or impedance mismatch errors during emergency replacements.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Coordinate with the control room to place the affected vibration channel in bypass mode within the 3500 rack configuration software before disconnecting the extension cable. This prevents a spurious trip signal from reaching the turbine or compressor protection relay during the swap.

Step 2 — Cable Removal and Inspection: Disconnect the 330910-00-03-10-02-00 at both the probe connector and the proximitor input. Inspect the removed cable for jacket cracking, connector pin damage, or moisture ingress at the terminations. Document findings for the maintenance record.

Step 3 — New Cable Installation: Route the replacement 330910-00-03-10-02-00 following the original cable path, maintaining separation from high-voltage power cables by at least 150 mm. Torque connectors to the manufacturer-specified value (finger-tight plus one-quarter turn for MIL-spec coaxial) to ensure consistent contact resistance.

Step 4 — Gap Verification: With the new cable installed, verify the probe gap voltage at the proximitor output using a calibrated digital multimeter. The nominal gap for most 8 mm probes is –10.0 VDC ±0.2 V at the calibrated air gap. Adjust the probe position if the output is outside tolerance.

Step 5 — Channel Restoration and Functional Test: Remove the channel bypass in the 3500 rack software and confirm the channel OK LED is active. Verify that the vibration reading is within the expected baseline range for the machine at its normal operating speed and load. Log the as-found and as-left readings in the CMMS.

This workflow supports a target replacement time of under two hours for a single channel, minimizing production impact and ensuring the machinery protection system is fully restored before the machine returns to service.

Spare Parts Support FAQ

Q1: Is the 330910-00-03-10-02-00 a direct replacement for other Bently Nevada extension cable part numbers?
The 330910 series uses a standardized MIL-spec coaxial connector and is compatible with the 3300 XL and 7200 probe families when the total system cable length (probe + extension) matches the proximitor calibration range. Always verify the total cable length against the proximitor model’s specification sheet before substituting a different suffix variant. KNMKS can assist with compatibility confirmation prior to order.

Q2: How do you verify the cable before shipment?
Each 330910-00-03-10-02-00 unit undergoes connector continuity testing, shield integrity verification, and visual inspection of the cable jacket and terminations before packaging. Units that do not meet acceptance criteria are quarantined and not dispatched. A test record is available upon request for critical applications.

Q3: What is the recommended inventory quantity for a site running multiple 3500 racks?
For sites with 4–8 active 3500 rack channels using this cable length, a minimum stock of 2–3 units is recommended to cover emergency replacements without waiting for resupply. Sites with more than 8 channels or in remote locations with long logistics lead times should consider blanket stock agreements with KNMKS to ensure next-day availability from regional warehouse stock.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, connector failure under normal installation conditions, and signal performance outside the published specification. It does not cover damage resulting from incorrect installation torque, chemical exposure, or mechanical impact. Support requests are processed within 5 business days of receipt of the returned unit, with a replacement dispatched upon confirmation of the defect.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330910-00-03-10-02-00
3500 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330910-00-03-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
