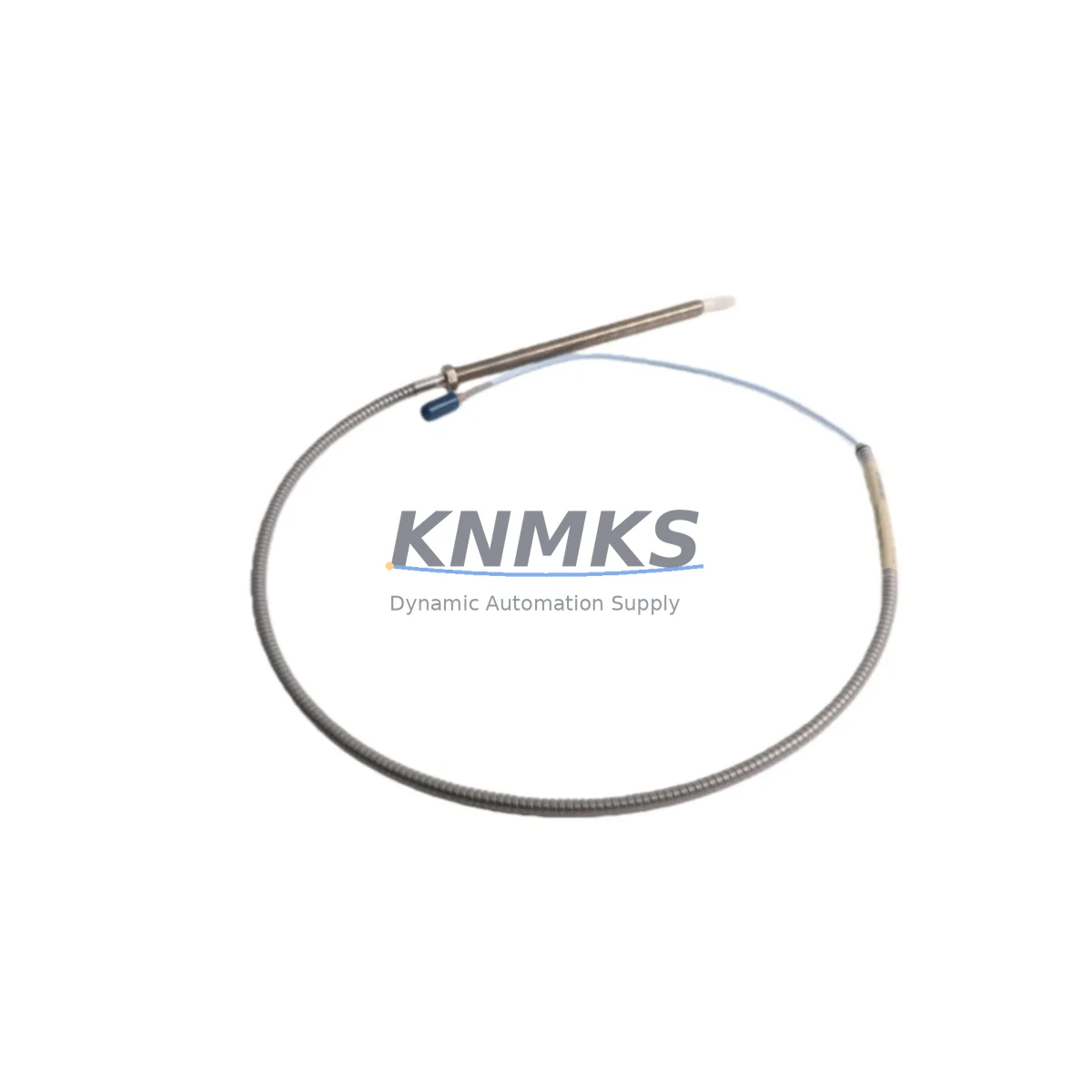

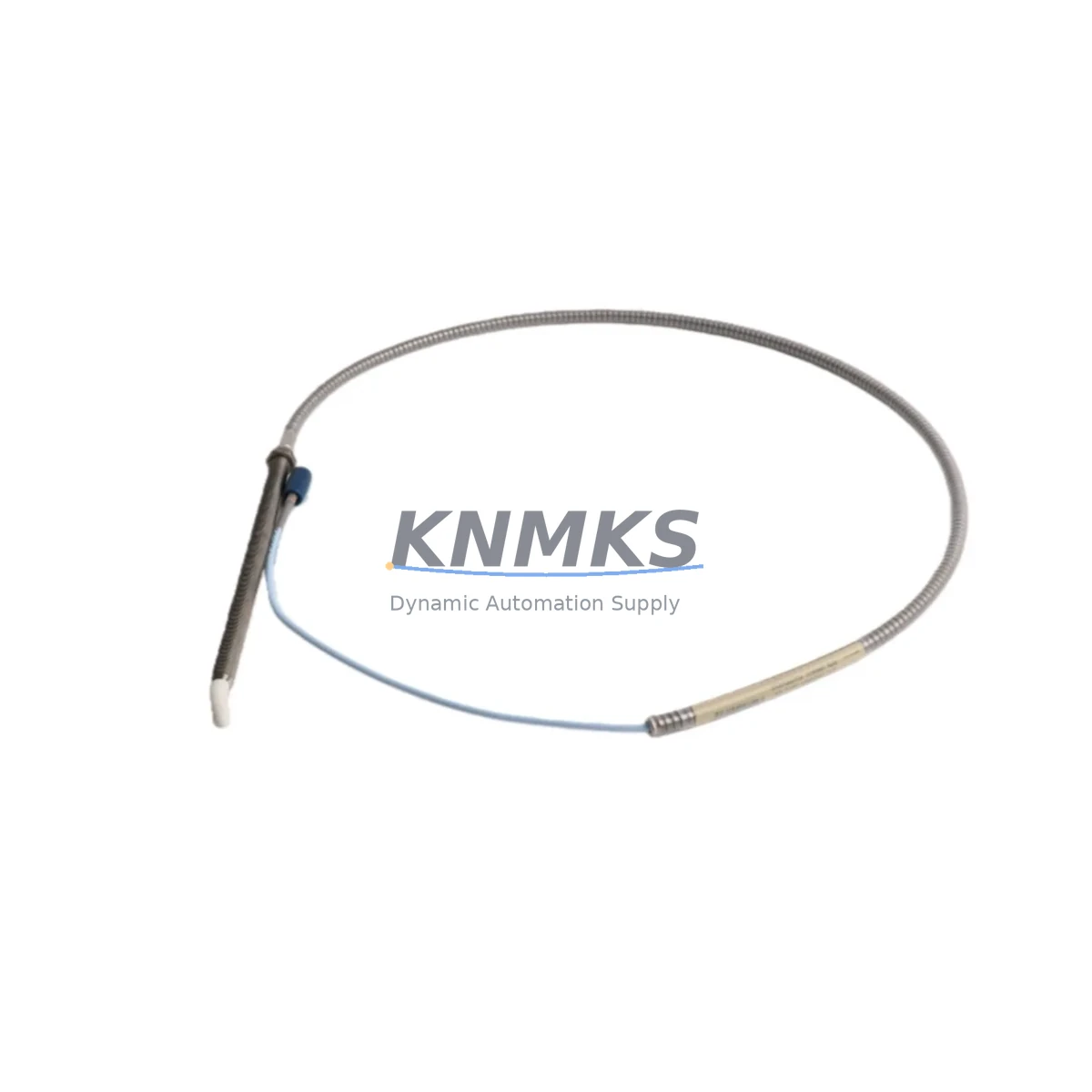

Bently Nevada 109549-01 Fail-Safe Speed Probe

Overview

Bently Nevada 109549-01 Fail-Safe Speed Probe: Critical Industrial Field Reliability

The Bently Nevada 109549-01 is a photoelectric speed probe engineered for fail-safe operation in the most demanding industrial control environments. Designed as a core sensing component within the Bently Nevada 3500/3300 Series machinery protection system, this probe delivers continuous, high-integrity rotational speed measurement for turbines, compressors, pumps, fans, and other rotating machinery where unplanned downtime carries severe operational and safety consequences.

In continuous production facilities — including petrochemical plants, power generation stations, offshore platforms, and metallurgical operations — speed measurement accuracy is not merely a performance metric; it is a safety-critical function. The 109549-01 is built to maintain signal integrity under conditions of high electromagnetic interference (EMI), mechanical vibration, elevated ambient temperatures, and exposure to dust, moisture, and corrosive atmospheres. Its photoelectric sensing principle eliminates the magnetic drag and signal drift issues associated with passive magnetic pickups, ensuring that overspeed trip signals and underspeed alarms are transmitted reliably to the 3500 Series rack without false triggering or missed events.

Control loop protection is a primary design objective of this probe. When integrated with the Bently Nevada 3500/42M Speed Monitor module, the 109549-01 provides the speed input channel that governs turbine trip logic, load shedding sequences, and emergency shutdown (ESD) interlocks. Any signal interruption, drift, or noise-induced error at this sensing layer can propagate through the entire safety instrumented system (SIS), potentially causing spurious trips or — more critically — a failure to trip under genuine overspeed conditions. The 109549-01’s robust optical sensing mechanism and shielded cable assembly are specifically designed to prevent both failure modes.

In high-EMI environments such as variable frequency drive (VFD) cabinets, large motor control centers (MCCs), and switchgear rooms, the probe’s signal conditioning maintains clean pulse output even when installed in close proximity to high-current conductors. This makes it suitable for deployment alongside components such as the Bently Nevada 3500/15 Power Supply, which provides conditioned DC power to the monitoring rack, and the Bently Nevada 3500/22M Transient Data Interface, which captures high-resolution speed transient data during startup and coast-down sequences critical for rotor dynamic analysis.

For control cabinet protection strategy, the 109549-01 is typically installed as part of a redundant speed sensing architecture. Paired with a secondary channel using a Bently Nevada 330180 Proximity Probe for complementary vibration and position monitoring, the system achieves the voting logic (1oo2 or 2oo3) required by IEC 61511 functional safety standards for SIL-rated protection loops. The Bently Nevada 3500/53 Overspeed Detection System module processes the 109549-01 output with hardware-level trip response times well within the requirements of API 670 machinery protection standards.

Surge and transient protection within the control cabinet is equally important. Power supply transients, ground loops, and inductive switching surges from solenoid valves and relay coils can corrupt speed pulse signals if the sensing circuit is not properly isolated. The 109549-01’s design incorporates signal isolation that protects the measurement chain from these common cabinet-level disturbances, complementing surge protection devices such as the Bently Nevada 990 Vibration Transmitter used in parallel monitoring loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for rotating machinery begins at the sensing layer. The 109549-01 speed probe anchors the speed measurement channel of the 3500 Series rack, but its reliability depends on the integrity of the entire signal chain and power infrastructure surrounding it.

The Bently Nevada 3500/15 Power Supply provides the stable, isolated DC power required by the monitoring rack. Any power quality issue — voltage sag, ripple, or transient — at this supply directly affects the signal processing accuracy of every connected module, including the speed monitor channel fed by the 109549-01. Ensuring the power supply is within specification is the first line of cabinet protection.

The Bently Nevada 3500/42M Speed Monitor processes the pulse train from the 109549-01 and executes the trip and alarm logic. Its configuration — including gap voltage thresholds, speed setpoints, and time delays — must be validated against the machinery’s operational envelope to prevent both spurious trips and failure-to-trip scenarios. In redundant architectures, a second speed channel using a Bently Nevada 330180 Proximity Probe provides the complementary measurement required for 1oo2 voting logic.

Communication integrity between the 3500 rack and the plant DCS or safety PLC is maintained through the Bently Nevada 3500/22M Transient Data Interface, which supports Modbus and other industrial protocols. Signal isolation at this interface prevents ground loop currents from corrupting speed data during transmission across long cable runs in electrically noisy plant environments.

For overspeed protection specifically, the Bently Nevada 3500/53 Overspeed Detection System provides a hardware-level, firmware-independent trip channel that operates even if the main rack processor is in a fault state — a critical fail-safe feature for steam turbines and gas expanders where overspeed events can cause catastrophic mechanical failure within milliseconds.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In fluid catalytic cracking (FCC) units, compressor trains, and boiler feed pump turbines, the 109549-01 provides the speed signal that governs anti-surge control and ESD trip logic. Continuous, accurate speed measurement prevents compressor surge events that can cause severe mechanical damage and process safety incidents.

Power Generation: Steam turbines and gas turbines in power plants operate under strict overspeed protection requirements per API 670 and IEC 61511. The 109549-01 feeds the overspeed detection module with the high-resolution pulse signal needed to detect runaway conditions within the required response time, protecting both the turbine and connected generator from catastrophic failure.

Mining and Mineral Processing: In ball mills, SAG mills, and large conveyor drive systems, speed monitoring prevents mechanical overload and detects belt slip or drive failure conditions. The probe’s resistance to dust and vibration makes it suitable for the harsh environments typical of underground and open-cut mining operations.

Water and Wastewater Treatment: Large pump stations and blower systems in water treatment facilities require continuous speed monitoring to detect cavitation, dry-running, and motor overload conditions. The 109549-01’s reliable pulse output ensures that protective relay systems receive accurate speed data even in high-humidity, chemically aggressive environments.

Metallurgy and Steel Production: Rolling mill drives, blast furnace blowers, and continuous casting equipment operate in extreme thermal and vibration environments. The photoelectric sensing technology of the 109549-01 maintains measurement accuracy where passive magnetic pickups would suffer from thermal drift and mechanical wear.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives require speed monitoring that functions reliably in salt-air, high-humidity, and high-vibration environments. The 109549-01’s environmental robustness and compatibility with the 3500 Series rack make it a proven choice for marine and port machinery protection systems.

Safety and Quality FAQ

Q1: What support terms does the 109549-01 carry, and what does it cover?
The 109549-01 carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, component failure under normal operating conditions, and signal output non-conformance. Each unit is functionally tested before dispatch to verify pulse output integrity, connector condition, and cable shielding continuity. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every 109549-01 undergoes a full functional test prior to shipment, including optical sensing verification, signal output pulse check, cable continuity and insulation resistance test, and connector integrity inspection. Test records are available upon request. Units that do not meet specification are quarantined and not dispatched.

Q3: Is the 109549-01 compatible with both the 3500 and 3300 Series racks?
Yes. The 109549-01 is designed for use with Bently Nevada 3500 and 3300 Series machinery protection systems. It is compatible with the 3500/42M Speed Monitor and related speed input modules. For specific rack slot and configuration requirements, consult the Bently Nevada 3500 Series System Manual or contact our technical team with your rack configuration details.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We maintain stock of the 109549-01 and can support planned maintenance schedules, critical spares programs, and emergency replacement requirements. Long-term supply agreements with defined lead times and pricing are available for customers with ongoing maintenance needs. Contact our team to discuss your plant’s spare parts strategy and annual volume requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

109549-01
3500 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 109549-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
