Bently Nevada 330180-X1-CN Maintenance-Proven Spare Part for Factory Uptime

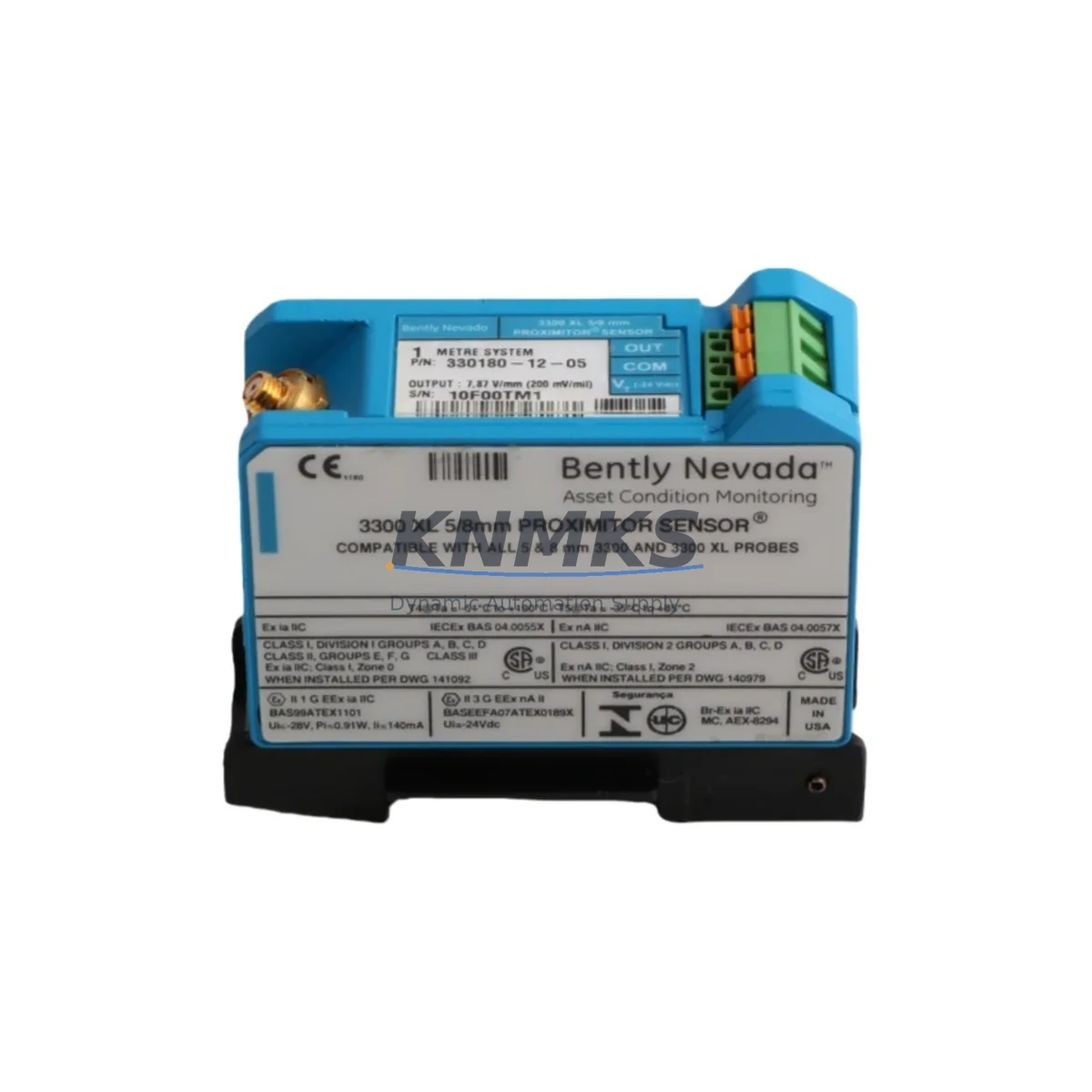

The Bently Nevada 330180-X1-CN (MOD:163339-01) is an original 8mm Proximitor Sensor from the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in critical rotating machinery. Widely deployed across turbines, compressors, pumps, and gearboxes in energy, petrochemical, and heavy manufacturing facilities, this sensor is a cornerstone of any plant’s predictive maintenance and machinery protection strategy.

For maintenance engineers managing aging DCS or vibration monitoring systems, sourcing a verified, drop-in compatible replacement for the 330180-X1-CN is essential to minimizing unplanned downtime. This unit ships fully tested, with all electrical parameters validated against Bently Nevada factory specifications, and is backed by a support terms confirmed by quotation. Whether you are executing an emergency swap during a forced outage or building a strategic spare parts inventory ahead of a scheduled turnaround, this sensor delivers the reliability and traceability your maintenance program demands.

At KNMKS, we specialize in long-term supply of original and compatible Bently Nevada 3300 XL Series components, supporting maintenance teams and procurement engineers across global industrial operations. Every unit undergoes pre-shipment functional testing and is documented for traceability, ensuring your replacement program meets both operational and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X1-CN Proximitor Sensor in a 3300 XL monitoring loop, a thorough site inspection of the surrounding measurement chain is critical to restoring full system integrity and preventing repeat failures. Maintenance engineers should treat this replacement as an opportunity to audit the entire vibration monitoring circuit.

Begin by inspecting the 3300 XL extension cable (typically 330130 or 330140 series) that connects the probe to the Proximitor. Cable insulation degradation, connector corrosion, or shield continuity loss are common root causes of erratic gap voltage readings that are often misdiagnosed as sensor failure. Replace the extension cable if any physical damage or impedance deviation is detected.

Next, verify the Proximitor power supply module output — the -24 VDC rail must be stable and within tolerance. A drifting supply voltage directly affects the sensor’s scale factor and can produce false vibration alarms or mask real machinery faults. If your cabinet houses a 3300/16 Power Supply or equivalent, confirm its output under load before commissioning the new sensor.

Inspect the 3300 XL Monitor module (such as the 3300/55 or 3300/46 series) for alarm setpoint integrity, OK relay status, and any latched fault conditions. A monitor module with degraded OK relay contacts or corrupted setpoints will not correctly process the new sensor’s signal, leading to nuisance trips or missed alarms. Confirm that the monitor’s configuration matches the replacement sensor’s scale factor and gap range.

For facilities running Bently Nevada System 1 or TDXnet condition monitoring software, validate that the new sensor’s channel is correctly mapped and that historical baseline data is archived before the swap. This ensures post-replacement trend analysis is meaningful and supports your predictive maintenance program.

Also review the terminal block and field wiring within the control cabinet. Loose terminations, oxidized contacts, or undersized conductors in the sensor signal circuit can introduce noise that degrades measurement accuracy. Torque all terminals to specification and inspect for any signs of heat damage or moisture ingress, particularly in outdoor or high-humidity installations.

Finally, if the machinery protection system includes relay output modules or signal isolators downstream of the 3300 XL monitor, verify their functional status as part of the commissioning checklist. A failed isolator or relay with welded contacts can prevent protective shutdown signals from reaching the DCS or safety PLC, creating an undetected gap in your machinery protection layer.

Site Replacement Workflow

The 330180-X1-CN is designed as a direct drop-in replacement for the existing 330180 series Proximitor Sensors installed in 3300 XL monitoring systems. Follow this structured workflow to minimize downtime and ensure a safe, verified return to service:

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number and MOD revision match or are approved as equivalent to the installed sensor. Record the existing gap voltage (typically -10.0 VDC ±0.5 VDC for standard 8mm probes at nominal gap) as a baseline reference.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected monitoring channel. Bypass the monitor’s OK relay output if required by your safety system to prevent a spurious trip during the swap. Notify the control room before disconnecting the sensor.

Step 3 — Physical Replacement: Disconnect the extension cable from the old Proximitor. Remove the sensor from its mounting bracket, noting the probe gap setting (typically 1.0–1.5mm for 8mm probes). Install the new 330180-X1-CN, set the probe gap to the recorded or OEM-specified value, and reconnect the extension cable. Ensure all connectors are fully seated and locking rings are tightened.

Step 4 — Electrical Commissioning: Restore power to the monitoring channel. Measure the gap voltage at the Proximitor output terminals and confirm it matches the pre-replacement baseline within ±0.5 VDC. Verify the monitor’s OK LED is illuminated and no fault alarms are active.

Step 5 — Functional Validation: Perform a slow-roll check or bump test as permitted by your site procedures to confirm the sensor is responding correctly to shaft movement. Review the System 1 or DCS trend display to confirm clean, noise-free vibration data is being recorded.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the new sensor’s serial number, installation date, gap voltage, and next inspection interval. Update your spare parts inventory to trigger reorder of a replacement unit, maintaining your minimum stock level for this critical component.

Spare Parts Support FAQ

Q1: Is the 330180-X1-CN MOD:163339-01 compatible with both 3300 XL and 3500 Series monitoring systems?
The 330180-X1-CN is natively designed for the Bently Nevada 3300 XL Series monitoring system. Compatibility with the 3500 Series depends on the specific monitor module and system configuration. In many installations, 3300 XL sensors are used with 3500 Series monitors via appropriate cabling and configuration — however, we recommend confirming the scale factor and OK voltage range with your system documentation or contacting our technical team before installation in a 3500 Series rack.

Q2: How do you verify the sensor before shipment, and what does the support terms confirmed by quotation cover?
Every 330180-X1-CN unit shipped from KNMKS undergoes pre-shipment functional testing, including gap voltage output verification, scale factor confirmation, and physical inspection for connector and cable integrity. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Support requests are supported with full traceability documentation.

Q3: What is the recommended spare parts inventory strategy for the 330180-X1-CN in a critical rotating machinery application?
For turbines, compressors, or other critical rotating assets where unplanned downtime carries high operational cost, we recommend maintaining a minimum of two 330180-X1-CN units per monitored machine train in your on-site spare parts inventory. For facilities with multiple identical machine trains, a pooled inventory of 3–5 units is typically sufficient to cover emergency replacements while awaiting replenishment. KNMKS supports long-term supply agreements to ensure consistent availability without requiring large upfront inventory investments.

Q4: Can KNMKS supply other Bently Nevada 3300 XL Series components for a complete monitoring system spare kit?
Yes. KNMKS maintains stock of a broad range of Bently Nevada 3300 XL Series components, including extension cables, Proximitor power supplies, monitor modules, and relay output cards. If you are building a comprehensive spare parts kit for a 3300 XL system — or sourcing components for a planned turnaround — contact our team with your full bill of materials for a consolidated quotation and lead time confirmation.
