Bently Nevada 330101-00-15-20-02-00 3300 XL 8mm Probe

Overview

Bently Nevada 330101-00-15-20-02-00 3300 XL 8mm Probe: Migration-Ready Replacement for Legacy Vibration Monitoring Systems

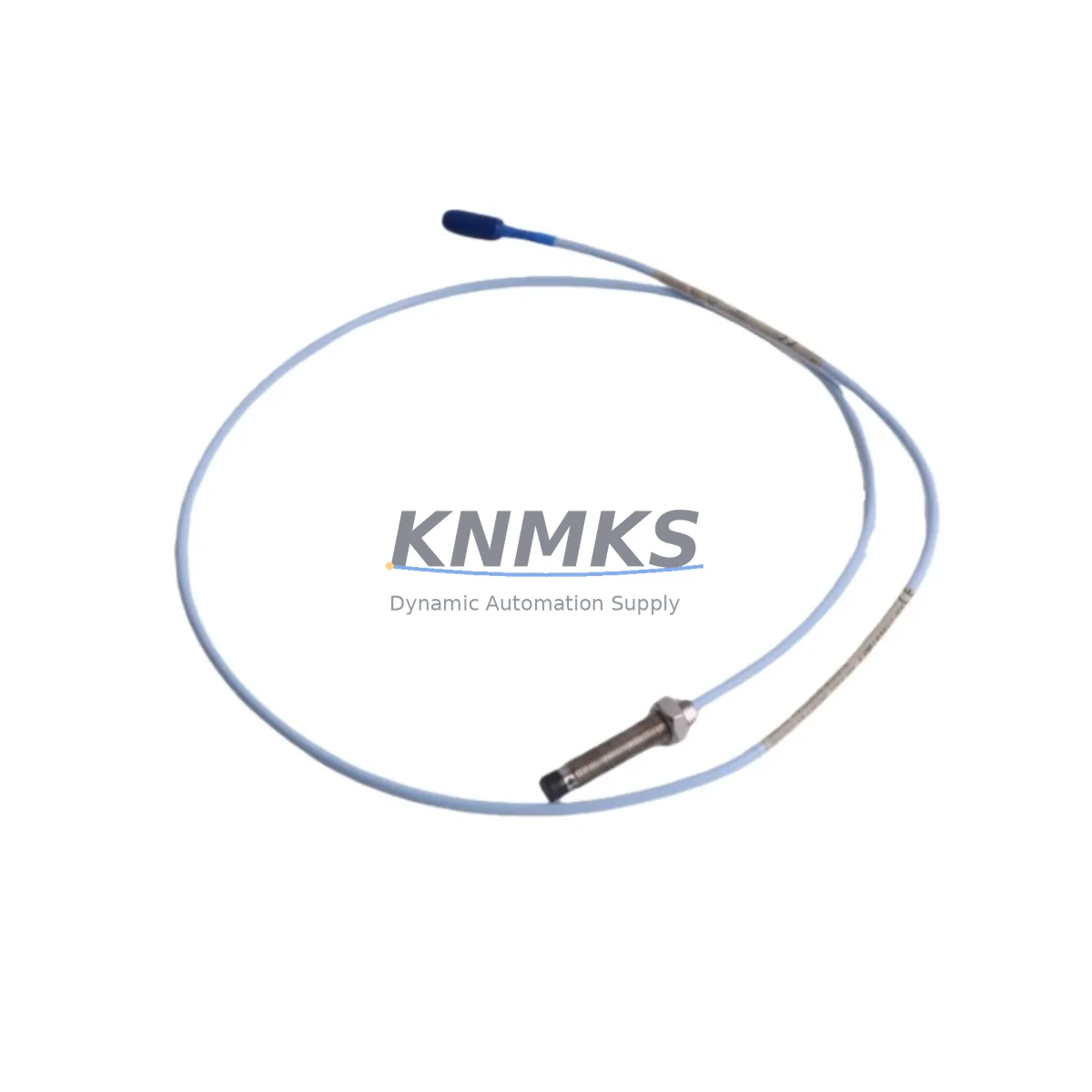

The Bently Nevada 330101-00-15-20-02-00 is an 8mm eddy-current proximity probe from the 3300 XL Series, engineered for non-contact vibration, position, and speed measurement in rotating machinery applications. This probe is widely deployed in turbines, compressors, pumps, and gearboxes across energy, petrochemical, and heavy manufacturing facilities. As legacy Bently Nevada 3300 Series systems approach end-of-support cycles, the 330101-00-15-20-02-00 remains a critical retrofit and replacement component for operators seeking to extend the service life of existing monitoring infrastructure without full platform migration.

For maintenance engineers managing aging condition monitoring systems, sourcing a verified replacement for the 330101-00-15-20-02-00 requires careful attention to cable length, sensitivity factor, measurement range, and connector compatibility. This probe ships with a 1.5-meter integral cable and is designed to interface directly with the Bently Nevada 3300 XL proximitor/driver, maintaining the standard output sensitivity of 7.87 V/mm (200 mV/mil). Replacement units are pre-tested against OEM specifications and supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance.

When integrating this probe into an existing 3300 XL monitoring loop, engineers must confirm that the proximitor driver — typically the Bently Nevada 330180 series — is calibrated to match the 8mm probe’s gap voltage curve. The standard installation gap for the 330101-00-15-20-02-00 is 1.0 mm (approximately 40 mils), corresponding to a DC output of approximately −10 VDC. Deviations from this gap during installation will shift the linear measurement range and must be corrected during field commissioning before the system is returned to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330101-00-15-20-02-00 in an operational plant environment requires a structured approach to minimize risk and ensure measurement continuity. Before removing the existing probe, maintenance teams should document the current gap voltage reading, alarm and danger setpoints configured in the Bently Nevada 3500/22M transient data interface or equivalent monitor card, and the physical routing of the probe cable through conduit or cable tray. Any changes to cable routing during replacement can introduce ground loops or signal noise that affect vibration readings.

In facilities where the 3300 XL monitoring system feeds data to a Bently Nevada 3500 Series rack-based condition monitoring system, engineers should verify that the replacement probe’s sensitivity factor is correctly entered into the monitor configuration software before re-energizing the measurement loop. Mismatched sensitivity values will cause the system to report incorrect vibration amplitude, potentially masking real machinery faults or generating nuisance trips.

For sites migrating from older 3300 Series hardware to the 3500 platform, the 330101-00-15-20-02-00 probe can often be retained as part of a phased upgrade strategy. The probe itself is compatible with 3500 Series proximitor drivers when the correct extension cable — such as the Bently Nevada 330130 series — is used to achieve the required total cable length for the driver’s calibration range. This approach avoids the cost and downtime of replacing probe installations in difficult-to-access machinery locations such as compressor bearing housings or turbine pedestals.

When the control cabinet housing the monitoring system also contains a Bently Nevada 3300/16-channel I/O module or a dedicated System 1 data acquisition node, the probe replacement should be coordinated with the I/O channel assignment review to confirm that channel-to-machine mapping remains accurate after the swap. Incorrect channel mapping following a probe replacement is a common source of post-maintenance alarm configuration errors. Additionally, if the plant uses a Bently Nevada TK-3 programming cable or equivalent interface for on-site configuration, ensure the firmware version of the connected monitor card is compatible with the configuration tool version in use at the site.

For facilities operating in hazardous area classifications (Zone 1 / Zone 2 or Class I Division 1), confirm that the replacement 330101-00-15-20-02-00 carries the appropriate ATEX or FM intrinsic safety certification for the installation zone before proceeding with the swap. Certification documentation is available upon request for compliance audits and insurance inspections.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is a primary concern for rotating equipment engineers. The 330101-00-15-20-02-00 is a field-replaceable component that does not require removal of the monitored machine from service in most installations, provided the machinery can be safely isolated from the monitoring system during the swap window. A typical replacement sequence involves: bypassing the affected channel in the monitor to suppress spurious trips, removing the probe from the bearing housing using the correct thread size (M10 x 1 for 8mm probes), installing the replacement unit, setting the gap voltage to the nominal −10 VDC, and re-enabling the monitor channel after confirming stable signal output.

To protect existing program logic and HMI display configurations during the replacement, no changes to the PLC or DCS control program are required for a like-for-like probe swap. The analog signal output from the 330101-00-15-20-02-00 is identical in format to the original unit, so SCADA trend displays, historian tags, and alarm management configurations remain valid without modification. This is a key advantage of sourcing a verified OEM-equivalent replacement rather than an incompatible substitute that may require signal conditioning or scaling adjustments at the control system level.

For planned turnaround maintenance windows, we recommend pre-staging the replacement 330101-00-15-20-02-00 on-site at least 48 hours before the scheduled swap to allow for incoming inspection, gap voltage bench verification, and documentation review. Having a spare Bently Nevada 330180 proximitor driver available during the swap is also advisable, as probe replacement sometimes reveals a degraded driver that was masked by the failing probe’s signal. Coordinating the probe replacement with a review of the overall 3300 XL system health — including power supply output voltage, rack backplane connections, and monitor card status LEDs — reduces the risk of repeat failures and extends the interval to the next maintenance intervention.

Retrofit Support FAQ

Q1: Is the 330101-00-15-20-02-00 a direct drop-in replacement for my existing 3300 XL 8mm probe?
Yes. The 330101-00-15-20-02-00 is a direct replacement for units of the same part number within the 3300 XL Series. Confirm cable length (1.5 m), thread size (M10 x 1), and connector type at the junction box before installation. No driver recalibration is required if the replacement probe matches the original specification.

Q2: Can this probe be used with the Bently Nevada 3500 Series monitoring system?
The 330101-00-15-20-02-00 is designed for the 3300 XL platform. Compatibility with the 3500 Series depends on the total cable length and the specific proximitor driver used. In many cases, the probe can be retained during a 3300-to-3500 migration by using an appropriate extension cable to meet the 3500 driver’s calibration requirements. Consult your system configuration documentation before proceeding.

Q3: What pre-shipment testing is performed on replacement units?
All replacement units are tested for output sensitivity (7.87 V/mm), gap voltage linearity, and cable continuity before shipment. A test report is available upon request. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance from the date of delivery.

Q4: What is your lead time and inventory availability for the 330101-00-15-20-02-00?
We maintain in-stock inventory of the 330101-00-15-20-02-00 to support urgent maintenance and turnaround requirements. Standard lead time for in-stock units is 1–3 business days for international shipment. For long-term supply agreements or bulk procurement, contact our sales team to discuss stocking commitments and pricing.
