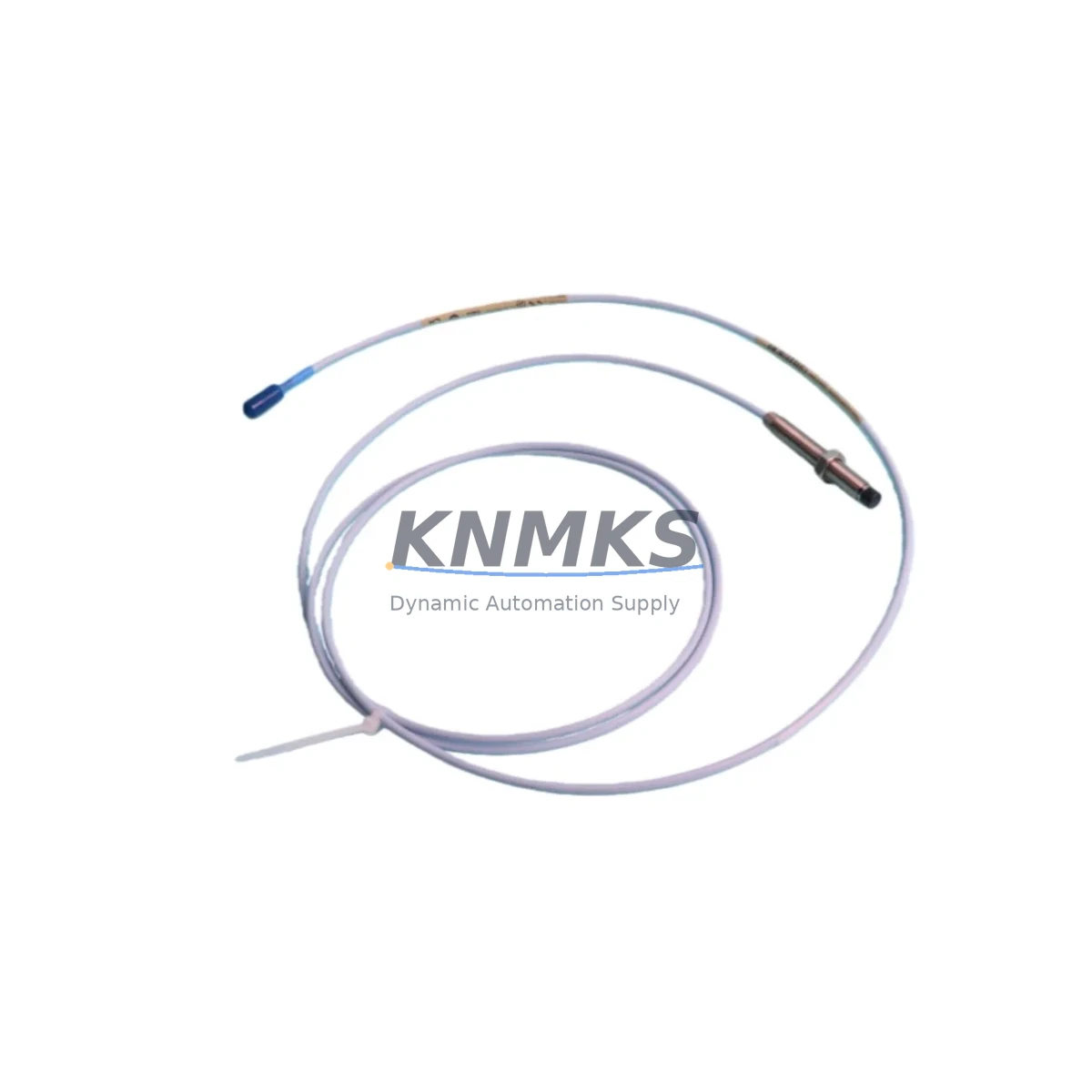

Bently Nevada 330101-00-25-05-01-05 3300 XL Spare Probe

Overview

Bently Nevada 330101-00-25-05-01-05 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330101-00-25-05-01-05 is an 8mm eddy current proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery. As a direct original spare, this probe is the preferred replacement for maintenance engineers managing turbines, compressors, pumps, and motors in energy, petrochemical, manufacturing, and infrastructure facilities. Every unit is tested prior to shipment, backed by a support terms confirmed by quotation, and available for long-term supply commitment — ensuring your critical monitoring loops remain operational without unplanned downtime.

Procurement engineers sourcing this SKU can rely on verified stock availability, documented compatibility with the 3300 XL monitoring system, and a traceable supply chain. Whether you are building a preventive maintenance spare kit, responding to an emergency shutdown, or executing a scheduled annual overhaul, the 330101-00-25-05-01-05 is a mission-critical component that should be stocked at every facility running Bently Nevada vibration monitoring systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-25-05-01-05 proximity probe during a scheduled outage or emergency shutdown, maintenance engineers should treat the replacement as an opportunity to inspect the entire vibration monitoring loop. The probe does not operate in isolation — its accuracy and reliability depend on the condition of several interconnected components within the same control cabinet and field wiring circuit.

Begin by inspecting the 330130 Series extension cable that connects the probe to the Proximitor® sensor. Cable insulation degradation, connector corrosion, or mechanical damage from vibration fatigue are common failure modes that can cause erratic gap voltage readings even after a probe replacement. Replace the extension cable if continuity or insulation resistance tests fall outside specification.

Next, verify the 3300 XL Proximitor® Sensor (330180 Series) — the signal conditioning module mounted in the field junction box or control cabinet. A faulty Proximitor® will produce incorrect –24 VDC bias voltage, leading to false vibration alarms or missed trips. Bench-test the Proximitor® with a known-good probe before reinstalling.

Within the 3500 Series monitoring rack, check the I/O module and the relevant channel card for any alarm inhibit flags, calibration offsets, or configuration drift that may have accumulated during the fault period. Confirm that the rack’s power supply module — typically a 3500/15 Power Supply — is delivering stable DC voltage to all cards, as power fluctuations are a leading cause of spurious vibration trips.

For facilities running integrated safety systems, also inspect the relay output module associated with the vibration channel. Relay contacts can weld or develop high contact resistance over time, particularly in high-cycle trip applications. Verify trip setpoints and relay response time after probe replacement to ensure the safety loop is fully functional.

Finally, review the terminal strip and field wiring in the junction box. Loose terminations, moisture ingress, and ground loops are frequent sources of noise that degrade proximity probe signal quality. Torque all terminals to specification and confirm shield grounding is intact at one end only to prevent ground loop interference.

Stocking the 330101-00-25-05-01-05 alongside its associated extension cable, Proximitor® sensor, and a spare channel card in your on-site spare parts cabinet is the most effective strategy for minimizing mean time to repair (MTTR) on rotating machinery vibration monitoring systems.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the monitoring channel at the 3500 rack. Inhibit the alarm and trip outputs for the affected channel to prevent spurious shutdowns during the replacement procedure.

Step 2 — Gap Voltage Baseline: Before removing the old probe, record the existing gap voltage reading from the rack display or DCS historian. This baseline confirms the target gap distance and helps verify correct installation of the replacement probe.

Step 3 — Probe Removal: Disconnect the extension cable at the field junction box. Unthread the probe from its mounting bracket carefully to avoid damaging the probe tip or the target surface. Inspect the target area for scoring, pitting, or runout that may affect the new probe’s accuracy.

Step 4 — New Probe Installation: Install the 330101-00-25-05-01-05 replacement probe. Set the air gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8mm probes on steel targets) using a feeler gauge or the gap voltage method. Reconnect the extension cable and verify connector seating.

Step 5 — Functional Verification: Restore power to the Proximitor® sensor and confirm the gap voltage reading at the rack is within the linear range (approximately –10 VDC for a 1.0 mm gap on a steel target). Compare against the pre-removal baseline. Clear alarm inhibits and confirm the channel is active and healthy in the DCS or safety system.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new probe serial number, installation date, gap voltage, and technician sign-off. Update the spare parts inventory to trigger a replenishment order for the consumed 330101-00-25-05-01-05 unit.

Spare Parts Support FAQ

Q1: Is the 330101-00-25-05-01-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
The 330101-00-25-05-01-05 is natively designed for the 3300 XL 8mm monitoring system. It can be used with the 3500 Series rack when paired with the appropriate 3500/42M or 3500/40M I/O module configured for 3300 XL probes. Always verify rack configuration and channel card firmware version before installation to ensure full compatibility.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-25-05-01-05 unit undergoes functional output verification and gap voltage linearity testing before shipment. Test records are available upon request. Units are packaged in anti-static, moisture-resistant packaging to maintain condition during international transit.

Q3: What is the recommended spare parts stocking strategy for this probe?
For facilities with four or more rotating machines monitored by 3300 XL systems, we recommend maintaining a minimum of two 330101-00-25-05-01-05 probes on-site, along with one matched 330130 Series extension cable and one 330180 Proximitor® sensor. This three-component kit covers the most common field failure scenarios and supports same-shift restoration of monitoring capability.

Q4: Do you offer long-term supply agreements for the 330101-00-25-05-01-05?
Yes. KNMKS supports long-term supply commitments for the 330101-00-25-05-01-05 and associated 3300 XL Series components. Annual blanket orders with scheduled releases are available to support planned maintenance programs and capital spare strategies. Contact our team to discuss volume pricing, lead time guarantees, and consignment stocking options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-25-05-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-25-05-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
