Bently Nevada 330180-X0-05 Maintenance-Proven Spare Part for Factory Uptime – Model 330180-X0-05

Overview

Bently Nevada 330180-X0-05 Maintenance-Proven Spare Part for Factory Uptime

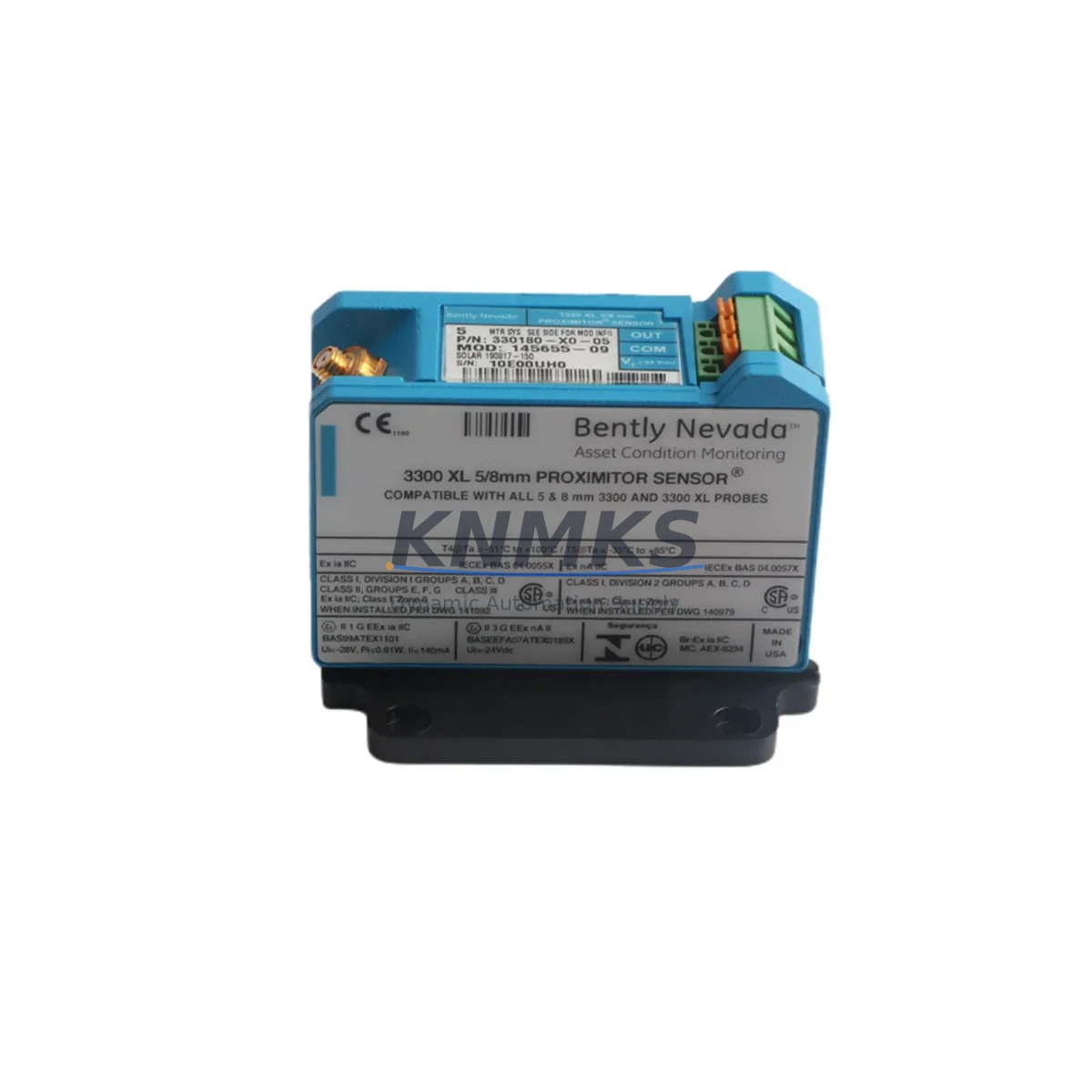

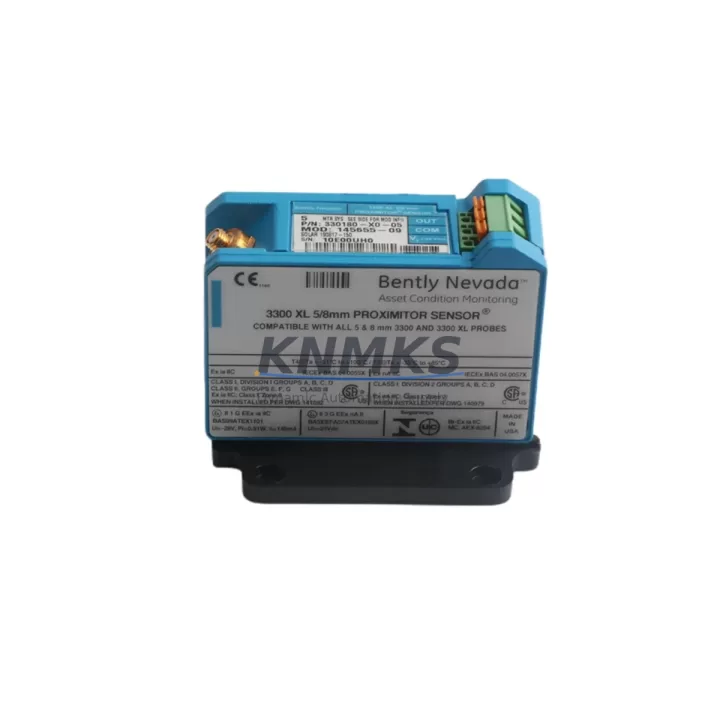

The Bently Nevada 330180-X0-05 is a precision Proximitor Sensor designed for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and motors in continuous-process facilities, keeping a verified spare of the 330180-X0-05 on the shelf is a fundamental element of any credible uptime strategy.

This unit functions as the signal conditioning interface between the eddy-current probe and the monitoring rack, converting raw proximity gap signals into calibrated voltage outputs that the 3300 XL monitor interprets for radial vibration, axial position, and eccentricity measurements. A failed or drifting Proximitor can trigger false trips, mask real faults, or cause unplanned shutdowns — all of which carry significant production and safety consequences in industrial environments.

KNMKS supplies the 330180-X0-05 as a tested, original-specification spare with a support terms confirmed by quotation, supporting maintenance teams that require reliable, traceable components for critical machinery protection circuits.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-X0-05 Proximitor Sensor is flagged for replacement — whether during a scheduled outage, a predictive maintenance review, or an emergency fault isolation — experienced maintenance engineers know that the Proximitor itself is rarely the only component that warrants attention. A thorough site inspection of the associated measurement chain and control cabinet is essential to restoring full system confidence.

Begin with the 3300 XL power supply module that feeds the Proximitor. A degraded or out-of-tolerance –24 VDC supply will cause erratic gap voltage readings even after a new Proximitor is installed. Verify output voltage under load before closing the cabinet. Similarly, inspect the extension cable connecting the probe to the Proximitor — the 330130 series armored extension cables are the correct match for this system, and any cable with damaged shielding, corroded connectors, or excessive resistance will compromise signal integrity regardless of Proximitor condition.

At the probe end, confirm that the 3300 XL eddy-current probe (such as the 330101 or 330103 series) is within its calibrated gap range and shows no physical damage to the probe tip or body. A worn probe paired with a new Proximitor will still produce unreliable vibration data. Check the 3300 XL monitor module in the rack for any stored fault codes, and verify that the channel configuration — scale factor, full-scale range, and alert/danger setpoints — matches the replacement Proximitor’s specifications.

For facilities running integrated machinery protection systems, also inspect the 3500 series rack interface or any System 1 software data acquisition nodes connected to this measurement point. A Proximitor replacement is an appropriate time to validate the full signal path from probe tip to historian. If the control cabinet includes signal isolators or barriers on the Proximitor output — common in hazardous-area installations — verify that the isolator’s input impedance and voltage range remain compatible with the 330180-X0-05 output characteristics.

Finally, review the terminal block and wiring connections within the cabinet. Loose or oxidized terminals on the Proximitor signal wiring are a frequent source of intermittent faults that are misdiagnosed as Proximitor failures. Torque all terminals to specification and apply appropriate contact protection where corrosion is a risk.

Stocking a minimum of one 330180-X0-05 per monitored machine train — alongside matched extension cables and a spare power supply module — is a widely adopted practice in petrochemical, power generation, and heavy manufacturing facilities where unplanned downtime costs far exceed the cost of a well-managed spare parts inventory.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the existing Proximitor, record the current gap voltage on the channel (typically displayed on the 3300 XL monitor front panel or via System 1). This baseline confirms probe-to-shaft gap and provides a reference for post-installation verification.

Step 2 — De-energize the channel. Remove power from the affected 3300 XL monitor channel or rack power supply. Do not hot-swap the Proximitor without confirming the monitor’s hot-swap capability for this specific configuration.

Step 3 — Disconnect and remove. Disconnect the extension cable from the Proximitor input connector and the monitor output connector. Note the cable routing and any strain relief arrangements before removal.

Step 4 — Install the 330180-X0-05 replacement. Mount the new Proximitor in the same orientation and location. Reconnect the extension cable and monitor output wiring, ensuring connector locking mechanisms are fully engaged.

Step 5 — Re-energize and verify gap voltage. Restore power and confirm that the gap voltage reading on the replacement Proximitor matches the previously recorded baseline within ±0.5 VDC. A significant deviation indicates a probe gap adjustment or probe replacement may be required.

Step 6 — Functional test. Confirm that the monitor channel clears any latched faults, that alert and danger setpoints are active, and that the signal is being correctly received by the data acquisition system. Document the replacement in the equipment maintenance record.

This workflow applies equally to planned annual outage replacements and emergency in-service swaps. The 330180-X0-05’s direct compatibility with the 3300 XL rack infrastructure means no reconfiguration of the monitor module is required when replacing a like-for-like unit, minimizing the risk of configuration errors during time-critical maintenance windows.

Spare Parts Support FAQ

Q1: Is the 330180-X0-05 a direct drop-in replacement for other 3300 XL Proximitor models?
The 330180-X0-05 is designed for specific probe and cable combinations within the 3300 XL system. Before installation, confirm that the replacement unit’s scale factor and output range match the existing monitor channel configuration. KNMKS technical support can assist with compatibility verification based on your existing probe and cable part numbers.

Q2: What does the support terms confirmed by quotation cover?
All 330180-X0-05 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment. Support requests are supported with replacement or refund, subject to inspection of the returned unit.

Q3: How should the 330180-X0-05 be stored as a long-term shelf spare?
Store in original packaging or anti-static packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect connector pins for oxidation annually and rotate stock on a first-in, first-out basis. Shelf life under proper storage conditions is typically 5–7 years.

Q4: Can KNMKS support long-term or repeat supply of the 330180-X0-05?
Yes. KNMKS maintains ongoing sourcing relationships for Bently Nevada 3300 XL series components and can support blanket orders, scheduled deliveries, and emergency stock requests. Contact [email protected] or +86 18359268345 to discuss volume pricing and supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330180-X0-05
Bently Nevada 3300 XL / 3301 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 330180-X0-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
