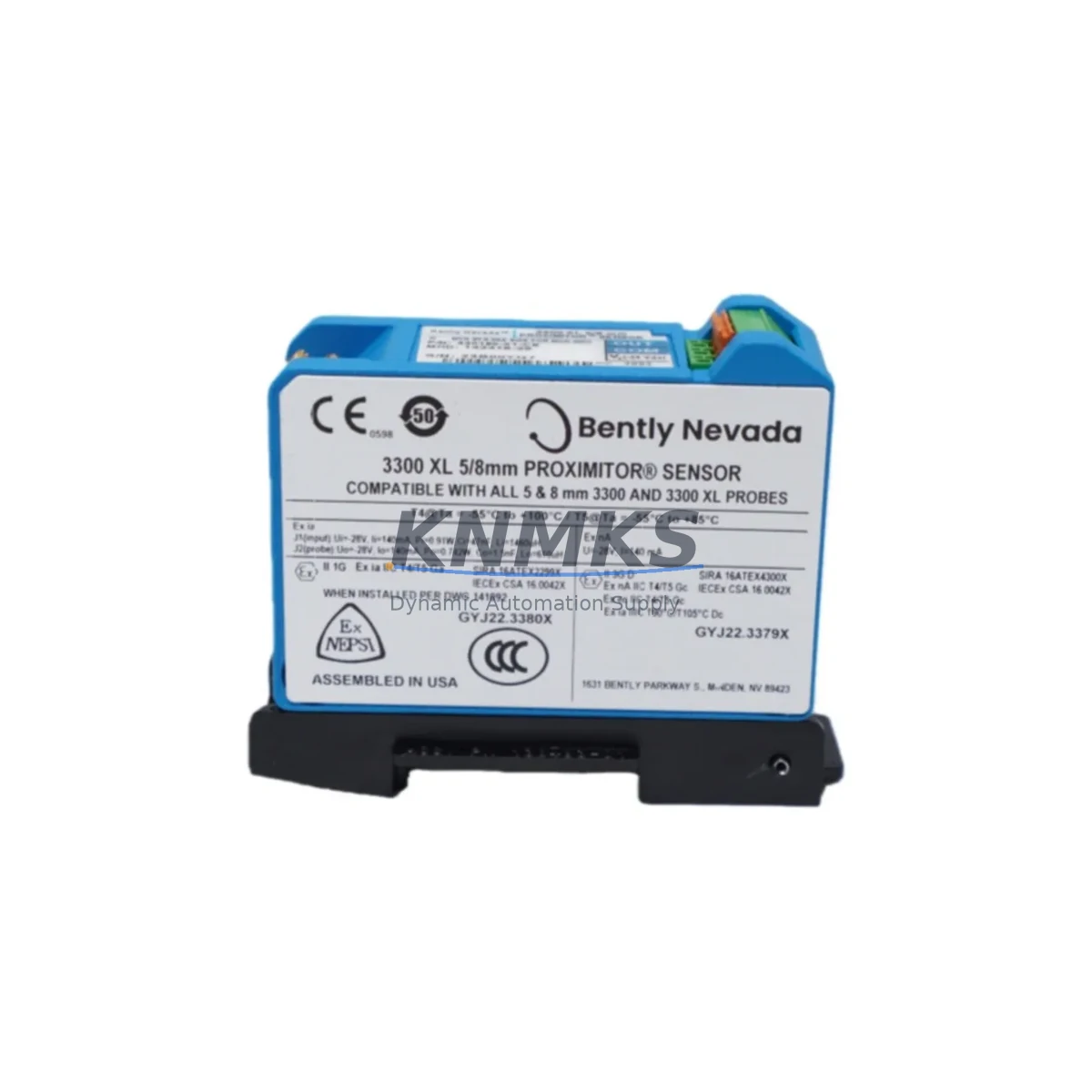

The Bently Nevada 330180-X0-05 MOD:145193-01 is an original proximitor sensor designed for continuous vibration monitoring within the 3300 XL Series machinery protection system. Engineered for high-reliability industrial environments — including turbine trains, compressors, pumps, and rotating equipment in petrochemical, power generation, and heavy manufacturing facilities — this spare part is a critical component in any maintenance engineer’s uptime strategy.

At KNMKS, every 330180-X0-05 unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a support terms confirmed by quotation. Whether you are responding to an unplanned shutdown, building a preventive maintenance stock, or executing a scheduled annual overhaul, this proximitor sensor is available for fast international shipment with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 330180-X0-05 proximitor sensor does not operate in isolation. It is the signal-conditioning heart of an eddy current measurement chain that begins at the probe tip and ends at the 3300 XL monitor rack. When a maintenance or procurement engineer plans a replacement, the entire measurement loop must be evaluated to avoid repeat failures and ensure measurement accuracy after restoration.

Start with the 330100-90-00 or 330130-080-00-00 proximity probe — the physical sensing element installed adjacent to the rotating shaft. Probe tip wear, contamination, or mechanical damage is a common root cause of proximitor signal anomalies. Inspect the probe gap (typically 1.0–2.0 mm depending on probe type) and verify the gap voltage is within the linear range of the proximitor output curve.

Next, examine the 330180-series extension cable connecting the probe to the proximitor. Cable shield integrity, connector corrosion, and insulation breakdown are frequent failure points in high-vibration or high-temperature environments. A damaged extension cable will produce erratic gap voltage readings that can be misdiagnosed as a proximitor fault.

Within the 3300 XL rack, verify the 3300/16 or 3300/20 monitor module that receives the proximitor output. If the monitor is logging intermittent OK/Not OK transitions or gap voltage out-of-range alarms, the fault may originate in the proximitor, the probe assembly, or the monitor input circuit itself. Swap components systematically to isolate the fault before committing to a full replacement.

The 3300 XL power supply module (typically -24 VDC) must also be verified. An under-voltage or ripple condition on the proximitor supply rail will shift the output bias and produce false vibration readings. Use a calibrated multimeter to confirm supply voltage at the proximitor terminal before condemning the sensor.

For facilities running integrated machinery protection, the 3500/22M transient data interface or 3500/42M proximitor I/O module may be part of the signal path. Confirm that rack configuration and channel assignments are correctly mapped after any proximitor replacement to avoid alarm suppression or incorrect trip setpoints.

Finally, if the 3300 XL system interfaces with a DCS or SCADA platform via 4–20 mA output or Modbus/RS-485 communication, verify that the analog output scaling and communication parameters are restored correctly after the replacement. A misconfigured output range can mask real vibration events and create a false sense of operational safety.

Maintaining a minimum stock of one spare 330180-X0-05 proximitor, one matched probe assembly, and one extension cable per critical machine train is a recognized best practice in rotating equipment maintenance programs. This ensures that mean time to repair (MTTR) is minimized and that production lines can be restored within a single shift following an unplanned trip.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the existing proximitor, record the current gap voltage, vibration amplitude, and any active alarms from the 3300 XL monitor. Photograph the wiring and connector orientation. Confirm that the machine is safely de-energized or that the replacement can be performed under live-monitor conditions per your site safety procedure.

Step 2 — Remove the faulty unit. Disconnect the extension cable from the proximitor output connector. Remove the proximitor from the rack or mounting bracket. Inspect the connector pins and cable termination for corrosion or mechanical damage before installing the replacement.

Step 3 — Install the 330180-X0-05 replacement. Mount the new proximitor in the same position. Reconnect the extension cable. Verify that the connector is fully seated and that the cable routing does not introduce mechanical stress on the connector body.

Step 4 — Verify gap voltage and signal. Power up the measurement chain and confirm that the gap voltage is within the linear range specified for the probe type in use (typically -10 VDC ± 2 VDC at nominal gap). Use the 3300 XL monitor display or a calibrated voltmeter at the proximitor output terminal to verify the reading.

Step 5 — Clear alarms and confirm system status. Reset any latched alarms on the 3300 XL monitor. Confirm that the OK relay is energized and that the vibration reading is stable and within normal operating range. Document the replacement in the equipment maintenance log with the new part number, MOD revision, and installation date.

Step 6 — Return to service. Notify the control room that the measurement loop has been restored. Monitor the first 30 minutes of operation for any anomalous readings. Archive the replaced unit for failure analysis if required by your maintenance program.

This workflow is applicable whether you are replacing a like-for-like 330180-X0-05 or upgrading from an earlier 330180 revision. The 3300 XL system architecture supports direct replacement without rack reconfiguration in most standard installations, minimizing downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 330180-X0-05 MOD:145193-01 compatible with both the 3300 XL and 3500 Series racks?
The 330180-X0-05 is natively designed for the 3300 XL Series. Compatibility with 3500 Series racks depends on the specific monitor module and I/O configuration. In many installations, the 330180 proximitor is used with 3500/42M or 3500/40M I/O modules when the probe and extension cable assembly is shared between systems. Always verify the rack configuration drawing and Bently Nevada compatibility matrix before installation. KNMKS technical support can assist with compatibility confirmation prior to order.

Q2: What testing is performed before the unit is dispatched?
Every 330180-X0-05 unit supplied by KNMKS undergoes functional verification including supply voltage acceptance, output bias voltage check, and signal linearity confirmation before dispatch. Units that do not meet original specification are not shipped. A test report is available upon request for critical applications. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q3: How should we manage long-term spare parts inventory for the 3300 XL system?
For facilities with multiple 3300 XL-protected machine trains, we recommend maintaining at least one spare proximitor per machine type, along with matched probe and extension cable assemblies. Given that the 3300 XL platform is a mature product line, sourcing lead times for original spares can vary. Establishing a long-term supply agreement with KNMKS ensures priority access to stock and reduces the risk of extended downtime due to parts unavailability. Contact [email protected] to discuss consignment or reserved stock arrangements.

Q4: What is the support terms coverage and what does it include?
KNMKS provides a support terms confirmed by quotation on all supplied spare parts including the 330180-X0-05. The support terms covers functional failure under normal operating conditions and excludes damage caused by incorrect installation, overvoltage, mechanical impact, or environmental conditions outside the specified operating range. In the event of a support terms claim, KNMKS will arrange replacement or repair with priority handling to minimize impact on your maintenance schedule. Contact [email protected] with your order reference and fault description to initiate a claim.
