Bently Nevada 330130-085-01-00 Maintenance Spare for 3300 XL

Overview

Bently Nevada 330130-085-01-00 Maintenance Spare for 3300 XL

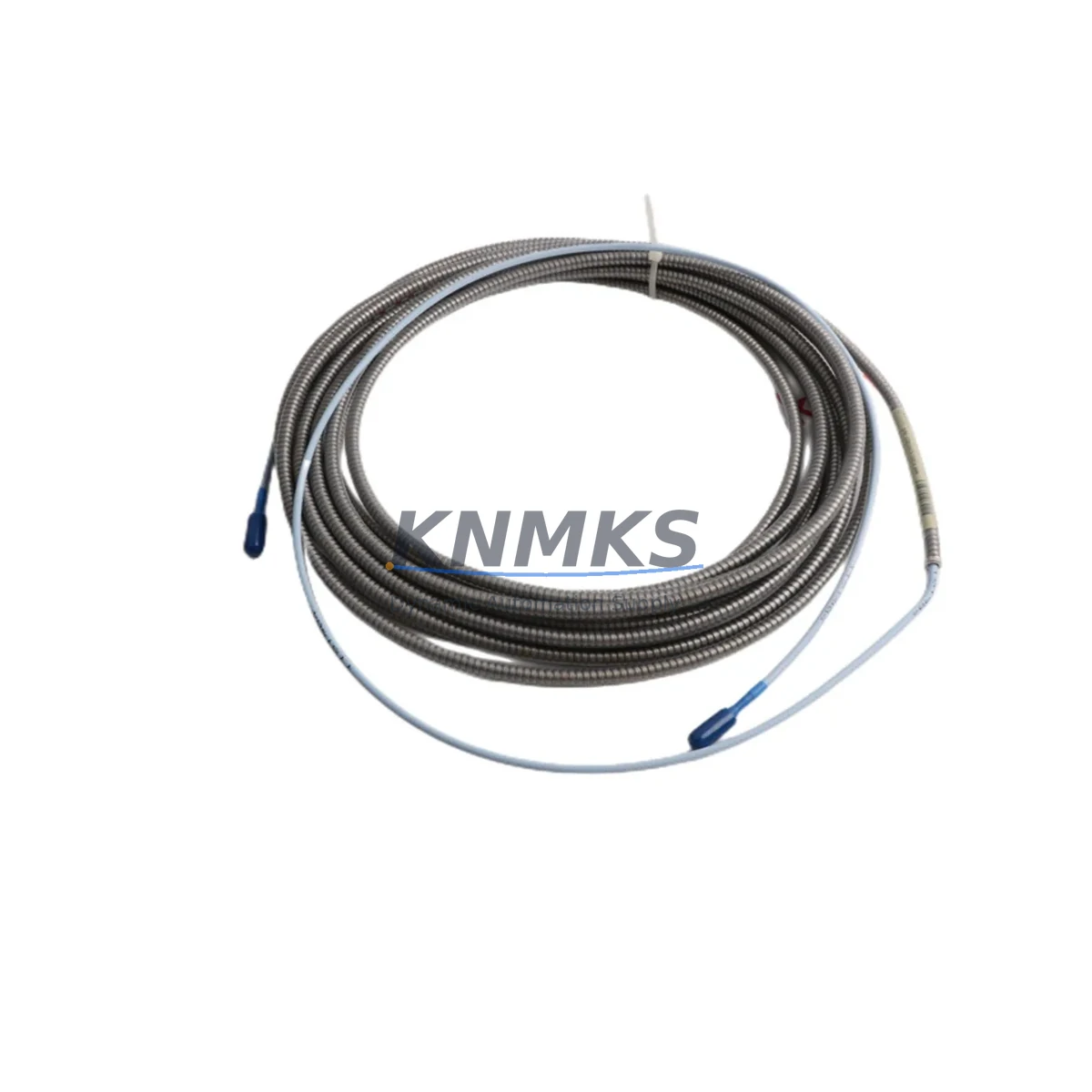

The Bently Nevada 330130-085-01-00 is an 8.5-metre (28-foot) extension cable engineered specifically for the 3300 XL Series proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection worldwide. This cable forms the critical signal path between the proximity probe tip and the Bently Nevada 3300 XL proximitor/driver, transmitting raw eddy-current displacement signals with the precision that turbine, compressor, pump, and motor protection systems demand. Stocking a verified original replacement ensures your maintenance team can restore full vibration monitoring capability within minutes of a cable fault, avoiding the extended downtime that results from sourcing delays on safety-critical instrumentation.

For maintenance engineers managing gas turbines, steam turbines, centrifugal compressors, or large induction motors, the extension cable is a consumable-class spare that should be held on-site at all times. Cable degradation — caused by mechanical abrasion, thermal cycling, chemical exposure, or connector corrosion — is among the most common root causes of spurious vibration trips and false high-vibration alarms. Replacing the 330130-085-01-00 with a factory-matched cable eliminates signal attenuation errors and restores the calibrated gap voltage range required by the 3300 XL monitor cards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-085-01-00 extension cable is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers treat the event as a trigger for a broader inspection of the entire proximity transducer loop. The cable does not operate in isolation — its performance is directly coupled to the condition of the 3300 XL 8mm proximity probe (typically a 330103-00-08-10-02-00 or equivalent), the Bently Nevada 3300 XL Proximitor driver module, and the monitor rack card that processes the gap voltage signal.

Begin by inspecting the probe tip for mechanical damage, pitting, or contamination from shaft coatings. A worn probe tip will produce a non-linear gap voltage curve regardless of cable condition. Next, verify the Proximitor driver output voltage at the recommended 1.0 mm gap — the 3300 XL system specifies approximately -10 VDC at this gap for standard 8mm probes. If the driver output is outside tolerance, the 3300 XL Proximitor module itself may require replacement alongside the cable.

Check all cable routing for pinch points, sharp bends exceeding the minimum bend radius, and contact with hot surfaces. In turbine applications, heat-resistant conduit or ceramic-fibre sleeving should be verified intact. Inspect the junction box or terminal block where the extension cable connects to the field wiring — corroded terminals or loose set-screws introduce resistance that shifts the gap voltage baseline and can cause nuisance trips on the 3300 XL monitor cards.

For sites running Bently Nevada System 1 condition monitoring software, confirm that the channel configuration reflects the correct probe/cable/driver combination after replacement. Mismatched transducer system parameters in System 1 will produce incorrect engineering-unit conversions even if the hardware is functioning correctly. Also verify the 3300 XL I/O module terminal assignments and any 4–20 mA output cards connected downstream to the DCS or safety system — a cable swap is an ideal time to confirm loop integrity end-to-end.

Sites with older 3300 Series (non-XL) installations should note that the 330130-085-01-00 is designed for the 3300 XL transducer system. Mixing XL and non-XL components can produce calibration errors; always confirm system generation before ordering. Procurement teams should also consider holding a minimum of two extension cables per critical machine train, alongside a spare Proximitor driver and at least one probe assembly, to support a complete transducer loop swap during a forced outage.

Site Replacement Workflow

Step 1 — Isolate and document: Before disconnecting the existing cable, record the current gap voltage reading from the 3300 XL monitor or System 1 display. This baseline confirms the shaft position reference and allows post-installation verification.

Step 2 — De-energise the proximitor circuit: Follow site LOTO procedures. The 3300 XL Proximitor operates on -24 VDC supplied from the monitor rack; confirm power is isolated before disconnecting connectors.

Step 3 — Remove the old cable: Unscrew the MIL-style connectors at both the probe end and the Proximitor end. Inspect the connector threads and O-rings on the probe and driver for wear — replace O-rings if compressed or cracked to maintain IP rating.

Step 4 — Install 330130-085-01-00: Route the new cable following the original path. Avoid sharp bends. Torque connectors to the specified value (typically finger-tight plus 1/4 turn for MIL-C-5015 style). Do not over-torque.

Step 5 — Re-energise and verify: Restore power and read the gap voltage. Compare to the pre-removal baseline. A deviation greater than ±0.5 VDC at the same physical gap indicates a probe, driver, or installation issue requiring further investigation before returning the machine to service.

Step 6 — Update maintenance records: Log the replacement in your CMMS with the new cable serial number, installation date, and post-installation gap voltage. This data supports future predictive maintenance intervals and support terms tracking.

Spare Parts Support FAQ

Q1: Is the 330130-085-01-00 compatible with both 3300 XL and older 3300 Series systems?
The 330130-085-01-00 is specified for the 3300 XL transducer system. While the connector format may appear similar to older 3300 Series cables, mixing XL and non-XL components can introduce calibration offsets. Always verify your system generation — 3300 XL or 3300 — before ordering. If you are unsure, provide your Proximitor driver part number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on this cable?
Each 330130-085-01-00 is inspected for connector integrity, cable continuity, and insulation resistance before dispatch. Units are shipped in anti-static, moisture-resistant packaging with a test record. Our support terms confirmed by quotation cover manufacturing defects and electrical performance from the date of delivery.

Q3: How should we manage long-term supply for critical machine trains?
For machines classified as critical or essential in your asset hierarchy, we recommend holding a minimum of two extension cables per machine train in your on-site spare parts store, with a replenishment trigger set at one unit. We support blanket purchase orders and scheduled delivery programs to maintain your buffer stock without capital lock-up. Long-term supply agreements are available for multi-site operations.

Q4: Can this cable be used as a direct drop-in replacement without re-calibrating the 3300 XL system?
Yes — provided the replacement cable is the same part number (330130-085-01-00) and is paired with the original probe and Proximitor driver. The 3300 XL system calibration is set for the matched transducer system (probe + cable + driver). Substituting a different cable length or part number will shift the gap voltage curve and require re-calibration. Always replace like-for-like to maintain system accuracy and avoid nuisance trips.
