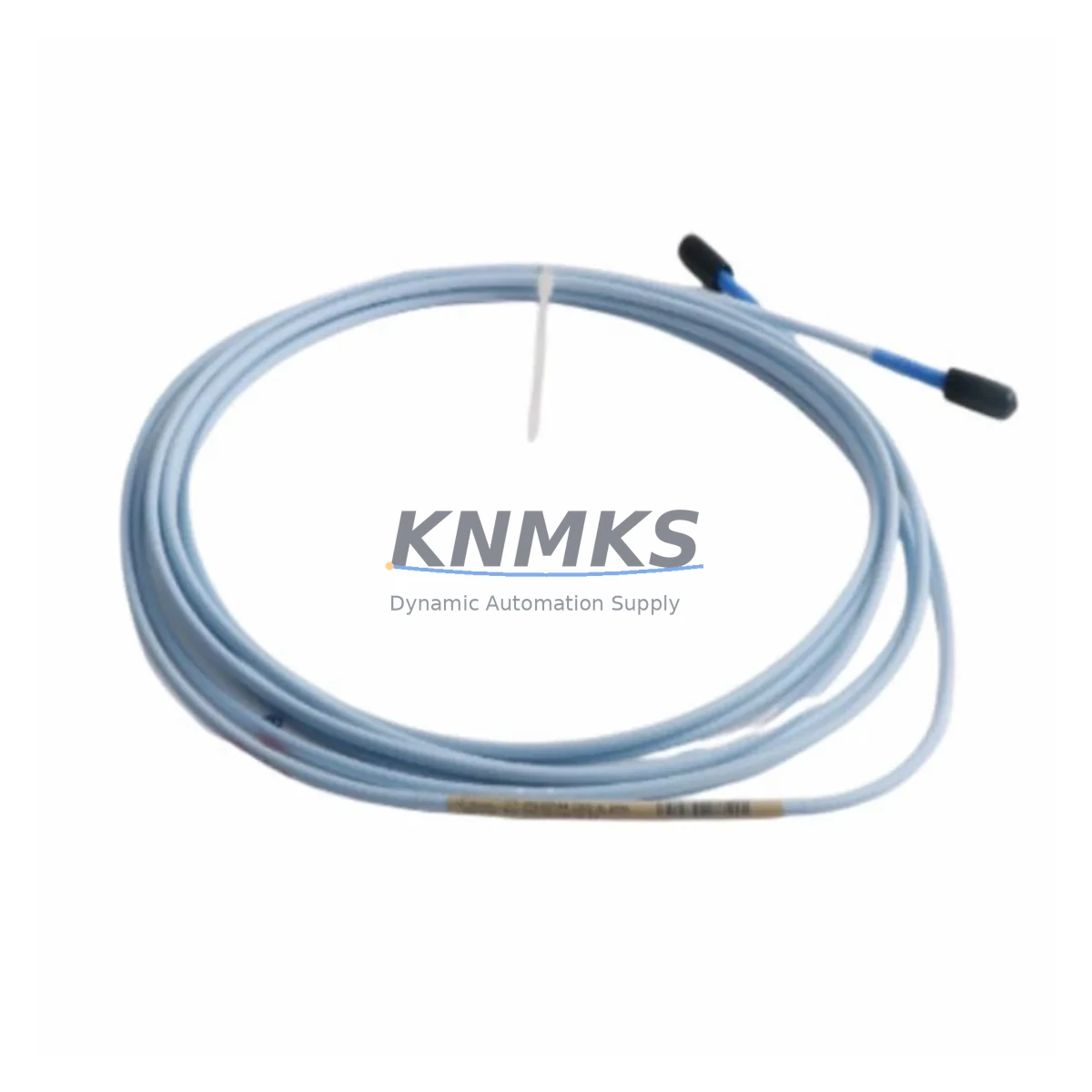

The Bently Nevada 330130-040-00-05 is a 4.0-metre extension cable engineered for the 3300 XL 8mm Proximity Transducer System — one of the most widely deployed eddy-current vibration monitoring platforms in rotating machinery applications worldwide. Designed to bridge the gap between the proximitor/driver and the transducer probe, this cable is a precision-matched, field-replaceable component that directly affects measurement accuracy, signal integrity, and overall system reliability.

For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process environments, the 330130-040-00-05 is a critical line-item on every annual inspection checklist. Cable degradation — caused by mechanical abrasion, thermal cycling, chemical exposure, or connector corrosion — is one of the leading causes of false vibration alarms and unplanned shutdowns in condition monitoring systems. Keeping a verified spare on the shelf eliminates the risk of extended downtime while awaiting procurement.

Each unit shipped from KNMKS undergoes pre-shipment electrical continuity and impedance verification to confirm it meets Bently Nevada 3300 XL system specifications. A support terms confirmed by quotation cover manufacturing defects and electrical performance, giving procurement engineers confidence in long-term supply commitments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-040-00-05 extension cable during a scheduled outage or emergency intervention, a disciplined maintenance engineer will not stop at the cable alone. The 3300 XL proximity measurement chain is a matched system: probe, extension cable, and proximitor must be treated as an integrated assembly. If the extension cable has degraded, the 330103-00-08-10-02-00 8mm proximity probe at the machine end should be inspected for tip wear, thread damage, and gap-setting drift. Similarly, the 330180-X1-05 proximitor sensor mounted in the junction box should be checked for output voltage stability and connector integrity.

Beyond the transducer chain itself, the broader vibration monitoring loop warrants attention. The 3500/42M or equivalent Bently Nevada vibration monitor card in the 3500 rack receives the proximitor output; verify that the input channel is reading within the –10 VDC to –18 VDC linear range after cable replacement and gap re-setting. If the rack houses a 3500/22M transient data interface or a 3500/92 communication gateway module, confirm that the channel mapping and alarm setpoints remain intact after any configuration changes triggered by the maintenance event.

At the cabinet level, inspect the terminal blocks and field wiring between the junction box and the monitor rack. Corroded or loose terminations on the coaxial signal path introduce noise that mimics real vibration events. Check the 24 VDC instrument power supply feeding the proximitor — voltage sag below specification directly affects the output scale factor and can cause nuisance trips. If the installation uses a signal isolator or barrier between the hazardous-area junction box and the safe-area monitor rack, verify that the isolator’s frequency response is adequate for the vibration frequencies of interest (typically 0–10 kHz for machinery diagnostics).

For annual inspection cycles, it is good practice to maintain at least one spare 330130-040-00-05 per monitored machine train, alongside a matched probe and a spare proximitor. This three-component kit approach ensures that any element of the measurement chain can be swapped within a single shift, minimising mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

1. Isolate and de-energise. Confirm the monitor channel is in bypass or alarm inhibit mode before disconnecting the cable. This prevents false trips to the control system or safety instrumented system (SIS) during the swap.

2. Document the existing gap voltage. Record the proximitor output voltage (typically –10 VDC at the nominal air gap) before removal. This baseline is your reference for re-commissioning after the new cable is installed.

3. Disconnect and inspect connectors. Examine both the probe-end and proximitor-end connectors for corrosion, bent pins, or damaged dielectric. Clean with appropriate contact cleaner if required. Do not reuse a cable with cracked jacket or damaged connectors.

4. Install the 330130-040-00-05. Route the replacement cable following the original cable path. Avoid sharp bends below the minimum bend radius. Secure with cable ties at the same support points as the original.

5. Re-set the probe gap. Using a calibrated digital voltmeter, adjust the probe gap to achieve the target output voltage per the machine’s original commissioning record. Typical target: –10.0 VDC ± 0.5 VDC at the nominal gap.

6. Verify system response. Remove the bypass, confirm the monitor channel reads correctly, and check that vibration and position values are within expected ranges at normal operating speed. Log the replacement in the maintenance management system (CMMS) with the new cable serial number and date.

This workflow is compatible with legacy 3300 XL installations and with systems that have been partially migrated to the Bently Nevada 3500 platform, ensuring continuity across mixed-generation control cabinet configurations.

Spare Parts Support FAQ

Q1: Is the 330130-040-00-05 compatible with both the 3300 XL and 3500 series monitor racks?
The 330130-040-00-05 is a cable component within the 3300 XL 8mm transducer system. It is compatible with any monitor rack — including 3500 series cards — that accepts the standard 3300 XL proximitor output signal. The cable itself does not interface directly with the rack; compatibility is determined by the proximitor model and the rack’s input channel specification.

Q2: How do I verify the cable is the correct length for my installation?
The total system cable length (extension cable + integral cable of the probe) must match the proximitor’s calibrated range. For the 330130-040-00-05 (4.0 m extension), confirm that the sum of the probe integral cable length and 4.0 m falls within the proximitor’s specified total cable length. Mismatched total length shifts the output scale factor and affects measurement accuracy.

Q3: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and verified electrical performance failures under normal operating conditions. To initiate a claim, contact [email protected] with the order number, installation date, and a description of the failure mode. KNMKS will arrange inspection and, where applicable, replacement or credit within the confirmed support period.

Q4: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for the 330130-040-00-05 and related 3300 XL system components. This is particularly relevant for operators managing large fleets of rotating machinery who require guaranteed stock availability to meet planned maintenance schedules. Contact [email protected] or +86 18359268345 to discuss volume pricing and delivery scheduling.
