Bently Nevada 330106-05-30-15-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330106-05-30-15-02-00 Migration-Ready Proximity Probe for Legacy Vibration Monitoring Systems

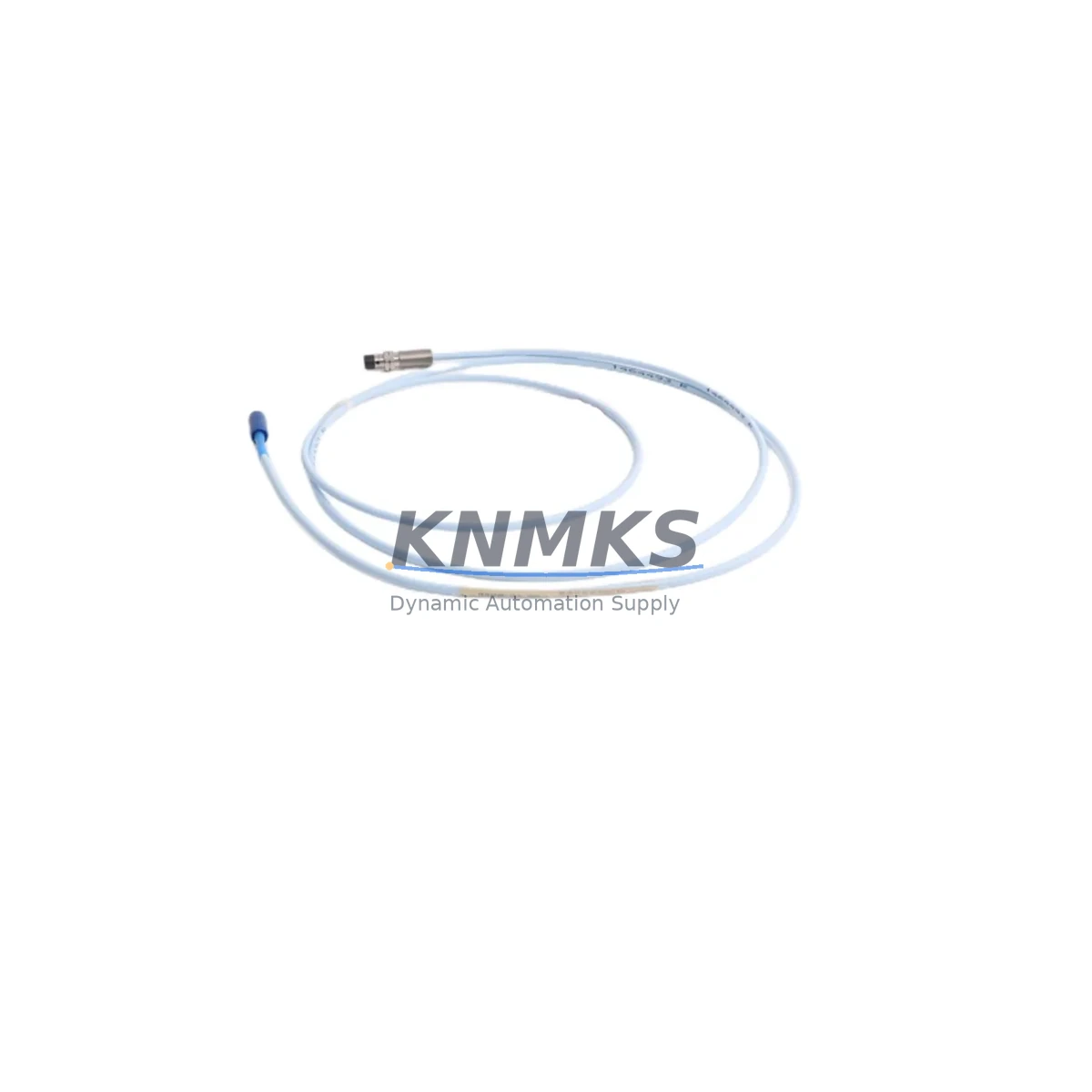

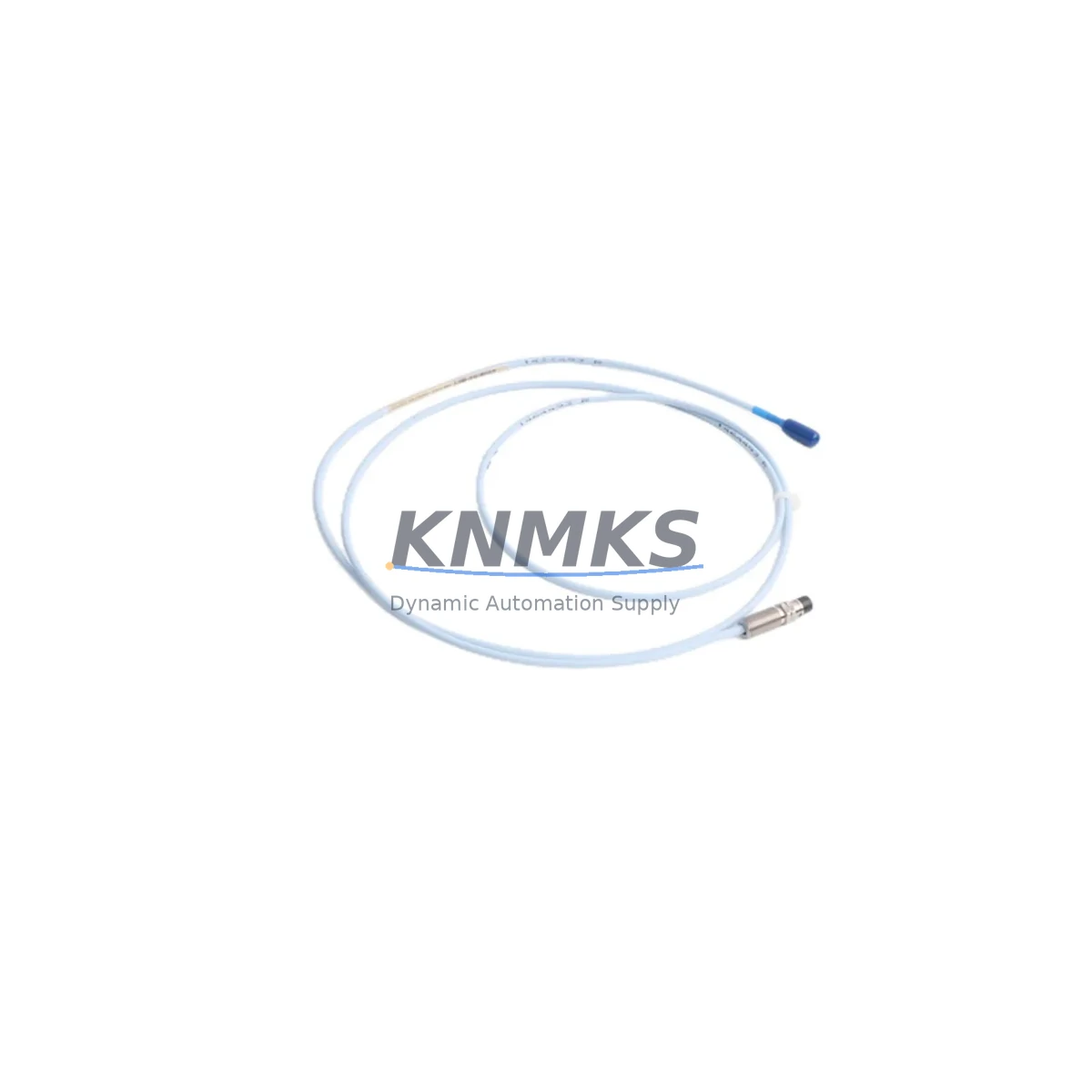

The Bently Nevada 330106-05-30-15-02-00 is an 8mm eddy current proximity probe engineered for continuous shaft vibration and position measurement in rotating machinery protection systems. Designed as a direct, migration-ready replacement for legacy 3300 XL monitoring architectures, this probe supports seamless integration into existing control cabinets, DCS environments, and turbomachinery protection panels without requiring structural modifications to the probe mounting boss or conduit routing.

For maintenance engineers and reliability teams managing aging vibration monitoring infrastructure, the 330106-05-30-15-02-00 addresses the most critical challenge in legacy system migration: maintaining measurement continuity while transitioning from discontinued probe assemblies. The probe’s standardised 8mm tip diameter, 5-metre integral cable, and -15 Vdc driver compatibility ensure that existing field wiring, terminal blocks, and proximitor housings can be retained during the upgrade cycle, significantly reducing both engineering hours and planned downtime windows.

When planning a retrofit around this probe, engineers must verify several key parameters before commissioning. Power supply capacity at the proximitor enclosure should be confirmed against the -24 Vdc nominal input requirement. Terminal wiring at the junction box must be inspected for correct polarity and shield grounding continuity, particularly in installations where the original cable has been spliced or re-terminated. The Bently Nevada 3300 XL Proximitor — commonly the 330180-91-00 signal conditioner — must be confirmed as compatible with the 330106 probe series before the assembly is energised. If the existing proximitor is also being replaced as part of a broader system refresh, the 330130-080-01-00 extension cable should be evaluated to ensure the total system length remains within the linear range specification.

Backplane interface and rack slot assignments are equally important during migration. In installations using the 3500 Series machinery protection rack, module address configuration must be reviewed in the 3500/22M Transient Data Interface or equivalent monitor card to ensure the replacement probe assembly is correctly mapped to the existing channel. HMI display tags and alarm setpoints configured in the operator workstation or DCS historian should be validated post-installation to confirm that gap voltage, direct vibration, and 1X/2X vector readings are being received within expected engineering units.

Communication link integrity between the 3500 rack and the plant DCS — whether via Modbus RTU, FOUNDATION Fieldbus, or Ethernet/IP — should be verified using the existing I/O mapping before the system is returned to service. Where the control system includes a Bently Nevada 3500/42M Proximitor I/O module, the channel configuration file should be backed up prior to any hardware swap to protect against accidental parameter loss during firmware updates or module reseating.

Installation space confirmation is a frequently overlooked step in proximity probe retrofits. The 330106-05-30-15-02-00 uses a standard M10 x 1 mounting thread with a 5/8-inch hex body, compatible with the majority of existing probe holders used across compressor, turbine, and pump applications. However, where the original probe was installed with a custom armour-jacketed cable or a non-standard extension, the replacement cable routing must be re-evaluated to avoid mechanical interference with rotating components or thermal insulation.

Firmware compatibility at the monitor card level should also be confirmed. Older 3300 XL monitor cards running early firmware revisions may require a software update to correctly process the gap voltage output from the 330106 series probe when paired with a replacement proximitor. Bently Nevada’s System 1 software platform, if in use at the facility, should be updated to the current release to ensure full diagnostic visibility during and after the retrofit.

For sites managing a broader control system modernisation — including migration from legacy PLCs to current-generation controllers, or integration of new Bently Nevada 3701/15 standalone condition monitoring units — the 330106-05-30-15-02-00 provides a stable, in-production probe assembly that bridges the gap between discontinued hardware and modern monitoring platforms. Its availability as a stocked, tested unit with a support terms confirmed by quotation makes it a reliable choice for both emergency replacement and planned maintenance outage scheduling.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit begins well before the maintenance window opens. For facilities running the Bently Nevada 3500 Series machinery protection platform, the recommended pre-outage checklist includes: downloading the current channel configuration from the 3500/22M Transient Data Interface, exporting alarm and setpoint tables from System 1, and confirming that the replacement 330180-91-00 proximitor is staged and tested alongside the 330106-05-30-15-02-00 probe assembly.

Where the retrofit scope extends beyond the probe itself — for example, when the control cabinet is being upgraded to accommodate a new Bently Nevada 3701/15 standalone monitor or a 3500/42M I/O expansion module — the rack power budget must be recalculated to account for the additional current draw. The existing 3500/15 Power Supply module should be verified against the updated load list before any new modules are installed in the rack.

Terminal block wiring at the field junction box is a common source of commissioning delays. Engineers should confirm that the shield drain wire from the 330106 probe cable is terminated at a single grounding point to prevent ground loops that can introduce noise into the vibration signal. Where the original installation used a 330130-080-01-00 extension cable, the connector condition at both the probe and proximitor ends should be inspected and cleaned before the new probe is connected.

For sites also upgrading their HMI or historian platform, the gap voltage output from the replacement probe assembly should be trended over the first 72 hours of operation to confirm that the new probe is tracking correctly against the shaft surface and that no mechanical runout or electrical noise is being introduced by the retrofit. Signal isolation requirements between the proximitor output and the DCS analogue input card should be reviewed, and a signal isolator inserted if the cable run exceeds recommended lengths or crosses high-voltage cable trays.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured approach to pre-staging, configuration backup, and post-installation verification. For the 330106-05-30-15-02-00, the recommended sequence is: (1) confirm probe and proximitor compatibility on the bench before the outage begins; (2) back up the 3500 rack configuration and System 1 database; (3) de-energise the proximitor supply rail and disconnect the field cable at the junction box; (4) remove the legacy probe from the mounting boss, noting the gap setting; (5) install the replacement probe to the same gap dimension using a calibrated gap tool; (6) reconnect field wiring, verify shield grounding, and re-energise the proximitor; (7) confirm gap voltage is within the linear range on the monitor card front panel; (8) restore alarm setpoints and verify DCS tag reception before returning the machine to service.

Where the original program logic in the safety or protection system references specific channel addresses or analogue input scaling for the proximity probe signal, these parameters must be verified against the replacement probe’s sensitivity specification (typically 7.87 V/mm for 3300 XL series probes) before the machine is restarted. Any discrepancy in sensitivity between the legacy and replacement probe will result in incorrect vibration amplitude readings and may trigger spurious alarms or, more critically, fail to trigger valid protection trips.

For facilities with strict change management requirements, a pre-approved retrofit procedure document — referencing the 330106-05-30-15-02-00 part number, the proximitor model, the extension cable length, and the expected gap voltage range — should be prepared and signed off before the maintenance window begins. This documentation also supports post-retrofit audit trails and support terms claim processing if required within the 12-month coverage period.

Retrofit Support FAQ

Q1: Is the 330106-05-30-15-02-00 a direct replacement for the original 330106 series probe?
Yes. The 330106-05-30-15-02-00 is a direct drop-in replacement for the original Bently Nevada 330106 series 8mm proximity probes used in 3300 XL monitoring systems. No mechanical modification to the probe holder or mounting boss is required. Confirm total cable system length and proximitor model compatibility before installation.

Q2: What commissioning checks are required after installation?
After installation, verify gap voltage at the monitor card front panel (typically -10 Vdc at the recommended gap), confirm 1X and 2X vibration vector readings in System 1 or the DCS historian, validate alarm and trip setpoints, and check that the DCS tag is receiving data within expected engineering units. Allow 72 hours of trending before closing the work order.

Q3: Can this probe be used with a 3500 Series rack as well as a 3300 XL system?
The 330106-05-30-15-02-00 is primarily specified for 3300 XL proximitor systems. For 3500 Series rack applications, confirm compatibility with the installed monitor card (e.g., 3500/42M) and the proximitor model. In some 3500 installations, a different probe series may be required depending on the monitor card firmware and channel configuration.

Q4: What support terms and pre-shipment testing does KNMKS provide?
All 330106-05-30-15-02-00 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify electrical continuity, cable integrity, and connector condition. Units are shipped with original or equivalent packaging to prevent transit damage. For urgent replacement requirements, expedited shipping is available — contact admin@knmks.com or call +86 18359268345.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330106-05-30-15-02-00
3500 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330106-05-30-15-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
