Bently Nevada 330104-03-09-10-02-00 3300 XL Spare Part: Maintenance-Proven Proximity Probe for Factory Uptime

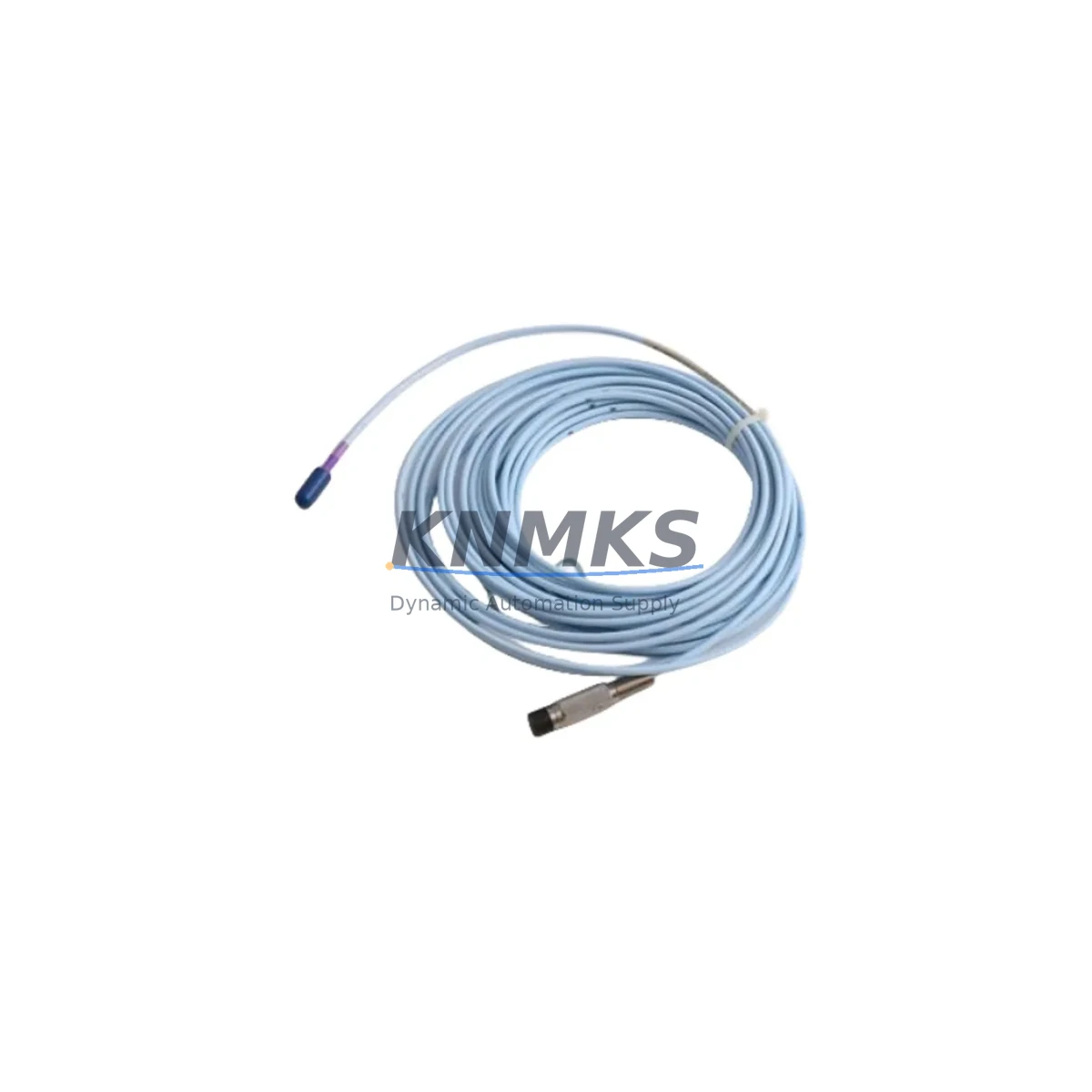

The Bently Nevada 330104-03-09-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Widely deployed in turbomachinery, compressors, pumps, and rotating equipment across oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this probe is a critical front-line sensor in any predictive maintenance programme. When this component fails or degrades, the entire vibration monitoring loop is compromised — making a verified, ready-to-ship spare an operational necessity rather than a convenience.

At KNMKS, every 330104-03-09-10-02-00 unit is sourced as an original Bently Nevada spare, pre-shipment tested for gap voltage linearity, output sensitivity, and cable integrity before dispatch. Our support terms confirmed by quotation cover the full assembly — probe tip, integral cable, and connector — giving maintenance engineers and procurement teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330104-03-09-10-02-00 in the field is rarely an isolated task. A proximity probe failure in a 3300 XL monitoring loop typically signals that adjacent components in the same vibration channel should be inspected simultaneously to prevent repeat callouts and secondary unplanned shutdowns.

During a planned replacement, maintenance engineers should verify the condition of the 330130-series extension cable connecting the probe to the Proximitor® sensor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-vibration or high-temperature zones near bearing housings. A degraded extension cable will introduce gap voltage drift even with a new probe installed.

The 330180-series 3300 XL Proximitor® Sensor (driver module) should be bench-tested for output linearity and bias voltage stability. If the Proximitor has been in service for more than five years or has experienced supply voltage transients, proactive replacement during the same maintenance window eliminates a common root cause of recurring alarms.

Inspect the 3300 XL rack power supply module supplying −24 VDC to the monitoring channel. Voltage sag or ripple on the supply rail directly affects probe sensitivity calibration. Use a calibrated multimeter to confirm rail voltage is within ±0.5 VDC of nominal before re-commissioning the channel.

For facilities running integrated machinery protection systems, the 3500-series rack I/O modules interfacing vibration data to the DCS or safety system should be checked for channel-to-channel isolation integrity. A shorted I/O channel can mask a genuine high-vibration alarm, creating a latent safety risk that persists after the probe is replaced.

Where the 3300 XL system feeds vibration data to a DCS historian or condition monitoring platform, verify that the signal scaling and engineering unit conversion parameters are correctly restored after channel re-commissioning. Incorrect scaling is a frequent post-maintenance error that generates nuisance alarms or, worse, suppresses genuine fault indications.

Finally, review the terminal block and field wiring connections at the junction box between the extension cable and the control cabinet. Loose or corroded terminals are a disproportionate source of intermittent vibration faults and should be torqued to specification and treated with appropriate contact protection compound during every planned maintenance intervention.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a Permit to Work for the affected machine train. Confirm the monitoring channel is placed in bypass or alarm inhibit mode in the 3300 XL rack to prevent spurious trips during probe removal.

Step 2 — Gap Measurement Before Removal: Record the existing probe gap voltage (typically −10 VDC ± 1 VDC at the nominal air gap) as a baseline. Significant deviation from the expected value confirms the probe as the fault source and provides a reference for the replacement unit.

Step 3 — Probe Removal: Unthread the probe from the mounting bracket using the correct spanner. Avoid applying torque to the integral cable. Inspect the probe tip for mechanical damage, contamination, or corrosion that may indicate a secondary process issue.

Step 4 — New Probe Installation: Install the 330104-03-09-10-02-00 replacement unit. Set the air gap to the manufacturer-specified nominal value (typically 1.0 mm / 40 mil for standard steel targets) using a non-ferrous feeler gauge. Secure the locknut to the specified torque.

Step 5 — Cable Connection and Continuity Check: Connect the integral cable to the extension cable. Verify connector seating and apply thread-locking compound if specified. Perform a cable continuity and insulation resistance check before energising the channel.

Step 6 — Channel Re-commissioning: Restore power to the Proximitor® sensor. Confirm gap voltage at the monitor rack is within the linear range (−10 VDC ± 0.5 VDC nominal). Remove alarm inhibit and verify the channel is active and alarm-free under normal machine operating conditions.

Step 7 — Documentation: Record the replacement in the CMMS with the new probe serial number, installation date, gap voltage reading, and technician sign-off. Update the spare parts inventory to trigger replenishment of the consumed unit.

Spare Parts Support FAQ

Q1: Is the 330104-03-09-10-02-00 a direct drop-in replacement for older 330104 variants?
The 330104-03-09-10-02-00 is part of the 3300 XL probe family and is designed for use with 3300 XL Proximitor® sensors and extension cables. Earlier 3300 series probes (non-XL) use a different sensitivity specification and are not directly interchangeable. Always confirm the Proximitor® sensor model number before ordering to ensure system-level compatibility.

Q2: What pre-shipment testing does KNMKS perform on this probe?
Each unit is tested for gap voltage output at a calibrated air gap, output sensitivity (mV/mil), cable continuity, and connector integrity before dispatch. A test record is available on request. This protocol ensures the probe performs to specification immediately upon installation, reducing commissioning time and the risk of infant-failure returns.

Q3: Can KNMKS support long-term supply agreements for this SKU?
Yes. KNMKS offers 12–36 month supply agreements for the 330104-03-09-10-02-00 and associated 3300 XL components, including extension cables and Proximitor® sensors. Long-term agreements include reserved stock allocation, fixed pricing, and priority dispatch — suitable for multi-site maintenance programmes and annual shutdown planning.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects in the probe tip, integral cable, and connector assembly under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or use outside the specified temperature and target material range. Support requests are processed directly through KNMKS with replacement dispatch typically within 5 business days of fault confirmation.
