Bently Nevada 330104-00-17-05-02-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330104-00-17-05-02-00 Spare Part for Factory Uptime

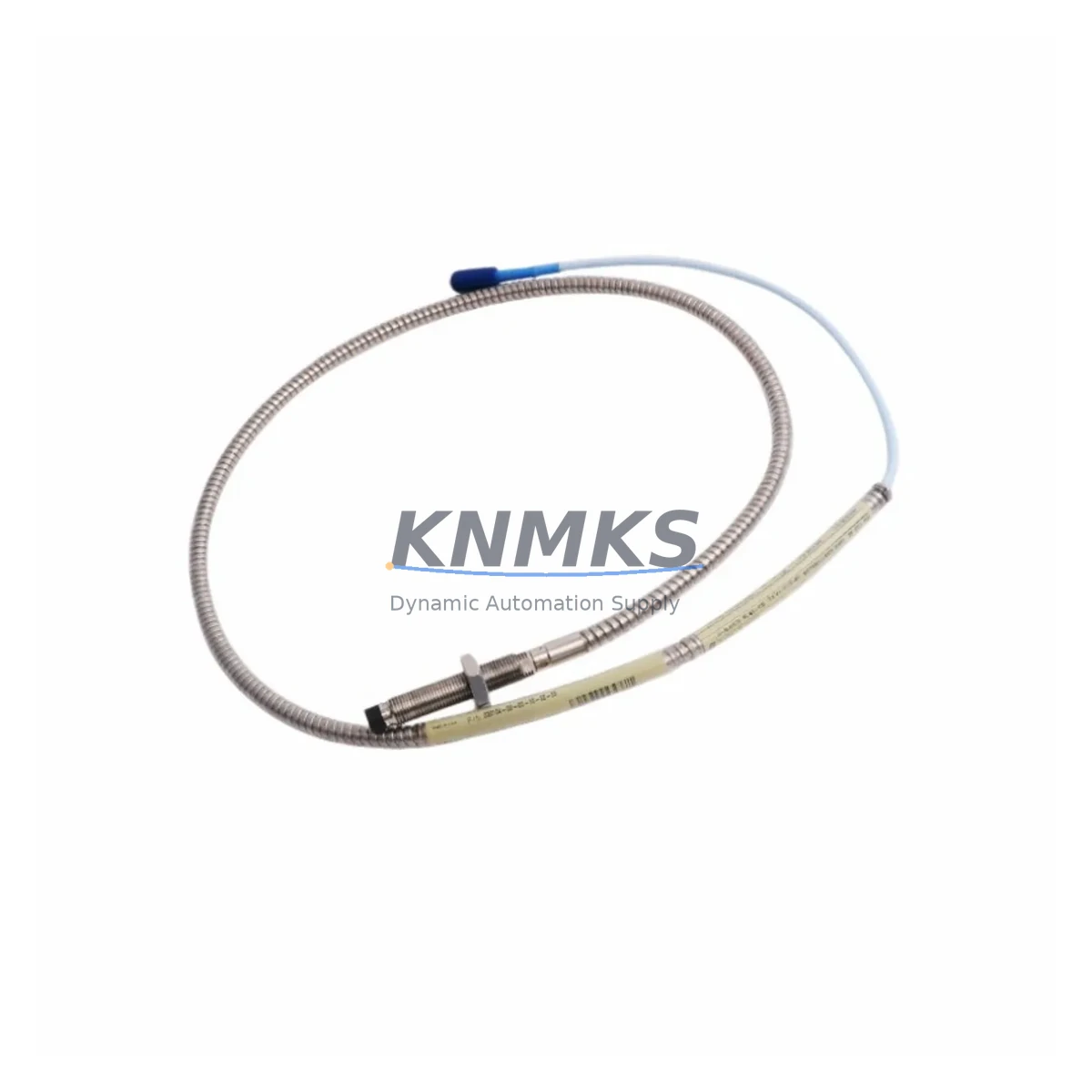

The Bently Nevada 330104-00-17-05-02-00 is an original 8mm proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery protection systems. As a maintenance-proven spare part, it is a critical component in turbine, compressor, pump, and motor protection circuits where unplanned downtime carries significant operational and financial risk. Sourced as an original Bently Nevada component, this probe is pre-shipment tested and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned spare parts inventory.

Maintenance engineers and procurement teams managing aging machinery protection systems rely on the 3300 XL proximity probe series for its long-term availability, consistent signal output, and compatibility with the broader Bently Nevada 3300 XL monitoring ecosystem. Whether you are responding to a vibration alarm, conducting an annual overhaul, or building a strategic spare parts buffer for critical rotating assets, the 330104-00-17-05-02-00 delivers the dimensional accuracy and electrical performance required for reliable eddy-current sensing in demanding industrial environments.

This probe is designed for use with the Bently Nevada 3300 XL proximitor/extension cable system. Its 8mm tip diameter and standardized cable length make it a direct replacement for worn or damaged probes in existing installations without requiring re-calibration of the full measurement chain — provided the matched extension cable and proximitor remain within specification. Procurement engineers should confirm the complete probe-cable-proximitor system compatibility before ordering to avoid signal chain mismatches that can trigger false alarms or mask genuine machinery faults.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-17-05-02-00 proximity probe in a 3300 XL monitoring loop, a thorough site inspection of the complete measurement chain is essential to restore full system integrity and prevent repeat failures. Begin by inspecting the matched Bently Nevada 330130 extension cable for jacket damage, connector corrosion, or impedance drift — a degraded extension cable is a common root cause of erratic vibration readings even after a probe replacement. Verify that the Bently Nevada 3300 XL Proximitor (e.g., 330180 series) is within its calibration window and that its output voltage at the gap distance is within the ±0.5 V tolerance specified for the probe-cable-proximitor system.

Check the -24 VDC power supply rail feeding the proximitor, as voltage sag or ripple on this rail directly degrades probe sensitivity and can introduce noise into the vibration signal. In control cabinets housing multiple 3300 XL channels, inspect the terminal blocks and field wiring for loose connections, moisture ingress, or ground loops — particularly in high-vibration environments where terminal screws can back off over time. If the machinery protection system interfaces with a Bently Nevada 3500 series rack or a third-party DCS/PLC via 4–20 mA or relay outputs, confirm that the I/O module receiving the vibration signal is functioning correctly and that alarm setpoints have not drifted.

For installations where the proximity probe monitors axial position or differential expansion in addition to radial vibration, also inspect the thrust position monitor module and its associated wiring for continuity and correct scaling. Annual maintenance schedules for critical rotating assets should include a spare 330104-00-17-05-02-00 probe and matched extension cable set held on-site to minimize mean time to repair (MTTR) during unplanned outages. Procurement teams managing multi-unit plants should consider stocking Bently Nevada 3300 XL proximitor modules alongside probe sets to cover the full measurement chain in a single maintenance event.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the -24 VDC supply to the proximitor before disconnecting the probe cable to avoid signal transients that could trigger spurious machinery trips.

Step 2 — Probe Removal: Unthread the probe from its holder using the correct spanner. Note the gap distance (air gap between probe tip and shaft) before removal — typically 1.0–1.5 mm for 8mm probes — and record it for re-installation reference.

Step 3 — Extension Cable Inspection: Disconnect the extension cable at both the probe and proximitor ends. Inspect the coaxial connectors for corrosion or mechanical damage. Measure cable impedance if test equipment is available.

Step 4 — New Probe Installation: Thread the 330104-00-17-05-02-00 into the probe holder. Set the gap distance to the recorded value or per the OEM specification. Reconnect the extension cable, ensuring connectors are fully seated and finger-tight plus one-quarter turn.

Step 5 — System Verification: Restore -24 VDC supply. Measure proximitor output voltage at the set gap — it should read approximately -10.0 VDC ±0.5 V for a 1.27 mm gap on a steel target. Confirm the vibration monitor displays a valid reading within the normal operating band before returning the machine to service.

Step 6 — Documentation: Record the replacement date, new probe serial number, gap setting, and proximitor output voltage in the site maintenance log. Update the spare parts inventory to trigger reorder of the consumed probe.

Spare Parts Support FAQ

Q1: Is the 330104-00-17-05-02-00 compatible with all 3300 XL proximitors?
The 330104-00-17-05-02-00 is designed for use within the Bently Nevada 3300 XL probe-cable-proximitor system. It must be used with a matched 3300 XL extension cable and a compatible 3300 XL proximitor. Mixing components from different Bently Nevada series (e.g., 7200 or 3300 NSv) is not recommended without verifying system compatibility, as sensitivity and output scaling differ between series.

Q2: What pre-shipment testing is performed on this spare part?
Each 330104-00-17-05-02-00 unit undergoes electrical verification (output sensitivity, insulation resistance) and dimensional inspection (tip diameter, thread integrity, cable connector condition) before shipment. A test report is available on request. This ensures the probe performs to specification immediately upon installation, reducing commissioning time during emergency replacements.

Q3: What is the support terms coverage and long-term supply commitment?
This spare part is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and electrical performance. Long-term supply is available for multi-unit procurement and annual maintenance contracts. Contact our sales team for lead times, volume pricing, and consignment stock arrangements for critical rotating asset programs.

Q4: Can this probe replace older or discontinued Bently Nevada proximity probe models?
The 330104-00-17-05-02-00 follows the standard 3300 XL 8mm probe form factor and electrical specification. It can serve as a direct replacement for earlier 3300 XL 8mm probe variants in most installations, provided the extension cable and proximitor are also 3300 XL series. For legacy systems using older Bently Nevada probe series, a full system compatibility review is recommended before substitution to ensure alarm setpoints and sensitivity scaling remain valid.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-17-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-17-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
